Tamiya Mercedes Benz G500 Cc 02 Chassis 1 10rc

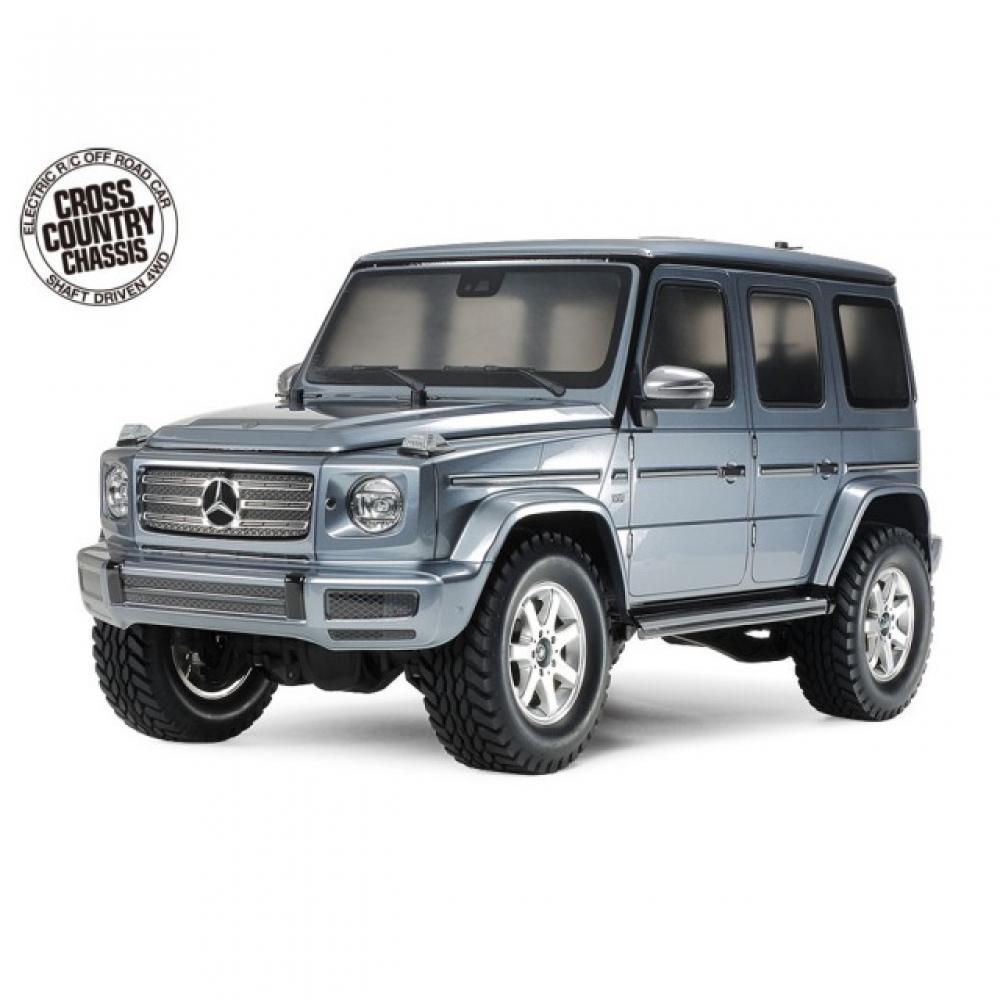

Product Name: Tamiya Mercedes-Benz G500 CC-02 Chassis 1/10 RC

Brand Introduction:

Tamiya is a renowned Japanese model manufacturer known for high-quality RC cars and plastic models. It is loved worldwide for its excellent quality and intricate designs. Product Description:

This electric radio-controlled assembly kit replicates the Mercedes-Benz G-Class cross-country vehicle, known for its durable construction and square form. It models the G 500 equipped with a 4-liter V8 twin-turbo engine. The body is made of polycarbonate, delivering a realistic representation, while chrome parts replicate the front grill and headlight cases, along with separately provided door mirrors and spare tire covers for high scale accuracy. The CC-02 chassis is equipped with front and rear 4-link rigid suspension and shaft drive 4WD, making it suitable for various terrains including on-road and off-road. Adopting a ladder frame shape similar to real vehicles, it combines high rigidity with realism. The motor is vertically positioned at the rear of the front axle, separating the gearbox and transfer case to transmit power smoothly using a propeller shaft with multiple gear ratios to select from. Usage Instructions:

After assembly, attach the motor and connect the power supply for operation. Use the designated transmitter to steer in your desired direction. Basic Specifications:

Overall Length: 455mm

Overall Width: 196mm

Overall Height: 207mm

Wheelbase: 267mm

Tread (Front): 160mm, (Rear): 163mm

Tire Width/Diameter: 33/90mm

Frame: Ladder Frame type

Drive Type: Vertically mounted motor - Shaft drive 4WD

Differential Gear Type: 3 bevel differential

Suspension: Front and rear 4-link rigid

Gear Ratio: 17.33:1 (using standard 16T pinion)

Speed Controller: ESC specification (sold separately)

Motor: RS540 type

Attention:

Additional power supply devices and batteries may be required based on the components. Proper assembly and inspection are necessary before use. Items to be Purchased Separately:

Fine Spec 2.4G electric RC drive set and four AA batteries for the transmitter are required.

To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
