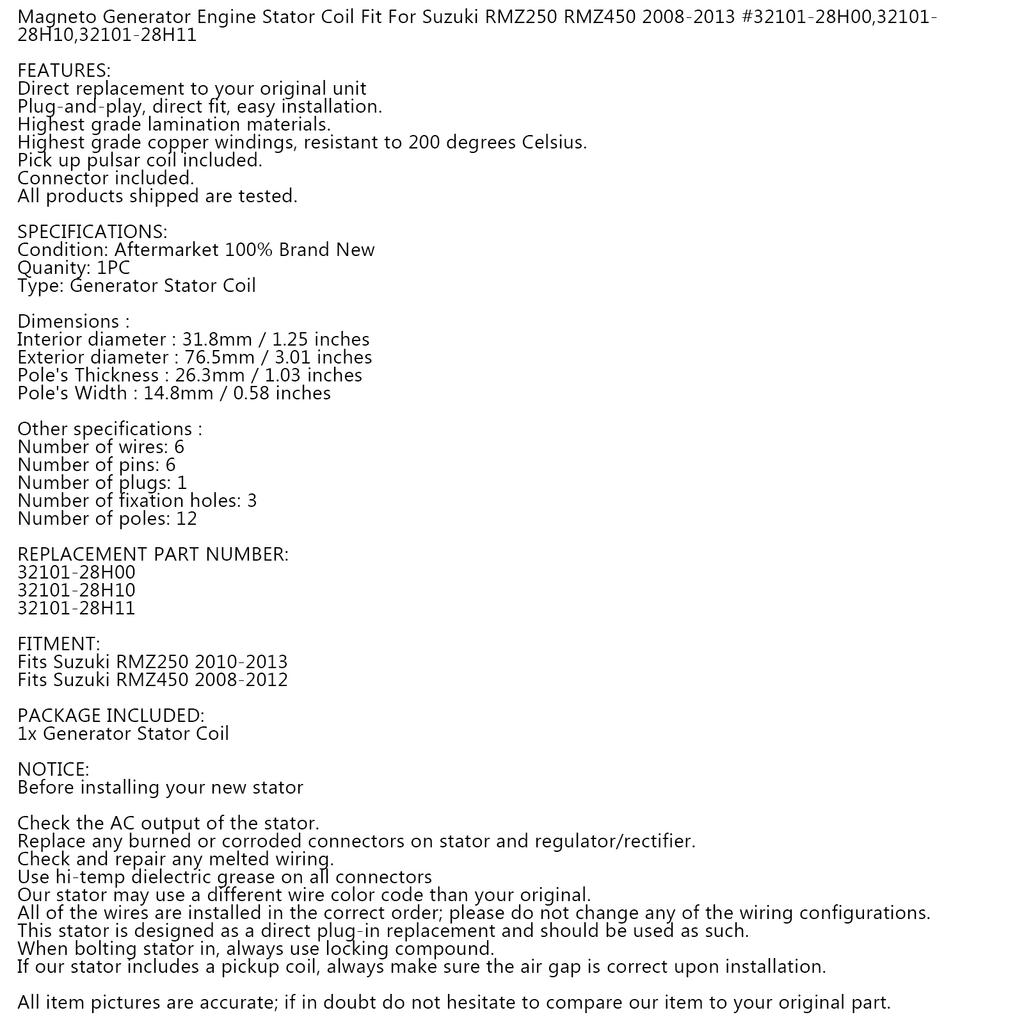

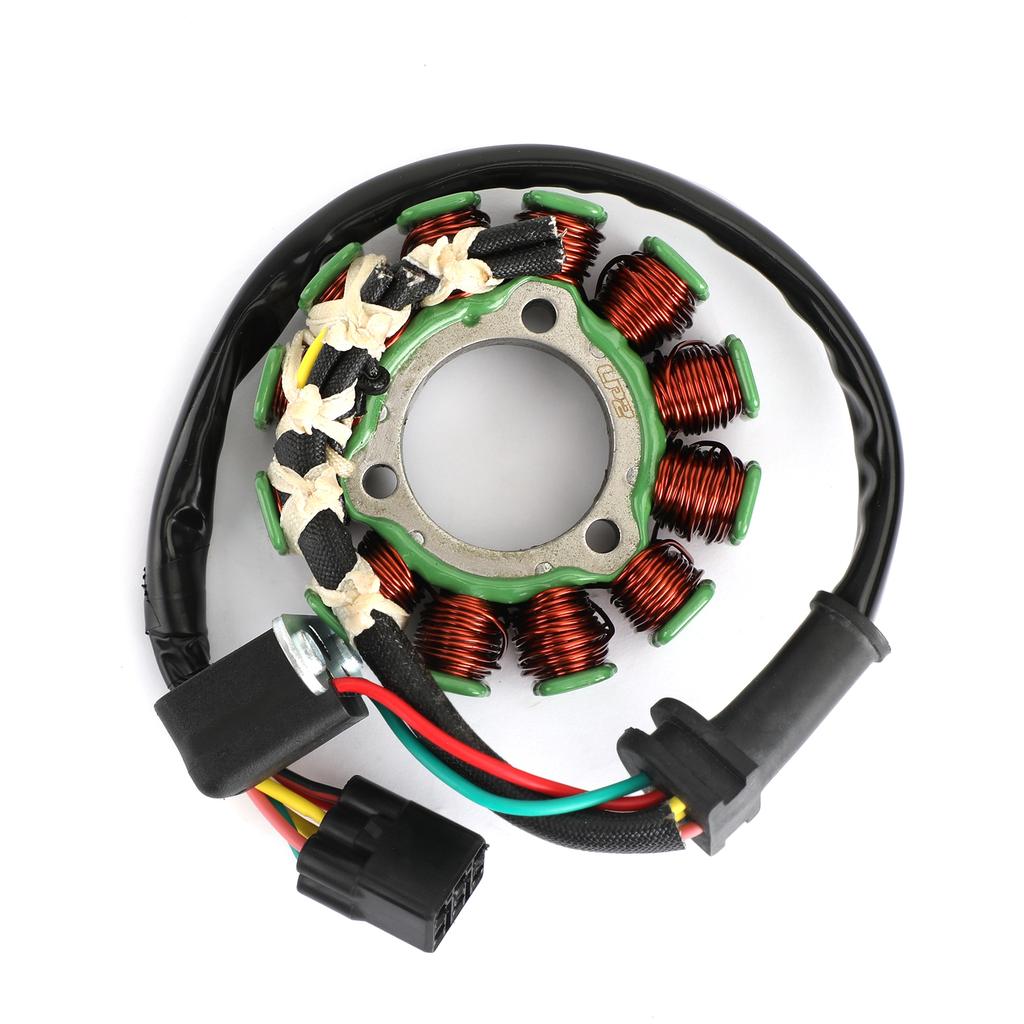

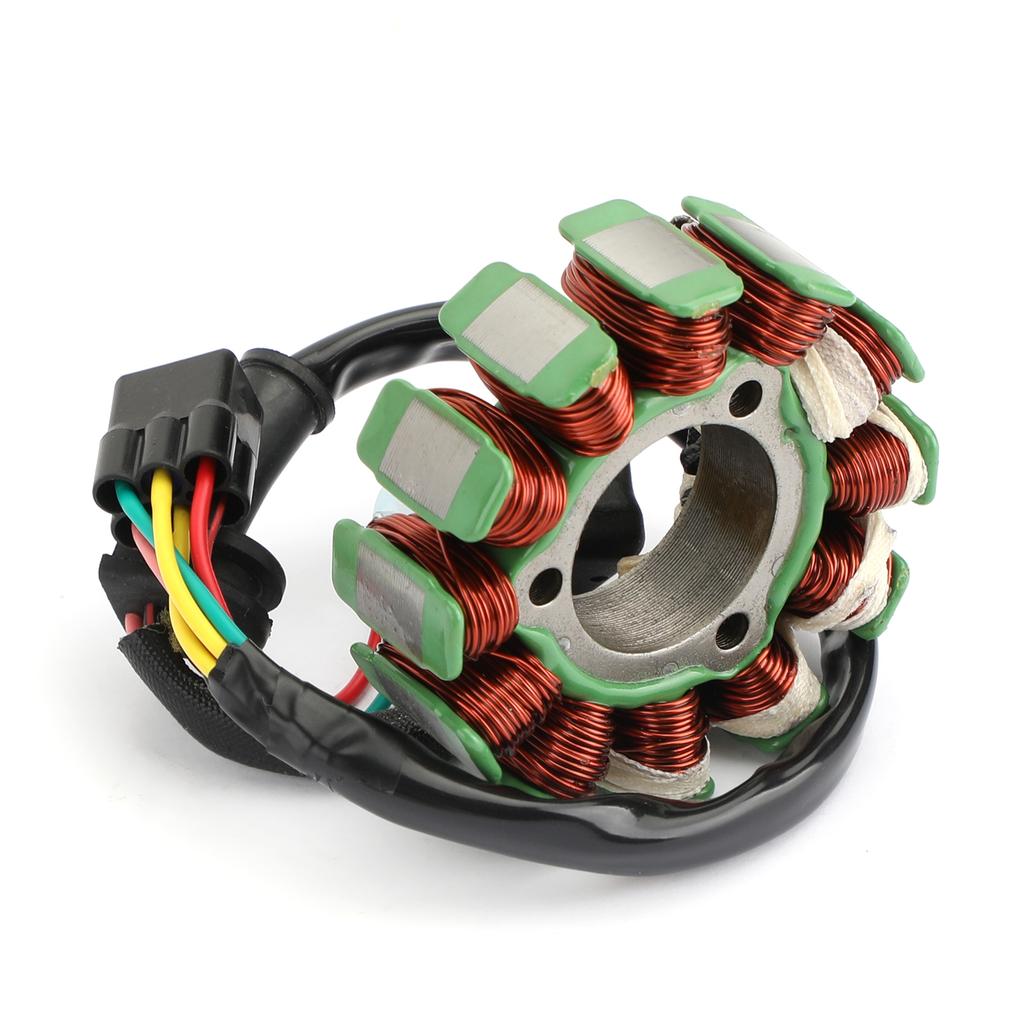

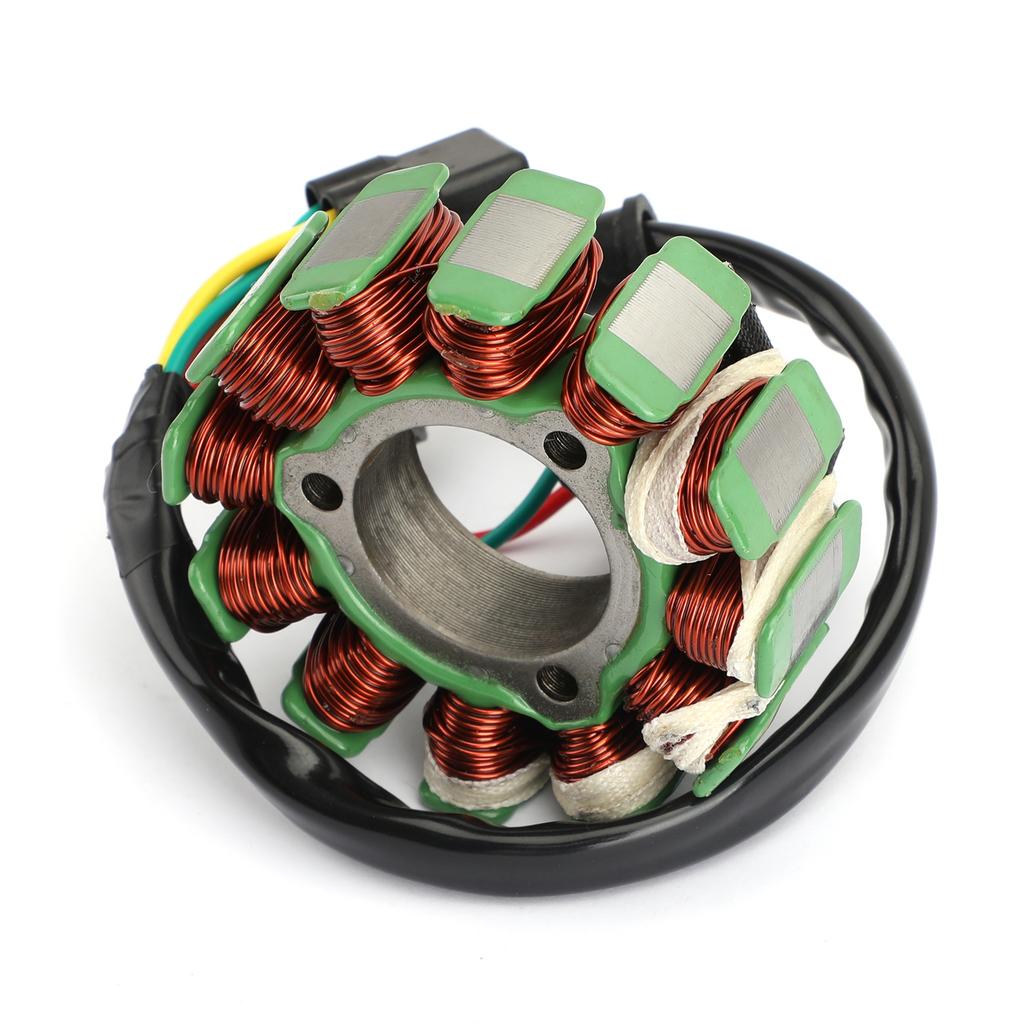

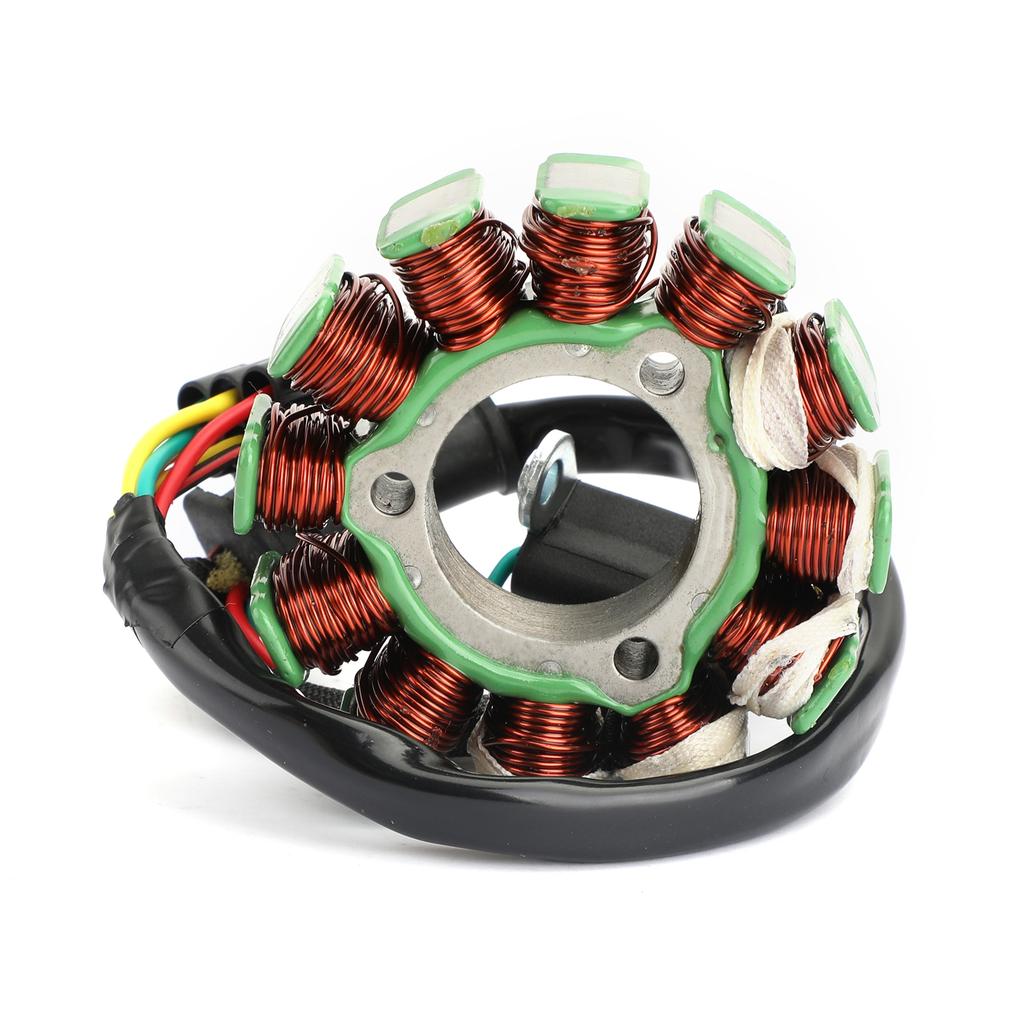

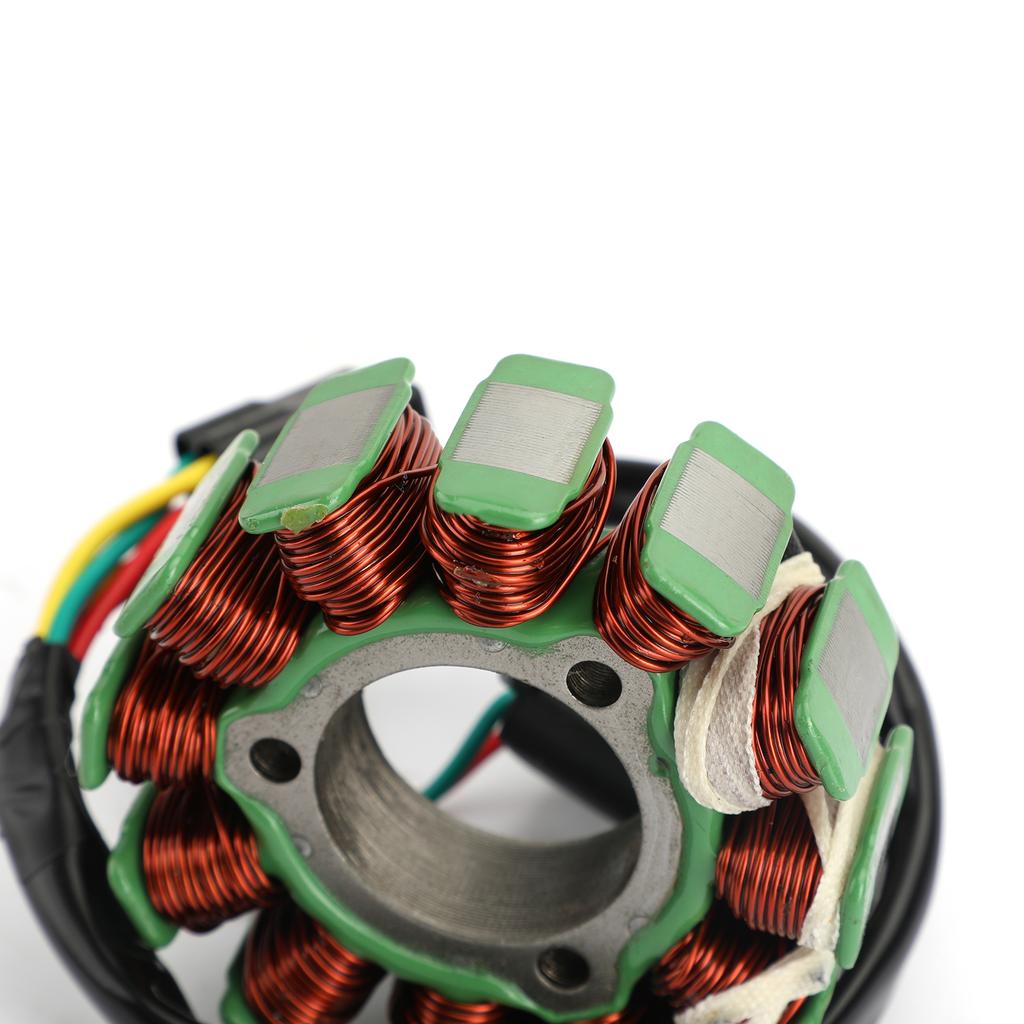

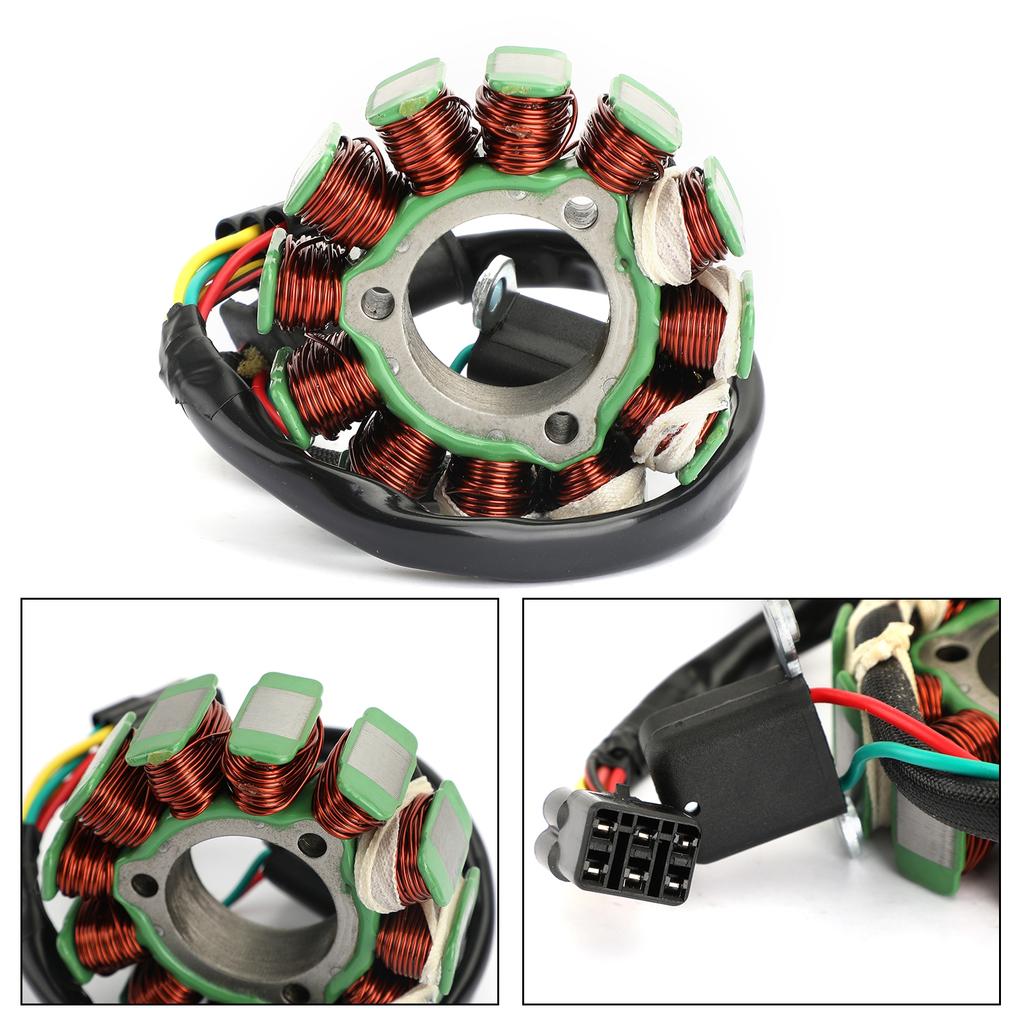

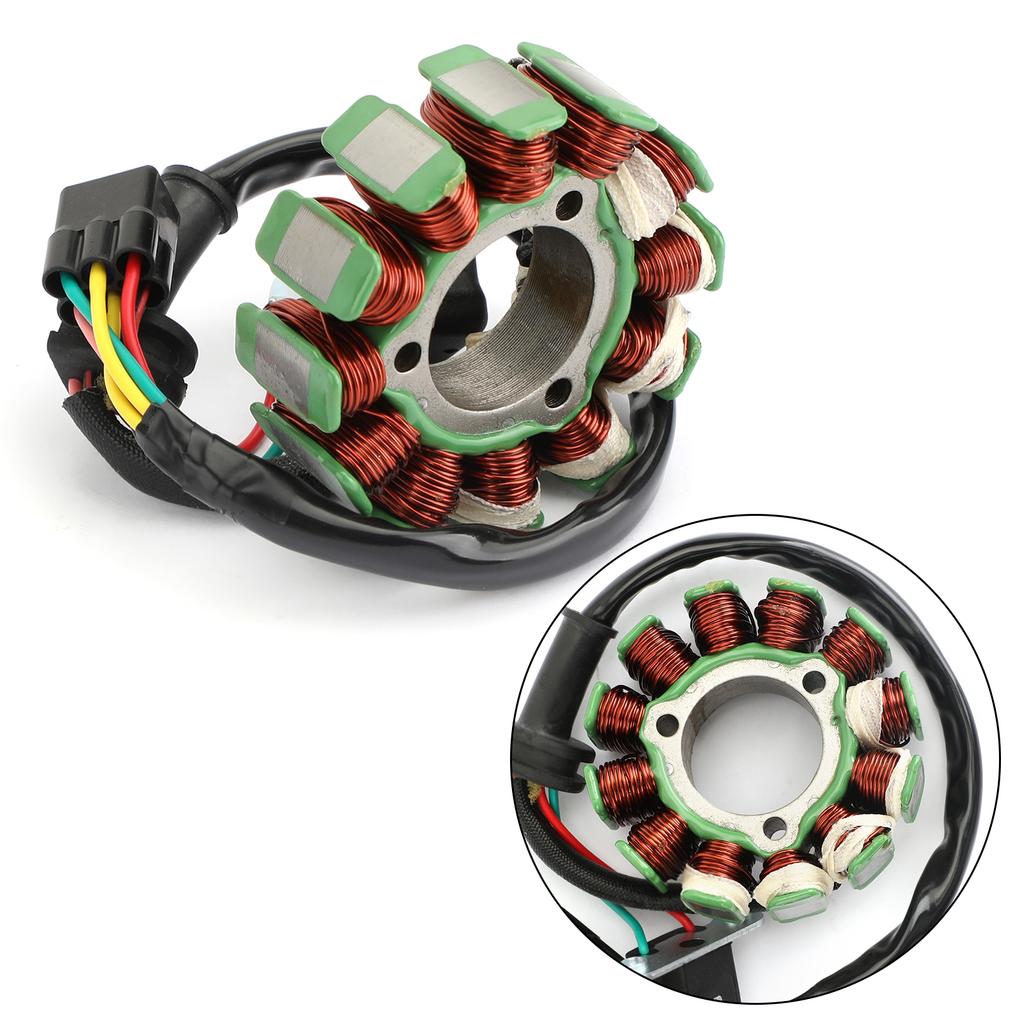

Magneto Generator Engine Stator Coil Fit For Suzuki RMZ250 RMZ450 2008-2013 #32101-28H00,32101-28H10,32101-28H11
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

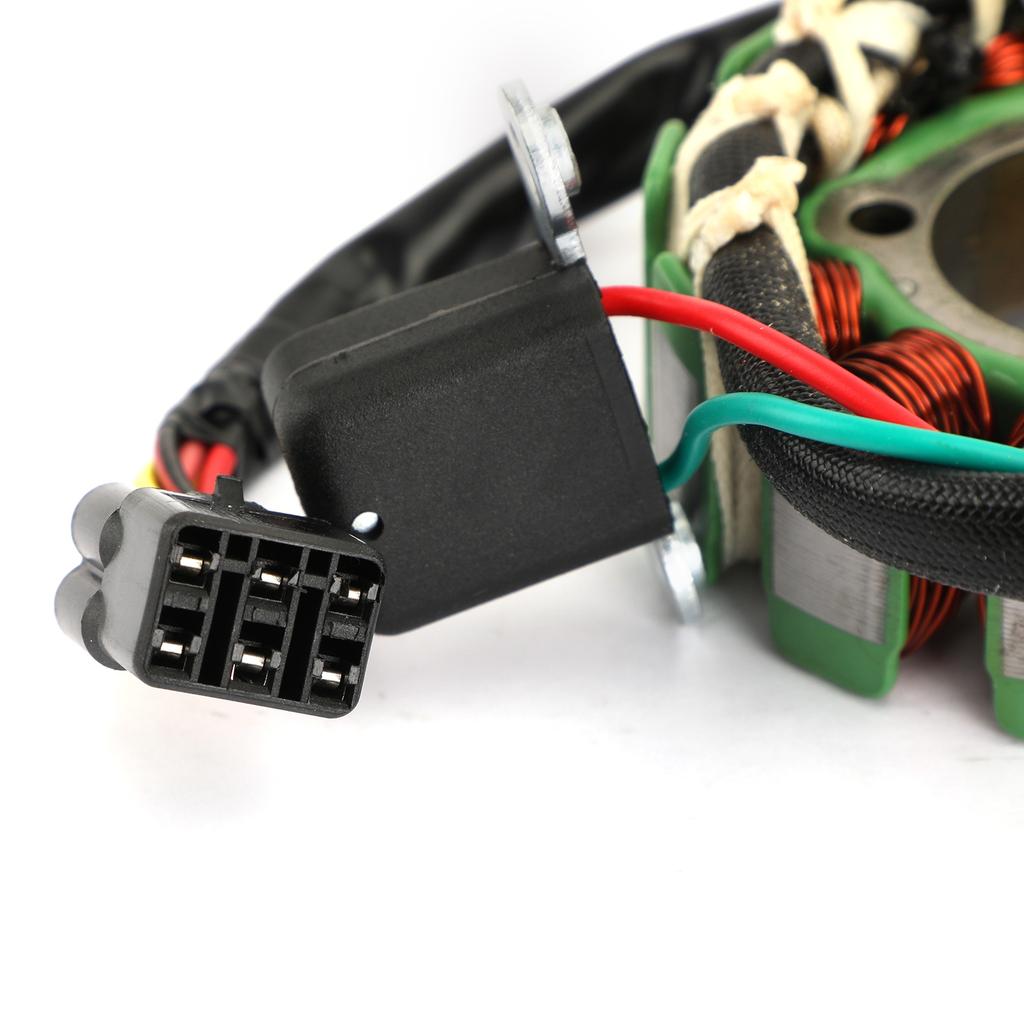

Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 31.8mm / 1.25 inches
Exterior diameter : 76.5mm / 3.01 inches
Pole's Thickness : 26.3mm / 1.03 inches
Pole's Width : 14.8mm / 0.58 inches
Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 12
REPLACEMENT PART NUMBER:
32101-28H00
32101-28H10
32101-28H11
FITMENT:
Fits Suzuki RMZ250 2010-2013
Fits Suzuki RMZ450 2008-2012
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
