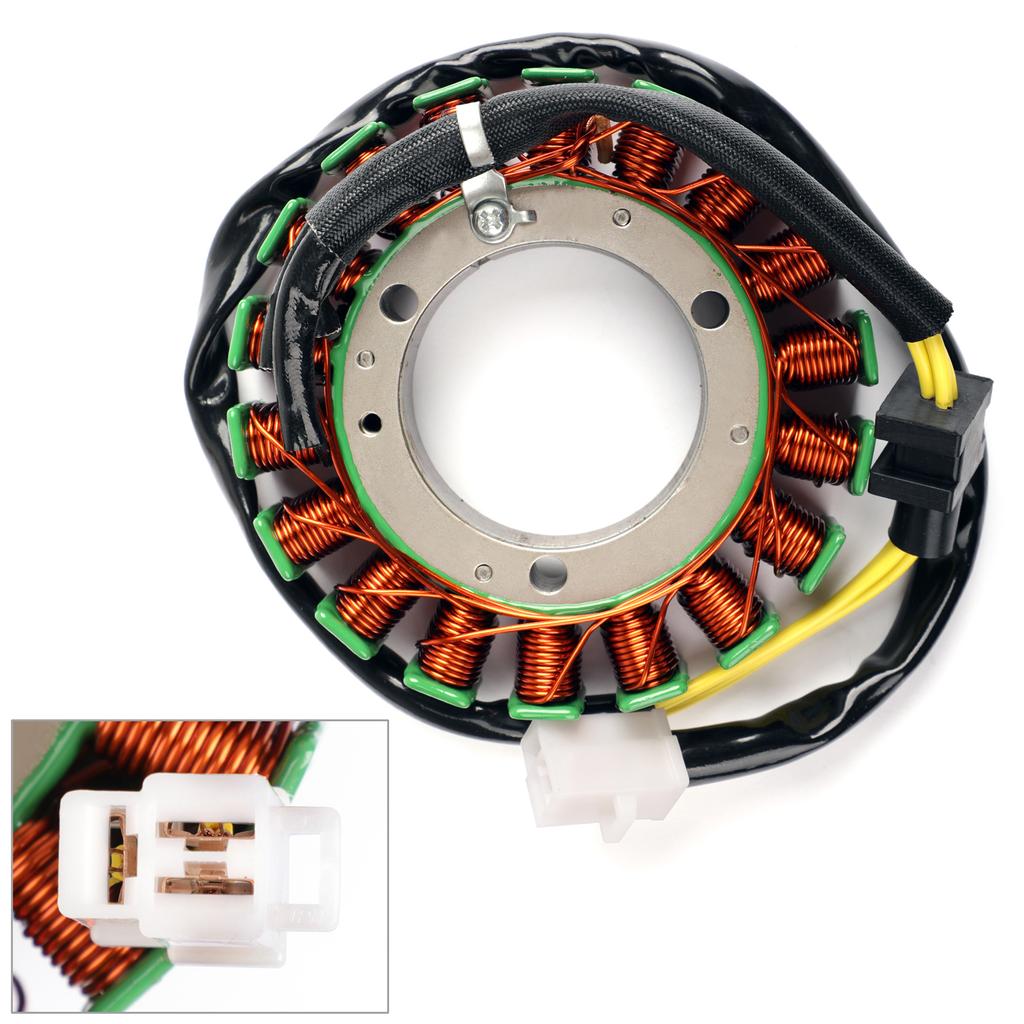

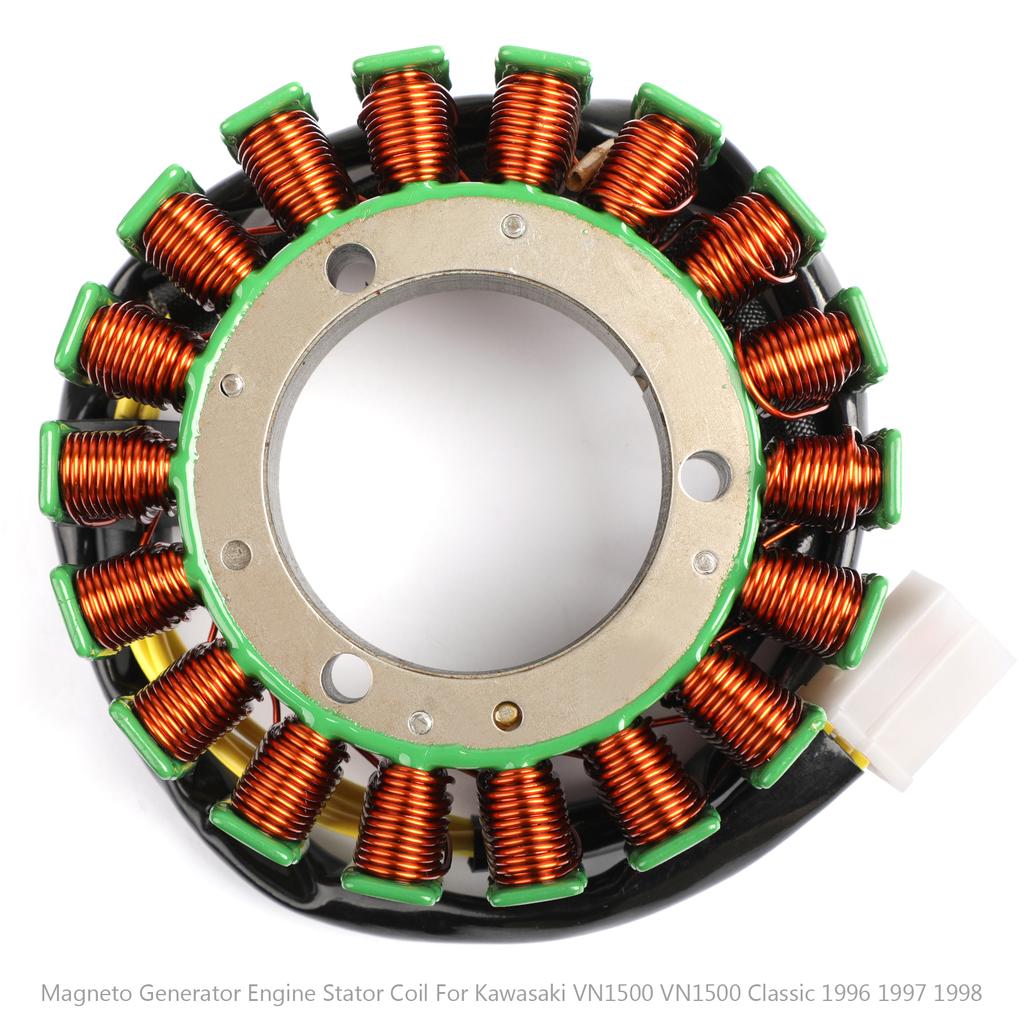

Generator Stator Coil Alternator Fit for Kawasaki Vulcan 1500 VN1500 Classic 1996-1998
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 53 mm / 2.07in
Exterior diameter : 115 mm / 4.53in
Thickness : 14 mm / 0.55in
Other Specifications :
Number of wires : 3

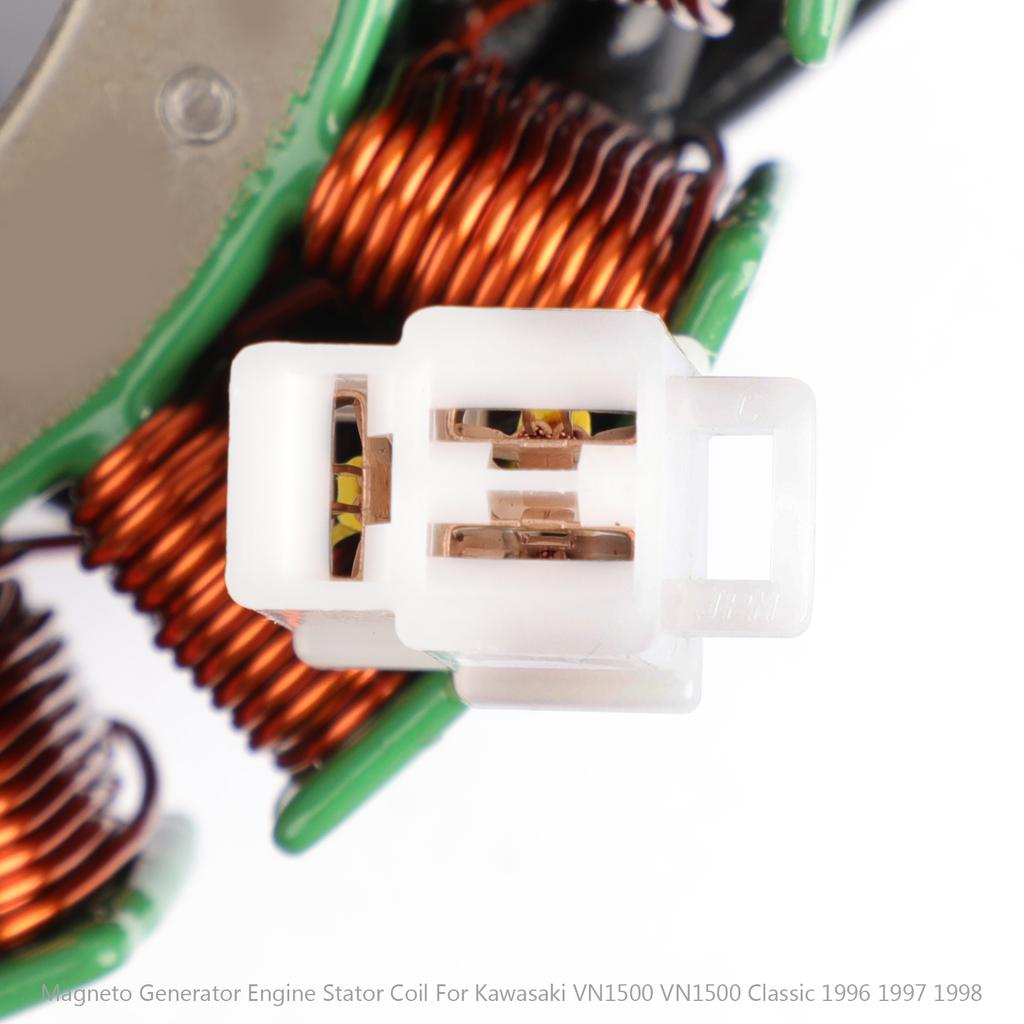

Number of pins : 3
Number of plug : 1
Number of fixation holes: 3
Replacement Part Number:
21003-1301
21003-1377
Fitments:
Fit for Kawasaki VN1500 VN1500 Classic 1996-1998
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Includes:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
