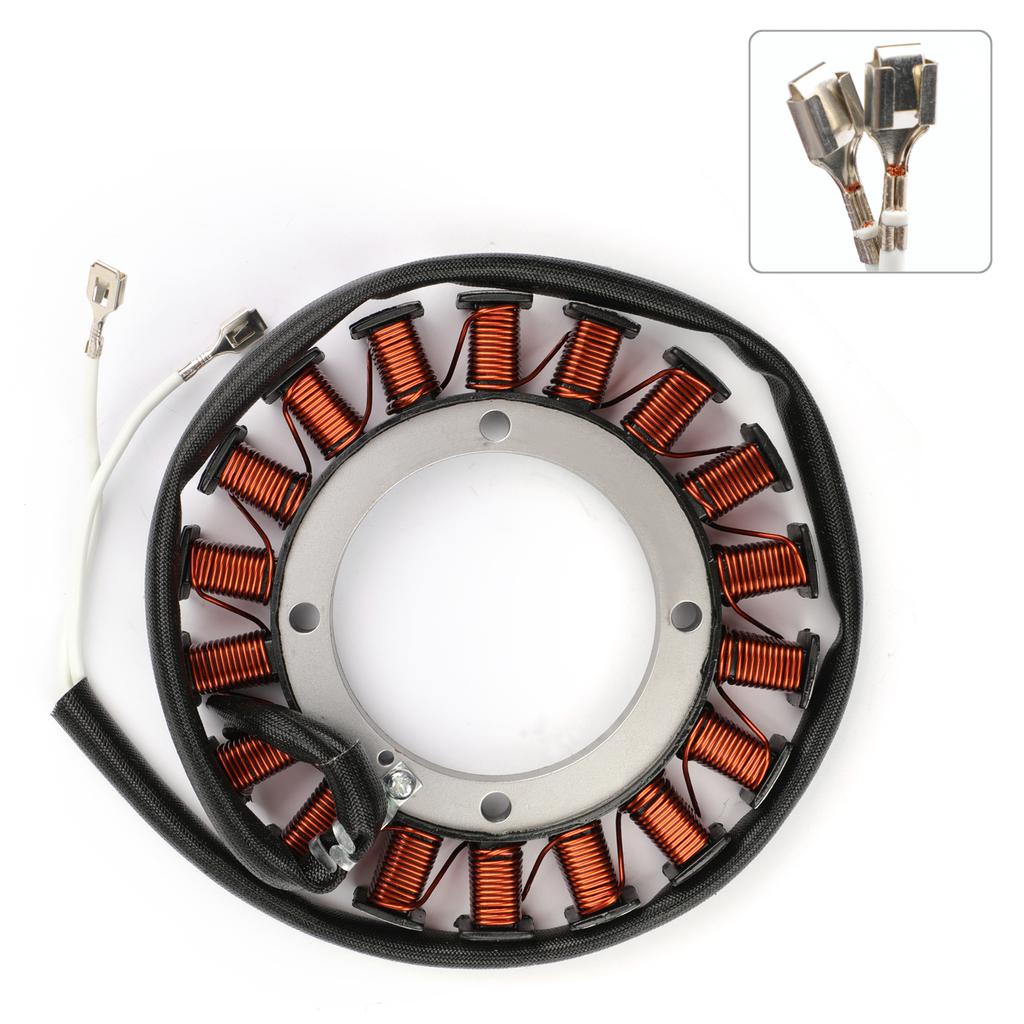

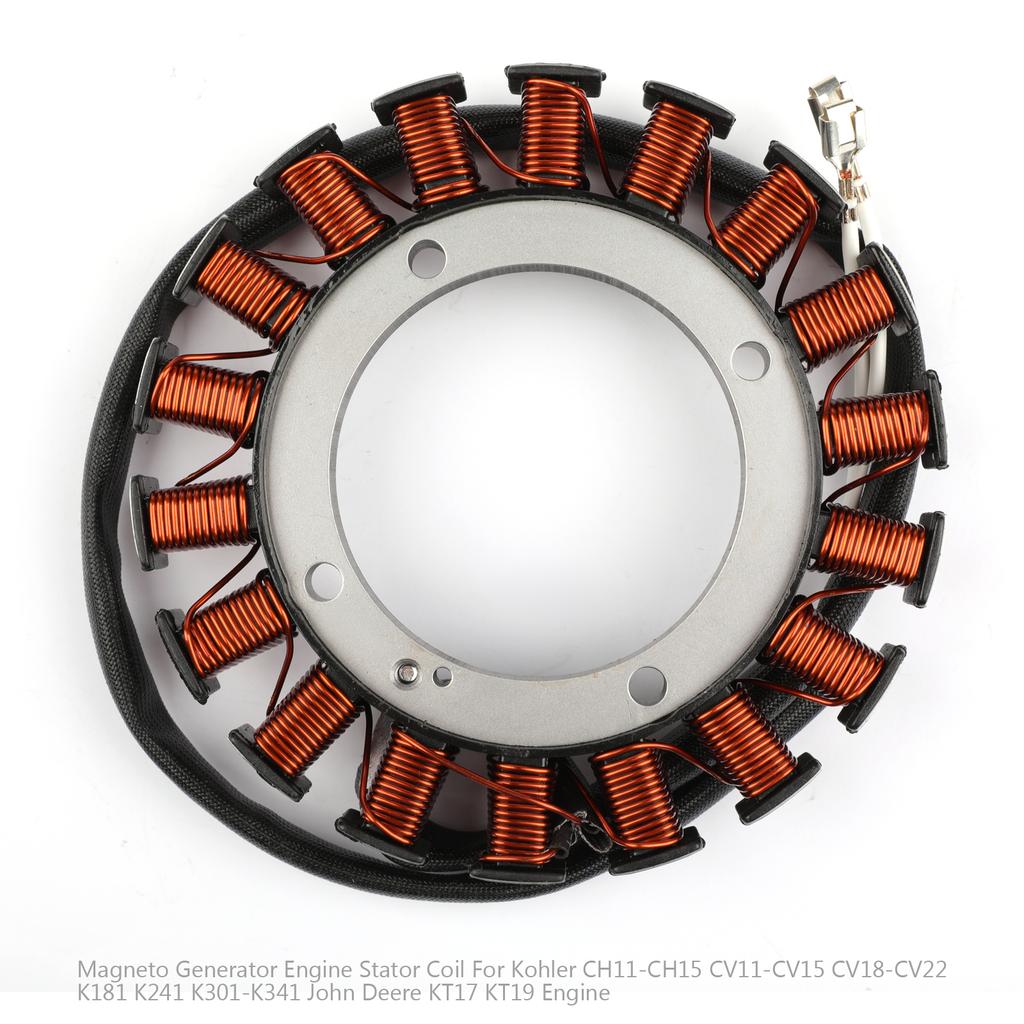

Magneto Generator Engine Stator Coil For Kohler CH11-CH15 CV11-CV15 CV18-CV22 K181 K241 K301-K341
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
All products shipped are tested
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 70 mm / 2.77in
Exterior diameter : 140 mm / 5.54in
Thickness : 16 mm /0.64in
Other Specifications :
Number of wires : 2

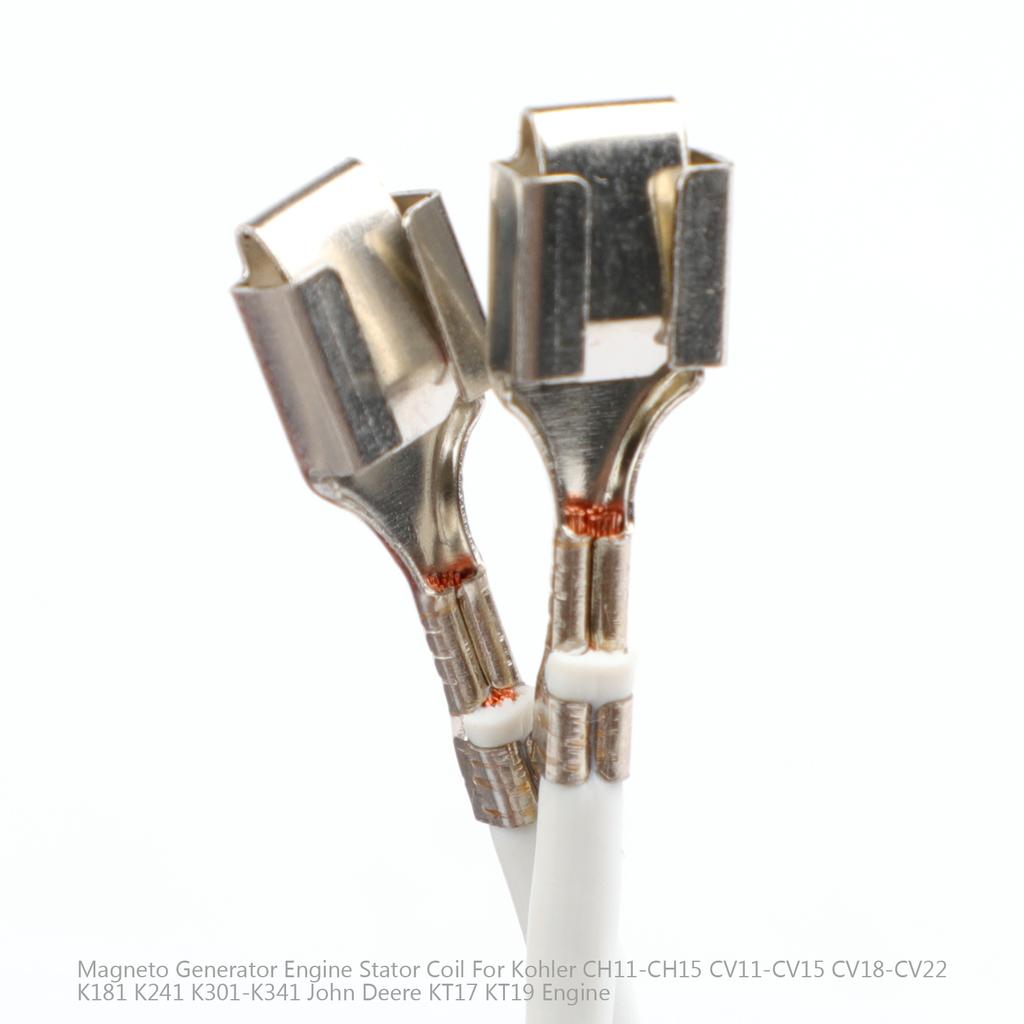

Number of pins : 2
Replacement Part Number:
237878-S
234859
237329
237330
237331
237399
237716
4108507
4708501
4708511
5475509-S
A-237329
055-489
Fitments:
For Kohler CH11-CH15
For Kohler CH18-CH25
For Kohler CV11-CV15
For Kohler CV18-CV22
For Kohler K181
For Kohler K241
For Kohler K301-K341
For John Deere KT17 Kohler Engine
For John Deere KT19 Kohler Engine
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
