Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----
Kindly note that delivery is currently unavailable to Northern Ireland, the Isle of Man, or other remote areas of the UK. If an order is placed for these regions, it may need to be cancelled.

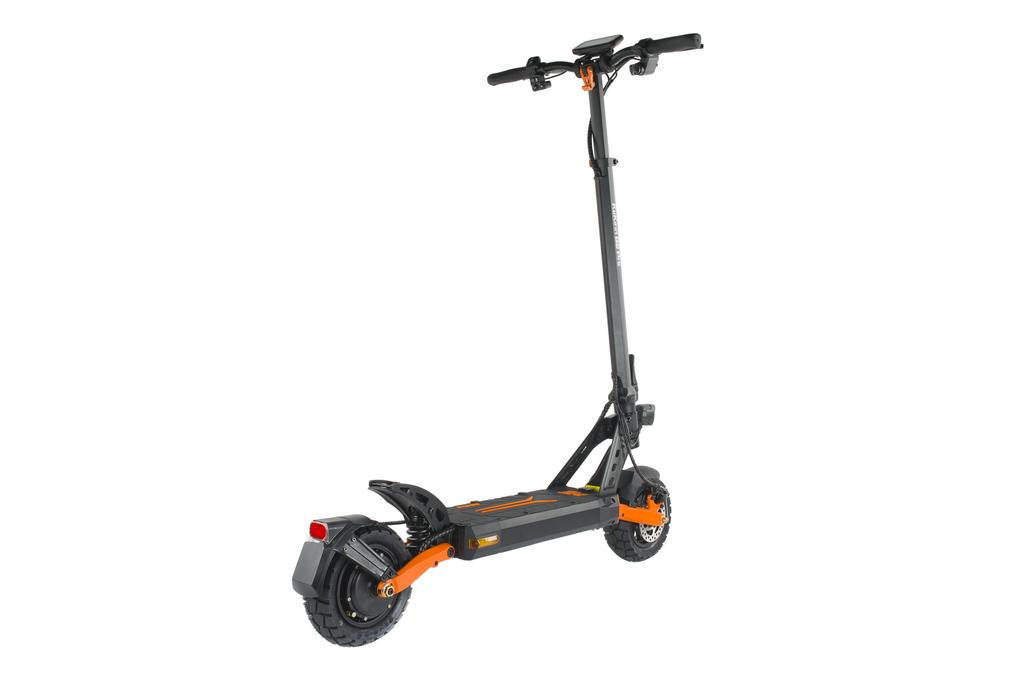

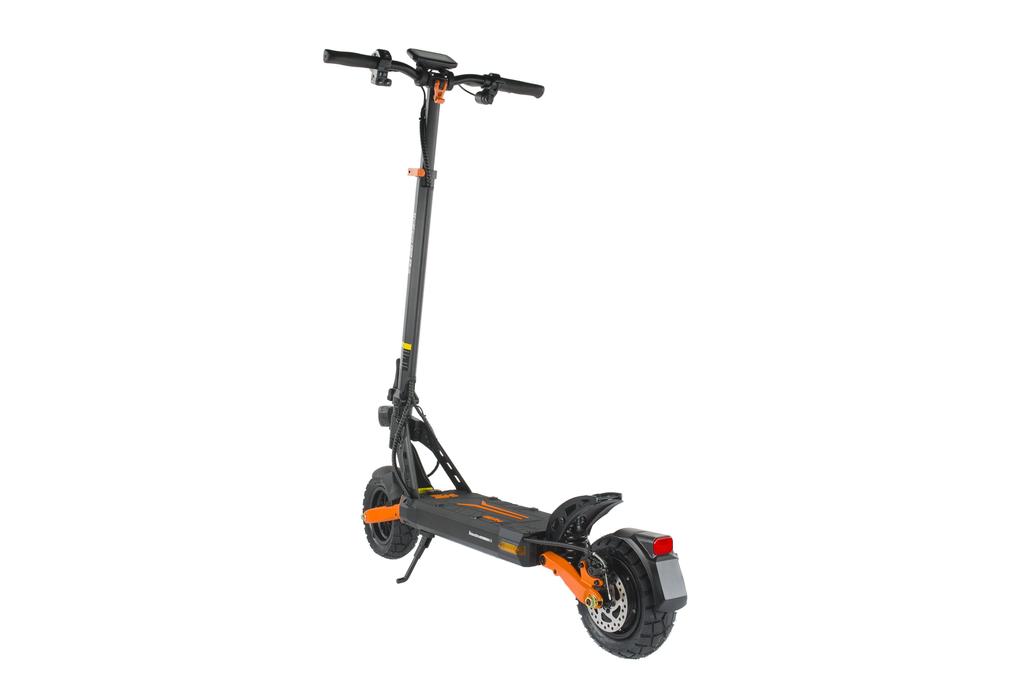

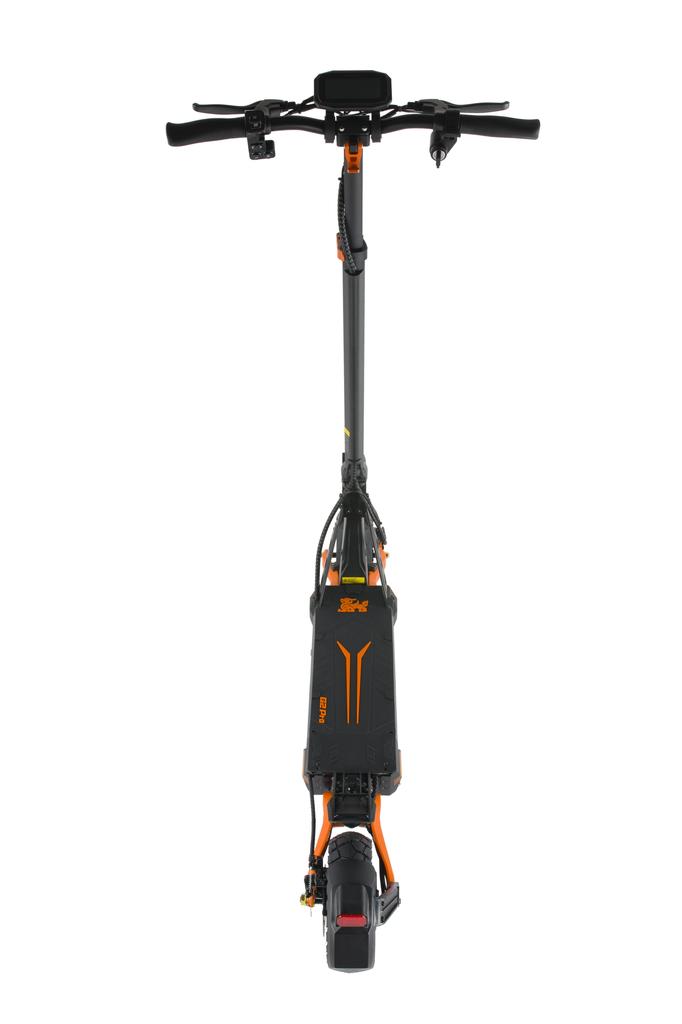

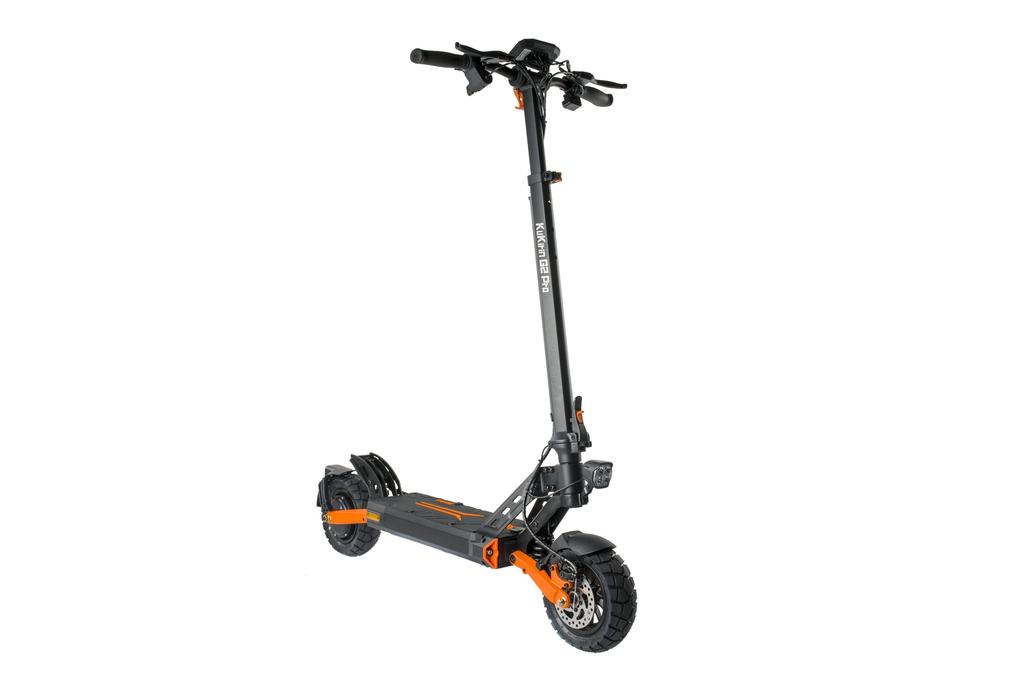

KuKirin G2 Pro
Basic Information
Weight: Net 25 ± 0.5 kg / Gross 30 ± 0.5 kg
Max Load: 120 kg
Dimensions:
Unfolded: 1170 × 590 × 1300 mm
Folded: 1170 × 590 × 512 mm
Chassis Height: 140 mm
Frame Material: Aluminum Alloy + Steel
Performance
Top Speed: 45 km/h
Speed Modes:
No-load: 23 / 43 / 55 km/h
With 65 kg load: 20 / 40 / 45 km/h
Range: ≤58 km (with 65 kg load, medium speed)
Climbing Ability: ≤19° slope
Braking Distance: 5–12 m
Waterproof Rating: IP54
Motor
Type: Hall Brushless DC Motor (Rear-Wheel Drive)
Rated Power: 600W
Peak Power: 1000W
Rated Speed: 1080 ± 20 rpm
Max Torque: ≥22 N·m
Voltage: 48V
Control Mode: Sine Wave
Battery & Charger
Battery Type: 18650 Lithium
Voltage: 48V
Capacity: 15.6 Ah (520 Wh)
Charging Time: 7–8 hours
Charger: 54.6V / 2A
Suspension
Front & Rear: Spring Suspension
Lighting System
Front Light: LED, 6W, 45° beam angle, 5㎡ illumination area
Tail Light: Yes (brake flashing + always-on with headlight)
Turn Signals: Yes
Tires & Brakes
Tires: 9-inch tubeless tires
Recommended Pressure: 340 kPa (50 psi)
Brakes: Front & Rear Disc Brakes + Power Cut-off
Disc Diameter: 120 mm

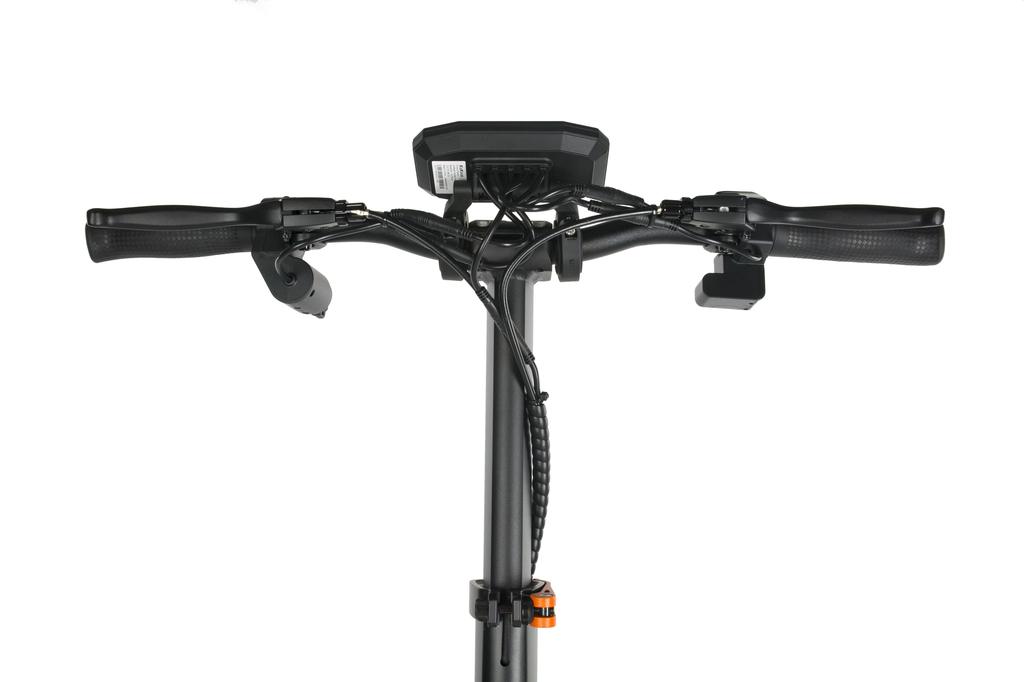

Display & Controls
Display: LED (118 × 73 mm)
Functions: Speed, mileage, battery voltage, light indicators, cruise control, gear, brake, turning, error codes, start mode, km/mile setting
Settings Menu: Units, voltage level, wheel diameter, pole pairs, cruise on/off, start mode, auto sleep, acceleration strength, brake strength, mileage reset, speed limit mode

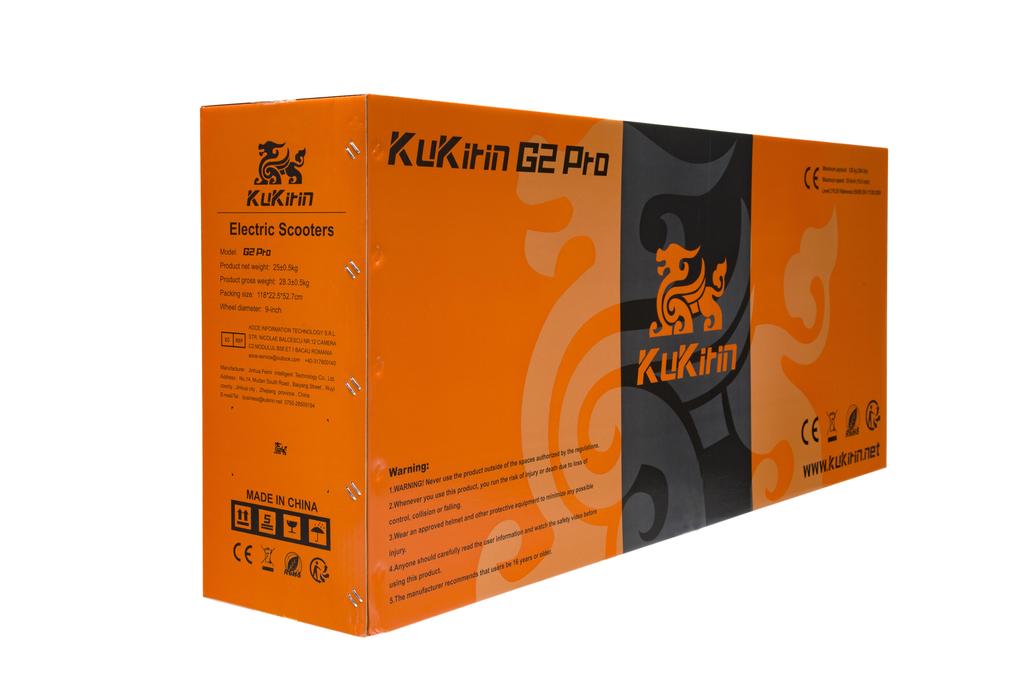

Package Contents
Charger ×1
User Manual ×1
Folded Instruction Sheet ×1
Tool Kit ×1
Seat Kit ×1
Seat Base ×1
Seat Screws ×4
Keys ×2
