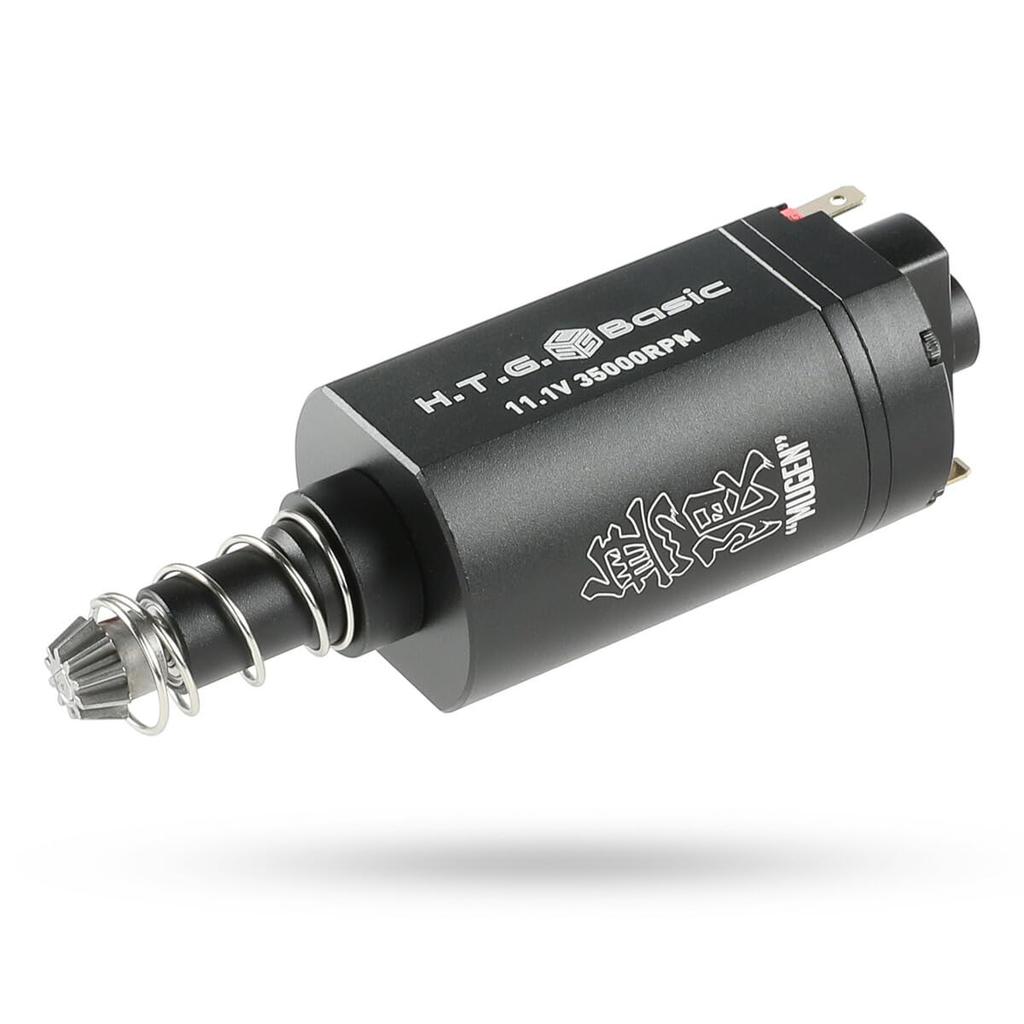

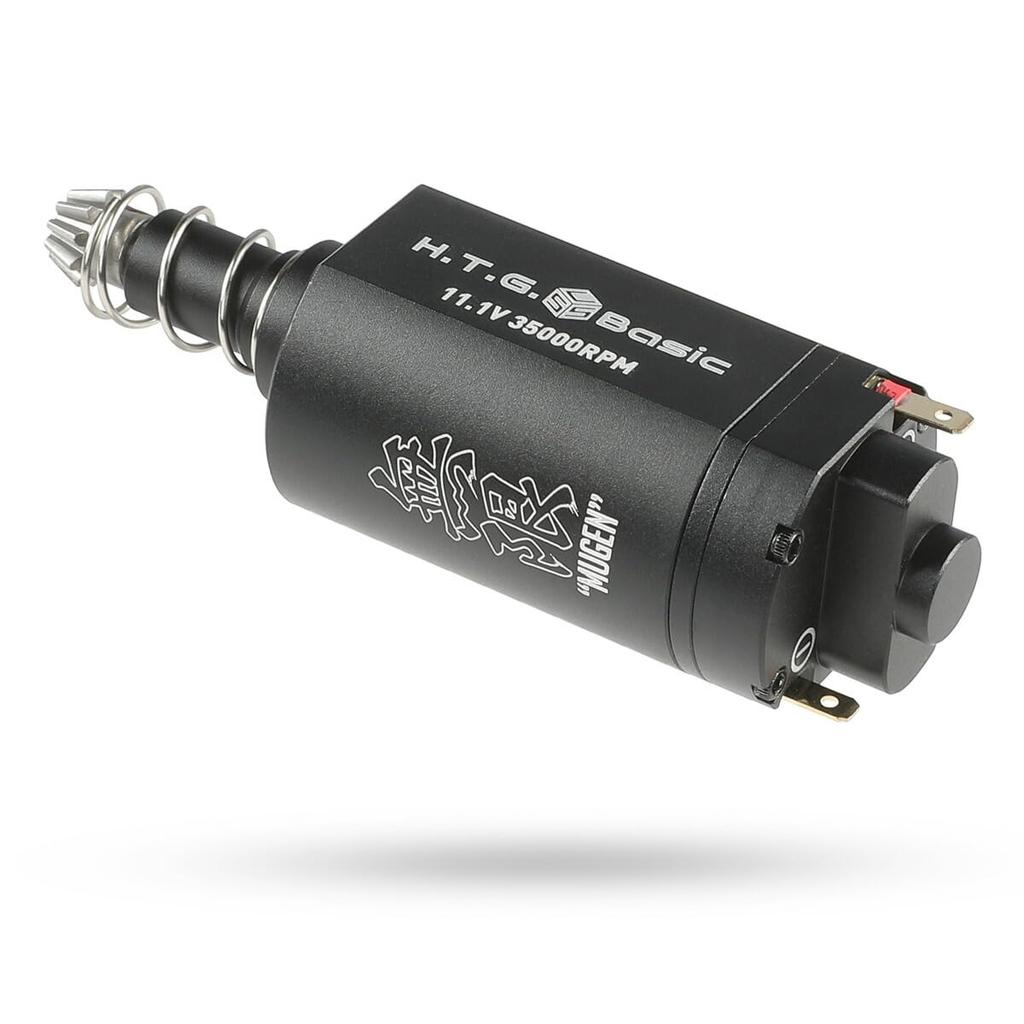

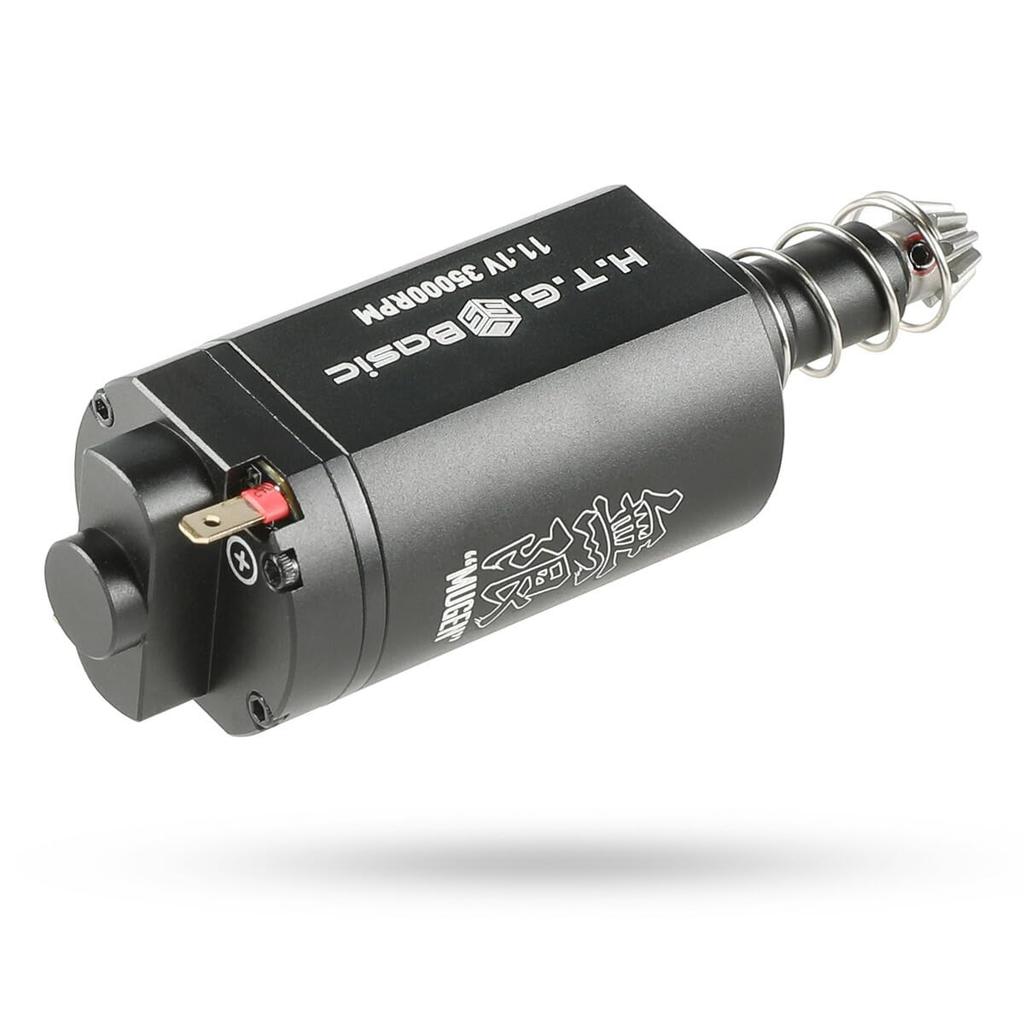

HTG Basic MUGEN STD Brushless Motor, Standard Long, 35K, for Electric Guns, Electronic Trigger Compatible

The Mugen Brushless Motor Standard is a high-performance motor ideal for replacing conventional stock or custom motors. It is a cost-effective brushless motor that combines high performance with economy.

-- Performance Specifications-- Battery Requires: 7.4-11.1V LiPo battery only 11.1V (values in parentheses indicate 8.4V (assuming a 7.4V LiPo battery) Rated No-Load Speed: 35,000 (26,000) rpm ±10% Rated No-Load Current: <2.7 (<2.4) A Optimal Load Speed: 31,000 (22,500) rpm ±10%

--Measured Data-- Maximum Efficiency Output Efficiency: 72.6 (72.8)% Maximum Efficiency Speed: 24,747 (22,850) rpm Maximum Efficiency Torque: 416 (382) g·cm Maximum Efficiency Current: 16.8 (14.5) A Maximum Efficiency Output: 138 (91) W

--Maximum Output-- Efficiency: 45.4 (45.8)% Maximum Output Speed: 17,500 (12,841) rpm Maximum Torque: 1,995 (1,849) g·cm Maximum Output Current: 63 (57) A Maximum Output: 338 (246) W

Caution - This product is intended for advanced users. Assembly and handling require careful and technical understanding. - Improper setup or handling may cause damage to the airsoft gun. This motor achieves high response, high acceleration, and high efficiency, while also boasting excellent characteristics such as low heat generation, low power consumption, low vibration, and low noise. Its cost-effective design eliminates unnecessary features and excessive performance, while maintaining the popular four-bearing design of Gen Motors for increased efficiency. The brushless motor's structure reduces the weight of the rotating rotor and inertia weight. This not only improves response, but also suppresses the twisting of the grip that occurs when starting and stopping the motor, potentially improving accuracy. The high-precision one-piece motor shaft and new steel D-shaped pinion gear expand compatibility and allow for pinion gear replacement. The CNC-machined aluminum body provides high rigidity and heat dissipation. The redesigned motor case brings its external shape closer to that of conventional brushed motors, making this a plug-in brushless motor that allows you to enjoy the benefits of a brushless motor simply by replacing it. (Some models may require modifications to the wiring or motor holder.) Compared to brushed motors, this motor guarantees exceptionally fast start-up and instantaneous maximum RPM, ensuring high response. Its high efficiency also reduces motor temperature rise and power consumption. Developed in conjunction with Eshooter's electronic trigger, it features an effective electromagnetic brake, previously considered impossible, that quickly stops the motor when the trigger is released or partially cut, improving the shooting experience.

Compatibility with Other Manufacturers' Electronic Triggers (as of August 2024, according to our research): While designed to replace brushed motors, malfunctions or breakdowns may occur depending on the output characteristics of the electronic trigger. Also, please disable the active brake on models that support it. GATE TITAN/ASTER: The GCS app automatically supports brushless motors. Jefftron Leviathan: Use in brushless motor mode. ▲PERUN HYBRID: Use with active brake off and ROF set to 100%. ▲Shiranui Shoten Kagero Series: Brushless motors are not recommended. Compatibility with other manufacturers' standard electronic triggers has not been verified. Verified by our company. ▲Not verified, based on manufacturer information. ・It may become unusable due to changes in the application or program. ・For details, please contact the electronic trigger manufacturer. No-load rotation speed: 35,000 rpm at 11.1V, 26,000 rpm when using a 7.4V LiPo battery. Normal rotation speed, high torque, and high efficiency specifications.
