48P Metal Transmission Gearbox with Motor Gear/ Cover for 1/10 RC Rock Crawler SCX10

Description:

- Aluminum Housing: Features a aluminum cover to shield gears from dust and debris, ensuring smooth and quiet power transmission

- High Strength Steel Gears: Includes a 20T 48P steel pinion gear and 87T 48P gear with a 4.35 :1 ratio, plus a wide internal steel gear 2.6:1

- Compatibility: Works with SCX10 I/II, Wraith, and other brands’ 48P gears (pinion/). Ideal for upgrading 1/10 scale RC crawlers like the SCX10 II (90059)

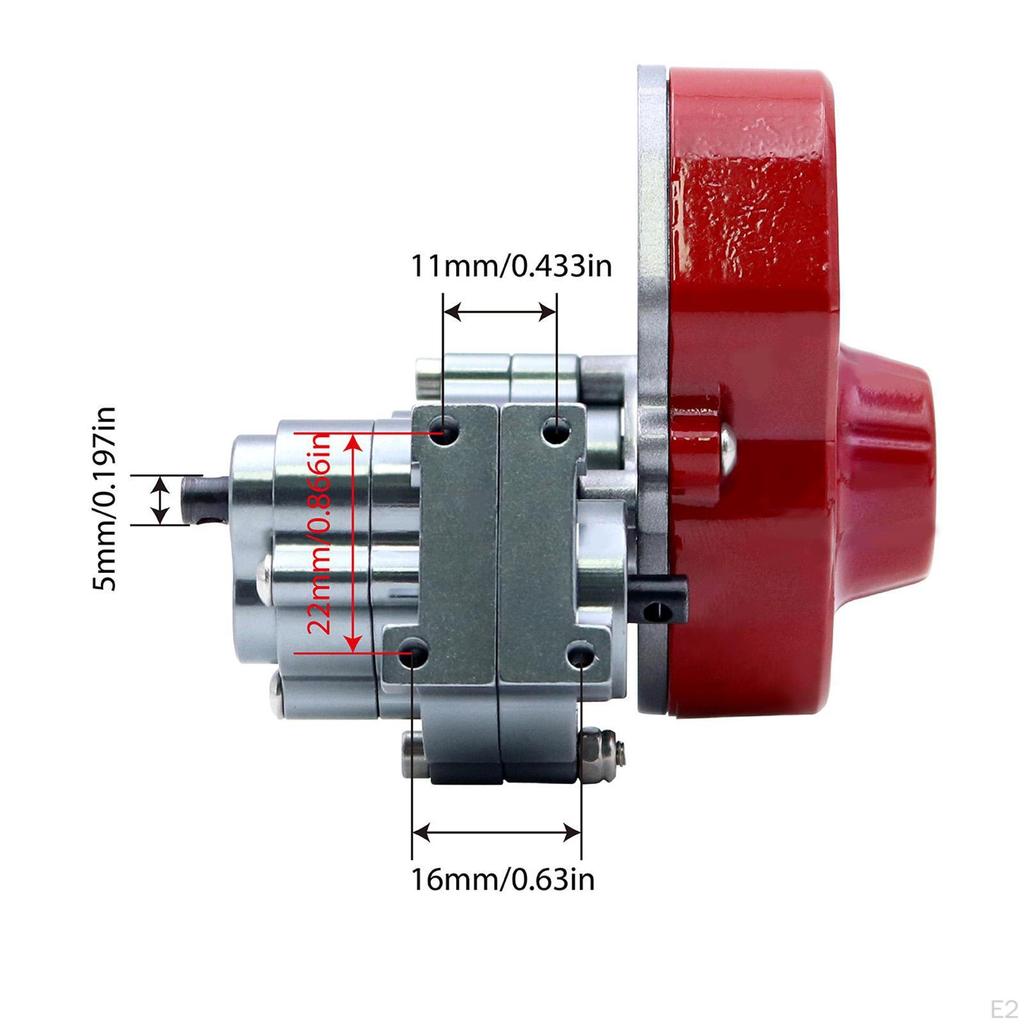

- Dimensions: Compact design (65×75×69mm) with a 5mm output shaft (6mm length) and lightweight yet sturdy metal construction

- Ready to Use Kit: Includes 1 fully assembled metal transmission unit, no extra parts needed for installation

Specification:

- Gear Ratio: Pinion/ Gear Ratio = 4.35:1

- Internal Gear Ratio = 2.6:1

- Finally Drive Ratio = 11.31:1

- Output Shaft Length: 6mm

- Output Shaft Diameter: 5mm

- Output Shaft Bore: 2.4mm

- Pinion Bore: 3.2mm Size Chart: 6.5cmx7.5cmx6.9cm/2.56inchx2.95inchx2.72inch

Package Includes: 1x Transmission Gearbox

Note: Please allow slightly errors 1-2cm/0.39-0.79inch differences due to manual measurement.
