Tamiya Fun Craft Series No. 190 Mini Motor Multi-Gearbox 12-Speed 70190

[Product Infomation]

Brand : TAMIYA Category : Hobby Materials : Plastic

[Product Description]

Product Model Number: 70190-000 Product Dimensions: 15.75 x 10.67 x 2.79 cm Product Weight: 68.04 g

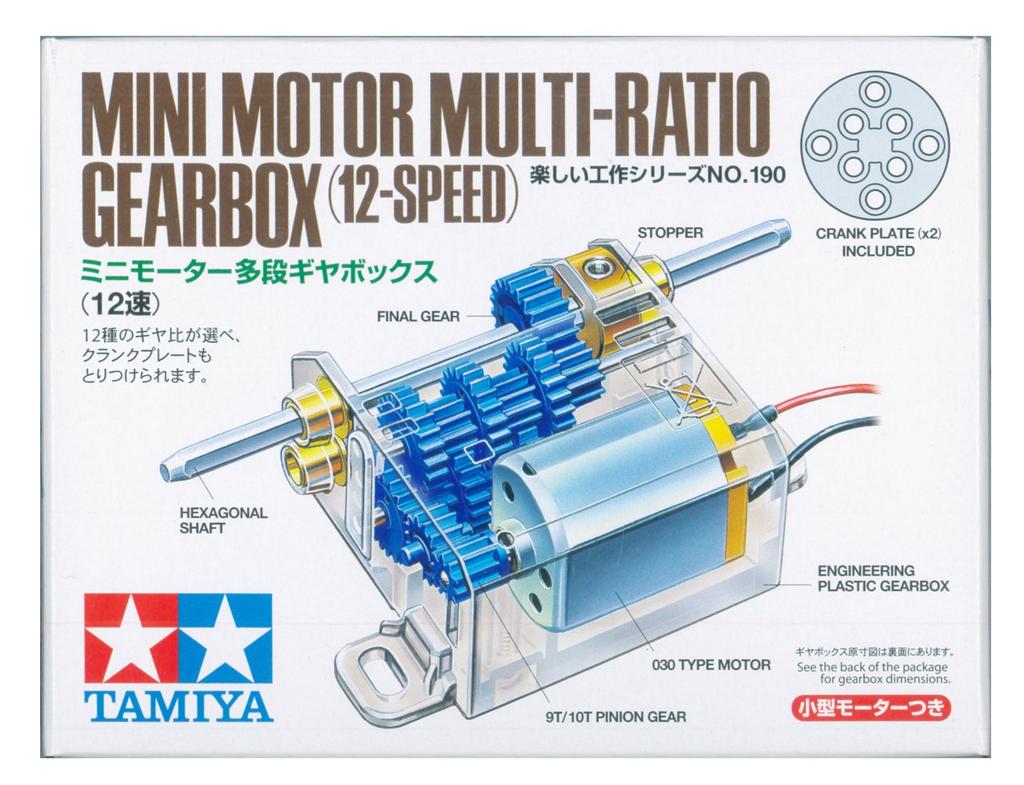

This compact gearbox features a mini motor and can be mounted on 1/35 scale tanks as well as 1/48 scale heavy and medium tanks. Its low power consumption and low noise make it ideal for a wide range of applications, including R/C conversion, sensor-based projects, and robotics. The multi-stage gearbox offers 12 gear ratios: 4.6:1, 5.1:1, 9.7:1, 10.8:1, 20.4:1, 22.6:1, 42.8:1, 47.5:1, 89.9:1, 99.8:1, 188.7:1, and 209.7:1. Two mounting positions are available, expanding creative possibilities. The case and gears are made of high-precision plastic, while the 3mm hex output shaft is made of durable metal. It also comes with a crank plate that adds variation to the movement. The gear case uses a mechanical clear color. The gearbox measures approximately 30mm wide, 17mm high, and 30mm long. *The base voltage of this motor is 3V.
