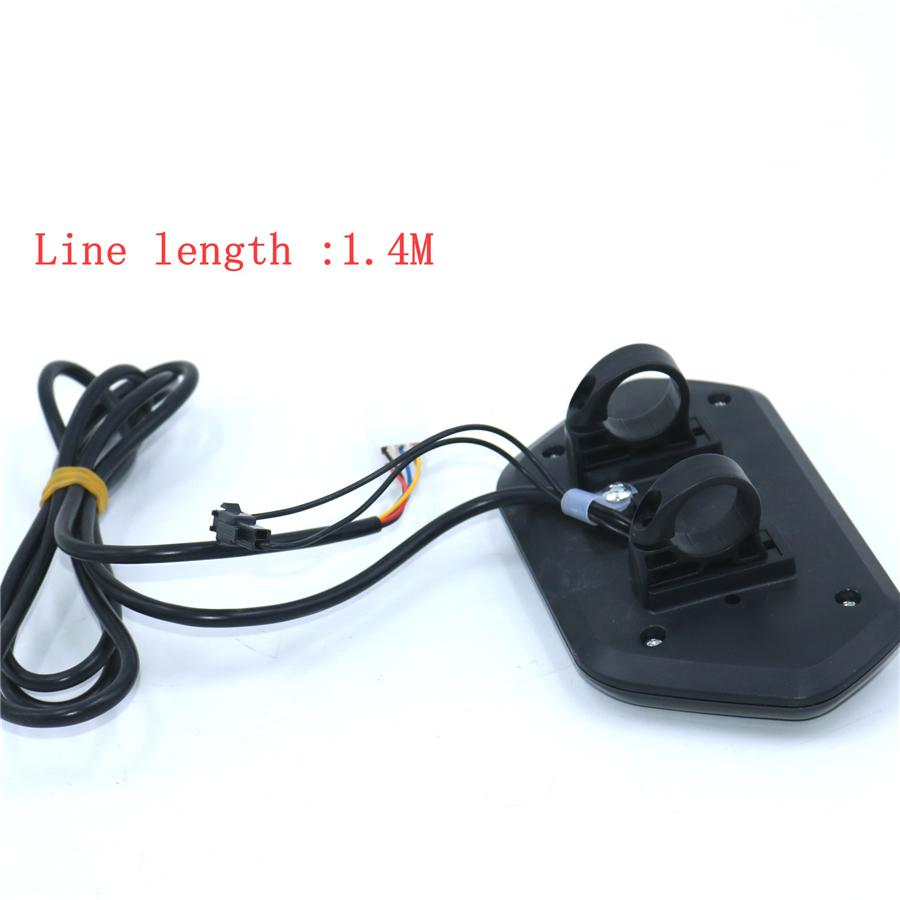

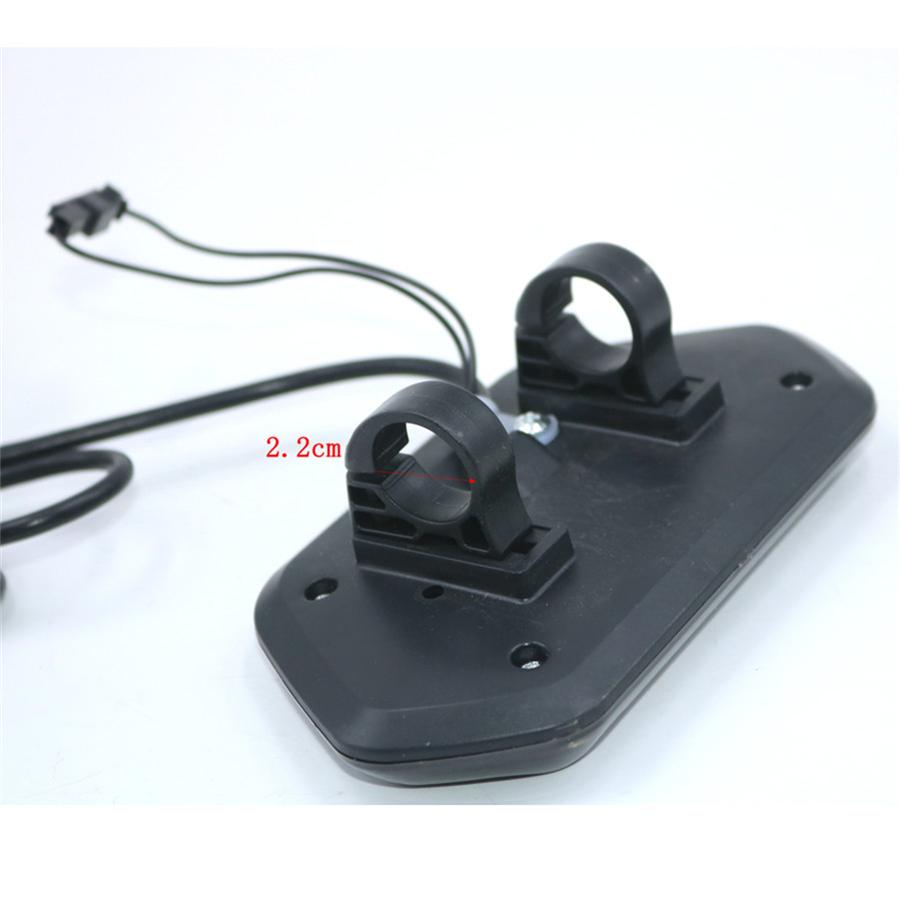

36V 48V 60V Electric Bicycle LCD Display w/Speed Meter Indicate Battery Voltage

Fitment:Universal Fit For 36/48/60V Electric Bicycle

Its main function/it indicates:

frontlight,

left and right turning,(please inform in advance if you need,)

speed(defaut setting taking phase wire voltage signal, this model cannot take hall sensor wire signal,)

3 gears (, default setting it will not lighten. and the error code is not lightened,unless your controller read yxt signal,.)

odometer

POsitive and negative automatic identify.

warrenty one year/

battery level (indicate battery voltage , will not change )

The wiring way

WIRING for a big white connector

RED-power POSITIVE

black-power negative

blue-frontlight

purple-speed , phase wire voltage speed testing.

orange -left turning signal

light blue-right turning signal

see this location and sequence. if yours are different can try to change by using a thin iron stick.

wiring

Speed

for this kind of display it has 4 ways to take signal --this depends on your controller program 1),. phase wir
