Label:Yes
Material: Electronic Component
Quantity: 1Set
Output power: 100W
Infrared remote control receiving distance: 7-8 metres
Output port: fan motor three-speed output, oscillating head output
Operating voltage: AC110-230V
Brand new and high quality
Size: as shown
Description:

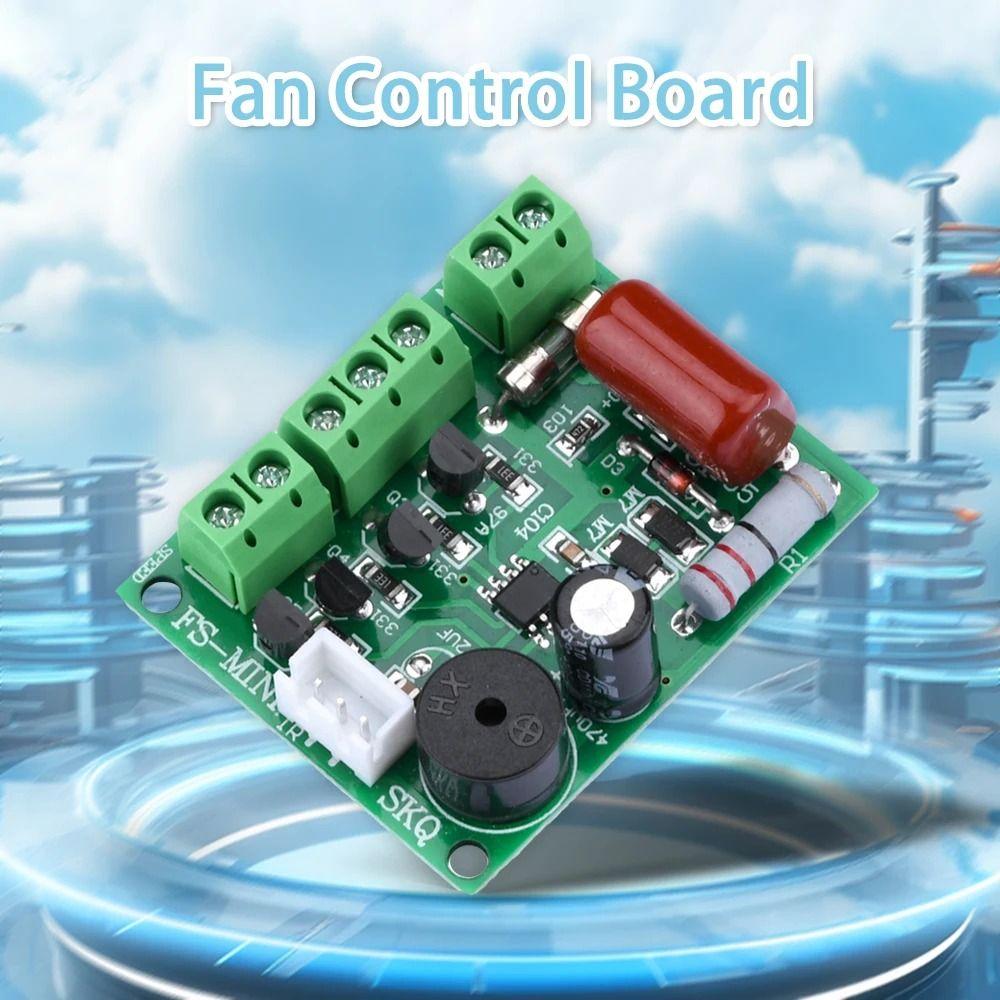

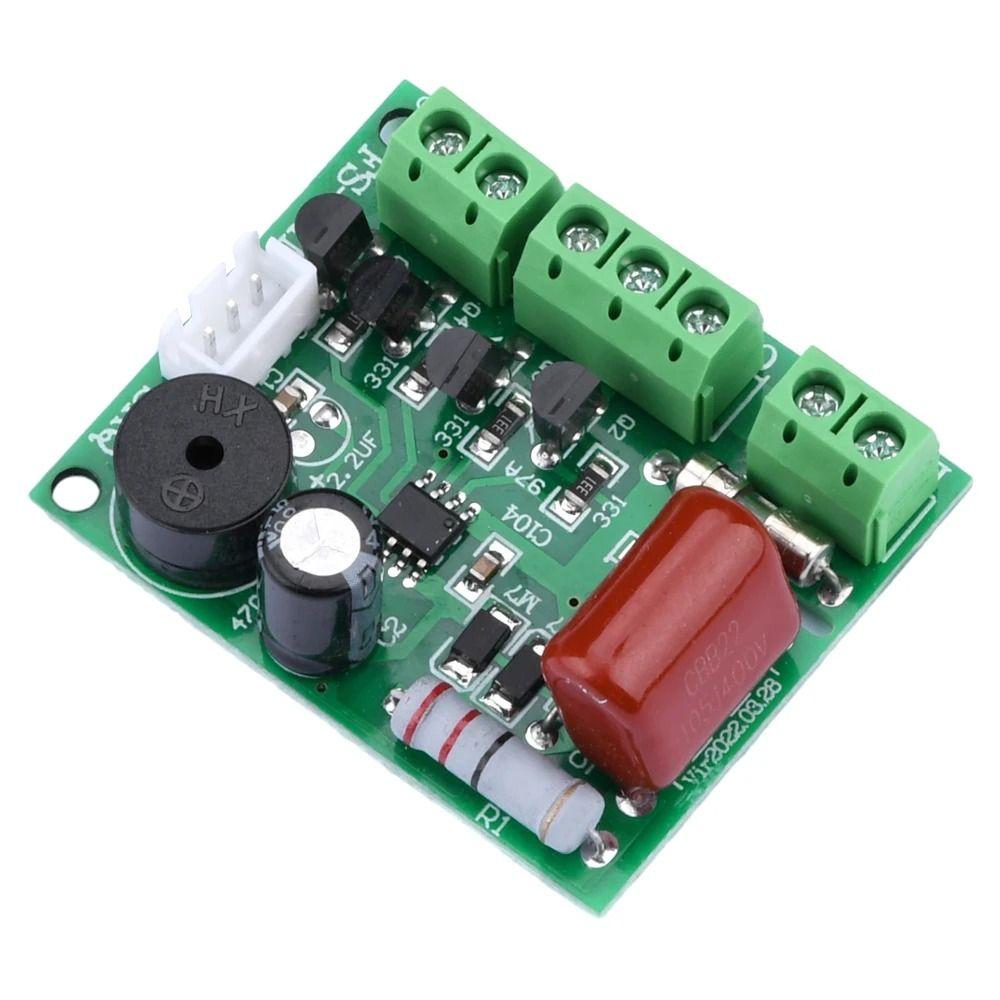

This circuit board is universal, floor fan, shaking head fan, table fan, etc., even if the fan without remote control can be modified into a remote control fan, simple and convenient modification, such as mechanical fan out of 4 lines. The black line is connected to the public end, and the remaining 3 lines can be controlled by respectively connecting the high and low levels, which is a very versatile product.
Features:
1. The product is made of high quality PCB+ABS material, long service life, quality assurance
2. The product is packed in carton, the remote control is not shipped with batteries
3. Stable performance, lightweight and compact, easy to use
4. This is a fan control board can be controlled by infrared remote control, can be controlled through the keys of the oscillating head, switch, speed, timing
How to use:
1. On/Wind speed: In standby state, press the "On/wind speed" button, the fan can work in strong wind, and then press this button, the fan can work in a "large-medium-small" cycle
2. Shake the head: In the working state, press Shake the head key to enter the shake the head, and then press this key to close the shake the head.
This function cannot be used without a shaking head motor!
3. The timing: the working stattus, press "time", in accordance with the "1-1.5-2-2.5-0.5-3-4-4.5-5-3.5-5.5-6-6.5-7-7.5-0" this order cycle time
4. Wind: in the working state, press the "wind" key to convert the "natural wind - sleep wind - normal wind" working mode
5. Off: In the working state, press this key to disable all working states of the fan.
Notice:
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39''.
Package Included:

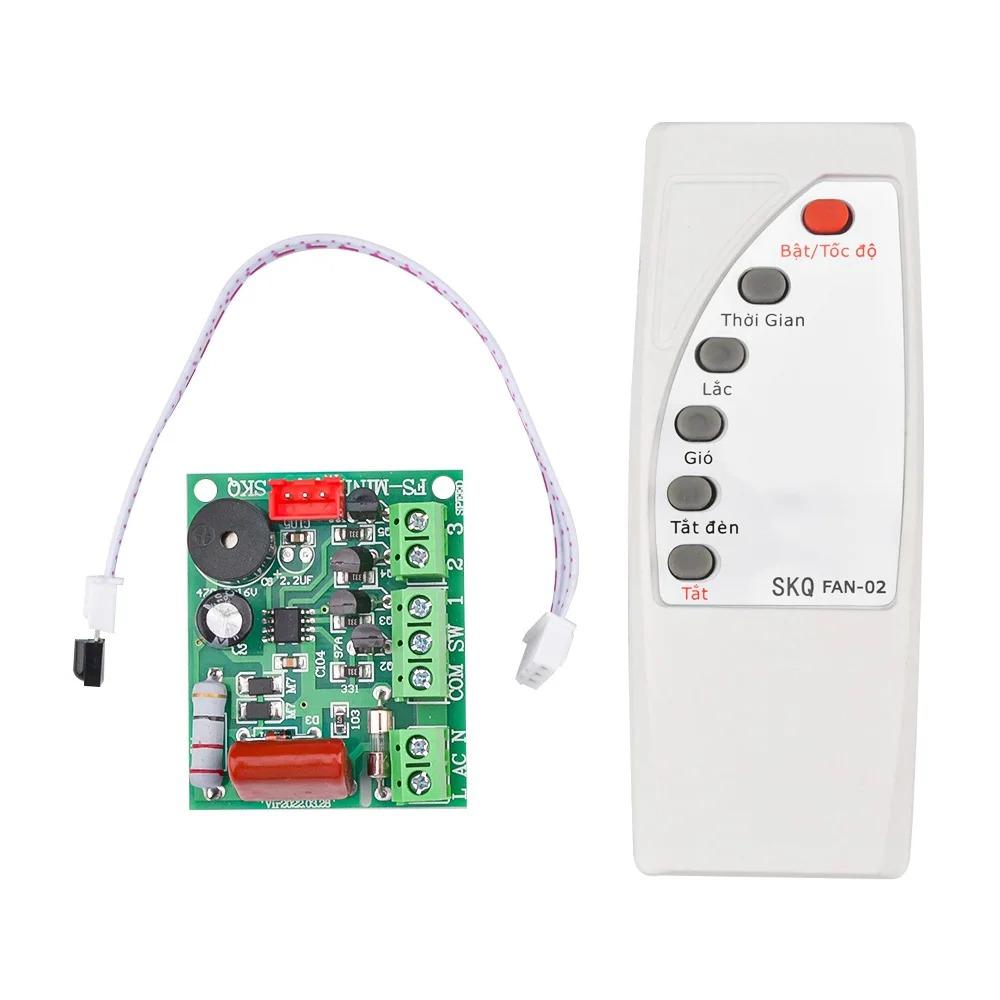

1x Control board

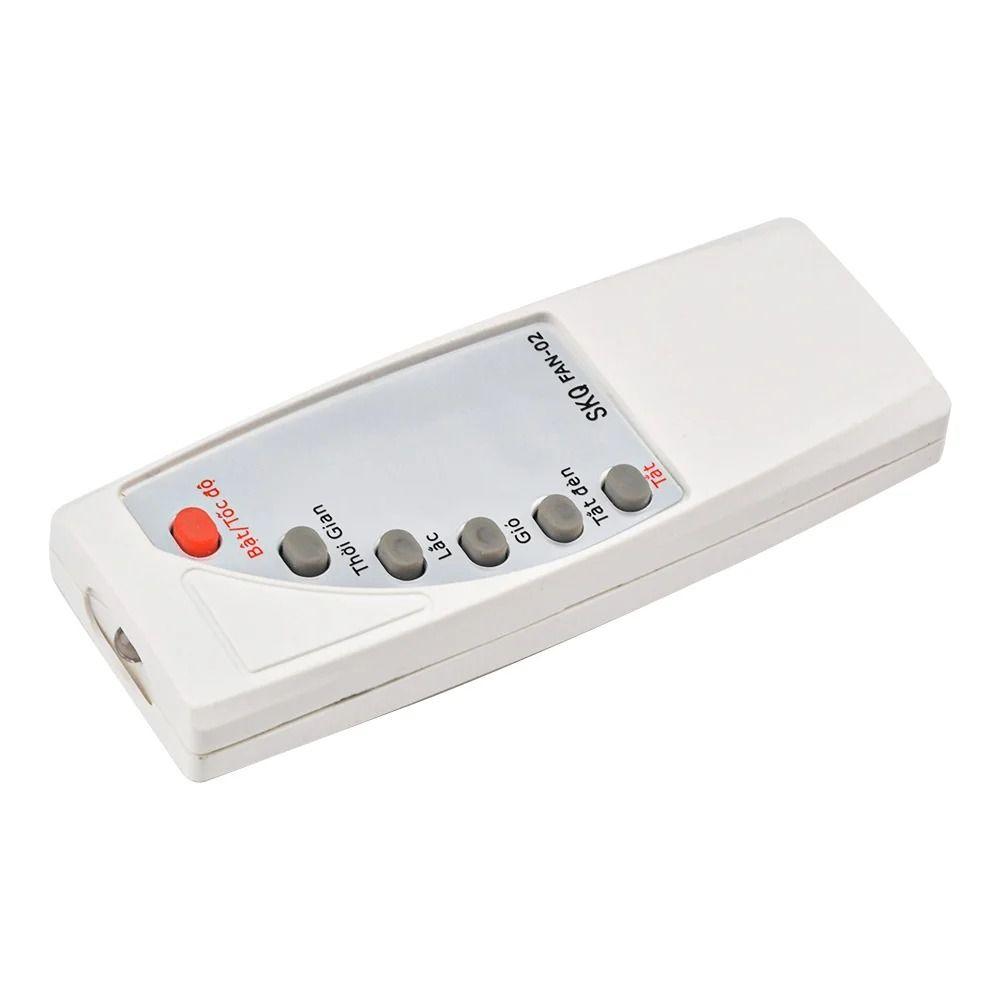

1x Remote control
