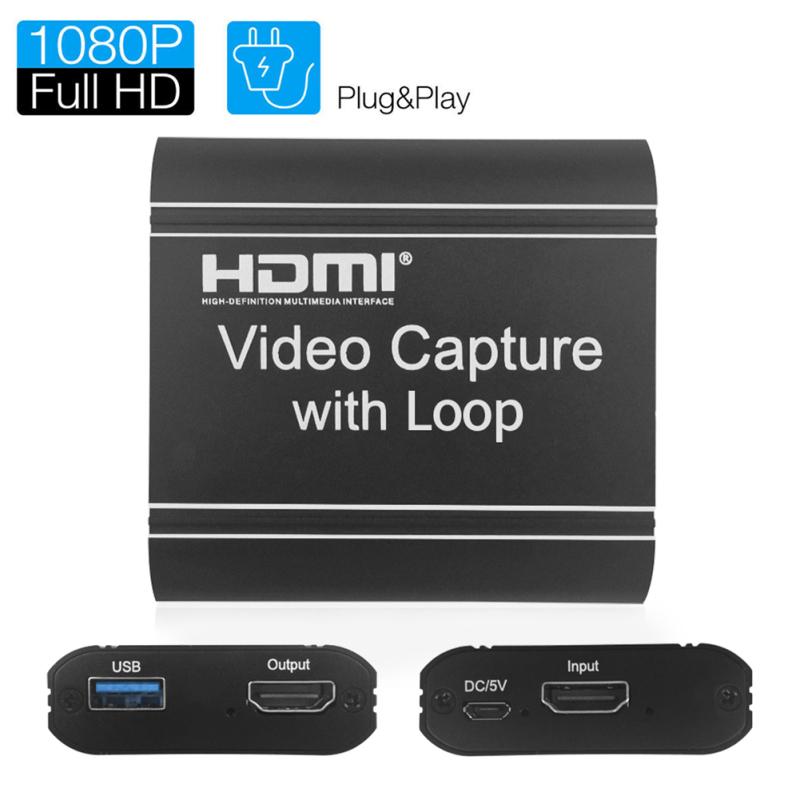

Capture Card Metal 4k 60hz 1080p Usb Hdmi-compatible Loop Out Game Record Card

Description:

Item Name: Capture Card

HDMI resolution: The maximum input/output can be 4K @ 60Hz

Support video format: 8/10 / 12bit deep color

USB video capture format: YUV, JPEG

USB video capture resolution: The maximum output can be 1080P @ 60Hz

Support audio format: L-PCM

Input cable distance: ≤5m, AWG26 HDMI-compatible standard cable

The distance of the output cable: ≤5m, AWG26 HDMI-compatible standard cable

Maximum working current: 0.7A / 5VDC

Operating temperature range: (-10 to +55C)

Dimensions (length x width x height): 59x56x19 (mm)

Weight: 52 grams

Reminder:

Computer hardware configuration requirements

(1) CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above.

(2) Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above.

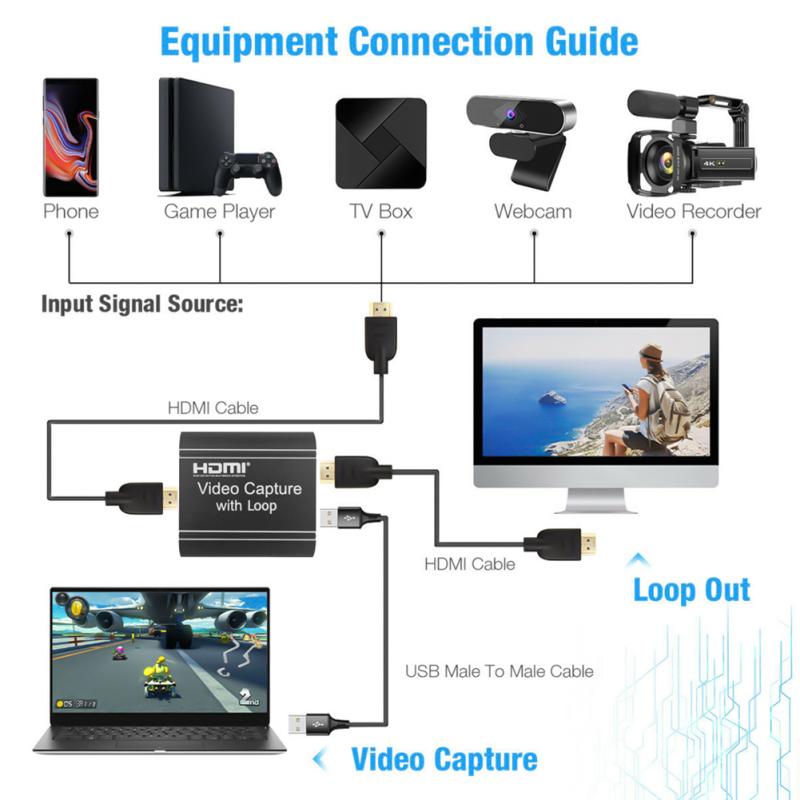

(3) Storage: 4G RAM Video capture can capture HDMI-compatible video and HDMI-compatible audio, and send audio. And send the video signal to the computer and smart phone for preview and storage. Apply to high-resolution acquisition, teaching records, medical imaging, etc.

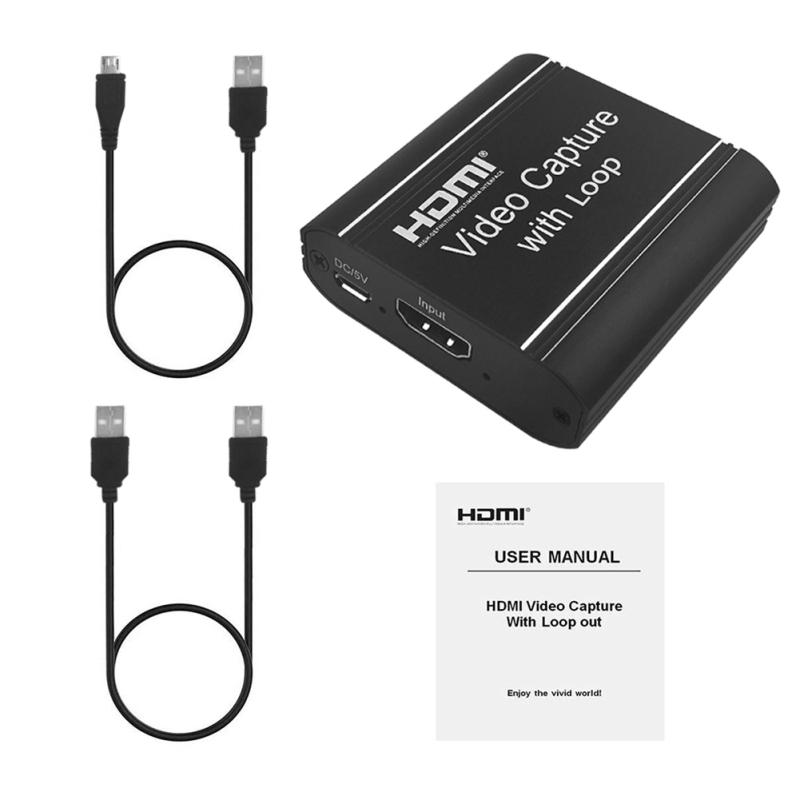

Packing list:

Connector*1

Note:

The color deviation is subject to actual system configuration and slight dimension difference is allowed due to manual measurement.
