Features:
High accuracy measuring: Accuracy: plusmn1%, linearity: 0.5%, repeatability: 0.2%
Wide measuring range: DN50-700
Large capacity battery: Ni-MH battery, operate over 12 hours
Non-intrusive measuring: clamp on transducer, no pressure drop
Support multiple language menu: Chinese, English, Italian and other language can be customized.
Large LCD display: show varieties of results like accumulated flow rate.
Built-in data logger: store over 2000 lines measuring data
Specification:
Items
Performance & Parameter
Meter
Principle
Transit time ultrasonic flowmeter
Accuracy
plusmn 1%
Display
4times16 character LCD with backlight, support the language
of Chinese, English and Italian
Signal Output
1 way OCT pulse output(Pulse width 6~1000ms, the default
value is 200ms)
Data Interface
Insulate RS232 serial interface, upgrade the flowmeter
software by computer
Pipe Installation
Condition
Pipe Material
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,
Aluminum, Glass steel product, liner is allowed.
Pipe Diameter
50~700mm
Straight Pipe
Transducer installation should be satisfied: upstream 10D,
downstream 5D, 30D from the pump.
Measuring
Medium
Type of Liquid
Single liquid can transmit sound wave, such as water, sewage,
oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
Temperature
-30~160degc
Turbidity
Less than 10000ppm and little bubble
Flowrate
0 ~ plusmn7m/s
Working
Environment
Temperature
main unit: -20~60degc; Transducer: -30~160degc
Humidity
main unit: 85%RH; Transducer protection level: IP67
Power Supply
3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation).
Achieve to continuous measurement by connecting AC 90V - 260V adapter.
Power Consumption
1.5W
Housing Material
Inflaming retarding ABS
Main unit Weight
390g

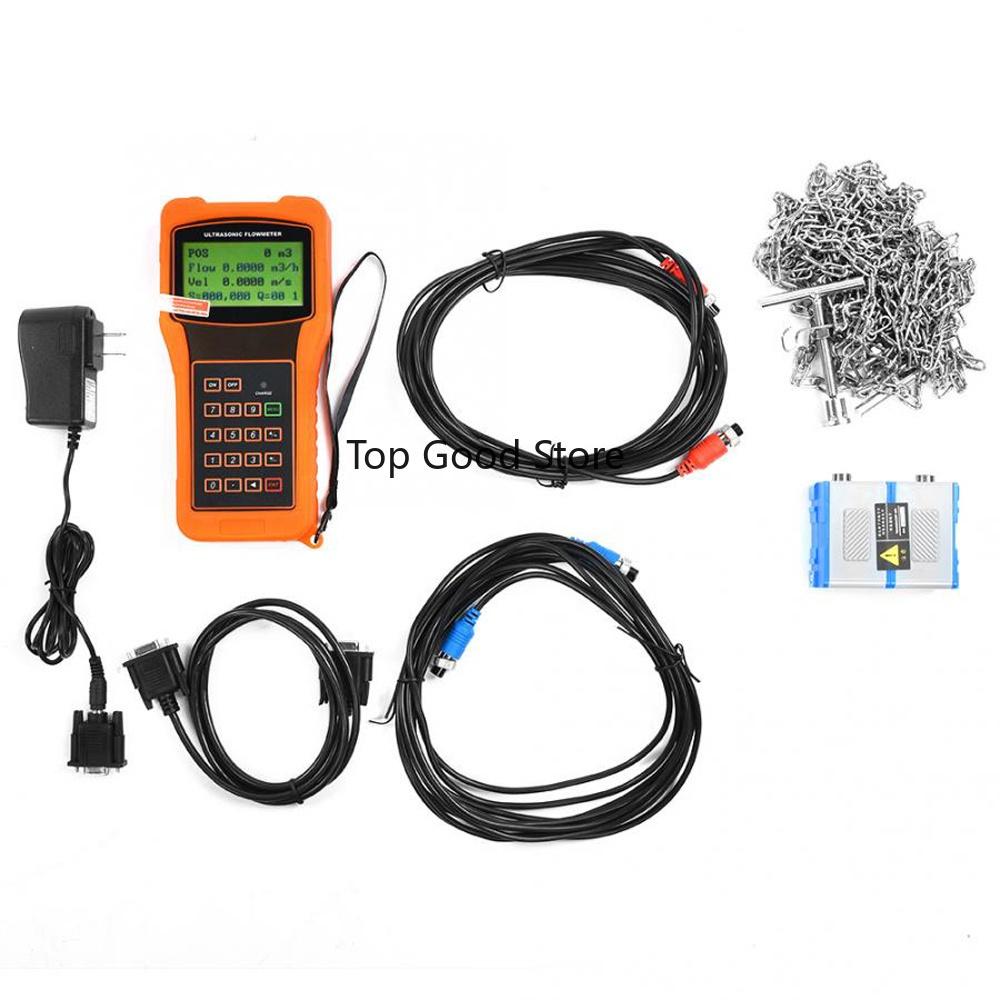

Package Includes:

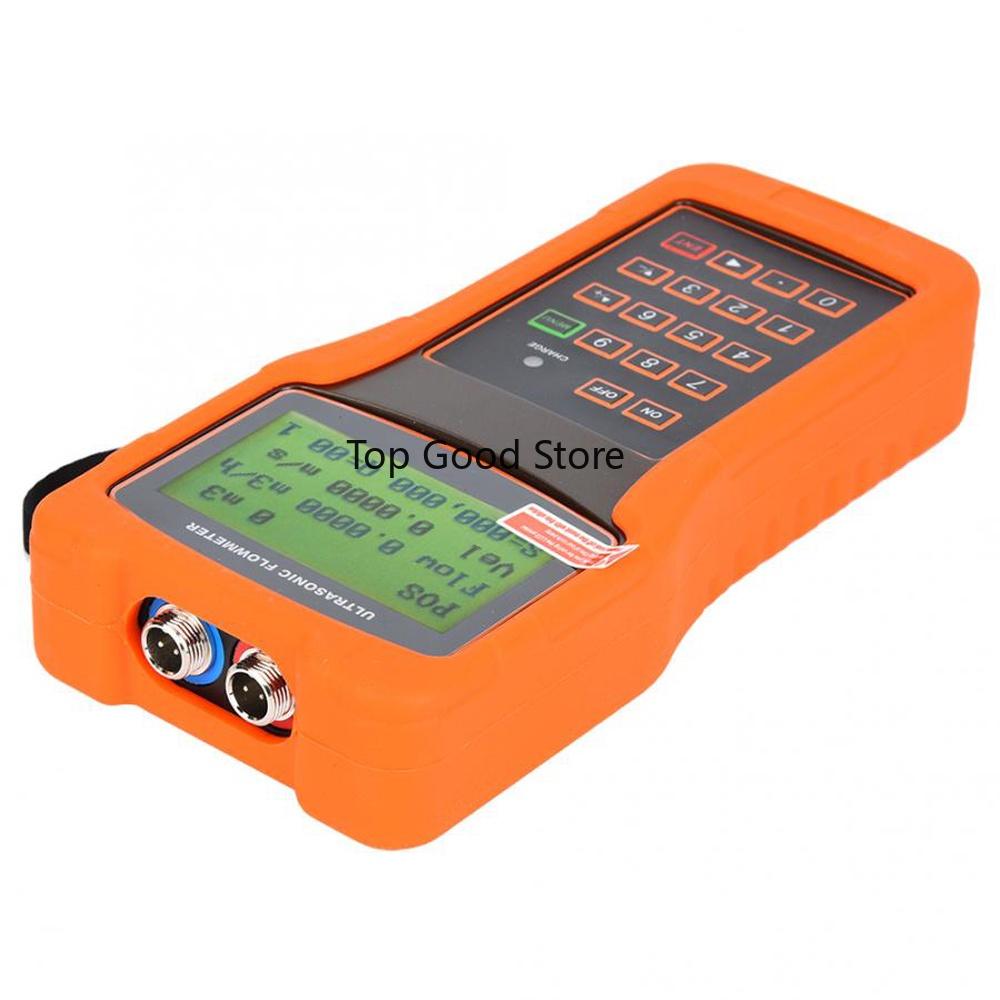

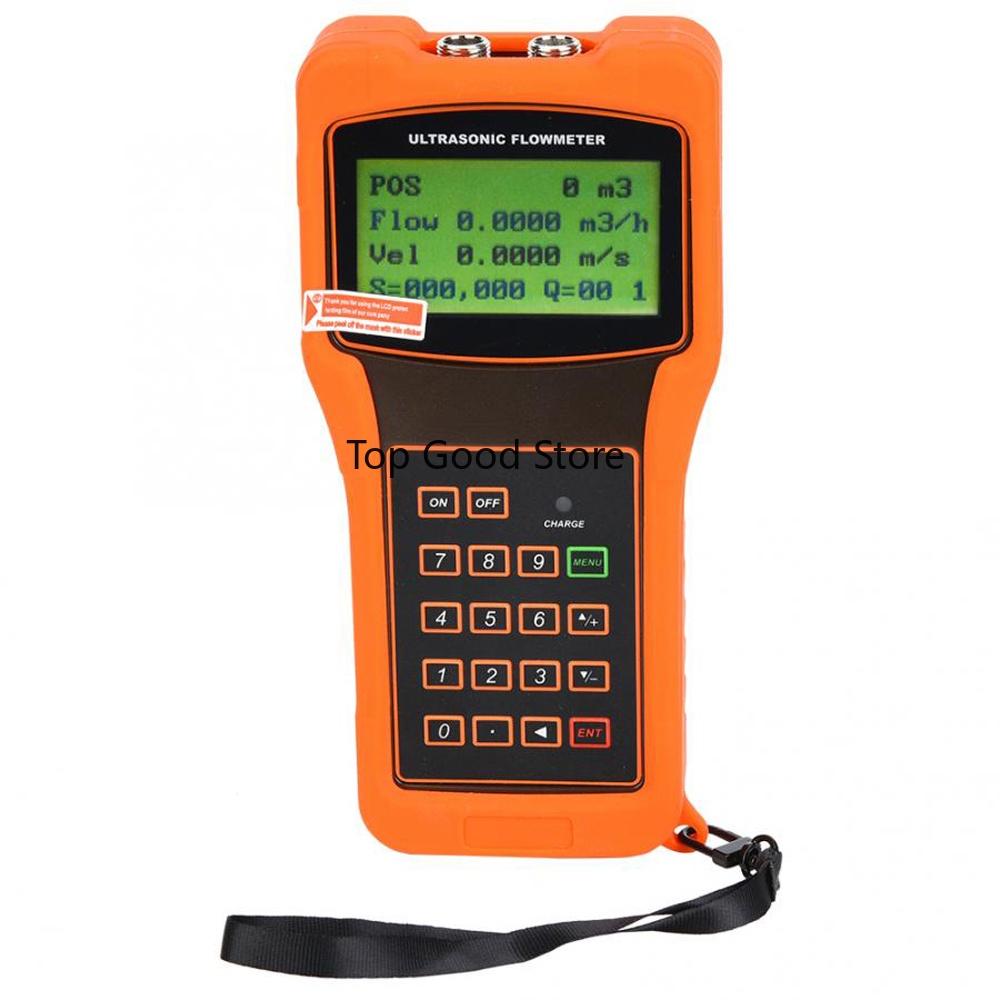

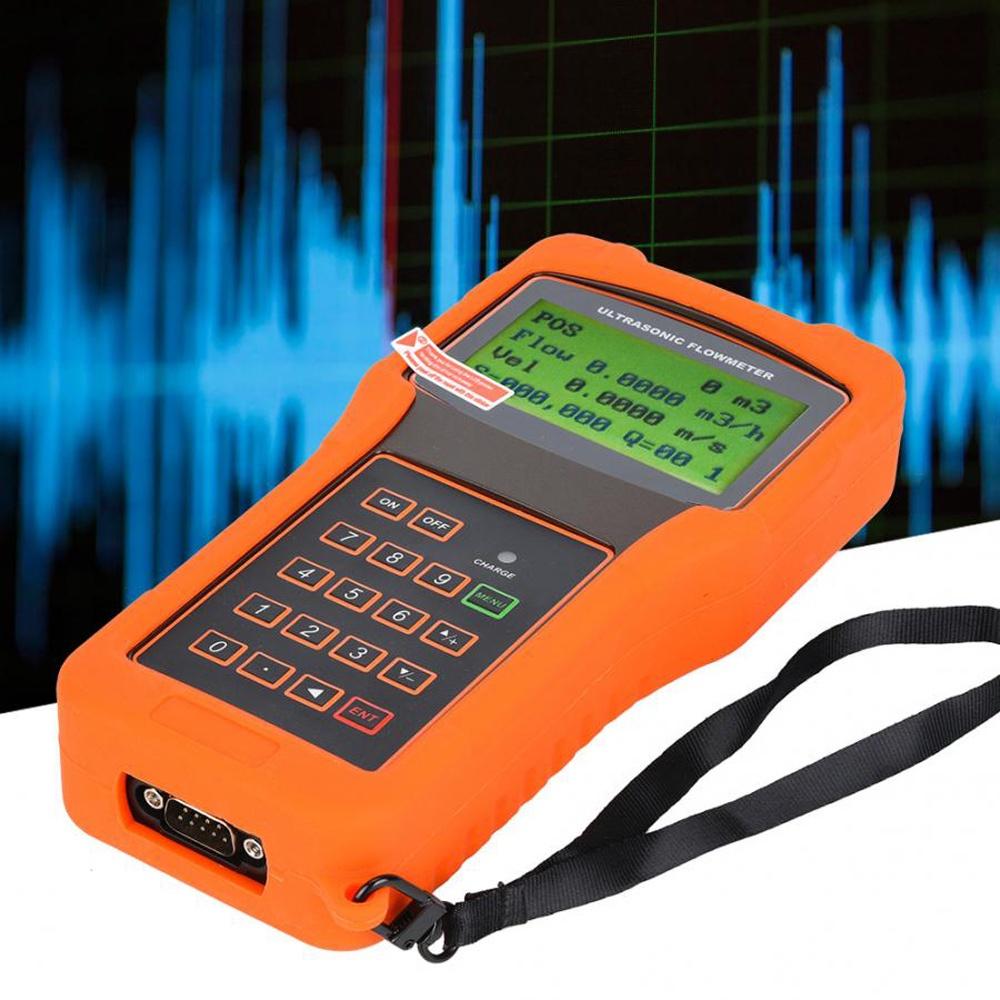

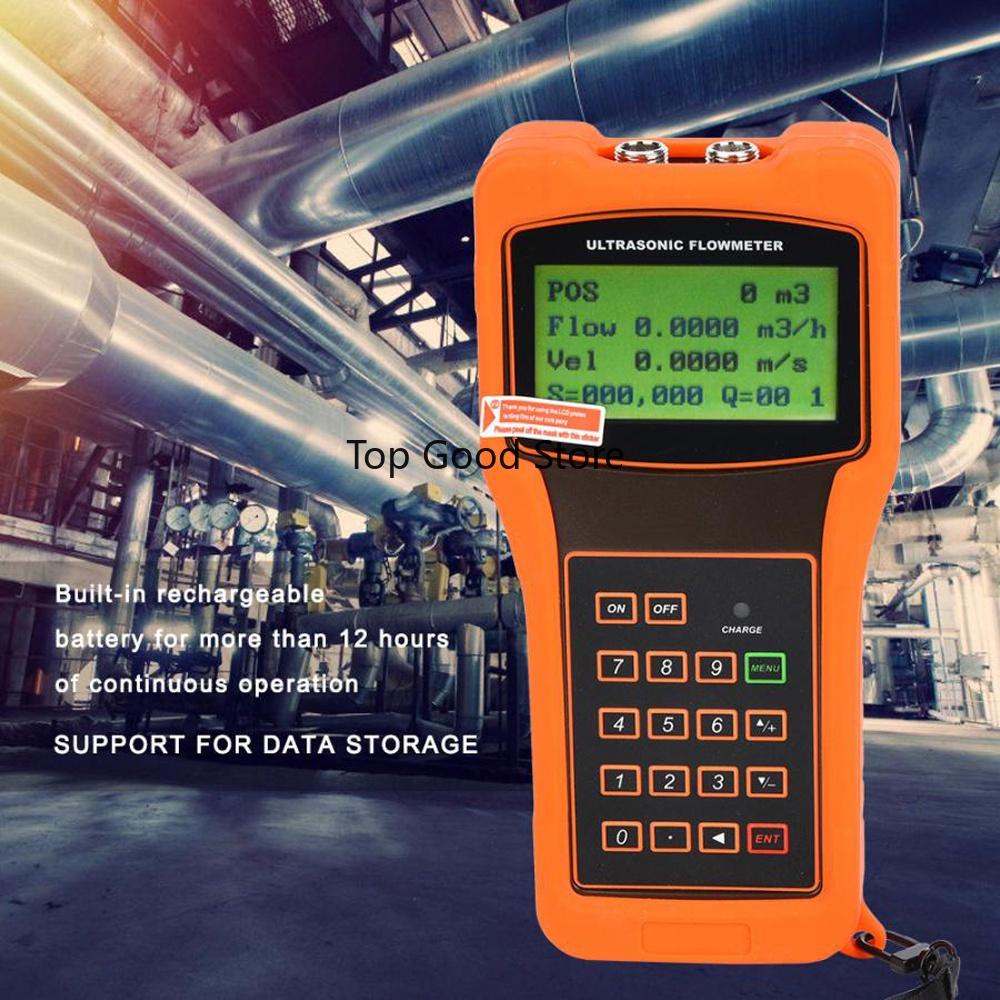

1 x TUF-2000H Ultrasonic Flowmeter

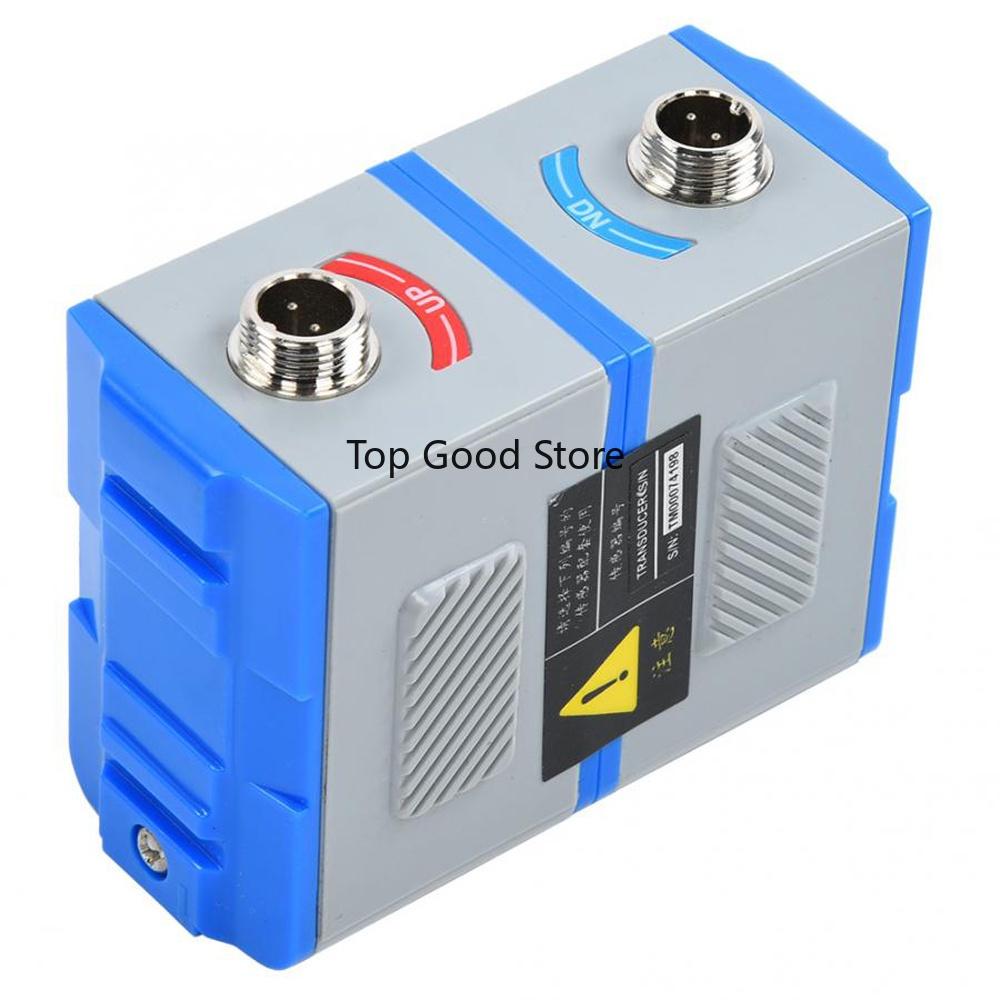

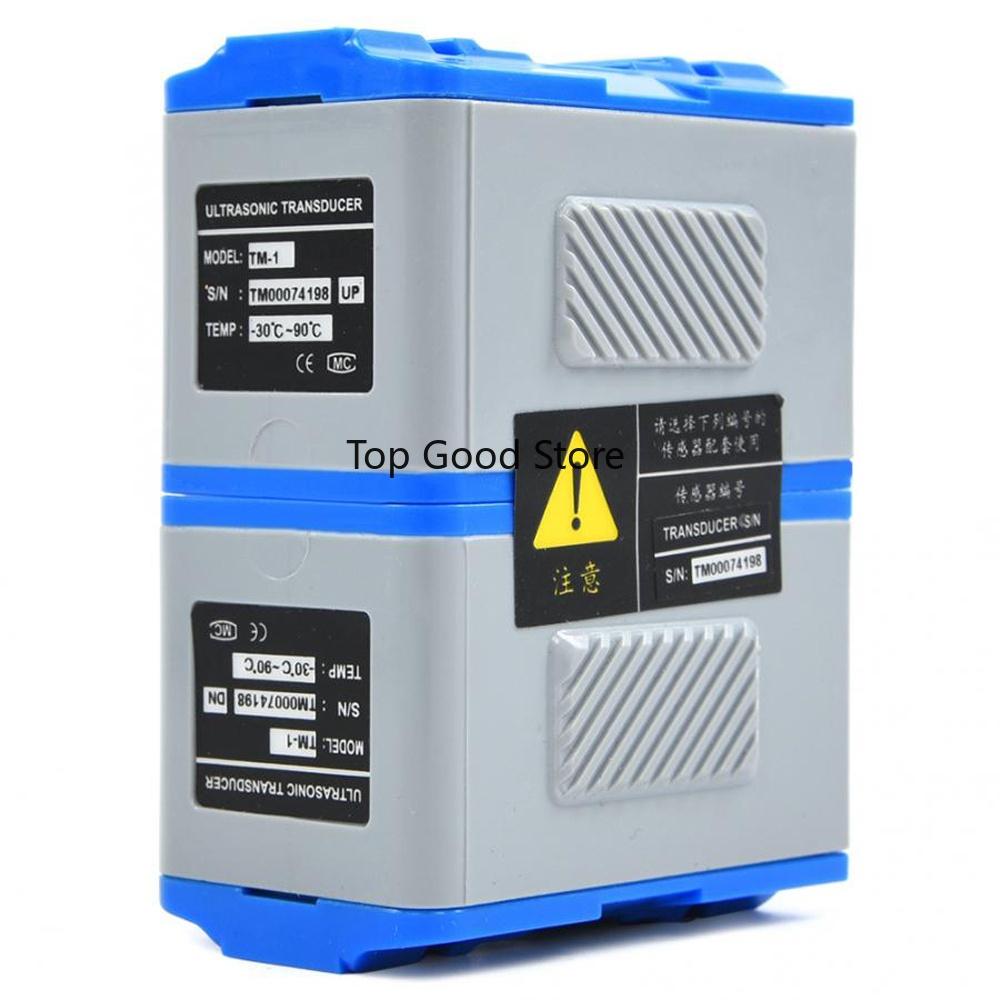

1 x TM-1 Transducer(Only include one Transducer)
1 x Signal cable
1 x Data cable
1 x Fixed steel chain
1 x EU Charger
1 x Ruler

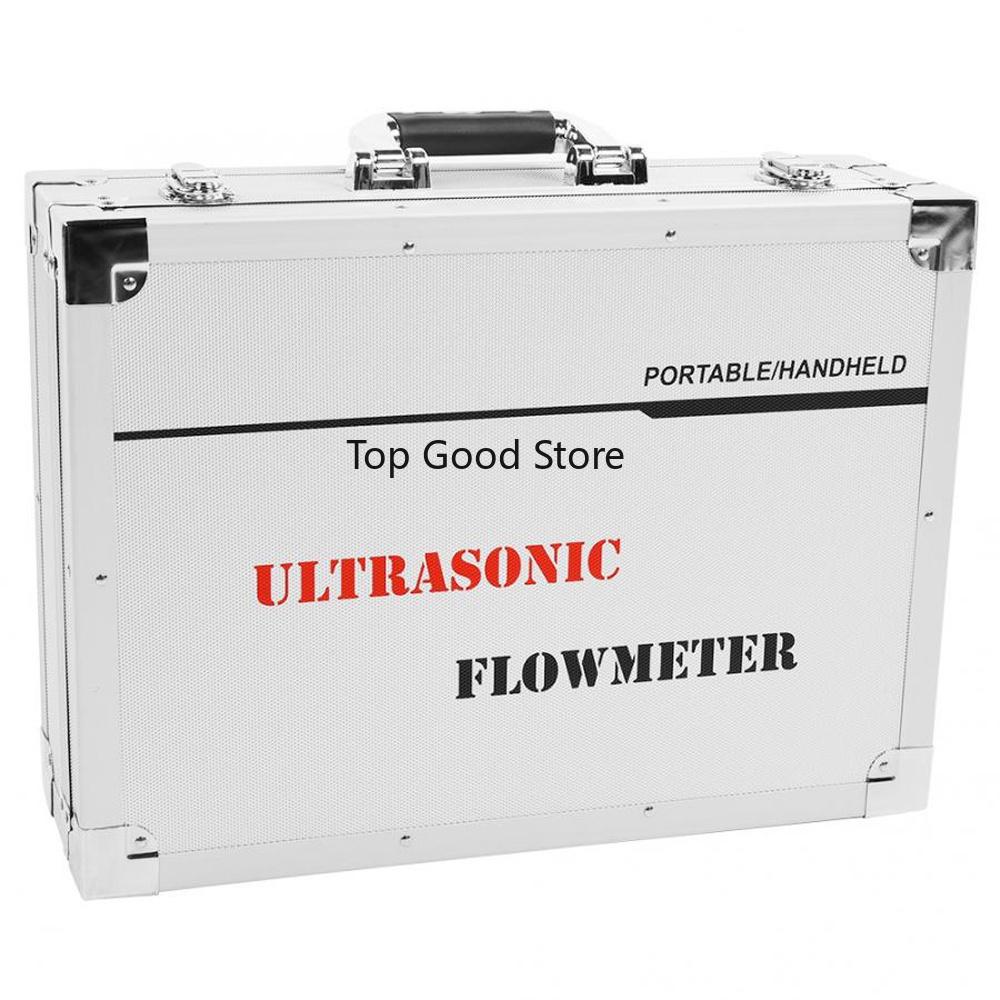

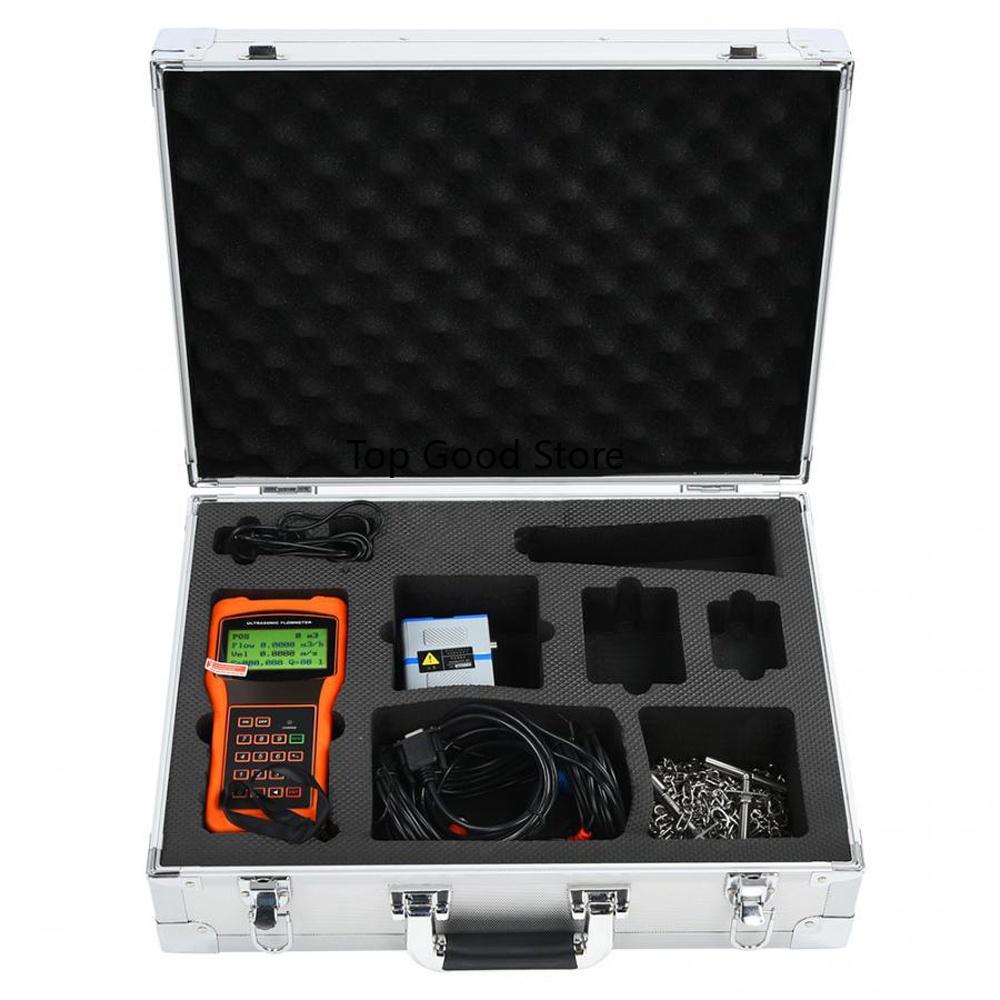

1 x Carrying box
