Feature:
-Automatic watering timing can be set. For more convenient use and to allow the device to be in more scenarios.
-No need to connect the faucet. Water containers can be chosen freely and used more conveniently.(Purchase does not include)
-Solar powered smart wateringl, environmental protection.
-It can irrigate many types of plants at the same time.
-Built-in battery, sunscreen charging
-Rainproof, low power consumption, more energy saving standby
-Silent motor can work more quietly
-Food silicone irrigation pipe, anti-aging, temperature resistance, tasteless, sun protection, corrosion resistance.
-2 in1 nozzle:misting and dripping.
-Smart chip, data will not be lost of power failure.

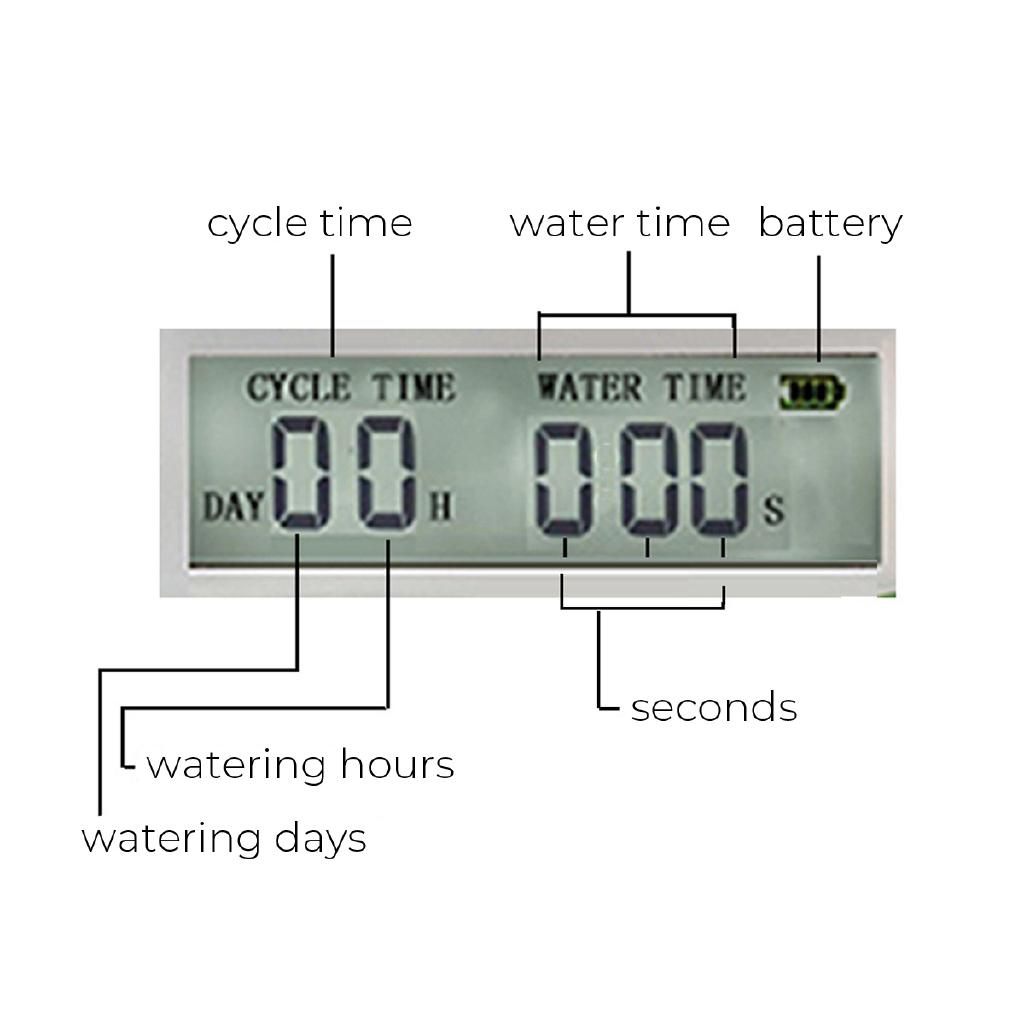

Display:
1.Cycle time: The calculation starts from the start of the pump and the interval between the next time the pump is turned on.
2.Battery status: Indicates that the battery is out of power and must be charged, otherwise the pump will not work.
3.When charging, the grid in the box flashes to indicate that it is charging. It usually takes 8 hours to charge from power, shortage to
full charge.When charging, it displays full grid and does not flash, indicating that charging is complete.
4. Working status: The display indicates that the pump is working. ”Lo”，When the watering time shows“Lo”, the battery is running low and needs to be charged.

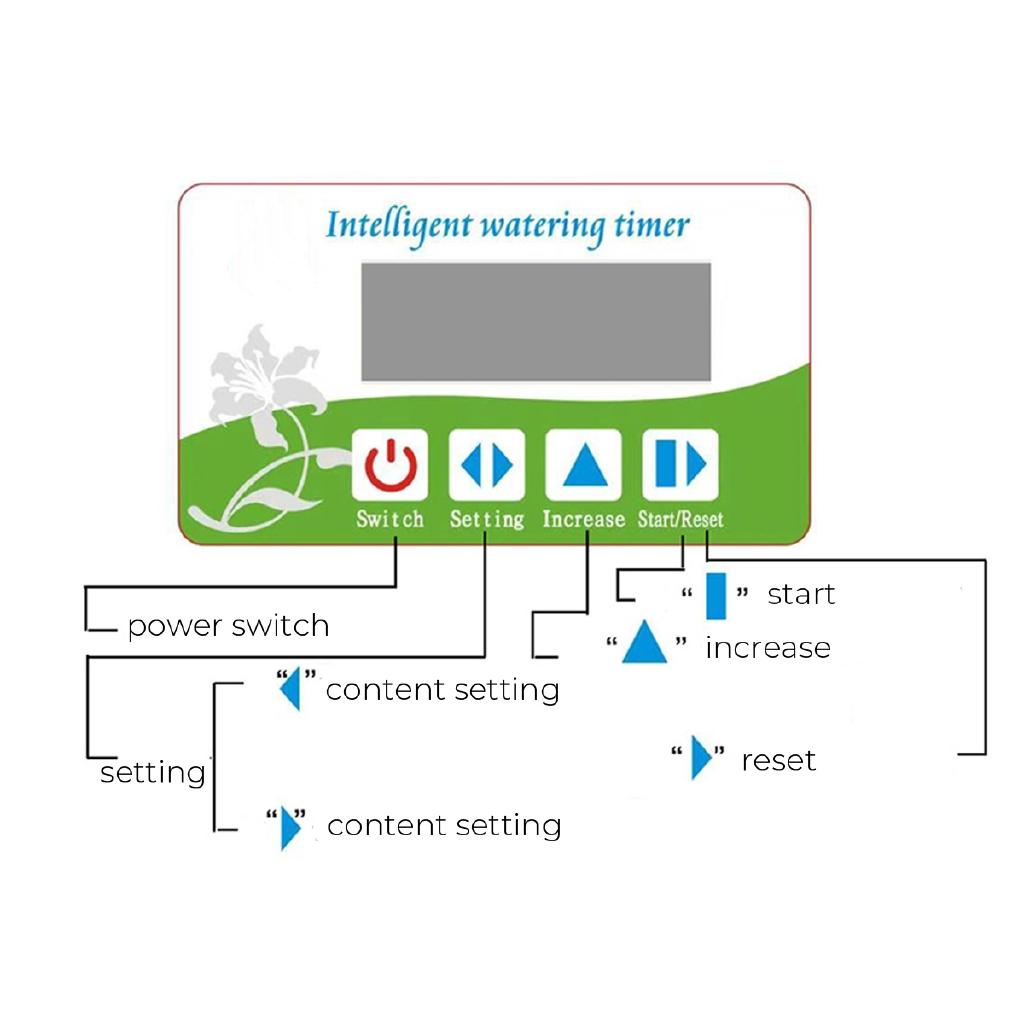

Button:
-Power and hold for 3 seconds to turn the power on or off. When it is turned on, the pump starts to work and restarts timing.
-Setting: Press the setting button to flash the first digit. At this time, press the increase button and the corresponding digit will change from 0-9. After selecting the desired digit, press the setup button again, the number jumps to the next digit, using the same The method is set. When finished, press the“Start/Reset”button to complete the setup and start the pump.
-Increase: Press and hold the data you want to set to increase, release it and stop increasing.
- Start/Reset: When the pump is working, press this button to stop working; when the pump is not working, start the pump and start calculating the cycle time again.
Specification：
1. Name: Timing automatic watering device
2.Brand: Autumn Rain (qiu yu)
3. Motor power: 3W
4. Battery voltage: 3.7V, battery capacity: 2000 mAh
5. Input voltage: 4.2V-6V
6. Interface type: usb
7. Pump flow: 850ml / min
8. Waterproof rating: PI67 rainproof
9. Built-in 16850 lithium battery Rechargeable battery
10. The weight set is about 600 grams
11. Packing size: 8×15×25 cm

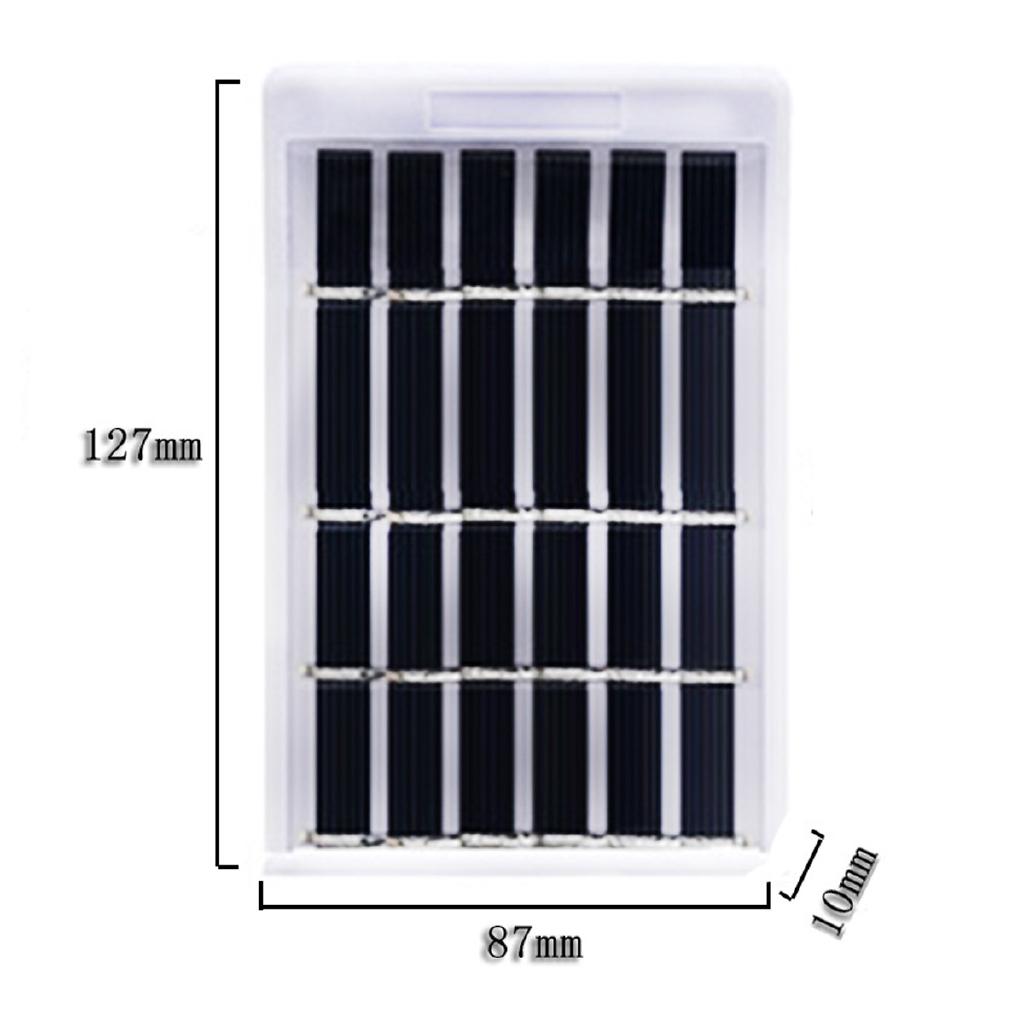

12. Battery board size: 127*8.7*1.0cm
Installation:
1. Need tools: scissors or utility knife
2. Influent installation:
A. Fix the main body and water source, measure the length of the required water pipe, and use scissors to cut a suitable length of water pipe, insert the inlet into the water inlet at the end; insert the head into the blue circle of the filter, insert it into the bottom, and then put it. Into the water source.
B. If the wat
