TIPM Plug-In Fuel Pump Relay Bypass Fits for Most Dodge/Chrysler/Jeep 2007-2020
Note: This TIPM Plug-In Relay System works exclusively on the TIPM-7 fuse box (as the picture shown)
NO installation instruction and recommend professional installation.
Description

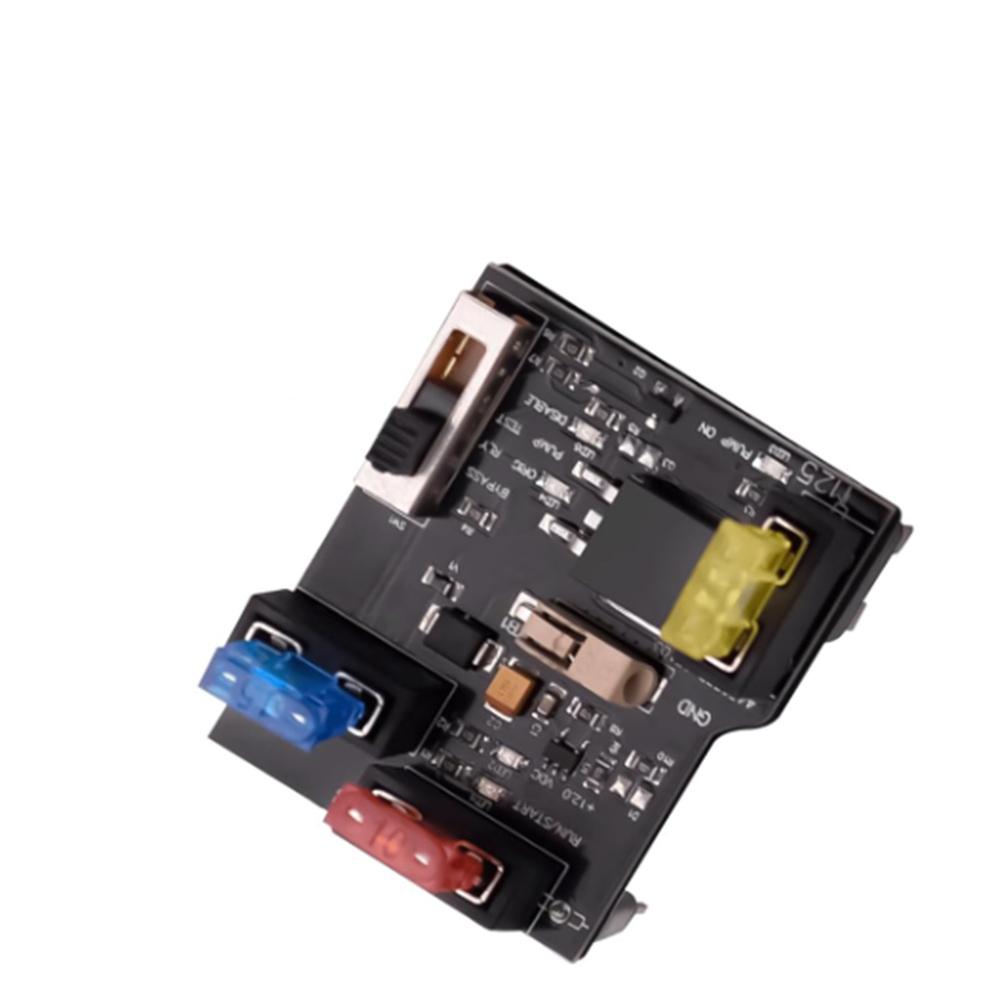

Designed around a printed circuit board with six terminals (male pins), this advanced system plugs into any TIPM-7 fuse box (see included image) to test and bypass a faulty fuel pump relay using Metal-Oxide Semiconductor Field-Effect Transistors . The following electrical connections to the vehicle's fuse slots are used: +12 VDC power , run/start signal , fuel pump relay output (M25 far side), power output to the fuel pump (M25 near side), and ground. Once the system is installed, your vehicle’s fuel pump will receive power with full remote start capabilities and no limitations.
Capabilities
Bypass your faulty fuel pump relay to stay on the road and drive like you normally do (prevents "stuck on" faulty fuel pump relays from draining your battery and will provide power to your fuel pump if the faulty fuel pump relay cannot)
Test your existing internal fuel pump relay with LED feedback to determine if it's faulty
Test your fuel pump when the vehicle is off (or drain the tank if the wrong fuel was used)
Disable the fuel pump (security mode) so no one can drive the vehicle
LED feedback identifies low battery voltage (<12.0 VDC) and indicates that it's correctly installed
Fits under your TIPM lid when closed

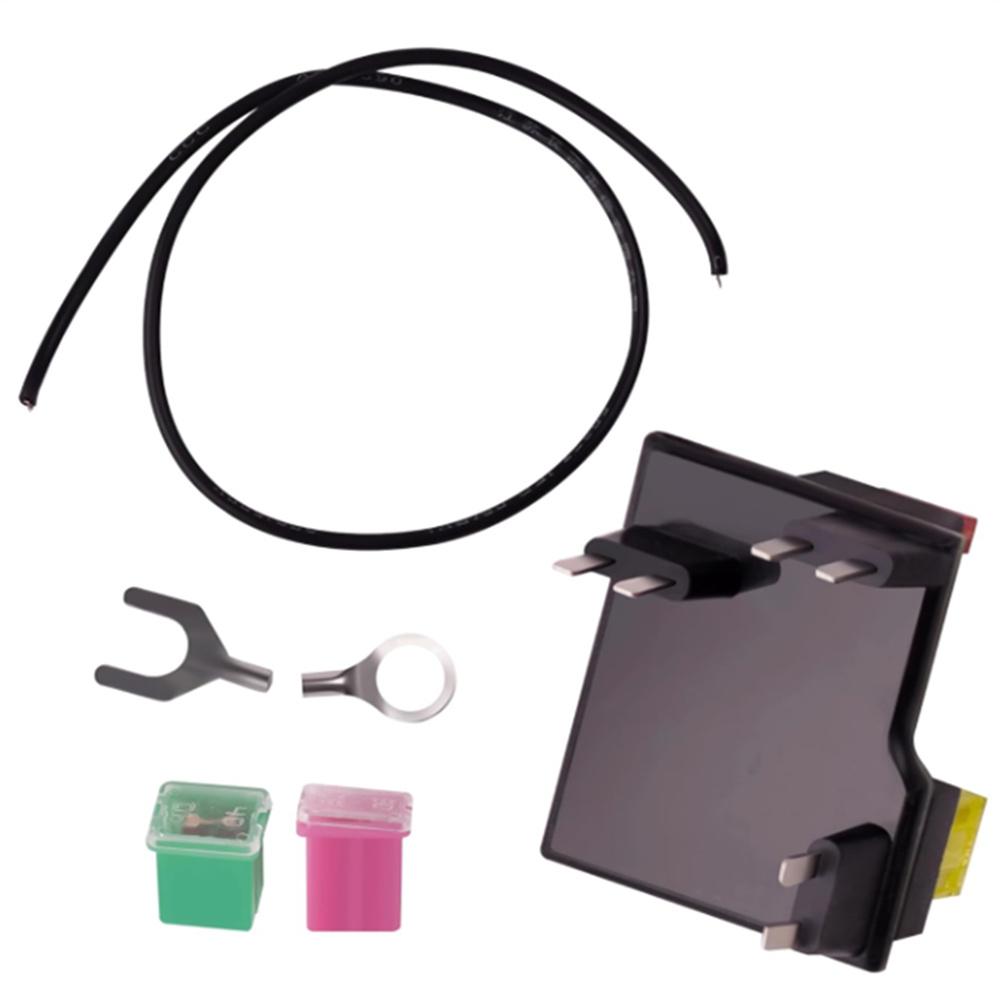

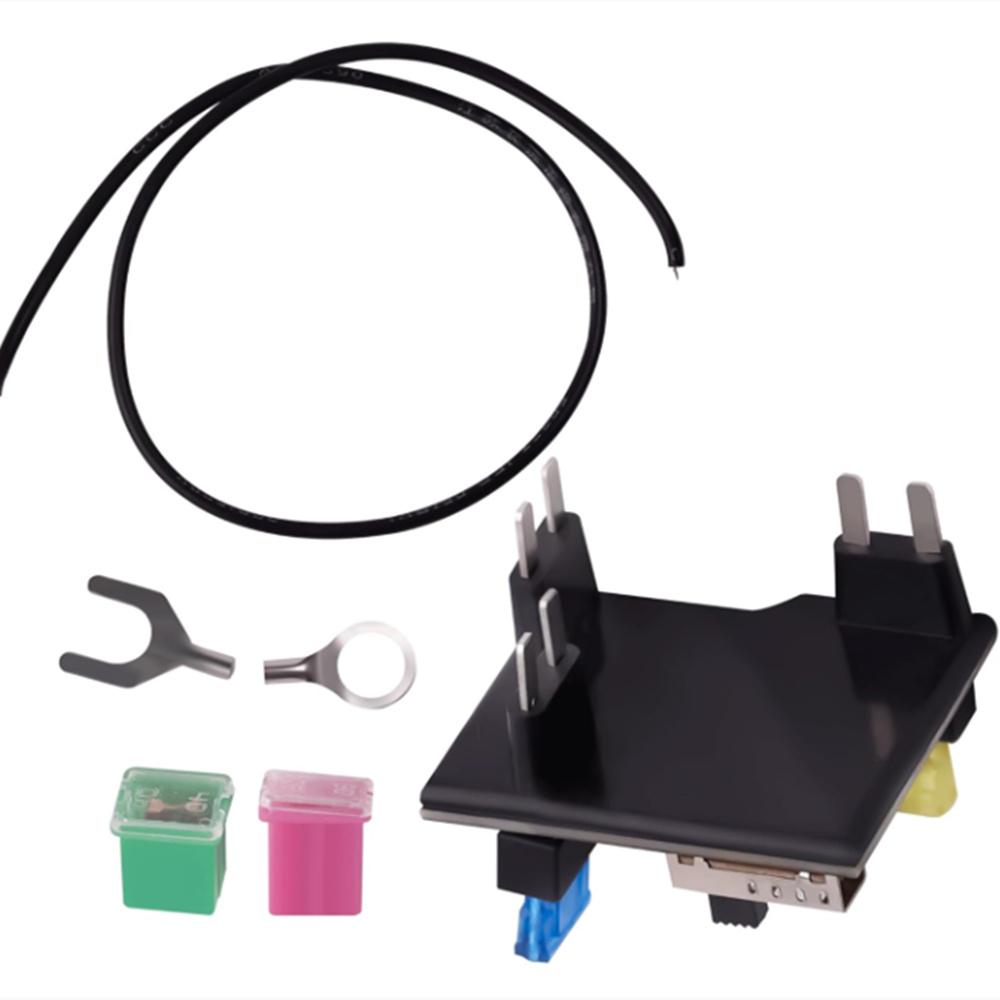

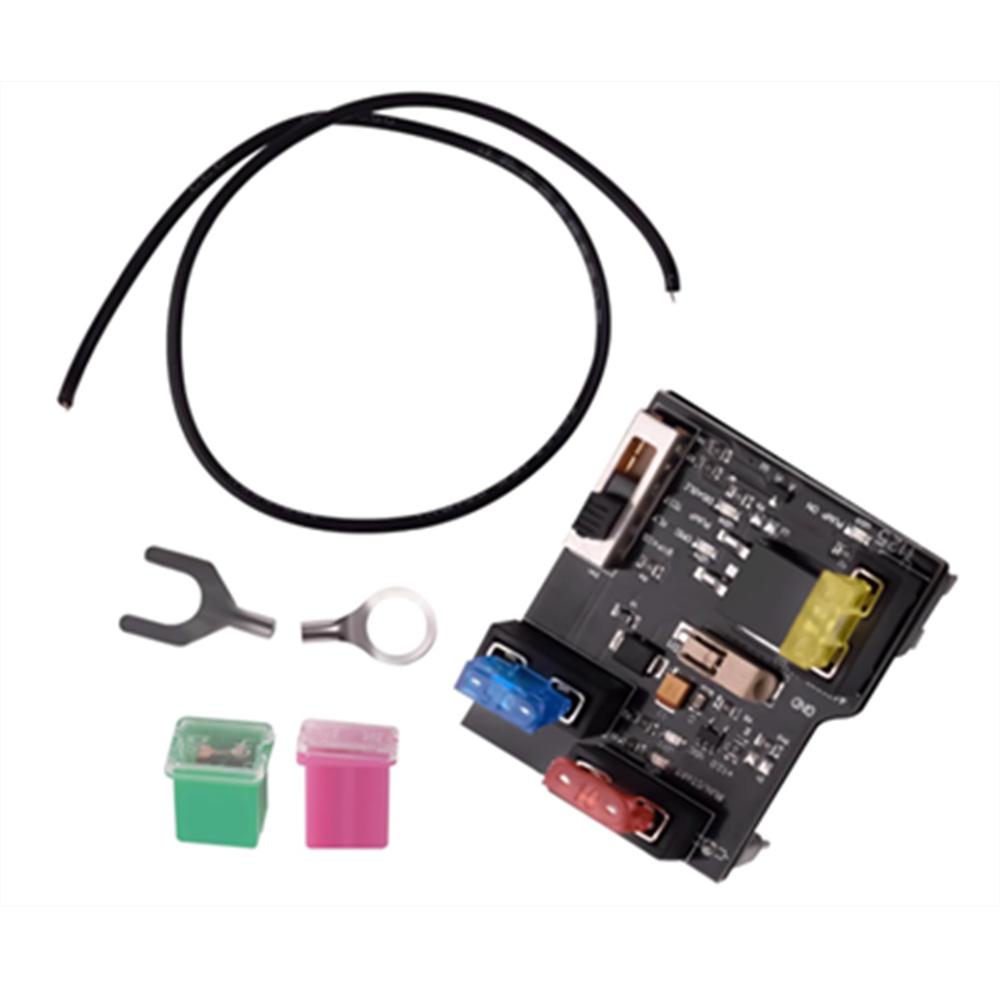

Package included:one set (as the picture shown)
