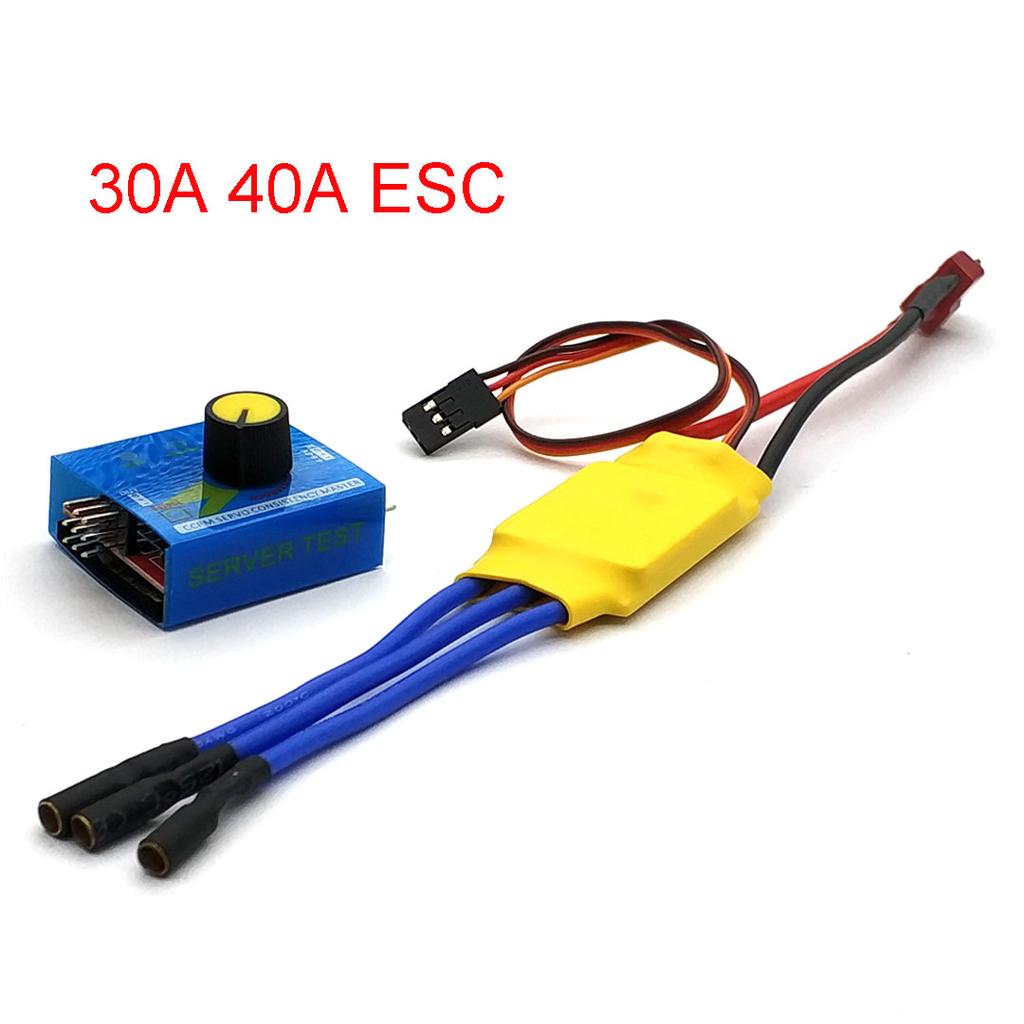

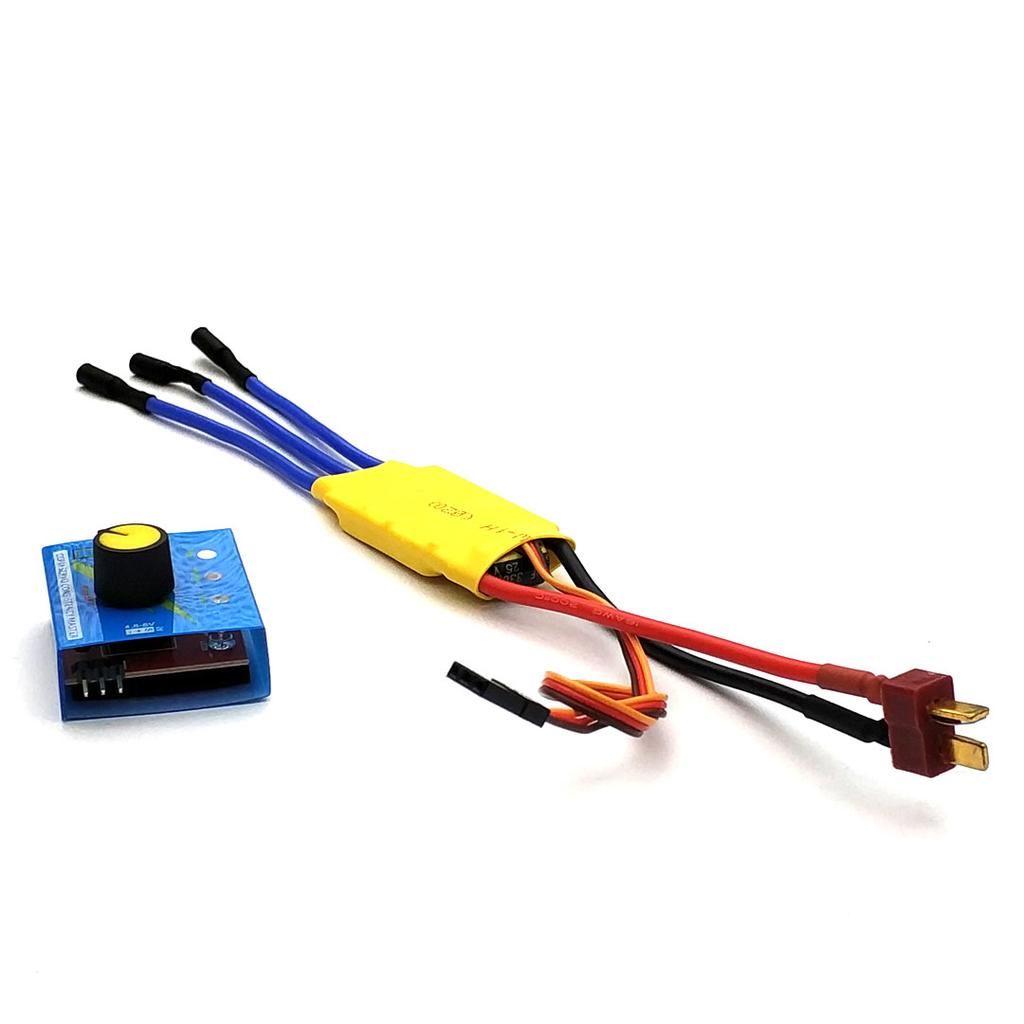

Steering Engine
The device can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.
There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.
Specification:
-Type: CCPM Servo Tester, ESC or Servo tester
-Output: ≤15mA (5.0)
-Voltage Consumption: DC4.8-6V
-Output Signal: 1.5ms±0.5ms
-Size: 48 x 42 x 17mm/1.89'' x 1.65 x 0.67''(Approx.)
-Color: Blue

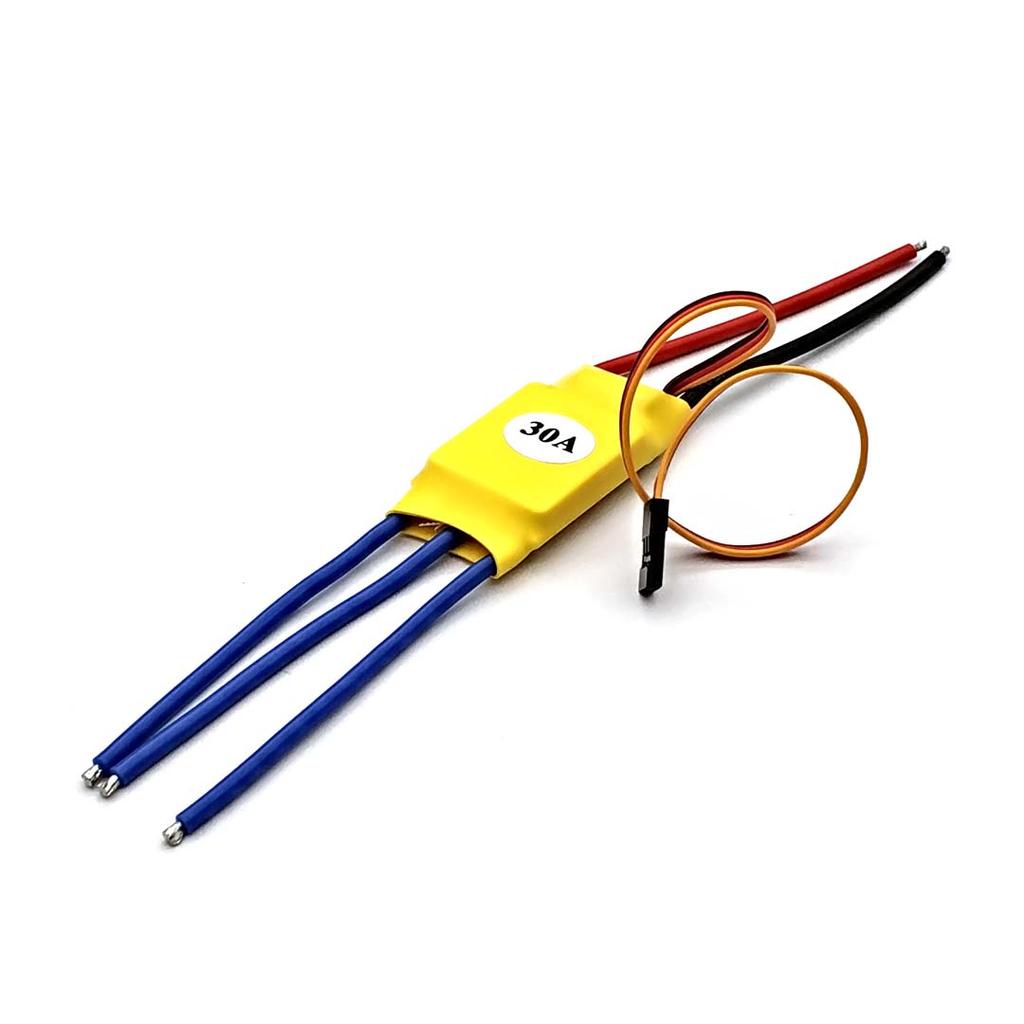

30A ESC controller:
Output: Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage: 2-3 cells lithium battery or 5-9 cells NiCd/NIMh battery.
BEC: 2A / 5V (Linear mode).
Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BrushLess Motor
Size: 45mm (L) * 24mm (W) * 11mm (H).
Weight: 25g.

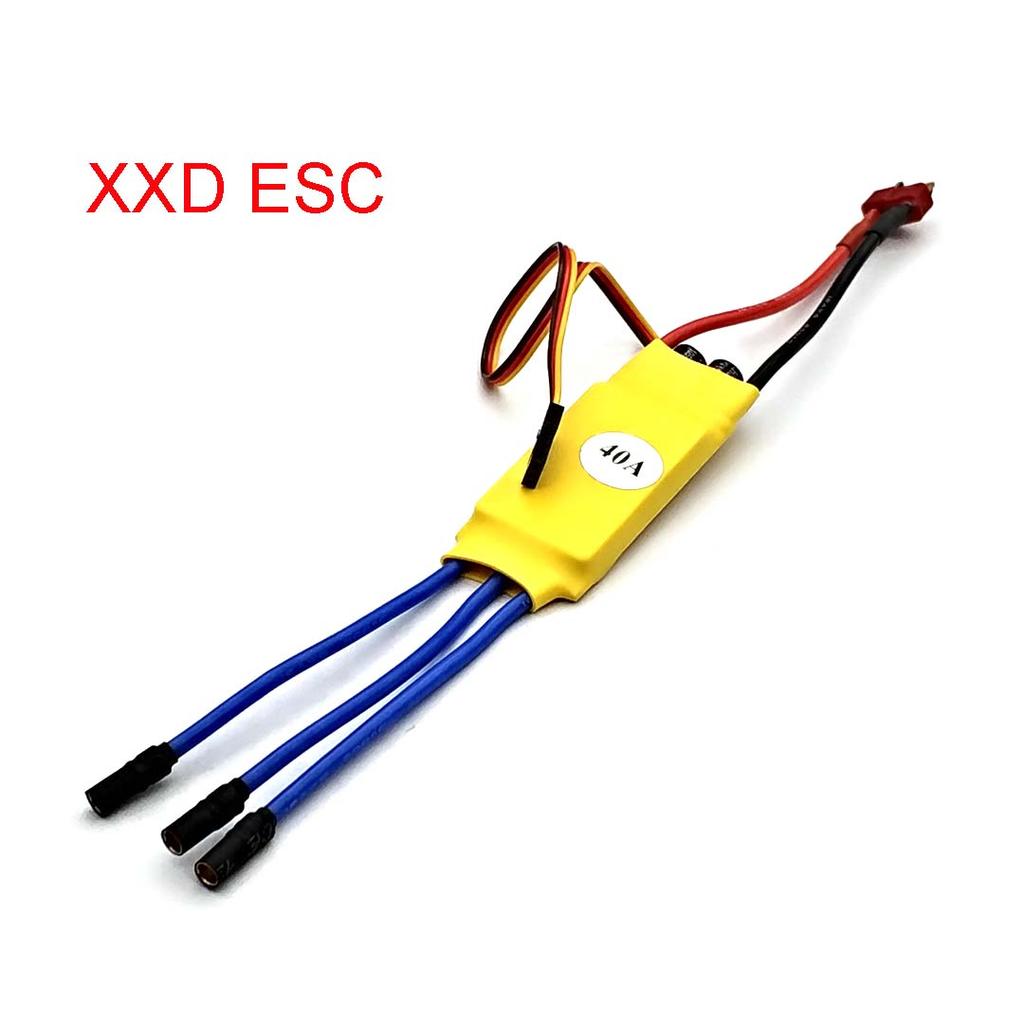

40A ESC controller:
Max Current: 50A
DC:3.7V-14.8V
BEC:3A / 5V (Switch)
Size: 45mm x 26mm x 10mm
Net Weight:28g
High rate PWM : 8K
Li-Poly: 2-3
Ni-Mh/Ni-cd:4-10Ni- MH
Original box: NO
Color: Yellow
Net weight: 31g
Package Included
1 Pcs Steering Engine / ESC Controller
