Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----

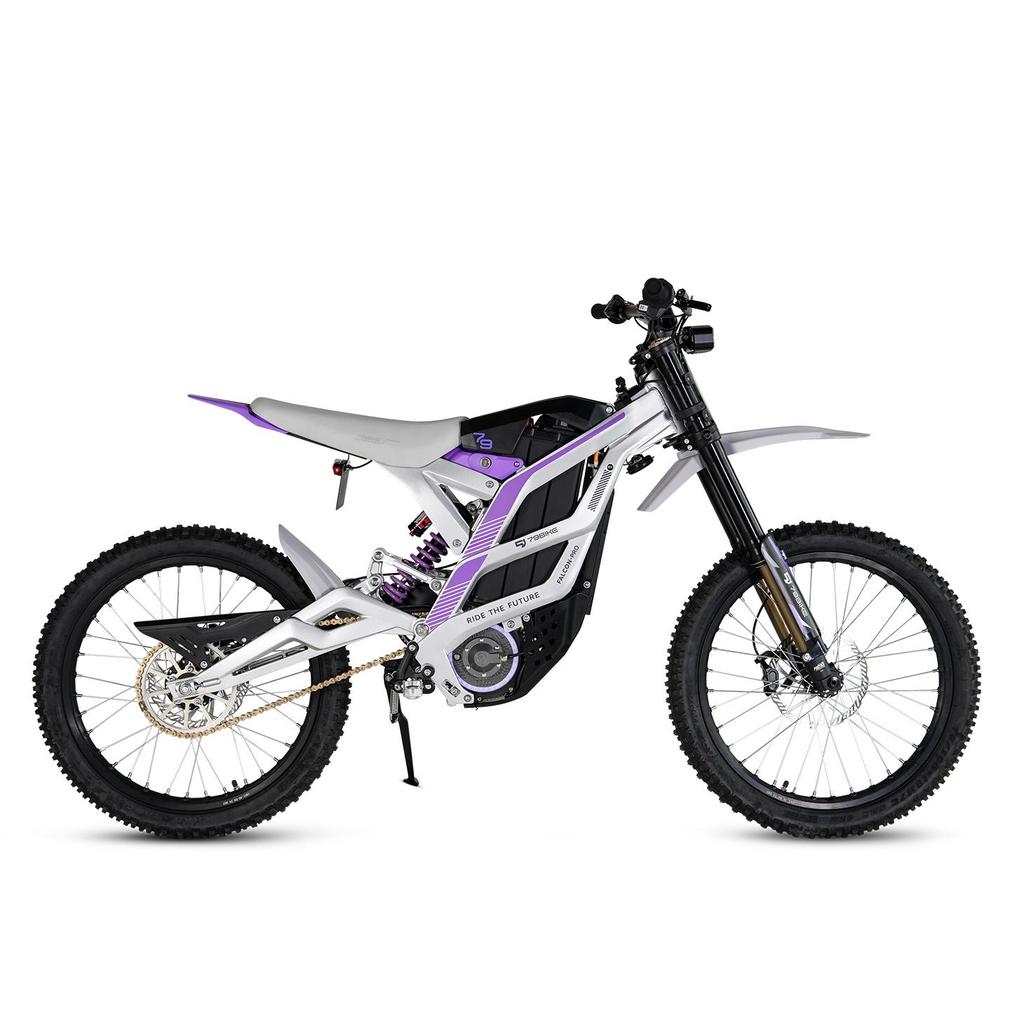

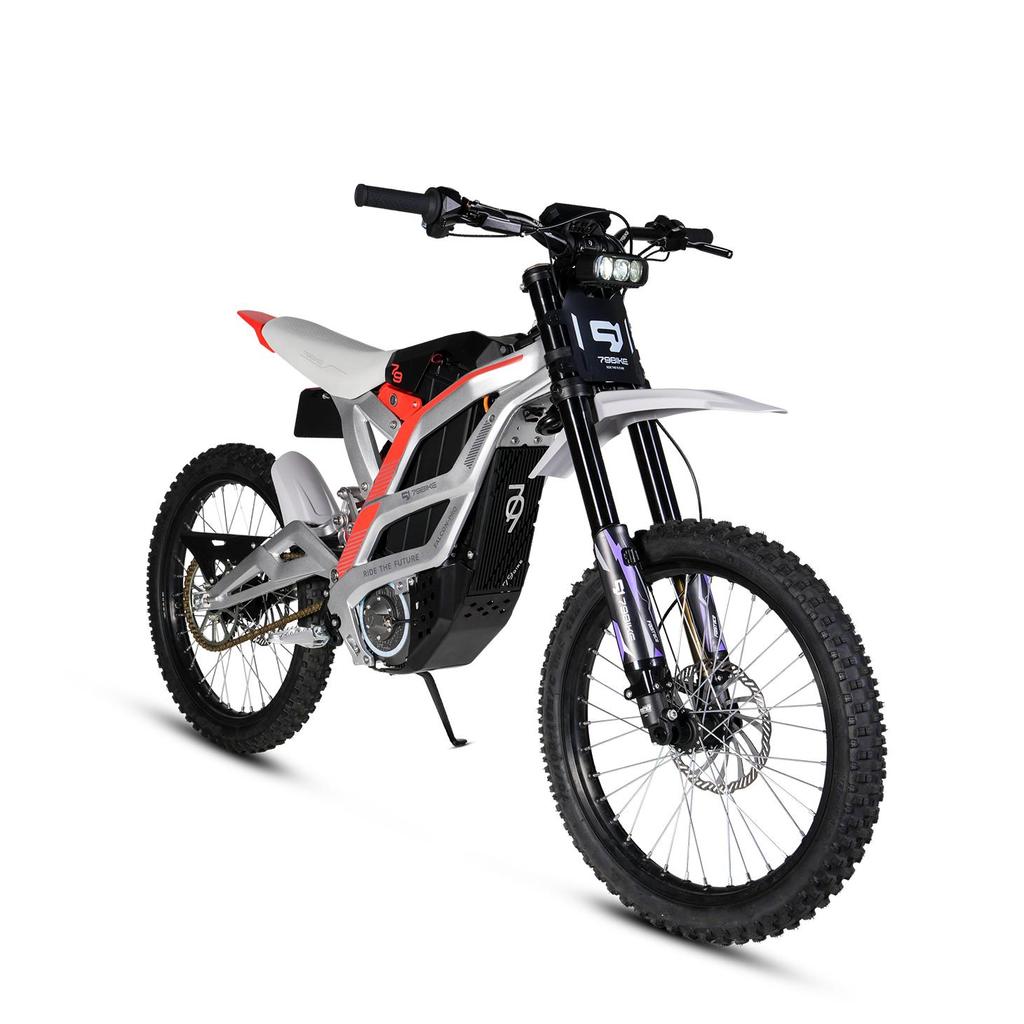

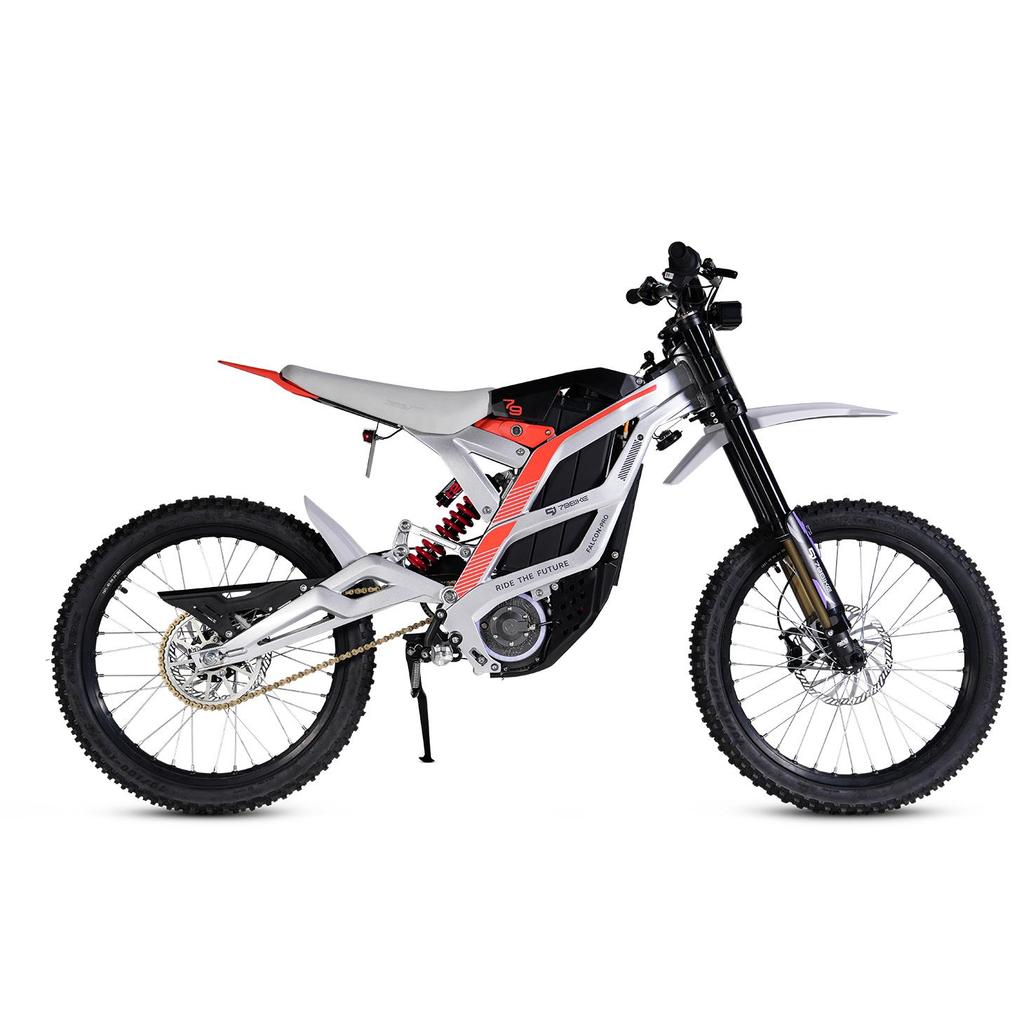

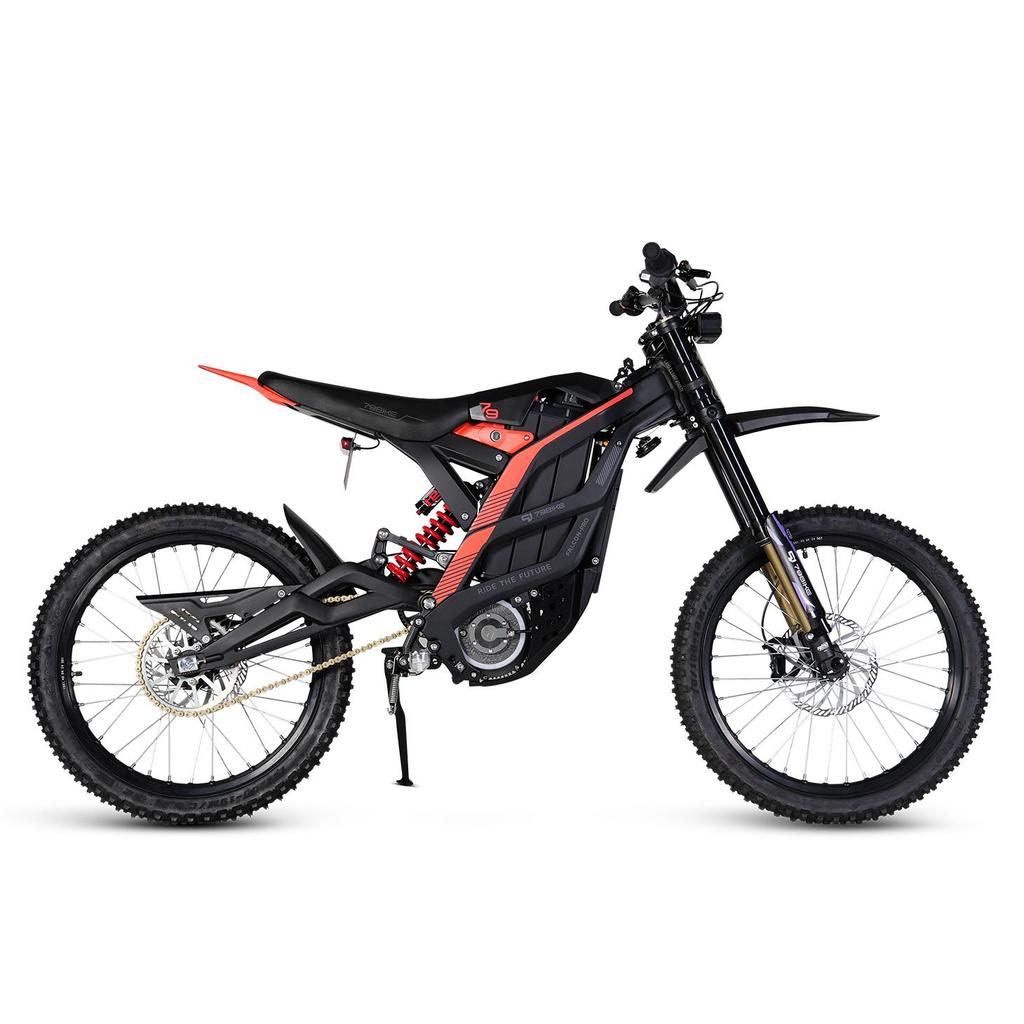

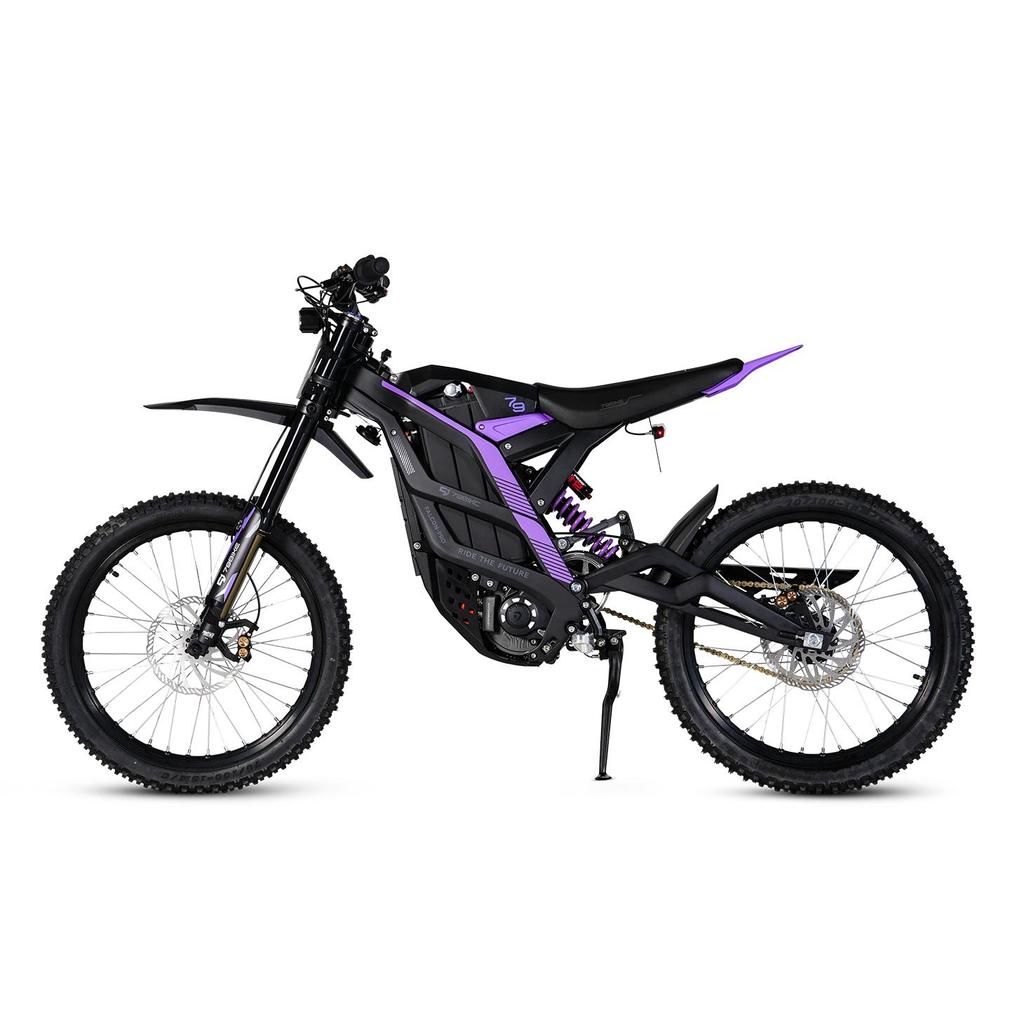

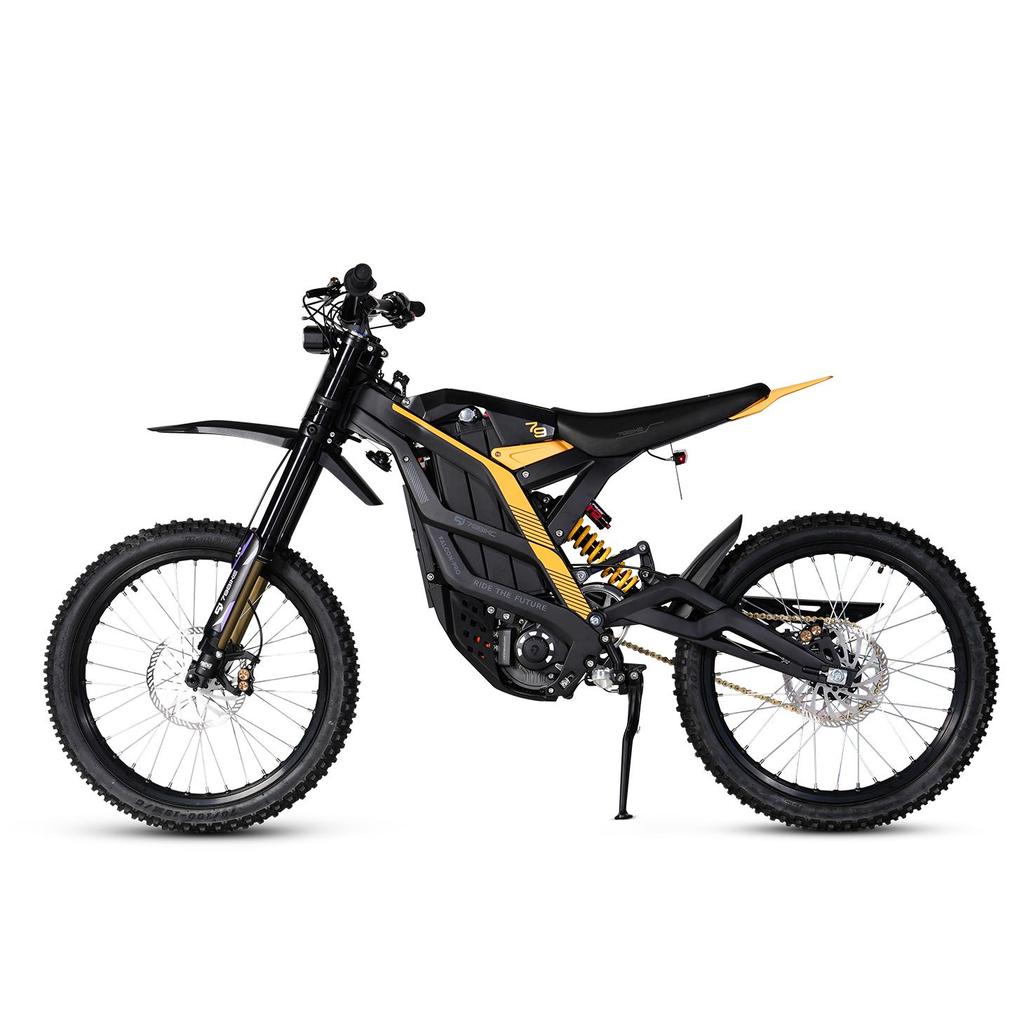

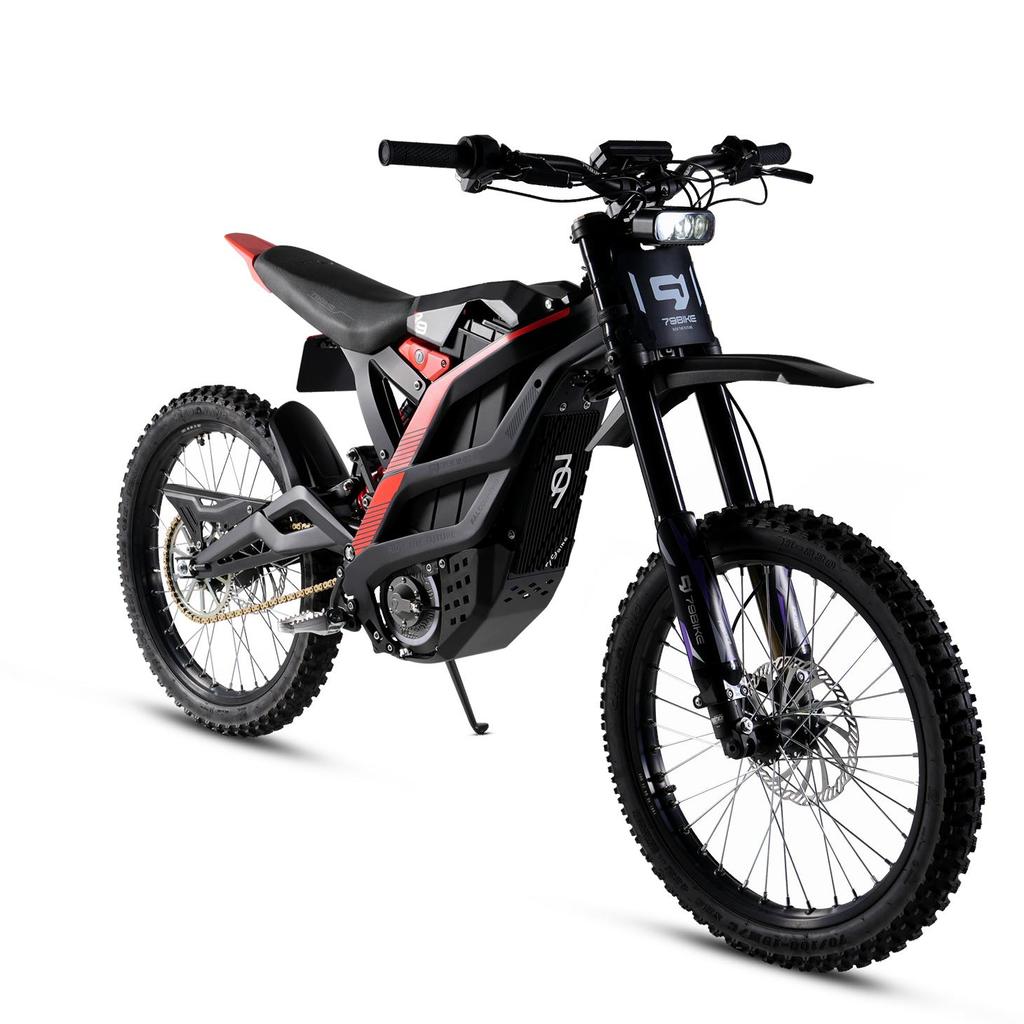

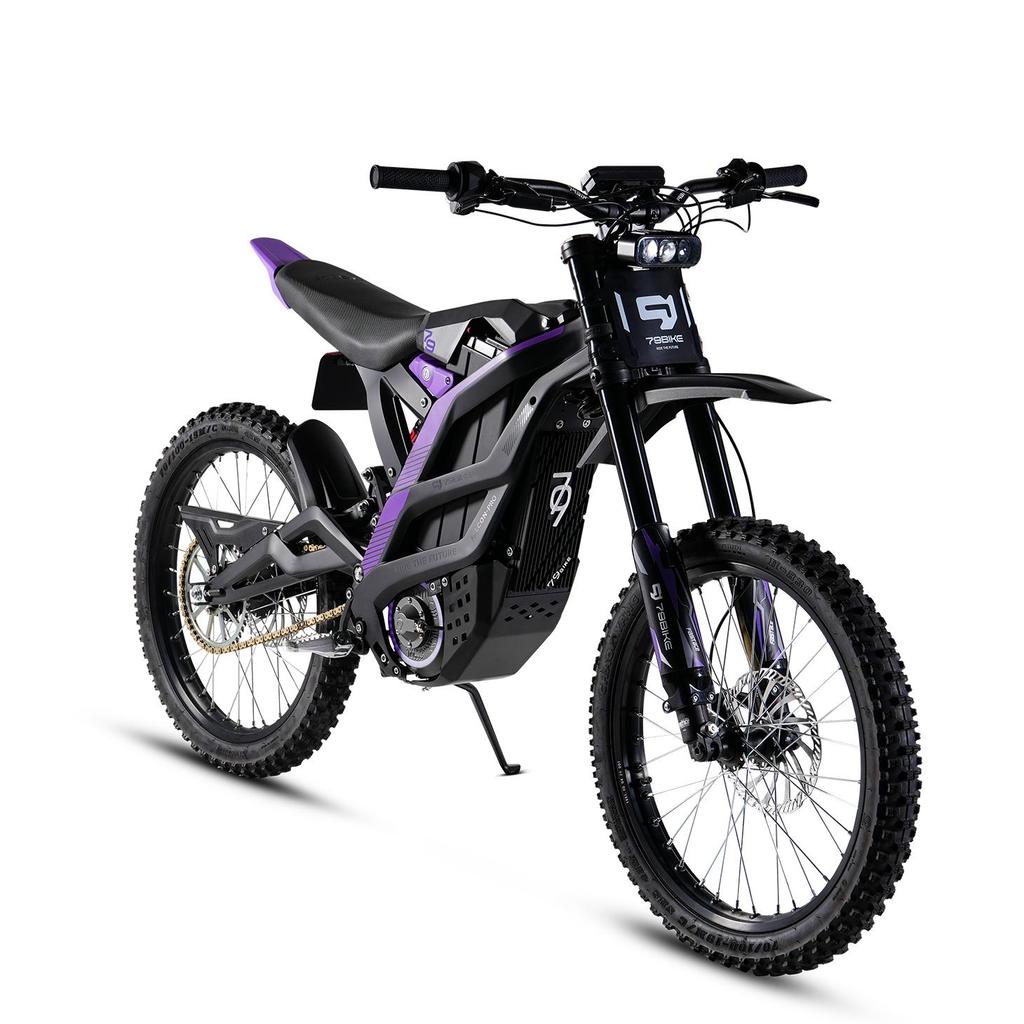

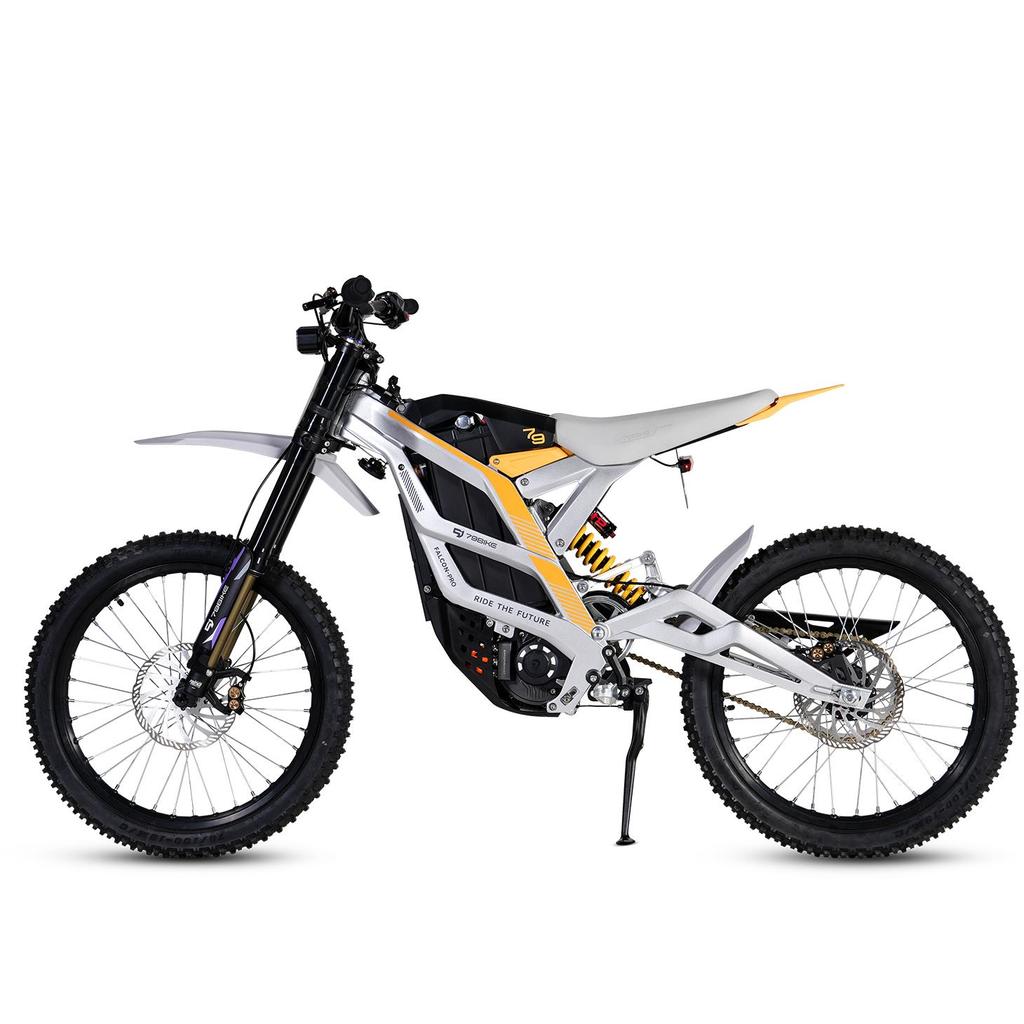

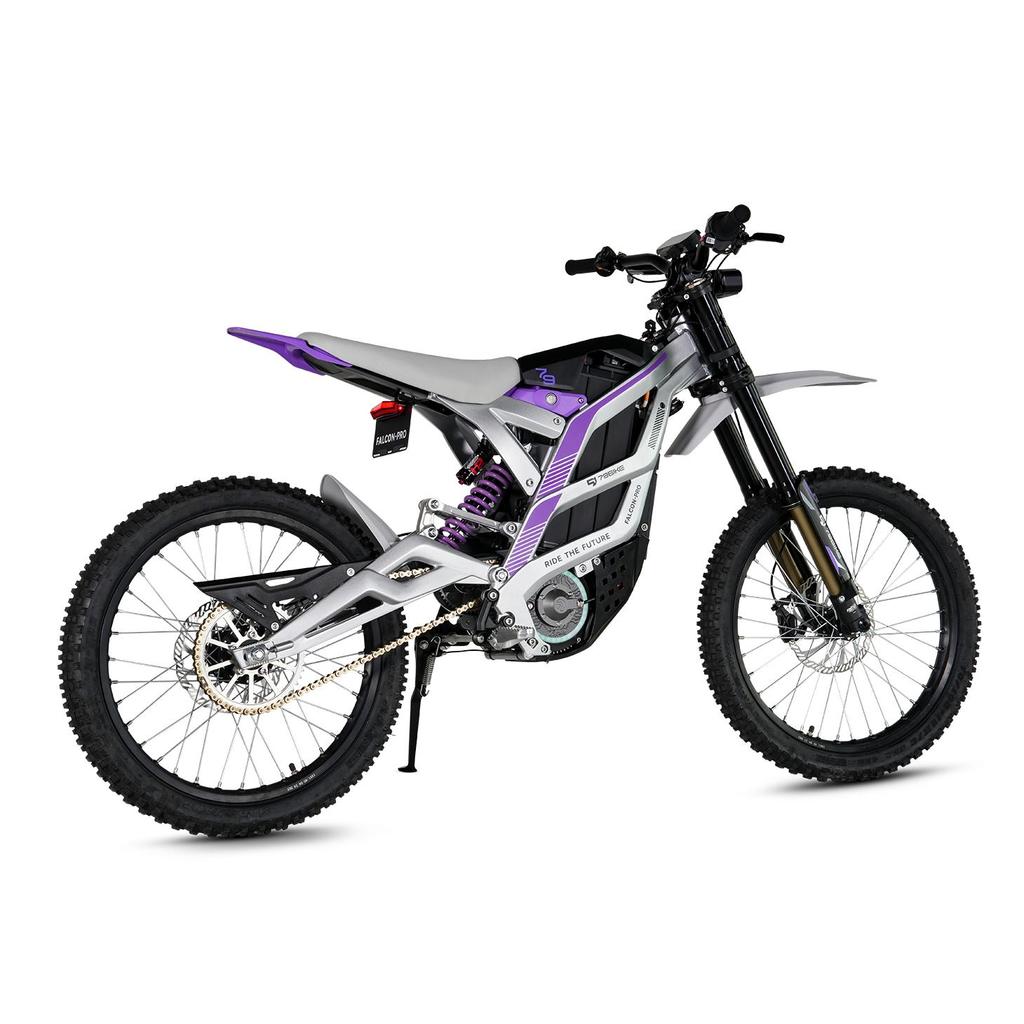

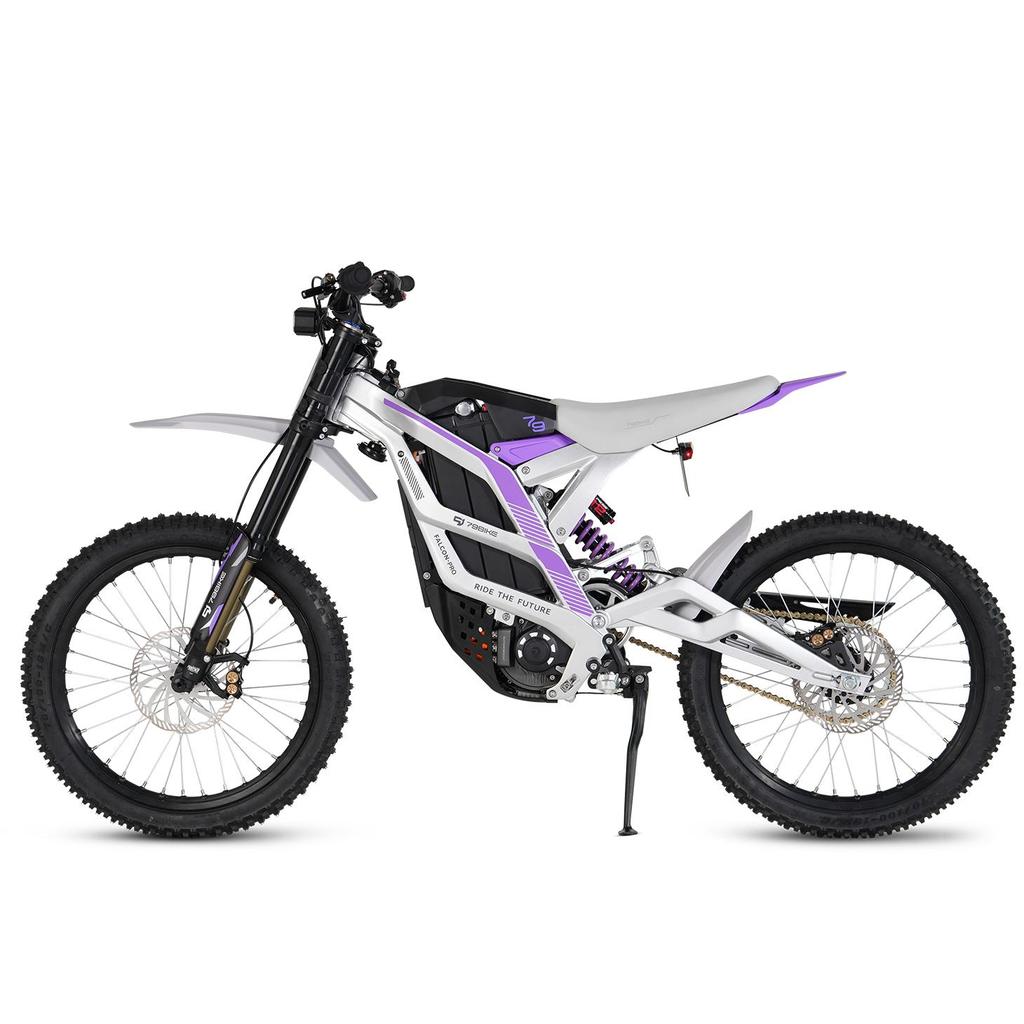

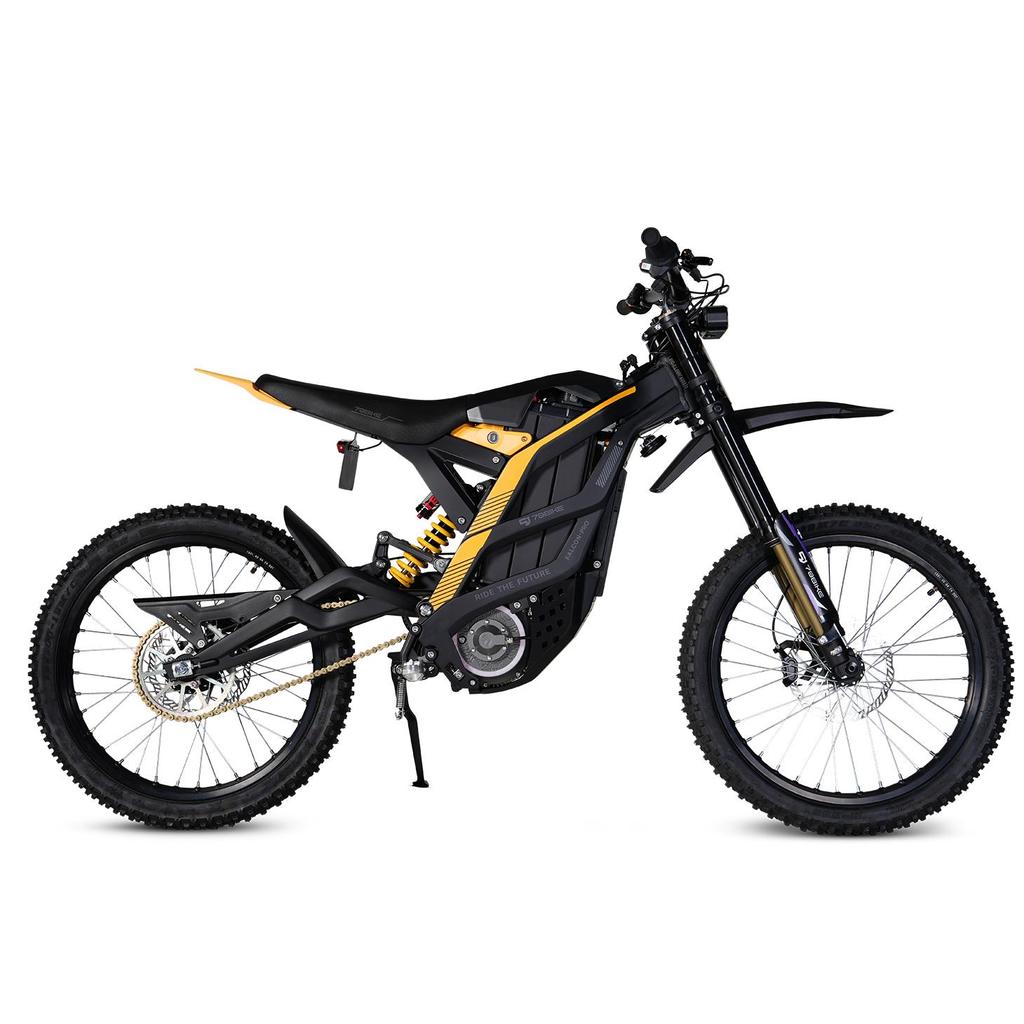

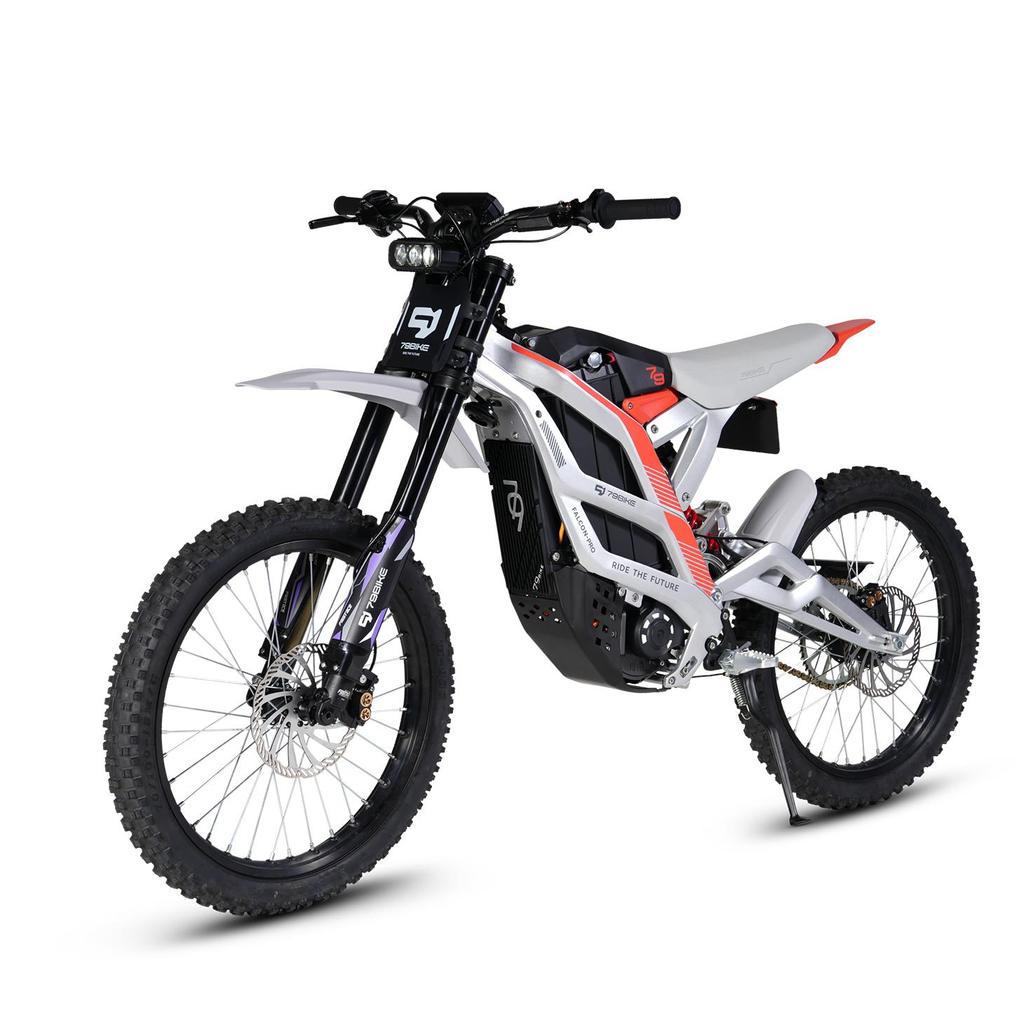

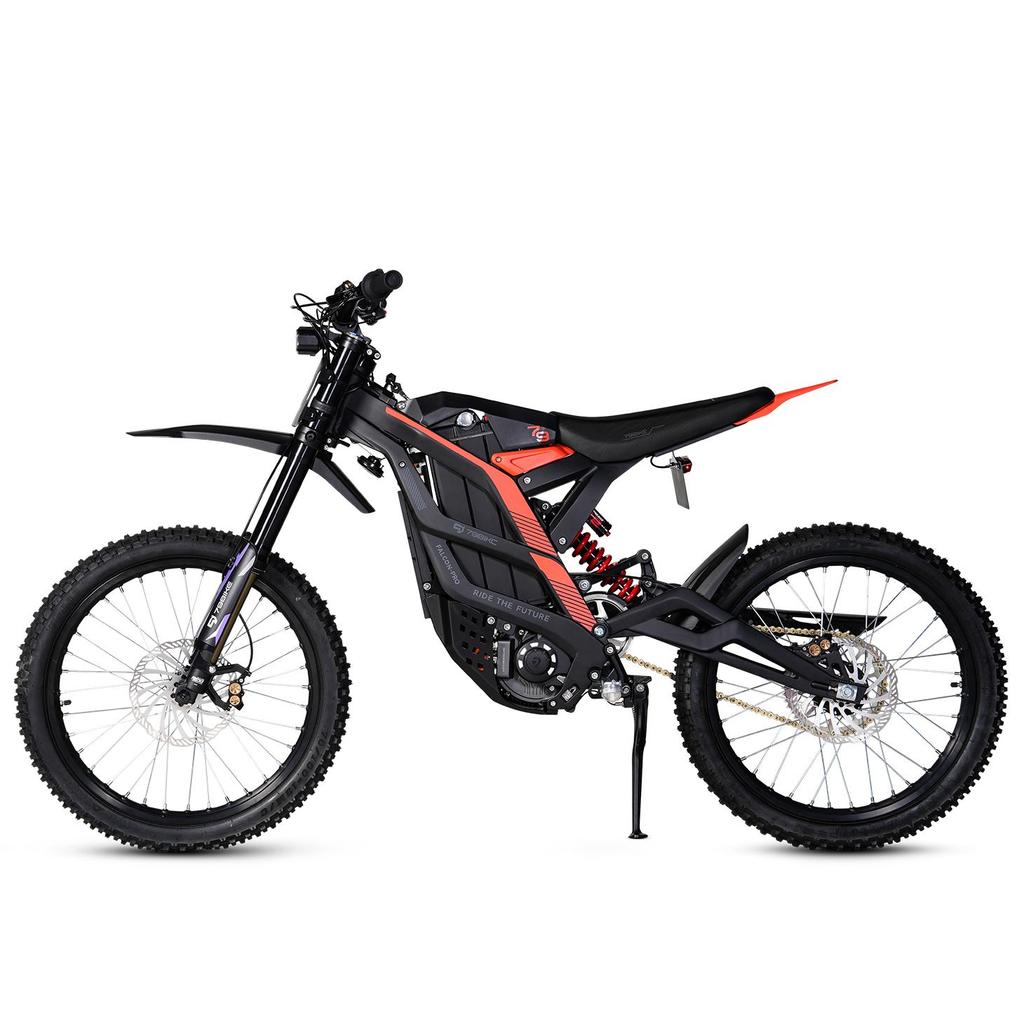

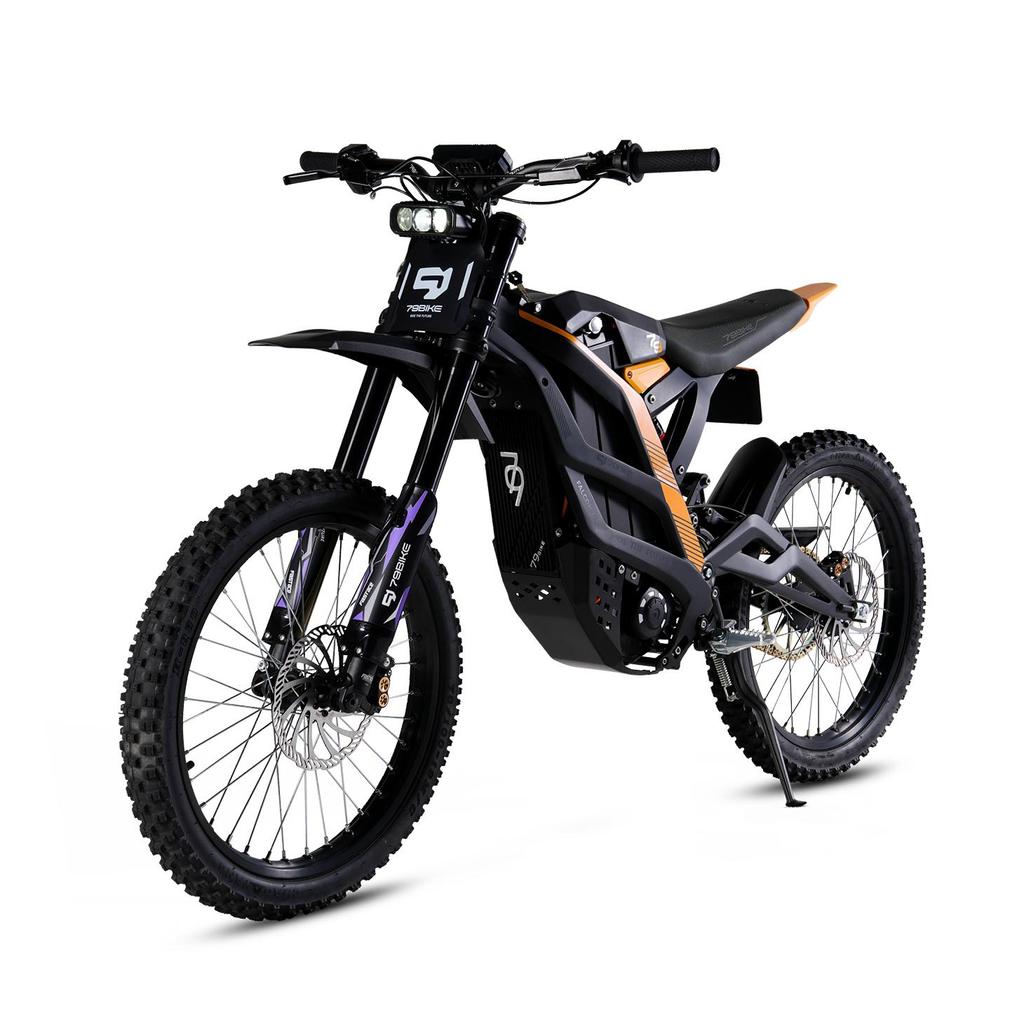

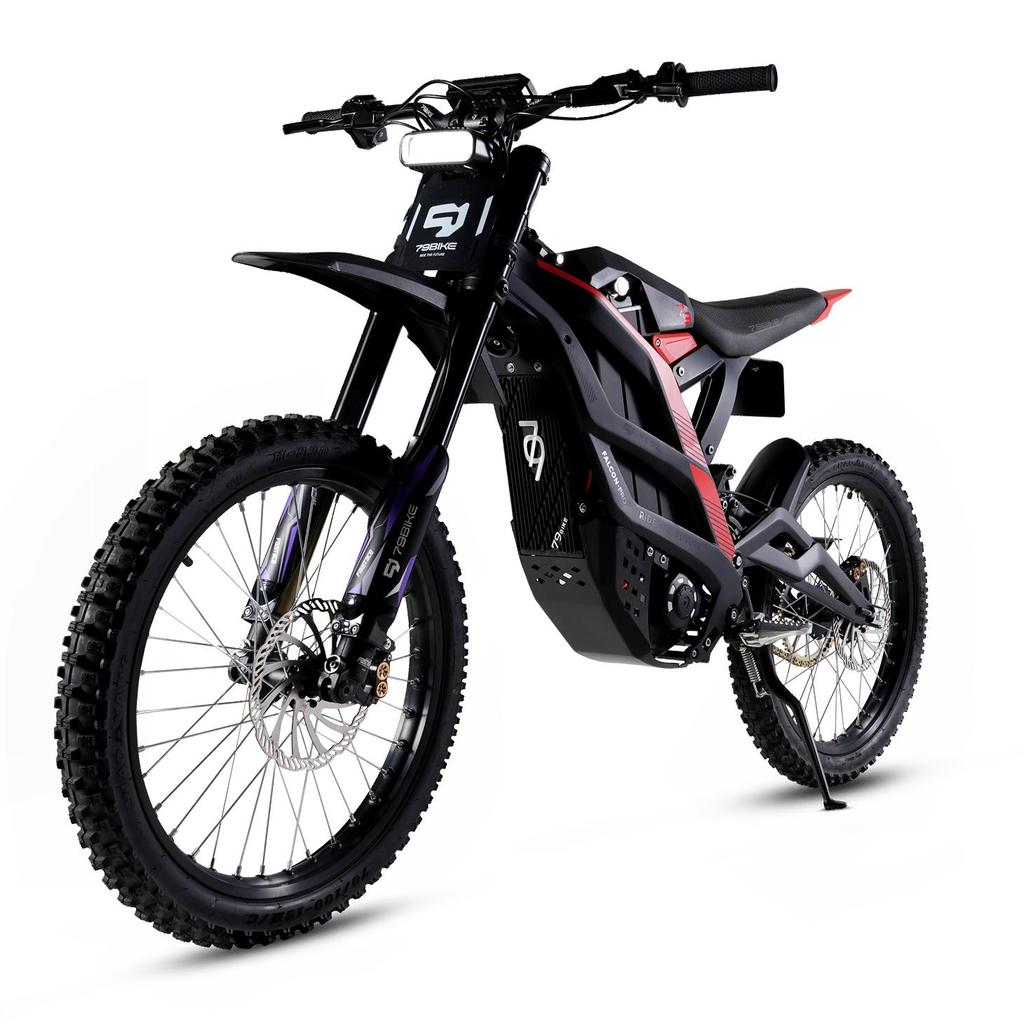

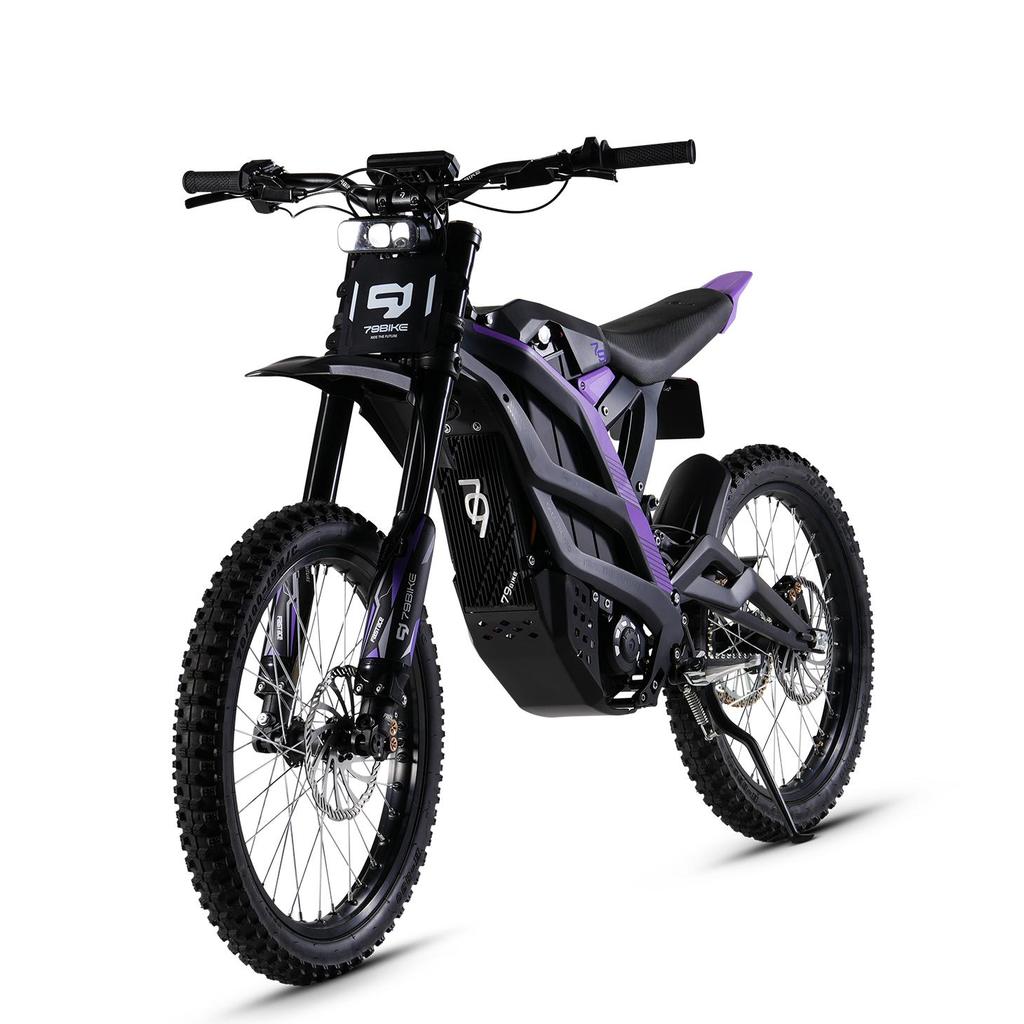

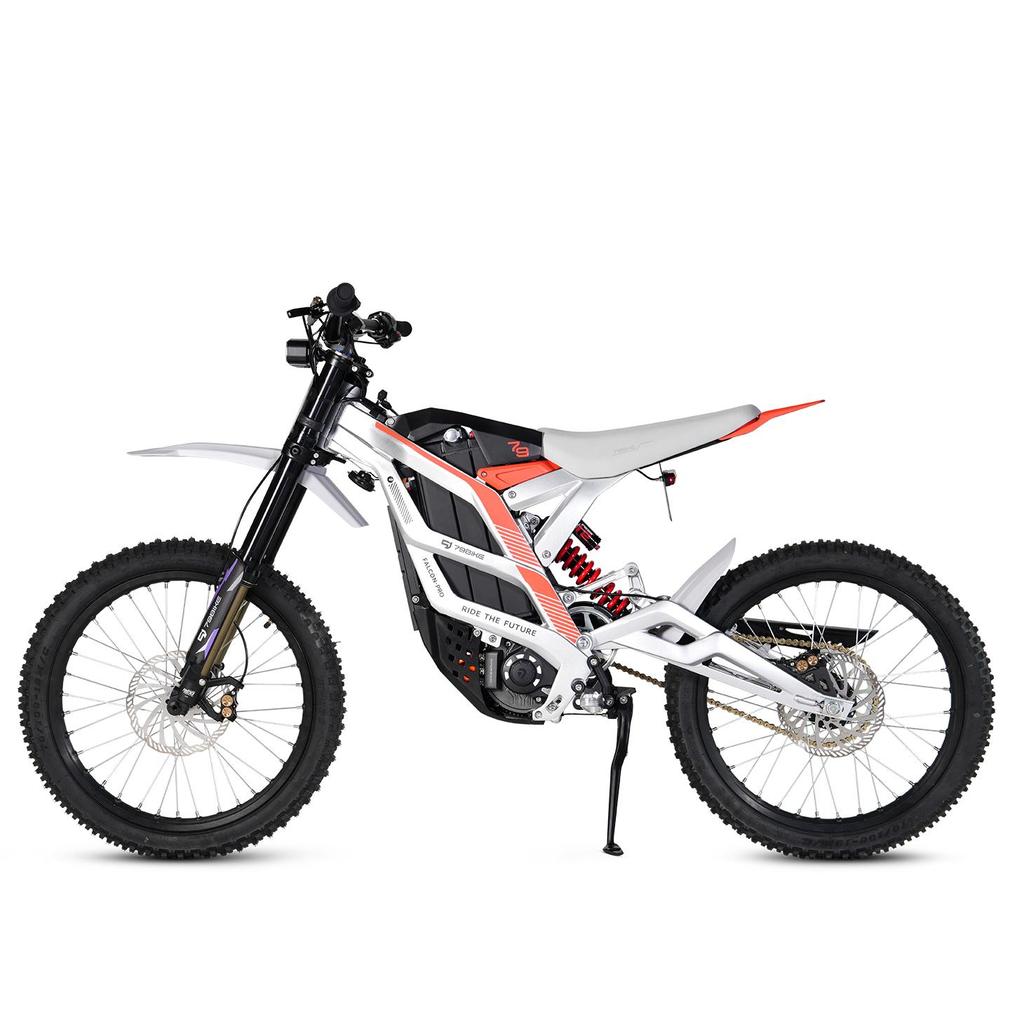

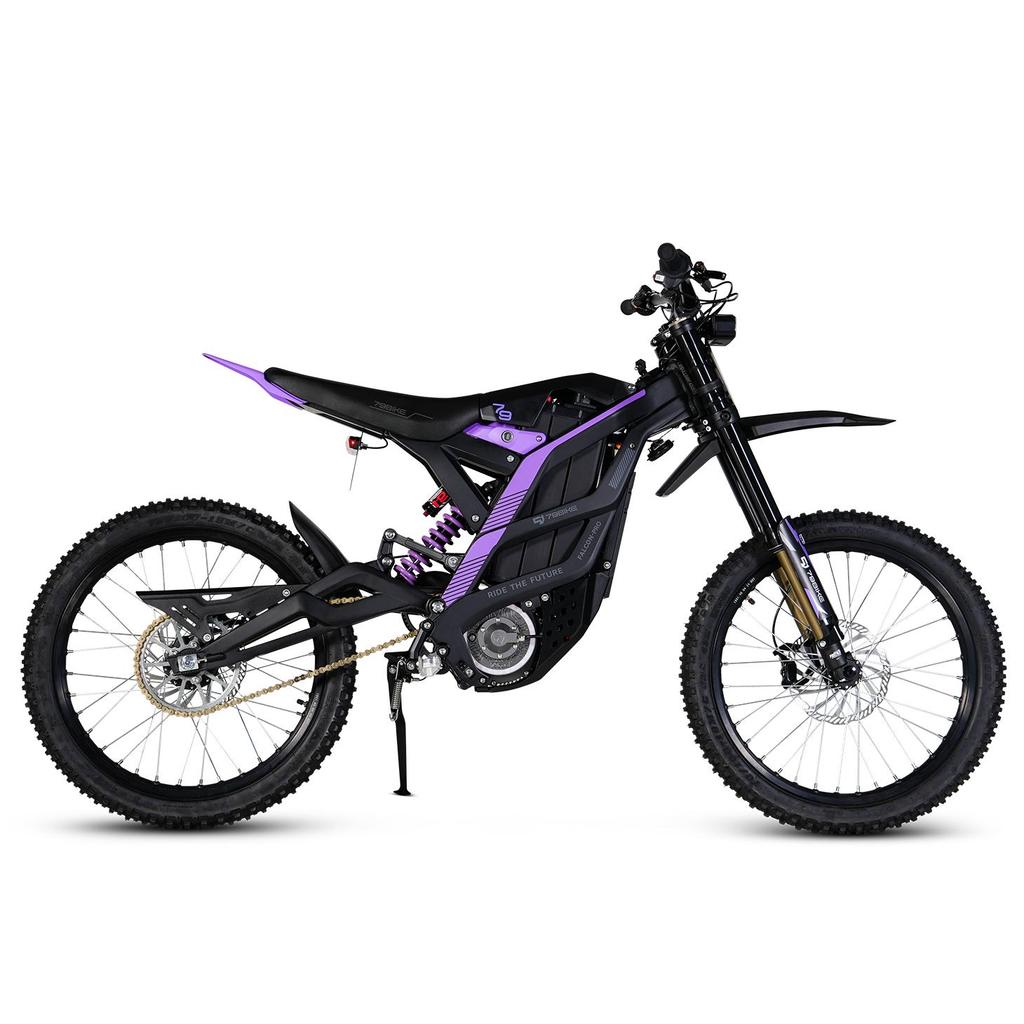

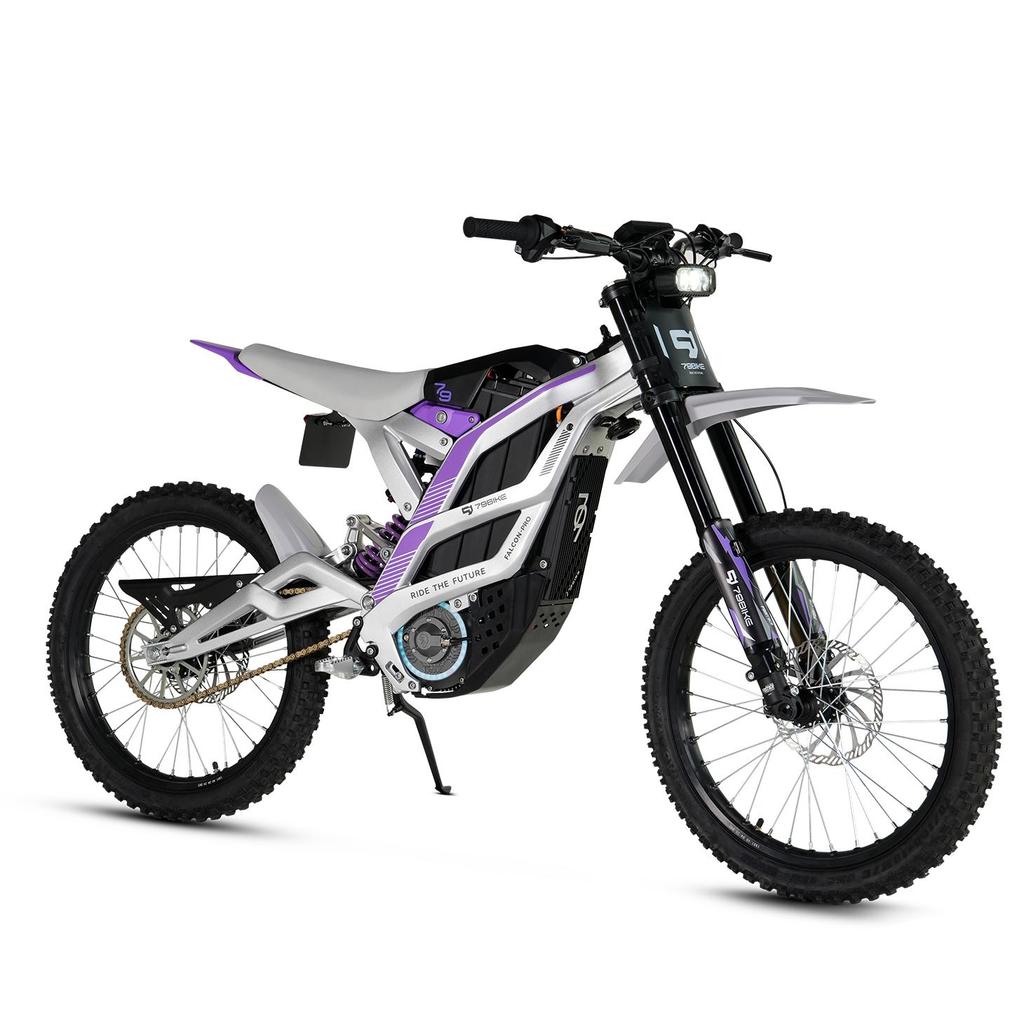

FALCON PRO Specification
Performance Item 79BIKE_ FALCON PRO
Basic Parameter Brand 79BIKE Off-Road Motorbike
Vehicle Size 1870X755X1088 mm
Weight(Incl. Battery) 59KG
Riding Requirements Max Load 120KG
Age 18~55 years
Main parameters Wheel Base 1250mm
Seat Height 830mm
Ground Clearance 275mm
Max Speed ＞85KM/H
Peak Power 8.5KW
Max torque 410N.m
Max Mileage（KM） 120KM@25KM/H

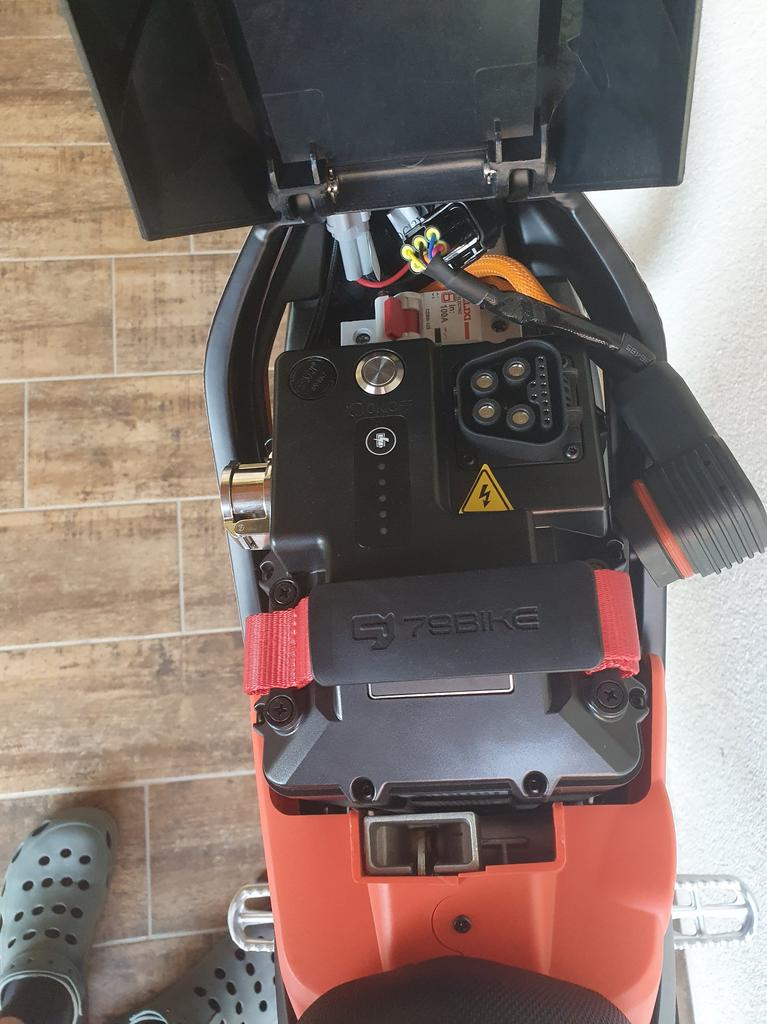

Battery Protection grade IP67
Battery Type Ternary lithium battery LG-M50T
Capacity 35Ah
Rated Voltage 72V
Charge Current 10A
Charging Time 3-4h
Motor Motor Type LPMSM
Rated Power 5KW
Rated Voltage 72V
Accent Light（Star Ring） LED Smart Adjusting Light
Charger Input Voltage AC110/240V-50/60Hz
Output Voltage DC 84V
Output Current 10A
Controller Specification & Model 72V Sine Wave Vector Controller
Vehicle System Frame "Triple-Beam Forged
Aluminum Alloy Frame"
Wheel 19*1.4
Tire Off Road Tire 19/19(70/100-19)
Primary Drive System HTD 8M Drive Belt 560mm
Secondary Drive System 420 Chains 106 Knots
Front Suspension Travel "60lbs Fastace 2.0 fork
200mm"
Rear Suspension Travel "450lbs Rear Fork
85mm"
Front brake 203mm*2.3T
Rear brake 203mm*2.3T

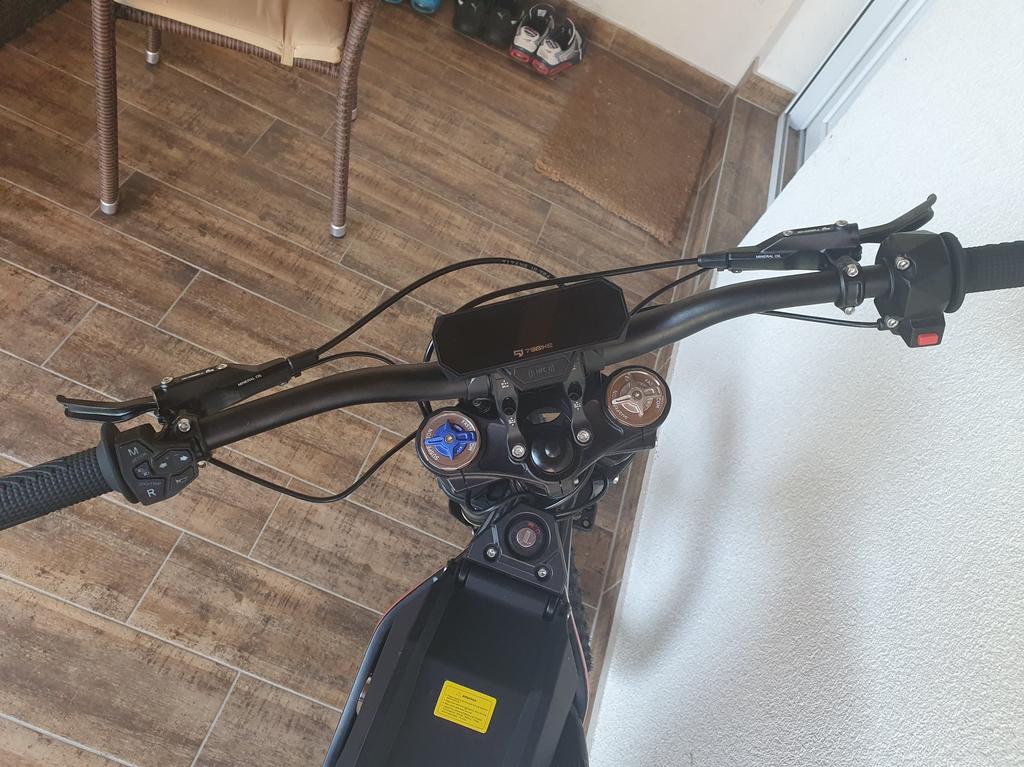

Handbar 760mm
Communication port RS-485+CAN
Others Lighting System Full LED high & low beams + turn signals + brake lights
Display HD Smart Multi-Function Display
Phone Charging Port 20w-USB+type-C
Tip-Over Sensor Yes
Kickstand Sensor Yes
NFC Yes
Night Riding Mode Yes
Traction Control+ABS No
