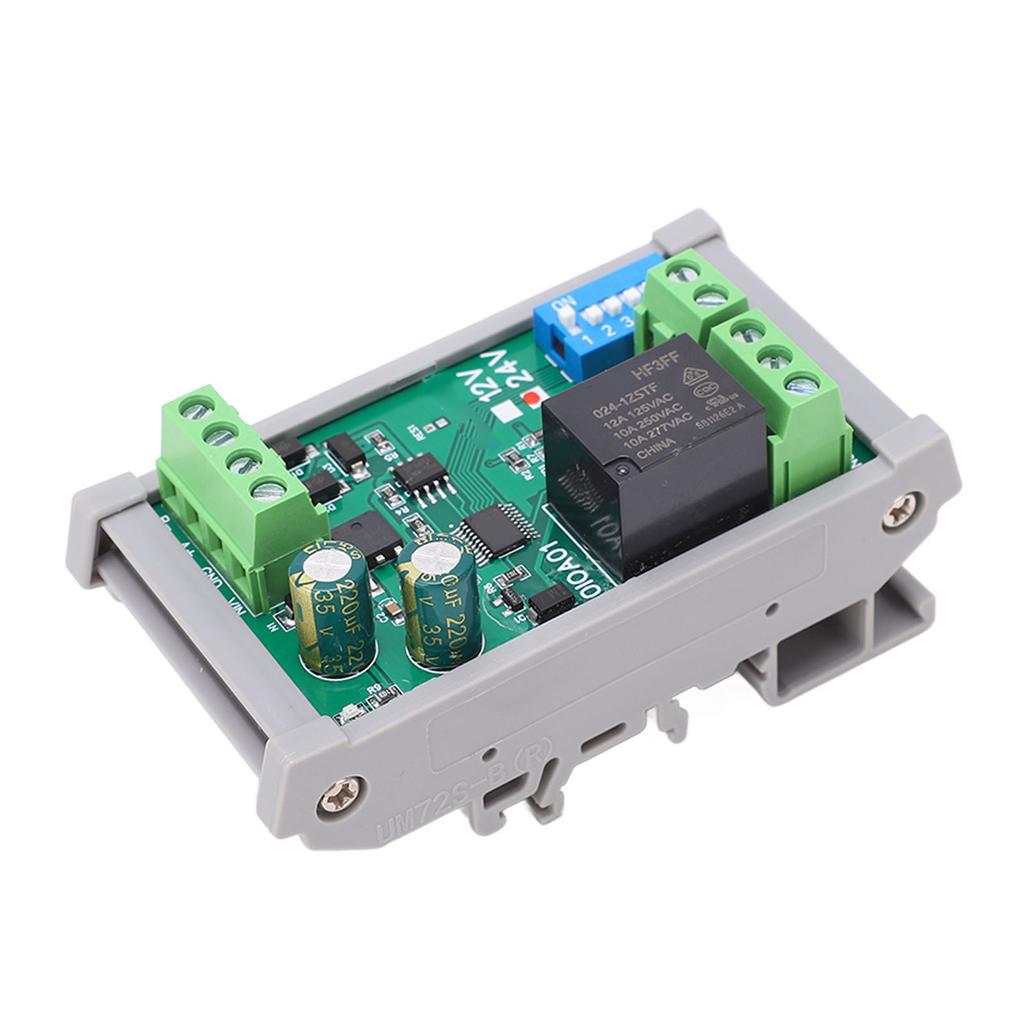

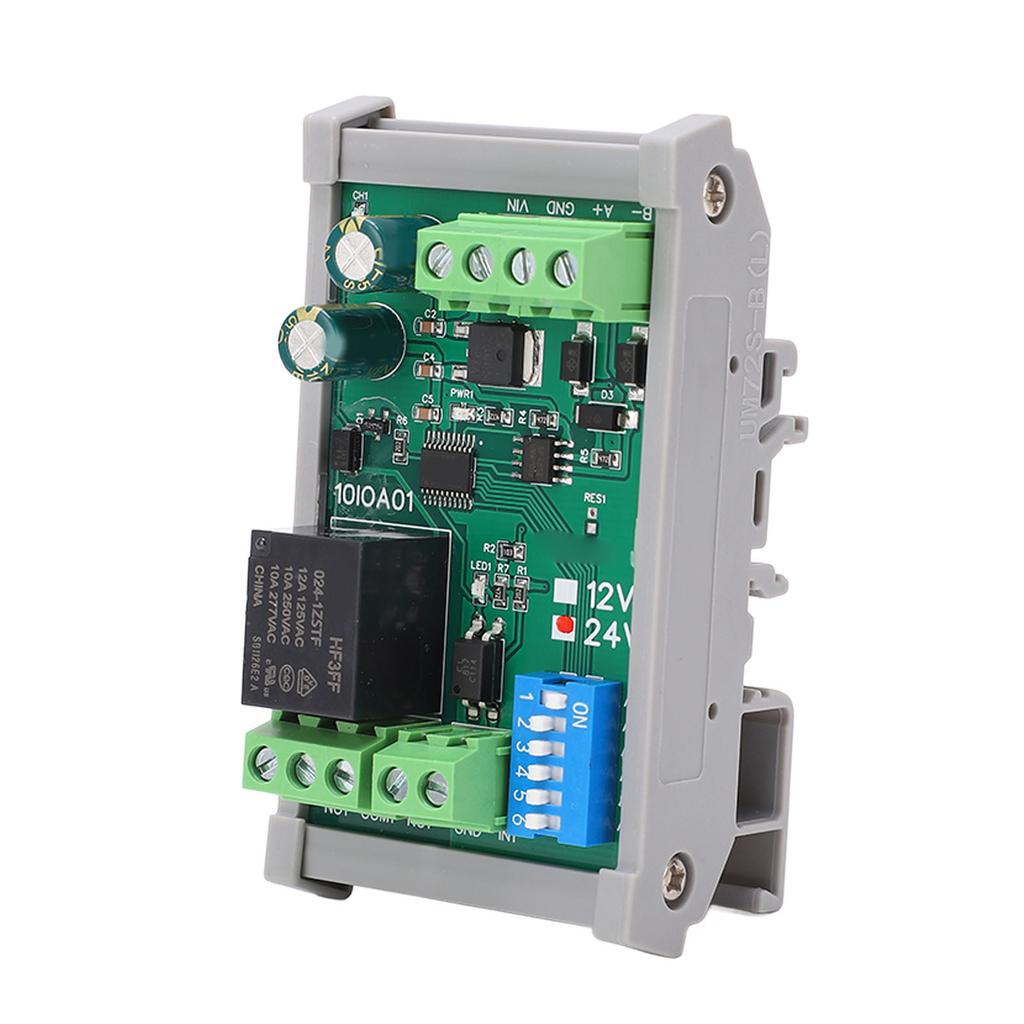

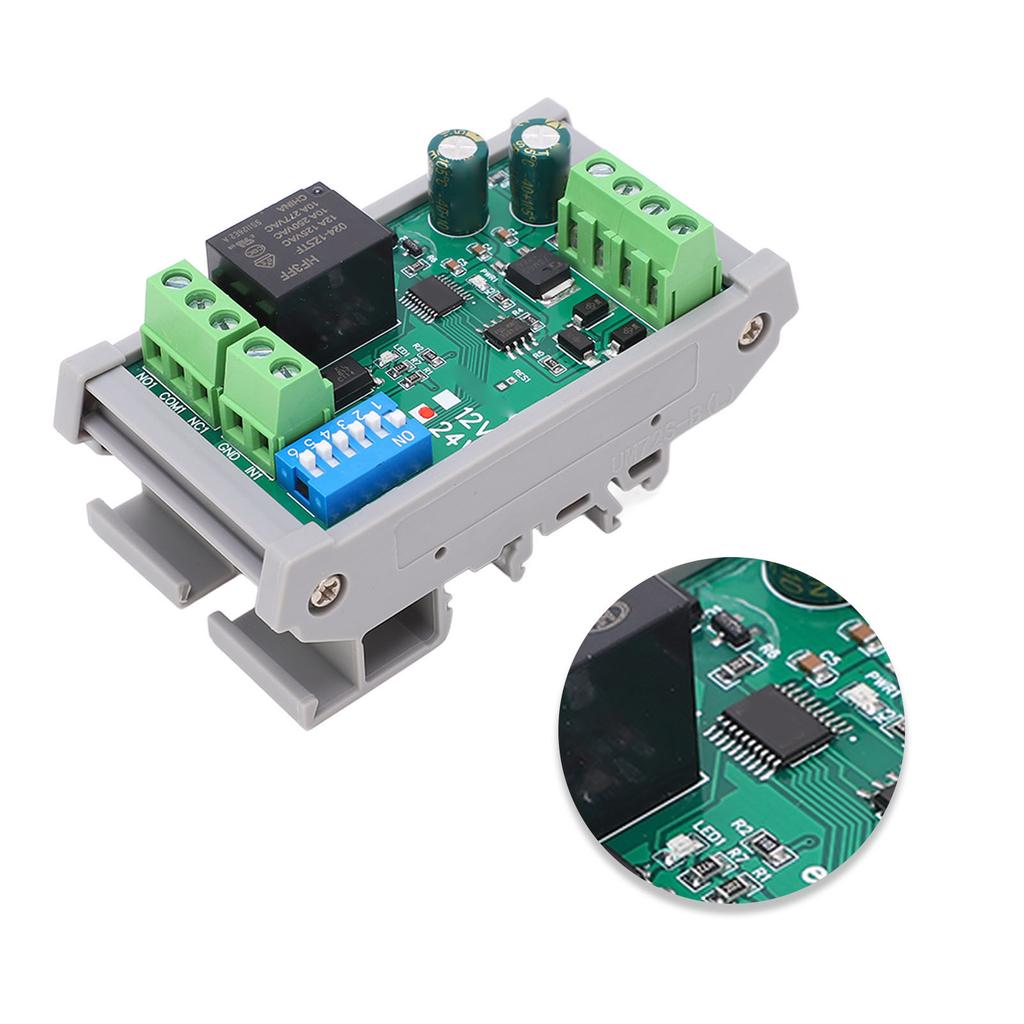

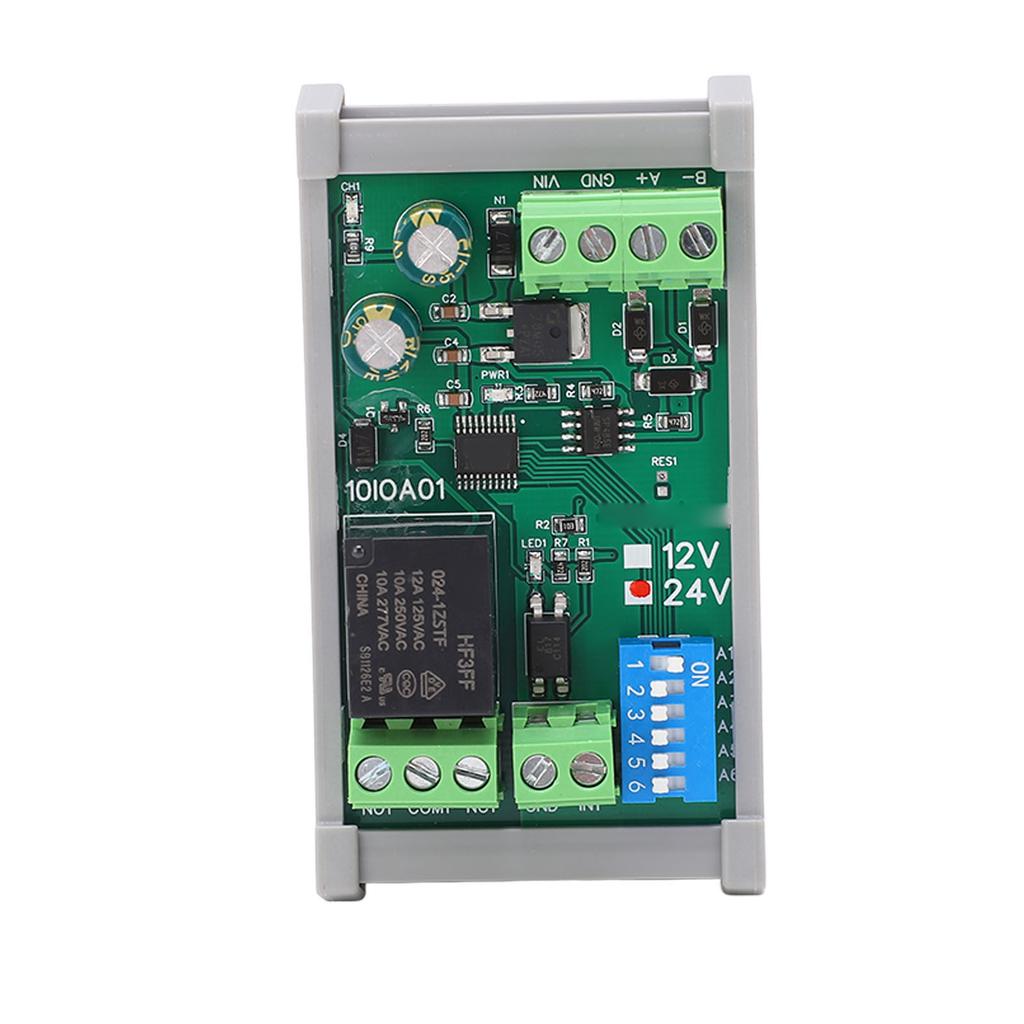

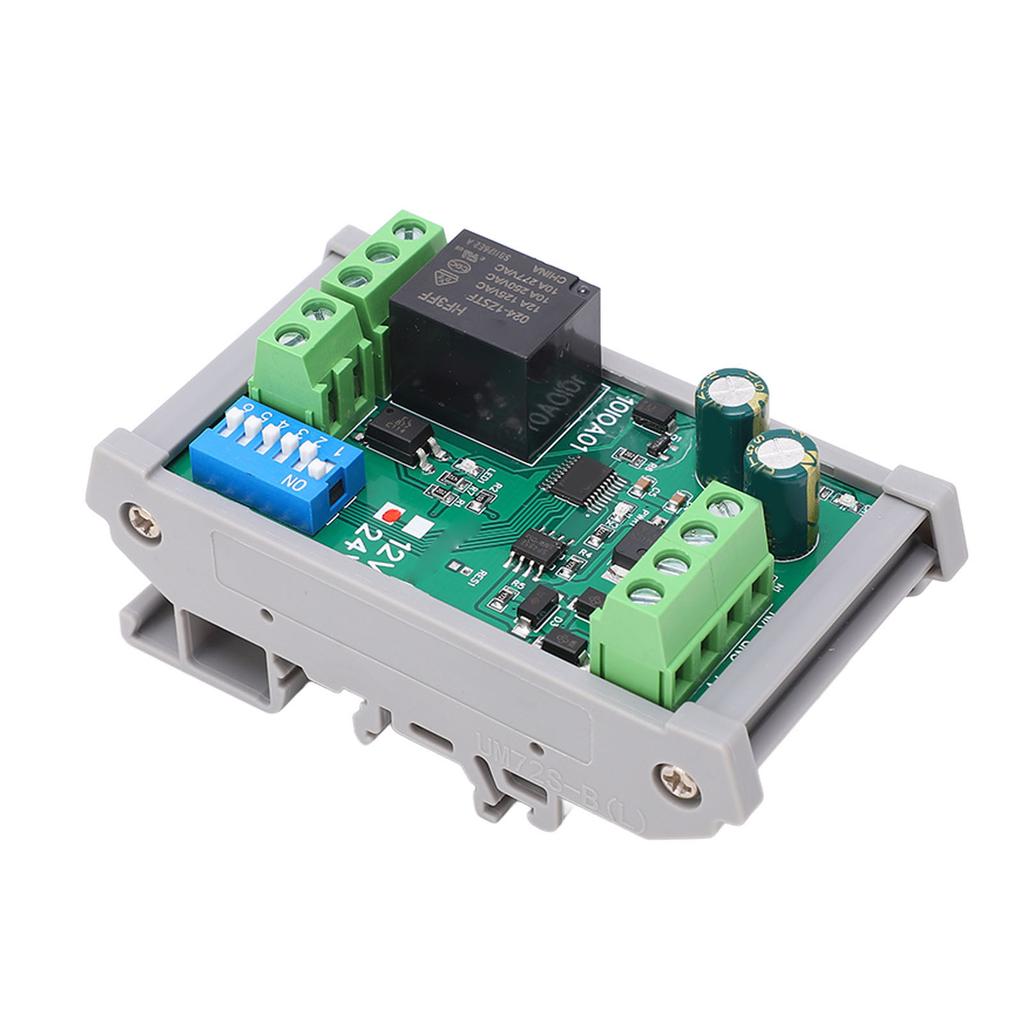

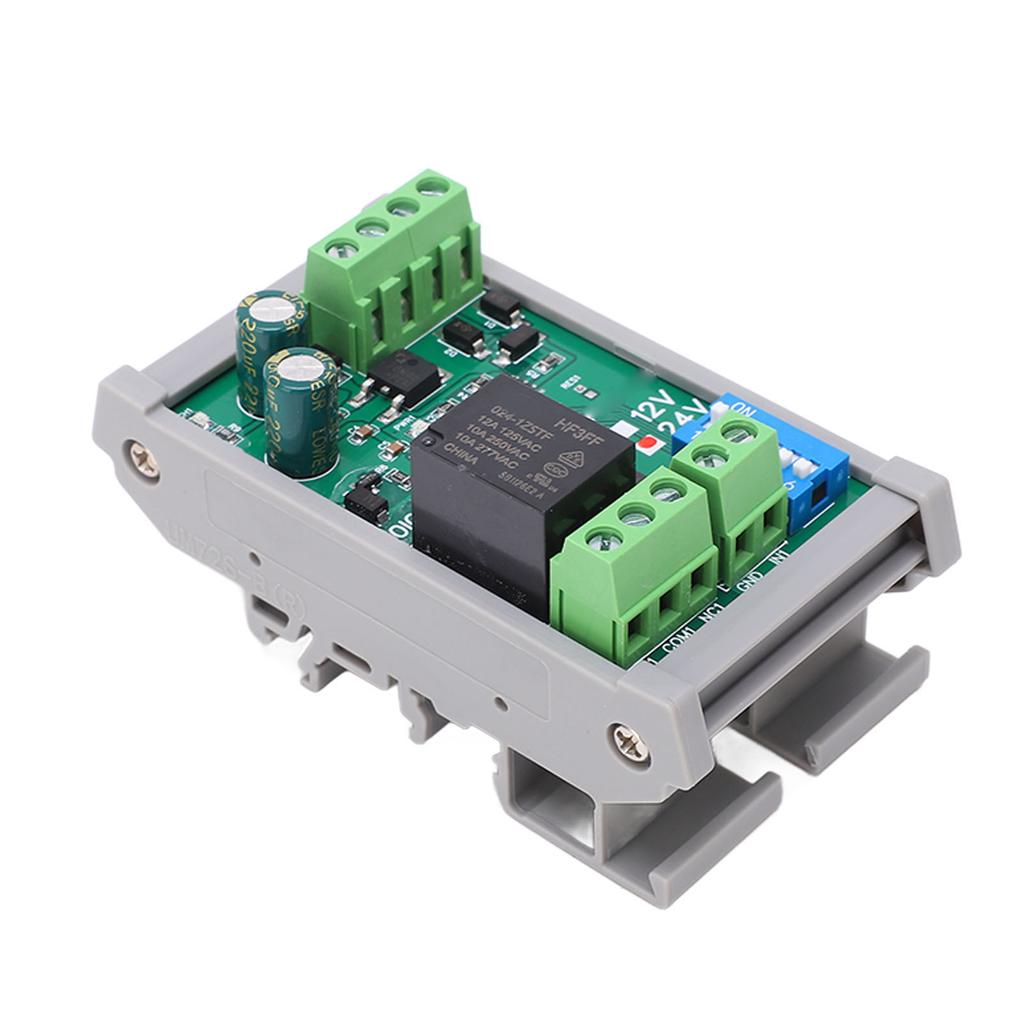

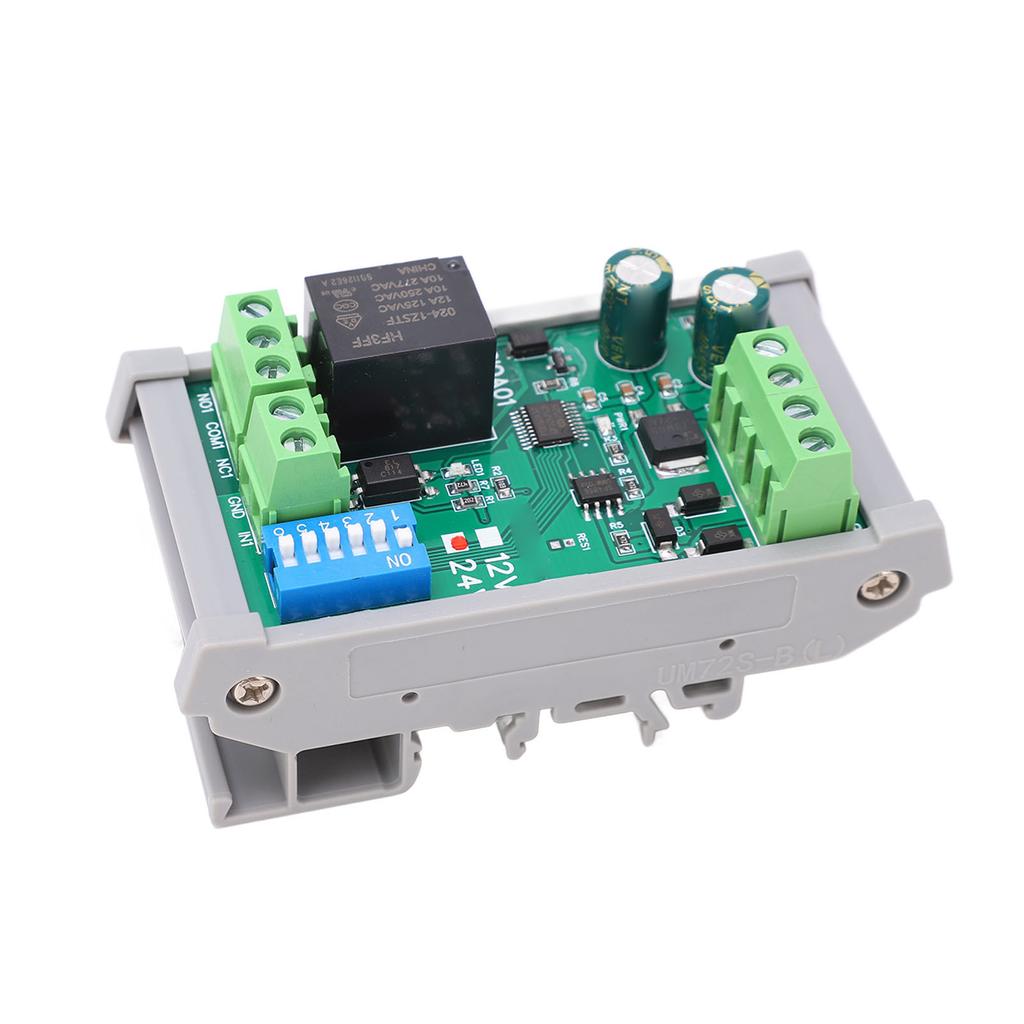

DC 24V 1 Channel Relay Module RS485 Relay Board with Shell for Electrical Equipments

Feature: 1. 1 CHANNEL: Relay module board, single channel design, which has stable operation and less interference, with strong practicability. 2. 64 PARALLEL DEVICE: In the command mode, up to 64 devices can be connected in parallel, and you can press Enter through the serial hyperterminal. 3. SELECTABLE BAUD RATE: The baud rate can be selected by commands, and a variety of numerical values can be selected to meet more usage requirements. 4. GOOD PROTECTION: The module features no parity, even parity and odd parity modes, with hardware reset and TVS anti surge protection for safe operation. 5. WIDE APPLICATION: The voltage of the relay module board is DC 24V, which is widely used in industrial automation and electrical equipment control, etc. Specification: Item Type: 1 Channel Relay Module Material: PCB Working Voltage: DC 24V Standby Current: 11MA 1 Relay Open: 30MA Default Baud Rate: 9600BPS Selectable Baud Rate By Command: 2400 4800 9600 19200 38400 57600 115200BPS Maximum Data Sending and Returning Time: 1000ms Parity Mode: No parity, even parity and odd parity Hardware Reset Function: Yes TVS Anti Surge Protection: Yes. Package List: 1 x Relay Module Note: Pay attention to the correct operation.1 CHANNEL: Relay module board, single channel design, which has stable operation and less interference, with strong practicability. 64 PARALLEL DEVICE: In the command mode, up to 64 devices can be connected in parallel, and you can press Enter through the serial hyperterminal. SELECTABLE BAUD RATE: The baud rate can be selected by commands, and a variety of numerical values can be selected to meet more usage requirements. GOOD PROTECTION: The module features no parity, even parity and odd parity modes, with hardware reset and TVS anti surge protection for safe operation. WIDE APPLICATION: The voltage of the relay module board is DC 24V, which is widely used in industrial automation and electrical equipment control, etc.
