Feature:
1. Versatile Time Control: This DIN rail mount timer delay relay is suitable for controlling the pump delay time and fan switch after the heating device is turned off. With a flexible time setting range from 0.1 seconds to 10 days, it allows for accurate control in various applications requiring specific timing functions.
2. User Friendly Time Adjustment: The DIN rail mounting timer relay can be easily configured using a potentiometer to set the desired delay time. The straightforward adjustment process makes it accessible for users to customize the operating according to their specific needs without any complex programming.
3. Clear LED Status Indicator: The electronic single function timer delay relay status is clearly displayed through an integrated LED indicator, providing immediate visual feedback on the operational state. This feature enhances user convenience, allowing quick assessments of the relay"s functioning at a glance.
4. DIN Rail Mounting Convenience: Designed for easy installation, this single function time relay can be mounted on standard DIN rails. This mounting option is not only space saving but also simplifies the integration of the relay into existing electrical setups, making it suitable for both commercial and industrial applications.
5. Robust Guard Rating: With a front panel guard rating of IP40 and terminal guard rating of IP20, this timer delay relay is designed to withstand various environmental conditions. The rugged construction ensures good performance in demanding settings, safeguarding the internal components from dust and mini contacts, enhancing its longevity.
Specification:

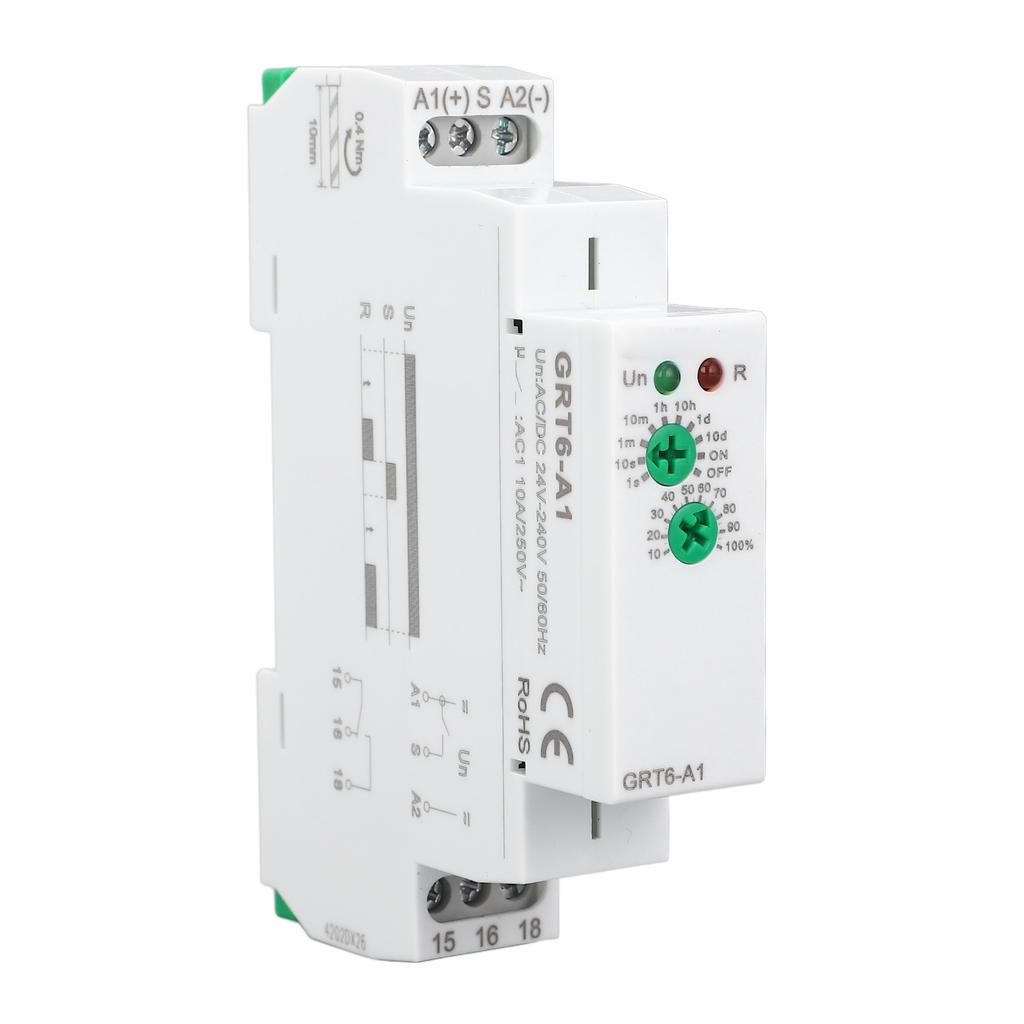

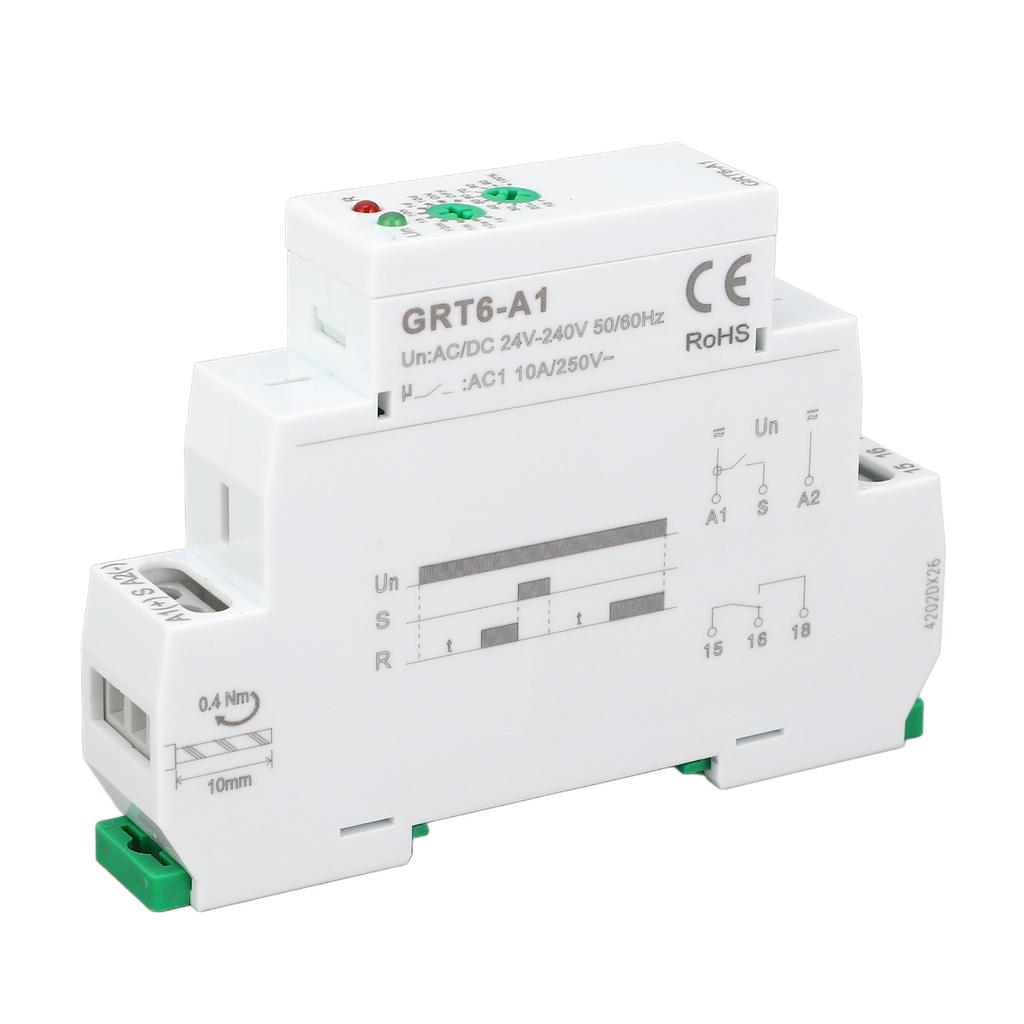

Item Type: Time Delay Relay
Material: PC
Function: A: Delay ON
Power Supply Terminals: A1A2
Load: AC 0.093VA, DC 0.051.7W
Power Supply Voltage Tolerance: 15percent , +10percent
Power Indicator: Green LED
Time Range: 0.1s10days, ON, OFF
Time Setting: Potentiometer
Time Deviation: 10percent Mechanical Setting
Repetition Accuracy: 0.2percent Set Value Stability
Temperature Coefficient: 0.05percent celsius , at=20 celsius (0.05percent Fahrenheit , at=68 Fahrenheit )
Output: 1xSPDT
Current Strength
: 10AAC1
Switch Voltage: 250VAC, 24VDC
DC Minimum Switching Power: 500mW
Output Indicator: Red LED
Mechanical Life: 10000000
Electrical Life (AC1): 100000
Reset Time: Maximum 200ms
Operating Temperature: 20 celsius +55 celsius (4 Fahrenheit 131 Fahrenheit )
Storage Temperature: 35C+75 celsius (22 Fahrenheit 158 Fahrenheit )
Mounting, Rail: Guard Class EN or IEC60715
Guard Class: Front Panel IP40, Terminal IP20
Operating Position: Any
Overvoltage Category: III
Maximum Cable Size (mm2): Solid Wire Maximum 1 x 2.5 or 2 x 1.5, With Sheath Maximum 1 x 2.5 (AWG12)
Torsion: 0.4Nm.
Package List:
1 x Time Relay
