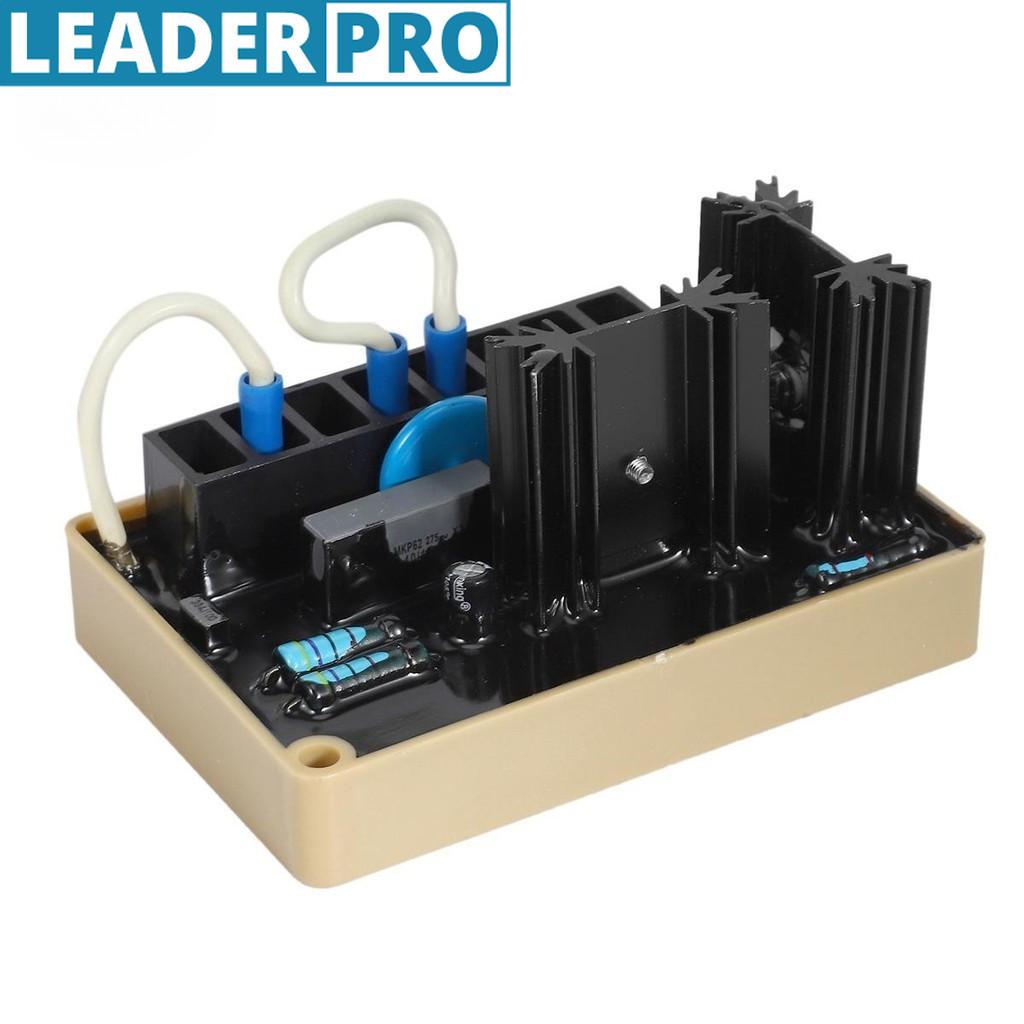

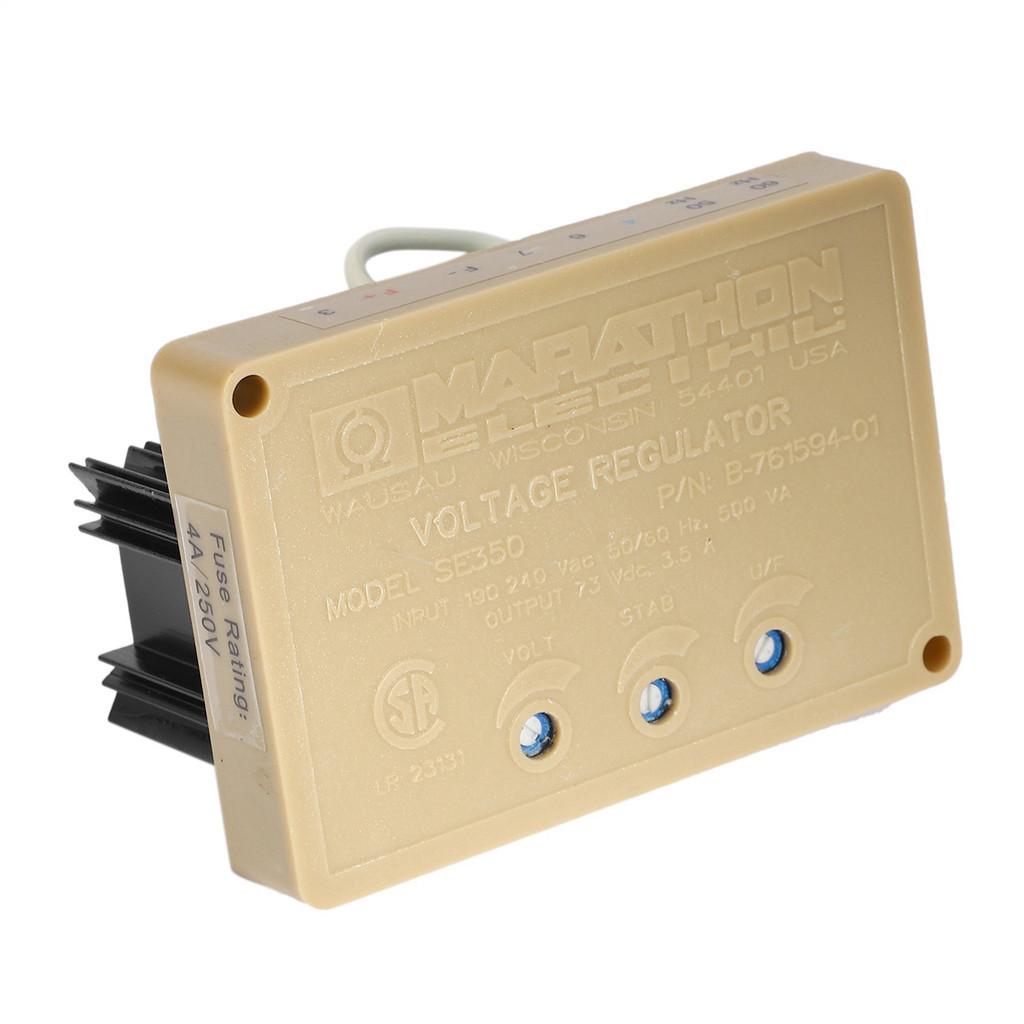

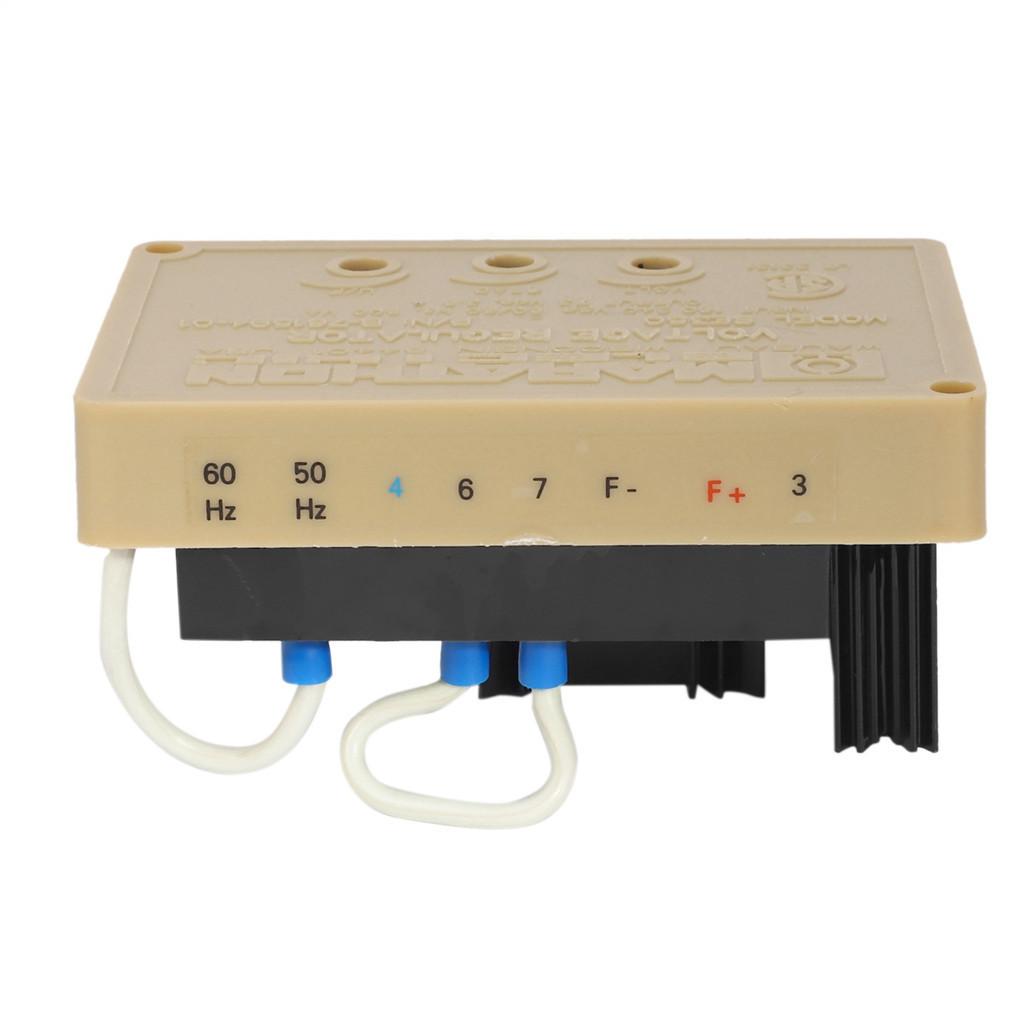

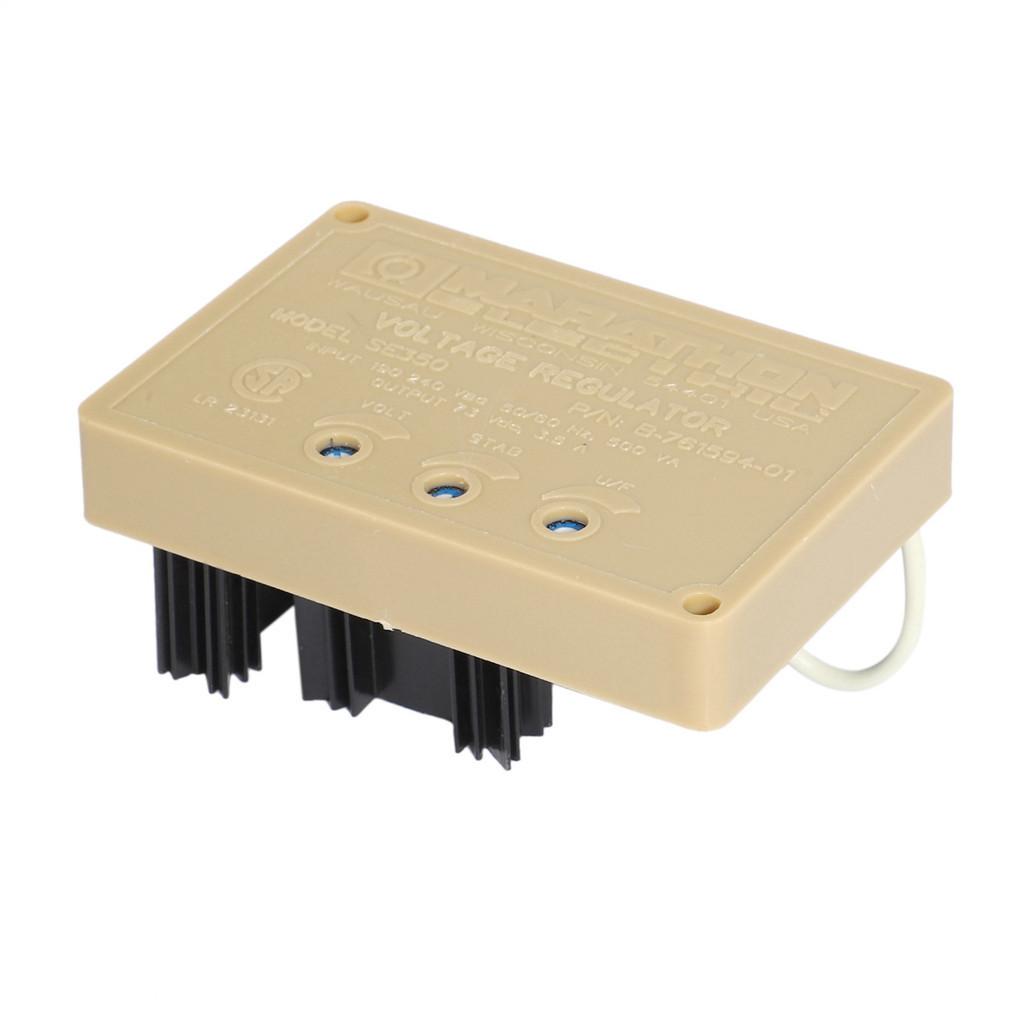

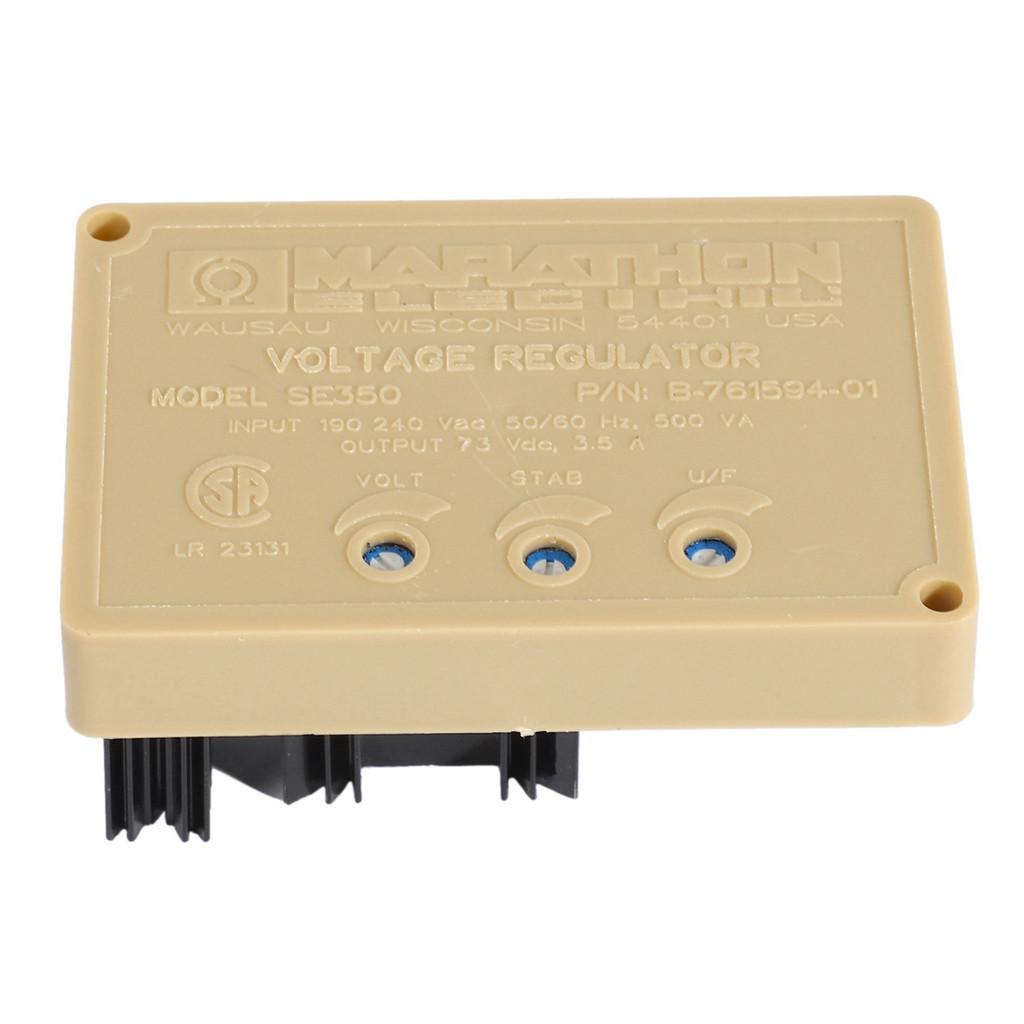

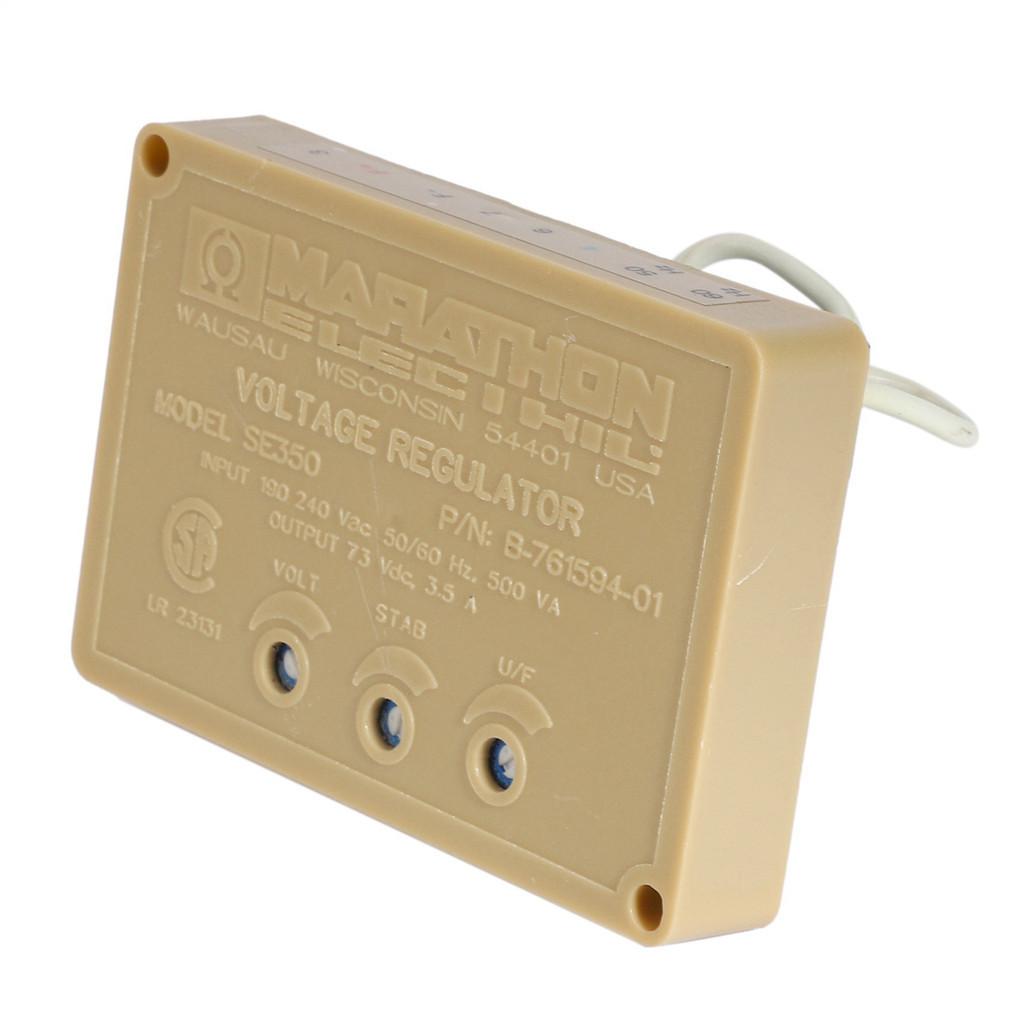

SE350 Voltage regulator is an encapsulated electronic voltage regulator which controls the output of a brushless AC generator by regulating the current into the field.
Frequency compensation: Built-in engine rpm drop,the output voltage drop of the frequency circuit protection.
Stability adjust
V/HZ roll-off frequency selection
Preliminary set-up
power circuit
Sensing/power input circuit
Technical parameters: The establishment of voltage:
when the residual magnetism 4V25Hz,it will automatically build pressure.
Input power: AC190 ~ 240V 50/60Hz.
Output: 75V .
Current 3.5A (consecutive).
Adjusted rate: 1%
Sensing & Power Input : 190-240
Burden : 500VA
Output Power-Continuous : 73 Vda at 3.5 Adc(255w)
Output Power-Forcing(240 Input Power) : 105 at 5 Adc(525w)
Regulation : 1.00%
Remote Voltage Adjustment Range : +/-10% with 2000 ohm rheostat +/-5% with 1000 ohm rheostat
Frequency Compensation : Adjustable
Roll off ferquency : 54-61 Hz for 60 Hz
45-51 Hz for 50 Hz
Operation : Weight6.5 oz
Power Dissipation : 8 watts maximum
colour:Photo Color
Material:plastic
size:100*65*49mm
Package Contents:
1*Generator regulator
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
