Hign-concerned Chemical : None
Package : DIY Module
Model Number : ESP-12F
Dissipation Power : ...
Supply Voltage : 5V
Application : Computer
Type : Voltage Regulator
Operating Temperature : -40℃~+80℃
Origin : China
Condition : New
Functions : Electronic Module
Range of application : Switch And Sensor For Arduino STM
Functional features

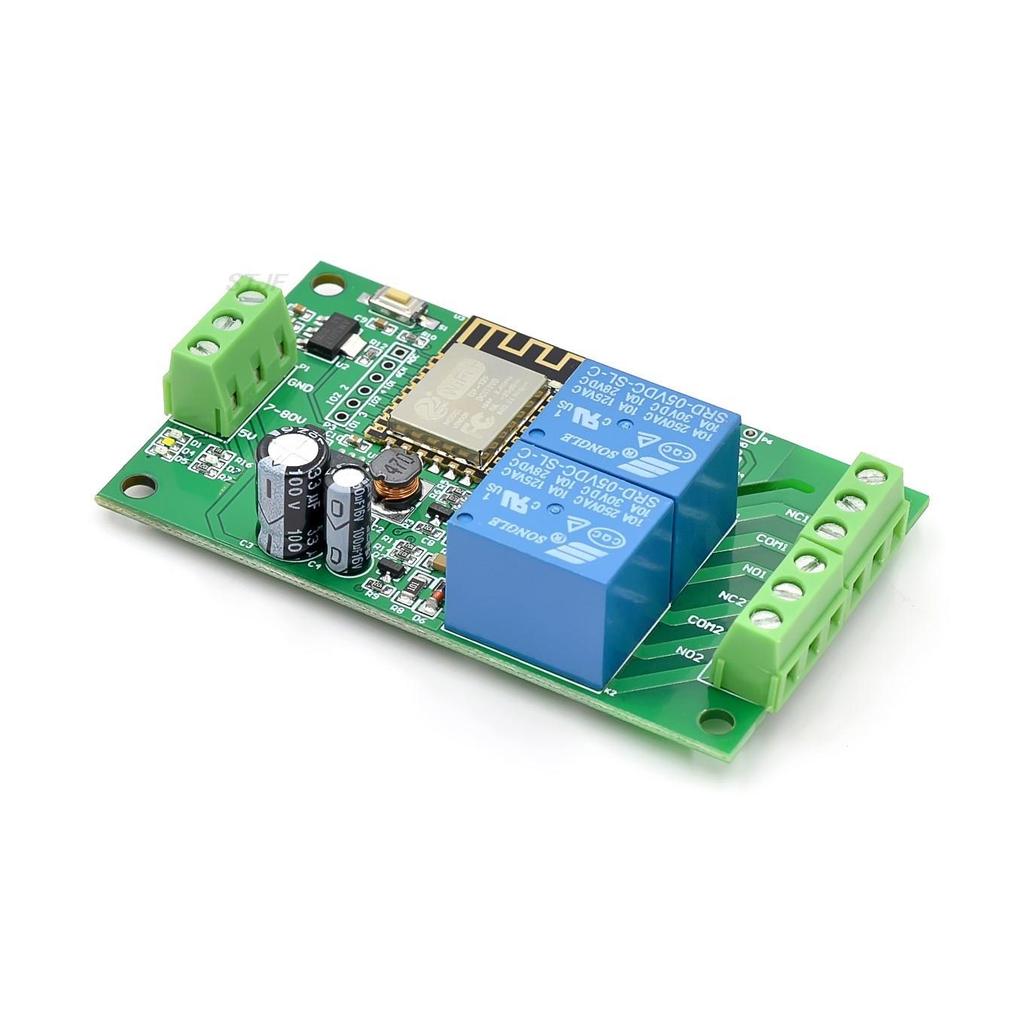

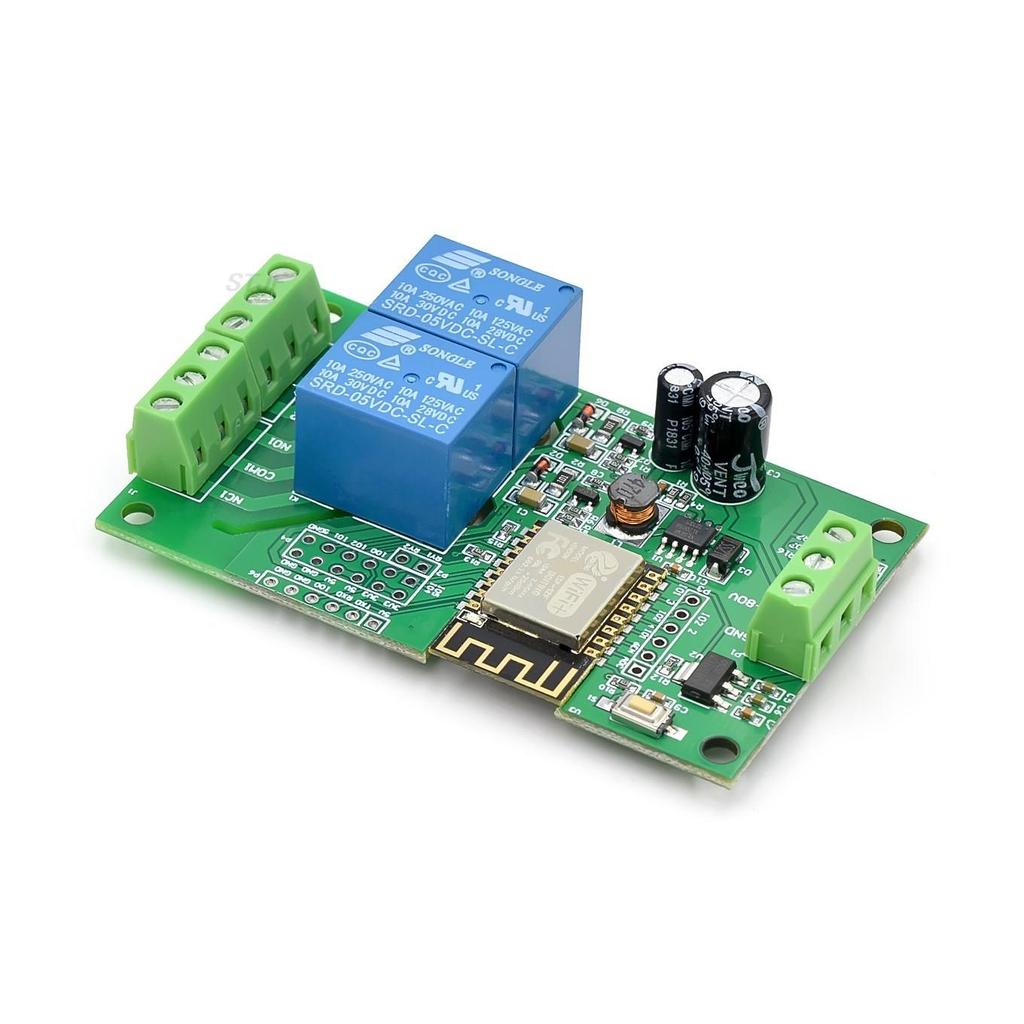

Onboard mature and stable ESP-12 WIFI module, large capacity 4M BYTE FLASH
WIFI module 1/0 port and UART program download port are all introduced to facilitate secondary development
Onboard WIFI module SRT reset button
Esp-12 supports development tools such as ECLIPSE and ARDUINO IDE to provide reference programs in the ARDUINO development environment
Onboard 2 5V relay, output switching signal, suitable for controlling the load within AC250V/DC30V working voltage
Onboard power indicator, 1 programmable LED and relay indicator.
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
