Hign-concerned Chemical : None
Package : DIP
Model Number : SX1278
Dissipation Power : 1
Supply Voltage : 1
Application : Computer
Type : Voltage Regulator
Operating Temperature : -40-+85
Origin : China
Condition : New

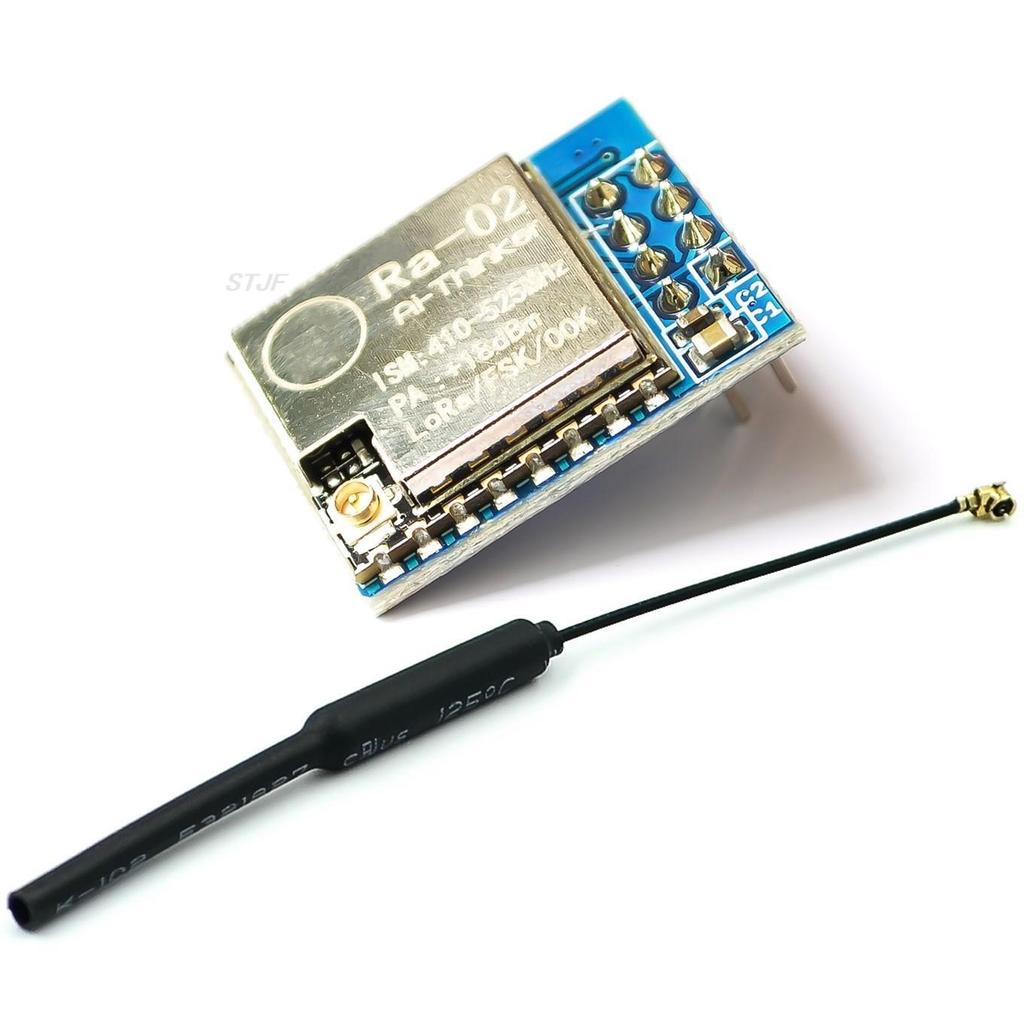

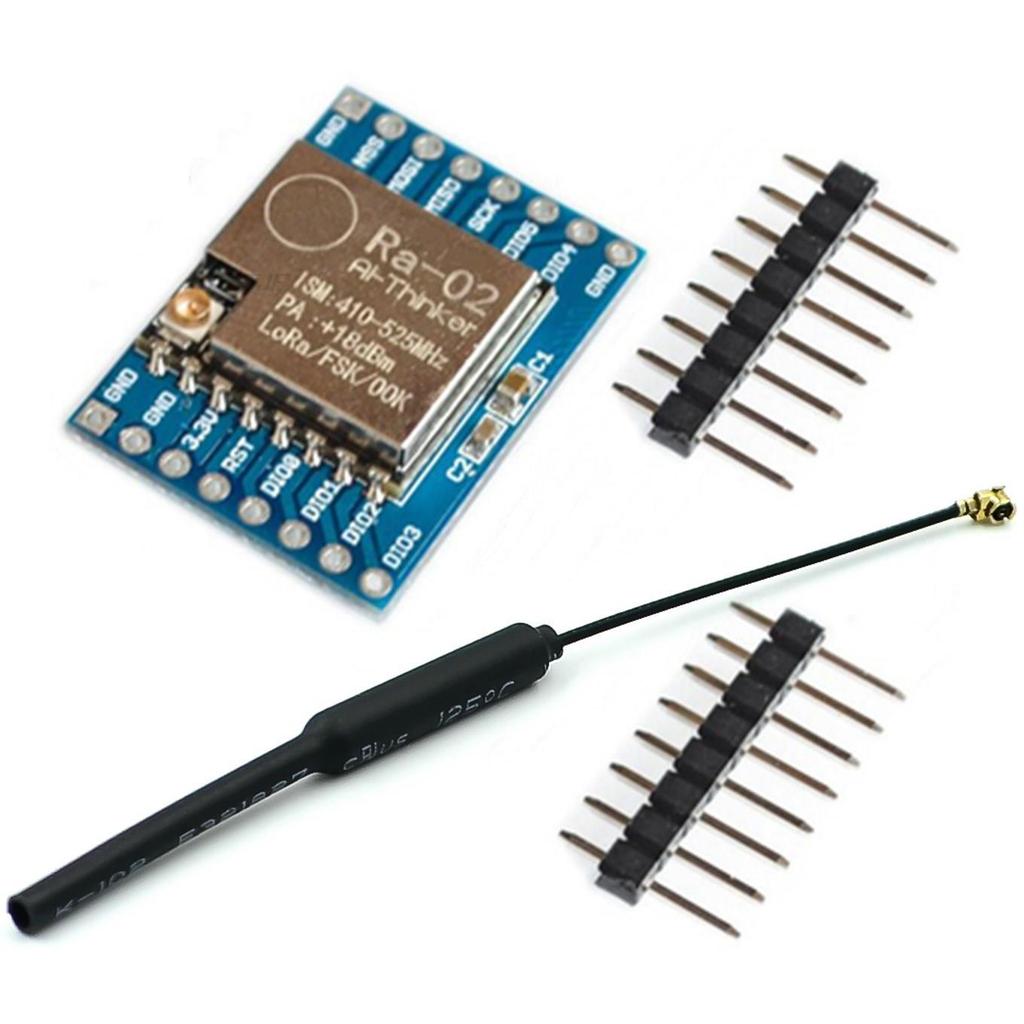

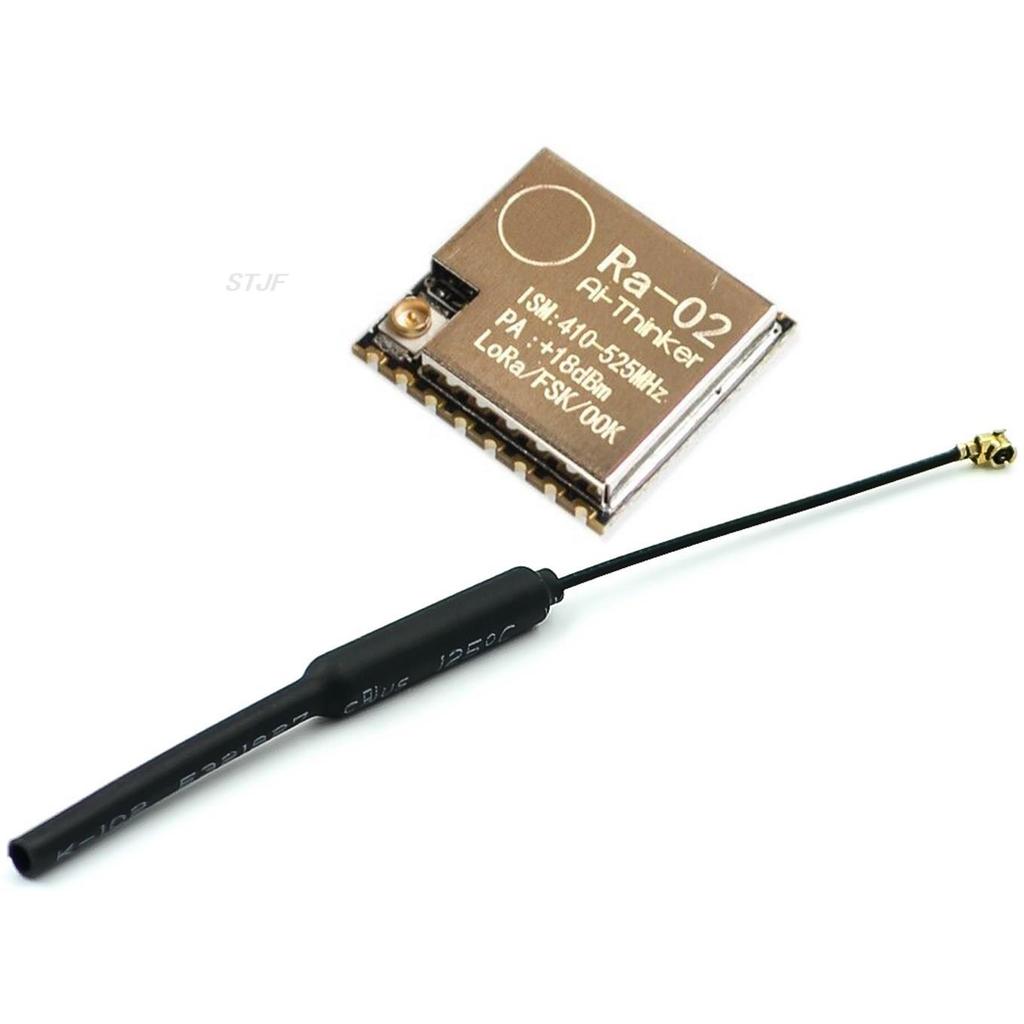

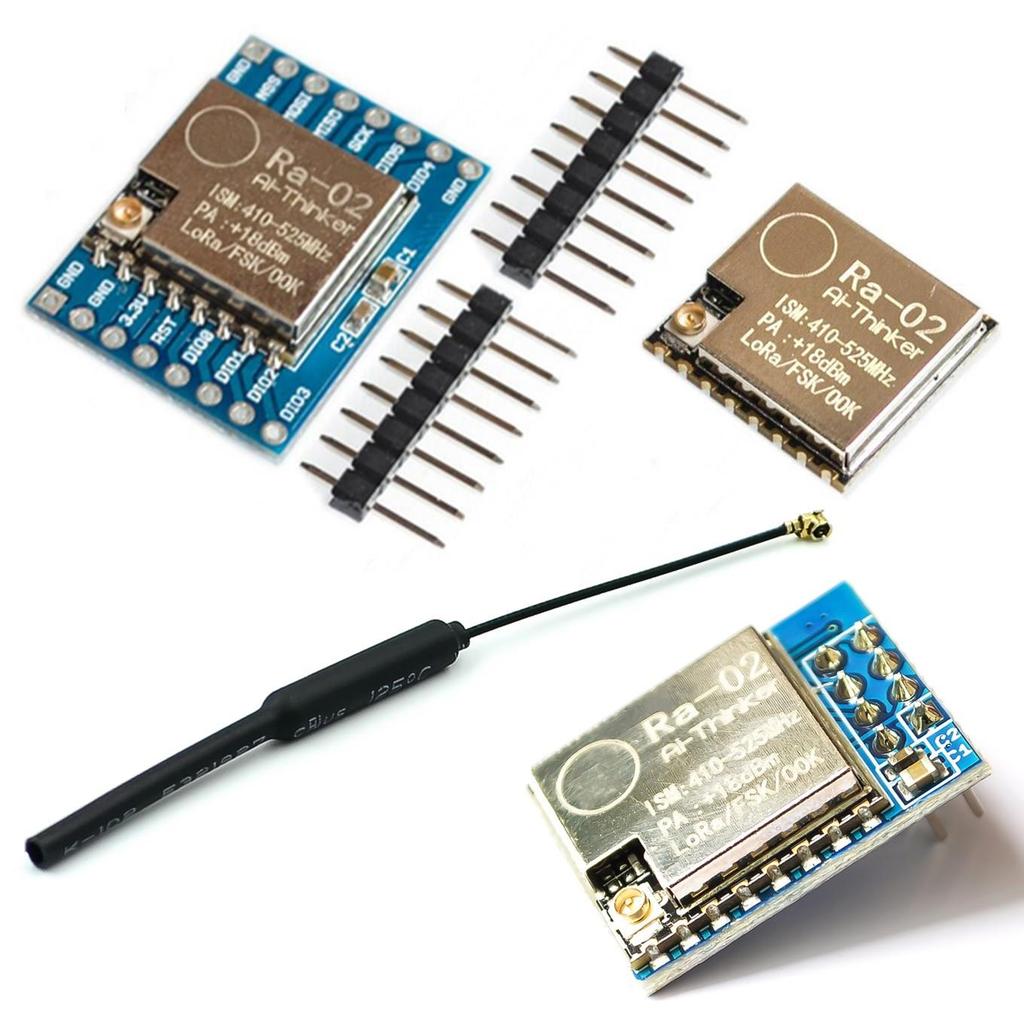

Description:Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.Feature:LoRa Spread Spectrum modulation technologyConstant RF power output at + 20dBm-100mW voltage changeHigh sensitivity: down to -148dBmHalf-duplex SPI communicationProgrammable bit rates up to 300kbpsSupports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes127dB RSSI dynamic rangeAutomatic RF signal detection, CAD mode and very high speed AFCPacket engine with CRC up to 256 bytesSmall footprint dual-row stamp-hole patch packageShielded housingSpring AntennaPackage Included:1 * LoRa Ra-02 SX1278 433M Wireless Module
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
