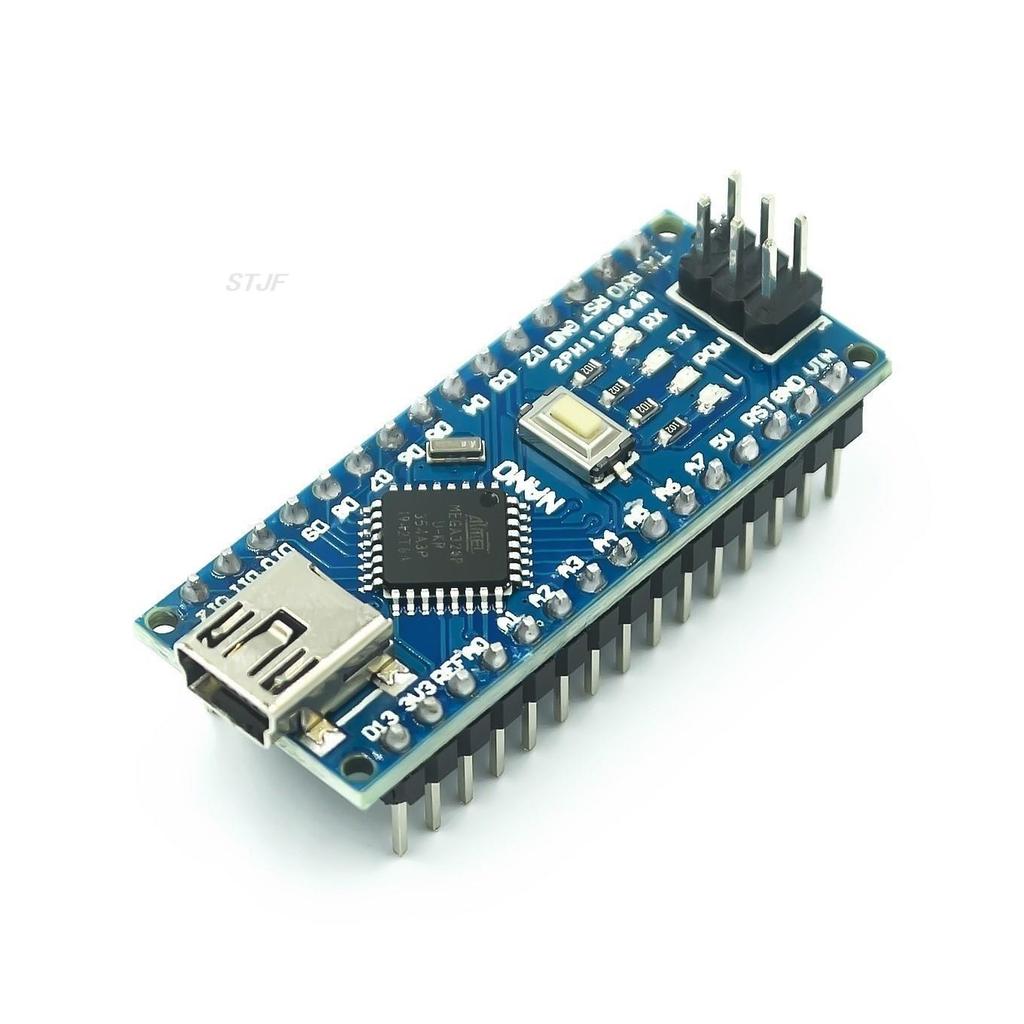

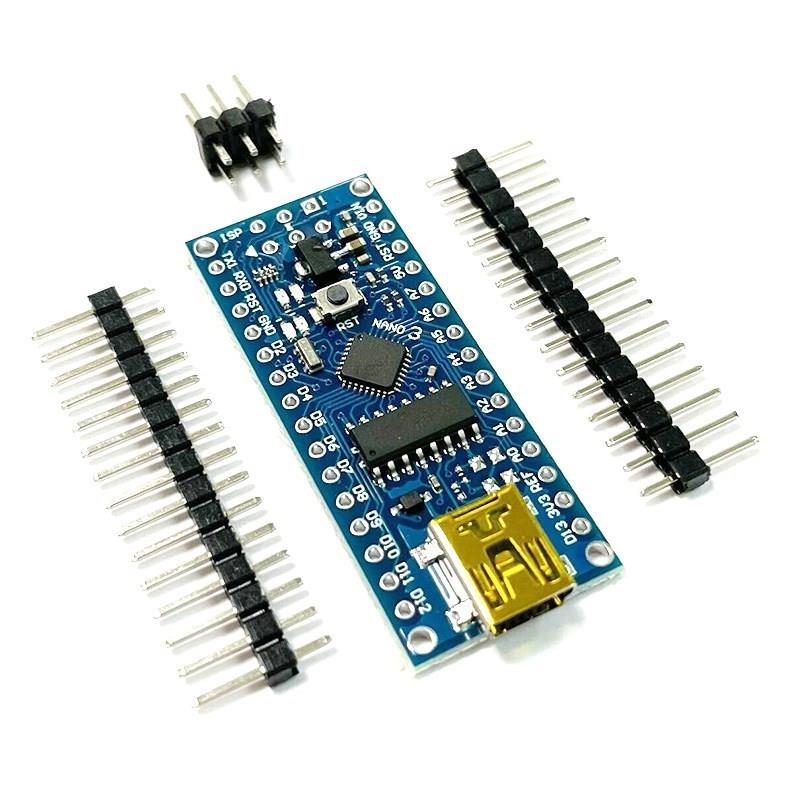

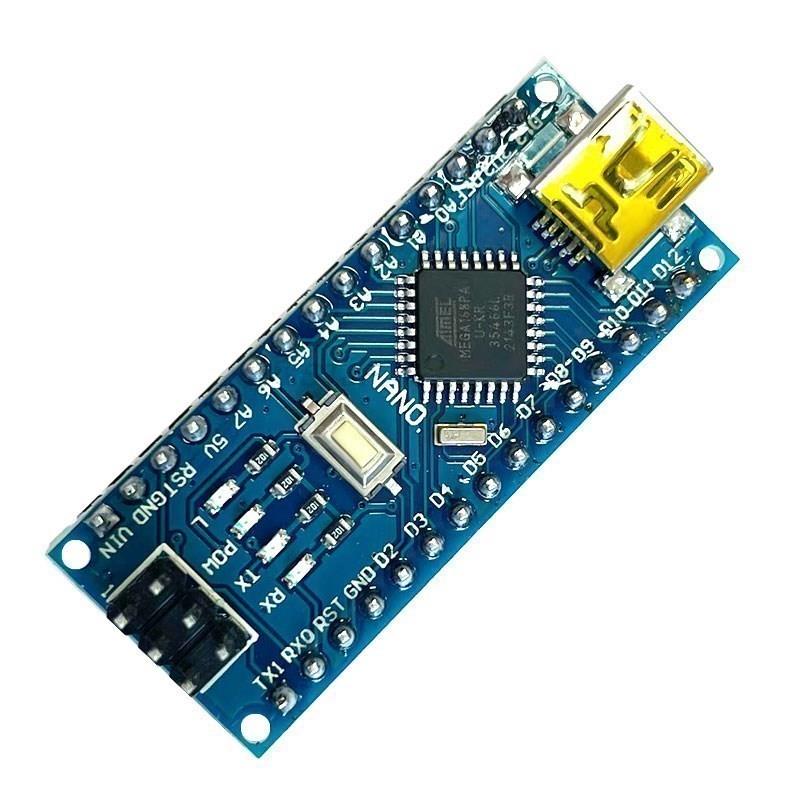

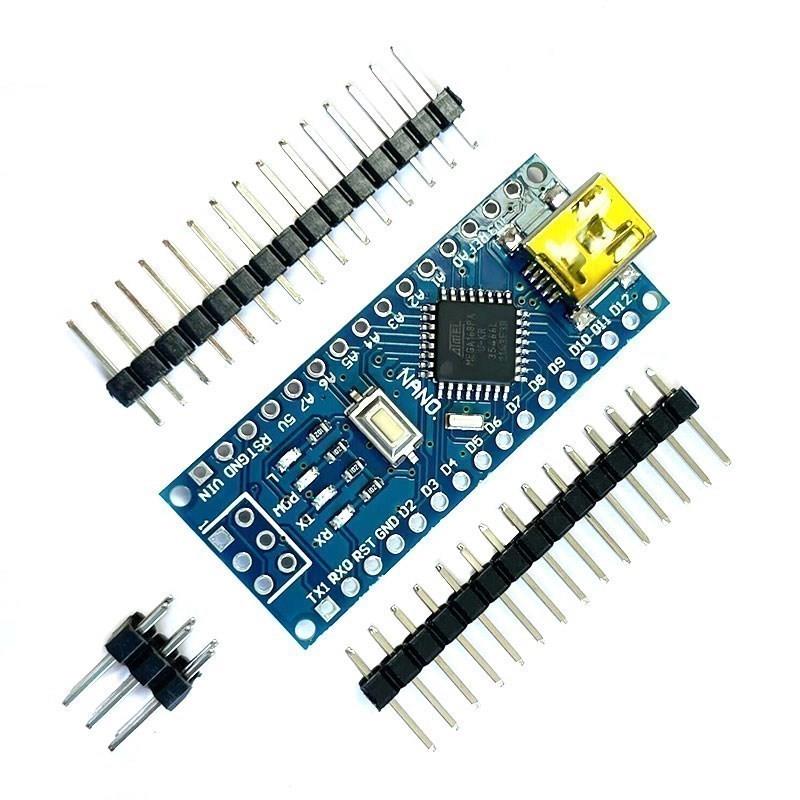

For Nano Mini USB With The Bootloader Compatible Red Controller for Arduino CH340 Driver 16Mhz ATMEGA168P 328

Package : DIY Module

Model Number : ATmega168P Dissipation Power : ... Supply Voltage : 3.3V-12V Application : Computer Type : Voltage Regulator

Origin : China Condition : New Operating Temperature : -40℃~+80℃ Functions : Electronic Module Range of application : Switch And Sensor For Arduino STM

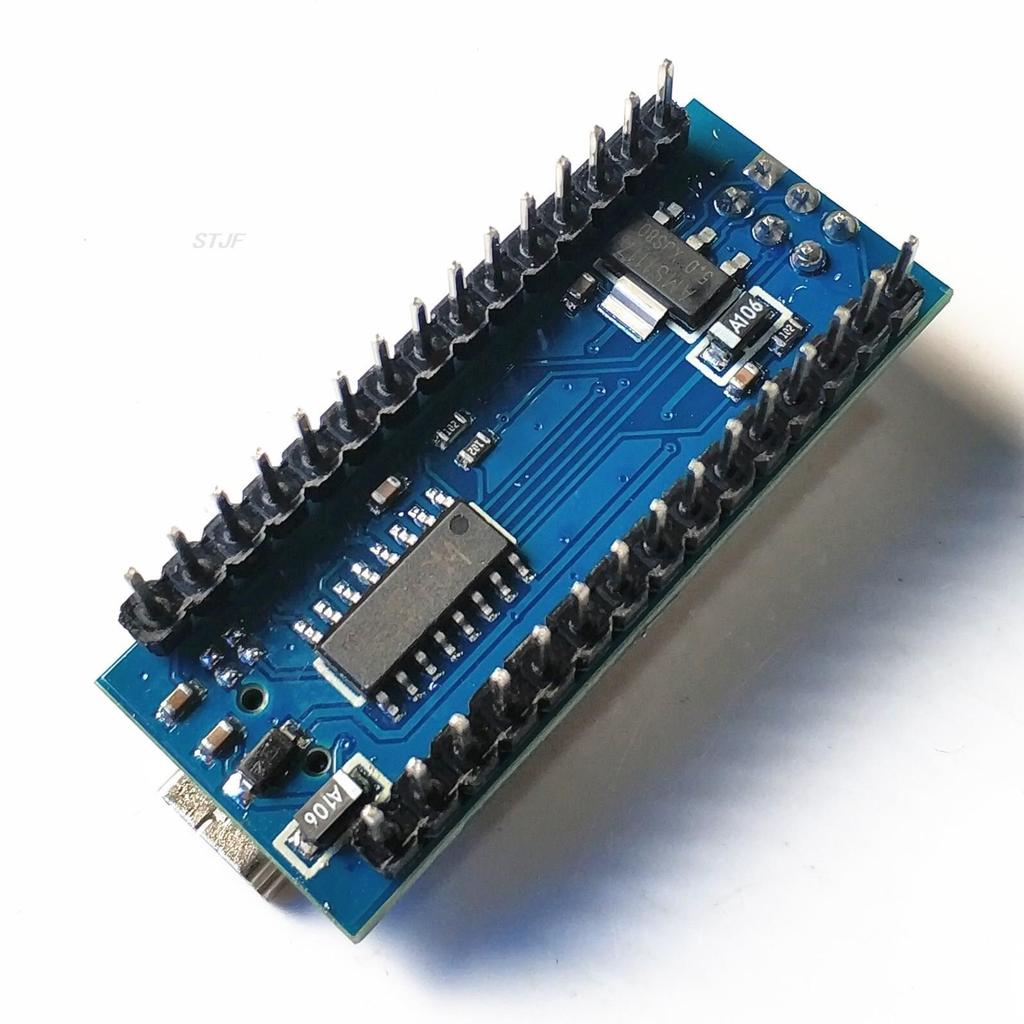

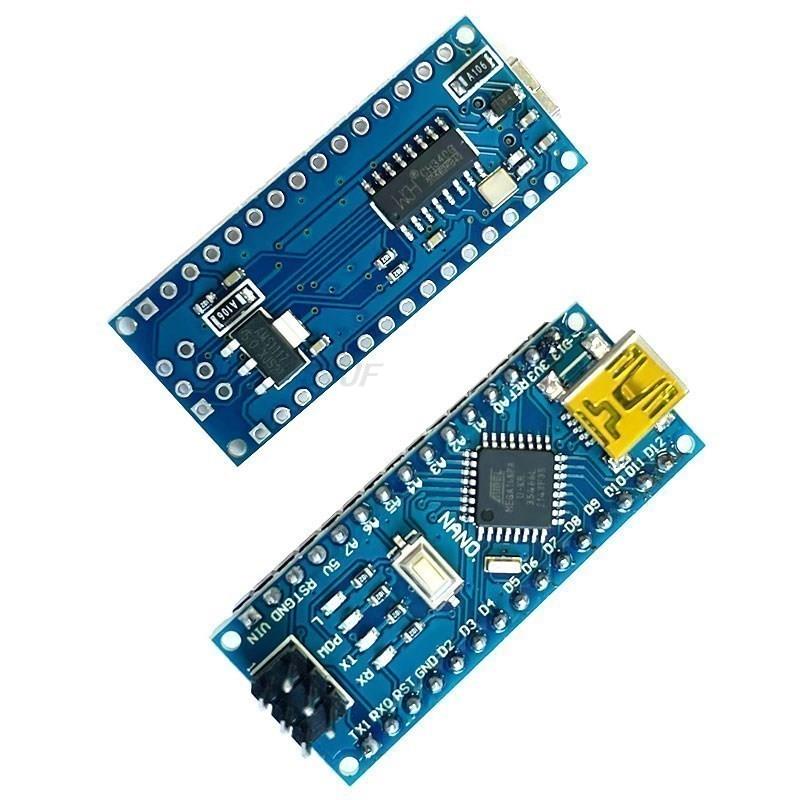

New version - Nano V3 built on ATmega168 minicontroller (16MHz) has a small size and can be used with model board for solderless wiring (breadboard). It has a similar structure to  Diecimila/Duemilanove, but different dimensions. To reduce size, the components are mounted on both sides of the PCB. The board uses the CH340G chip as the converter UART-USB. Chip CH340G - is a budget solution. Stable data exchange results can be obtained at 12Mhz operating frequency (install the driver correctly on the computer according to the instructions). The Nano V3 can be powered through a miniUSB port (up to 500mA). External power 6-12 v the output VIN or 5V the output of the external power is adjusted to 5V. The power supply automatically selects the maximum voltage. * This nano ATmega168 has PinOut for V3, not V2.

Technical Details: The Nano V3 appearance ATmega168 (16Mhz) minicontroller Ch340g-usb-uart port Input voltage 6-12V Output voltage 5V / 800mA, 3.3V / 180mA (only for new products) MiniUSB - Connect socket 500mA resets the fuse on the USB port

The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.

In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.

This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
