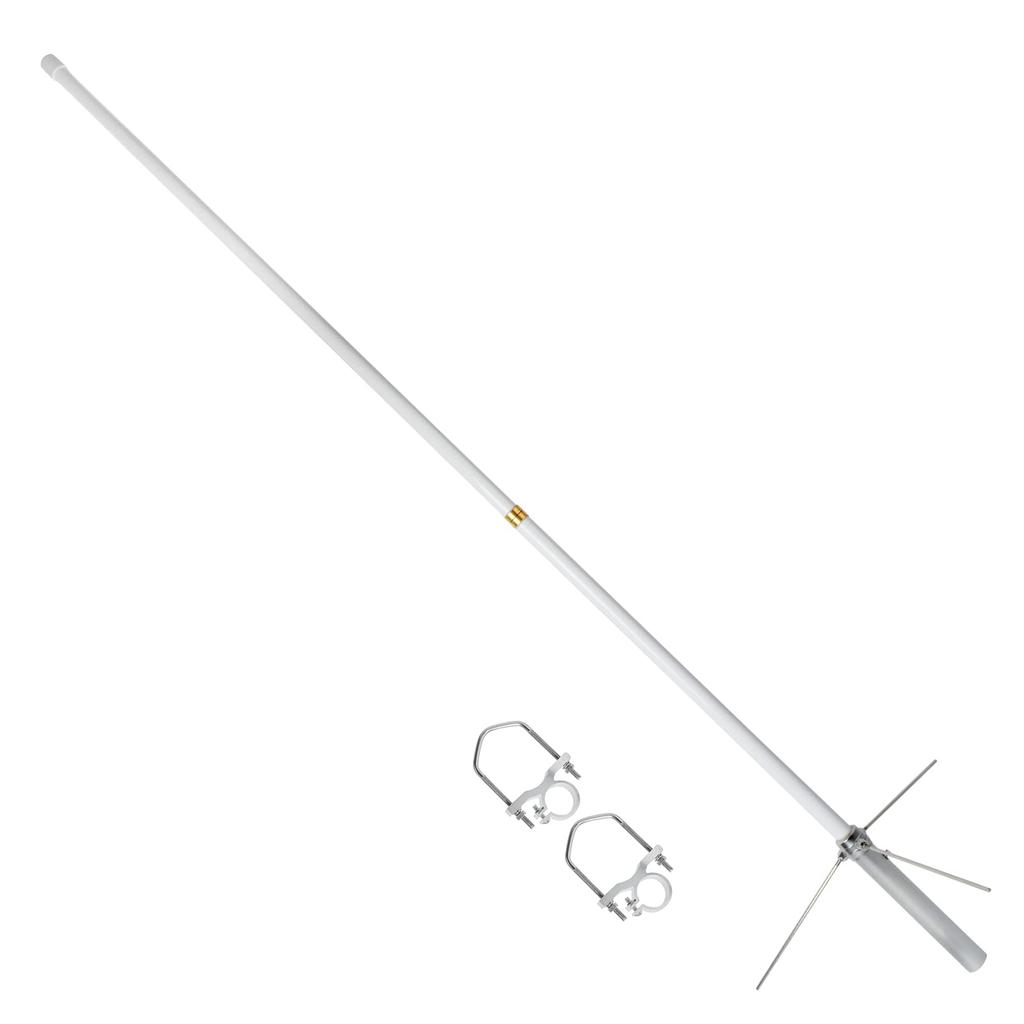

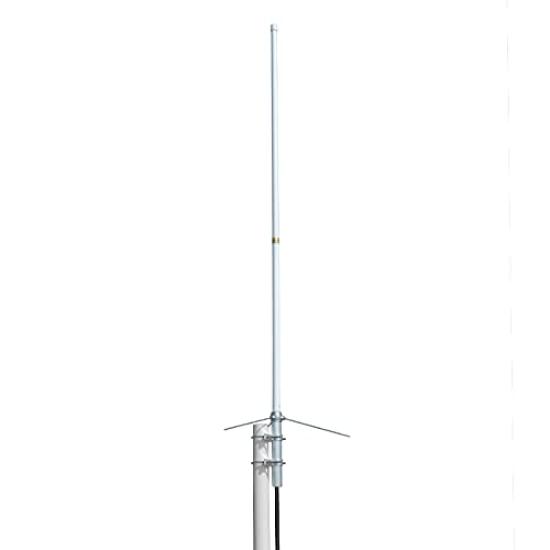

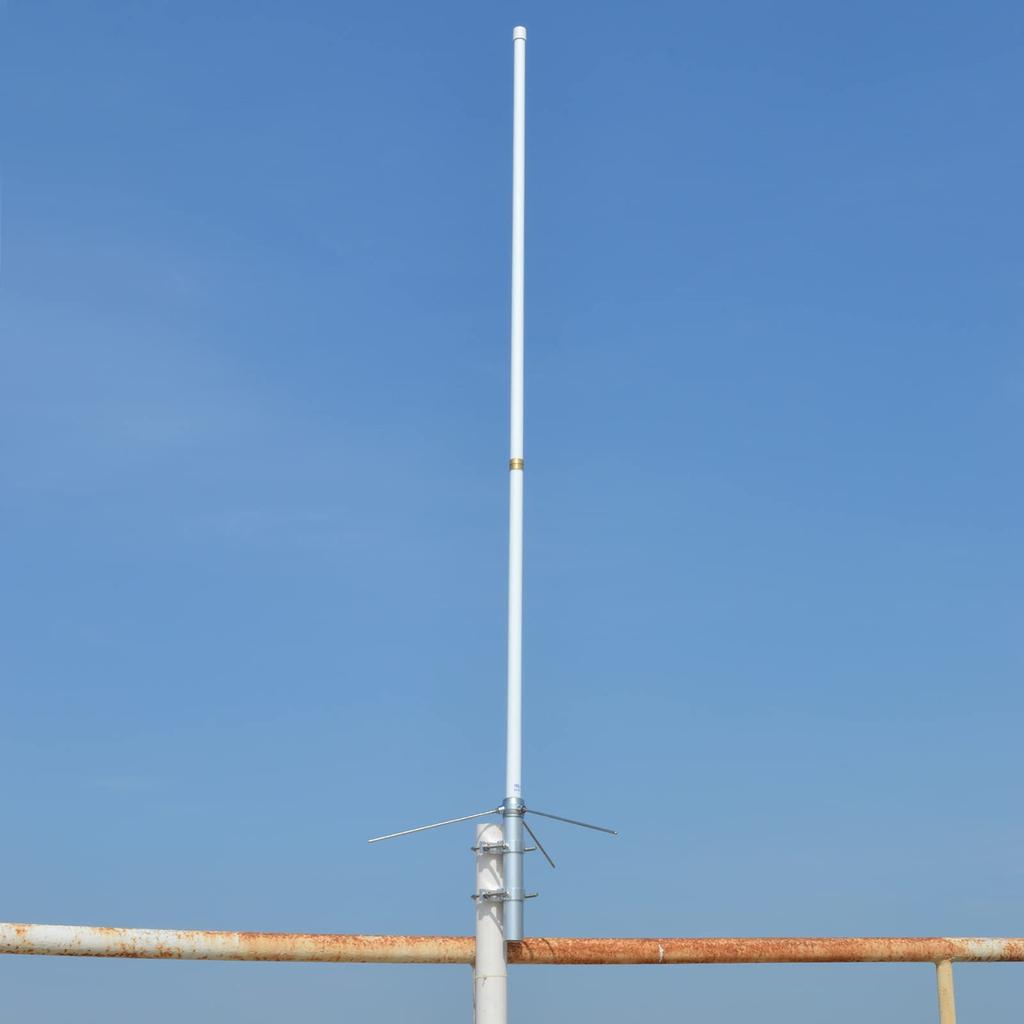

HYSHIKRA Ground Plane Antenna 2 Split Dual Band GP Antenna High Gain Glass Fiber Fixed Station Antenna Repeater Compatible 144/430MHz 1.7M TC-FB17UV

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

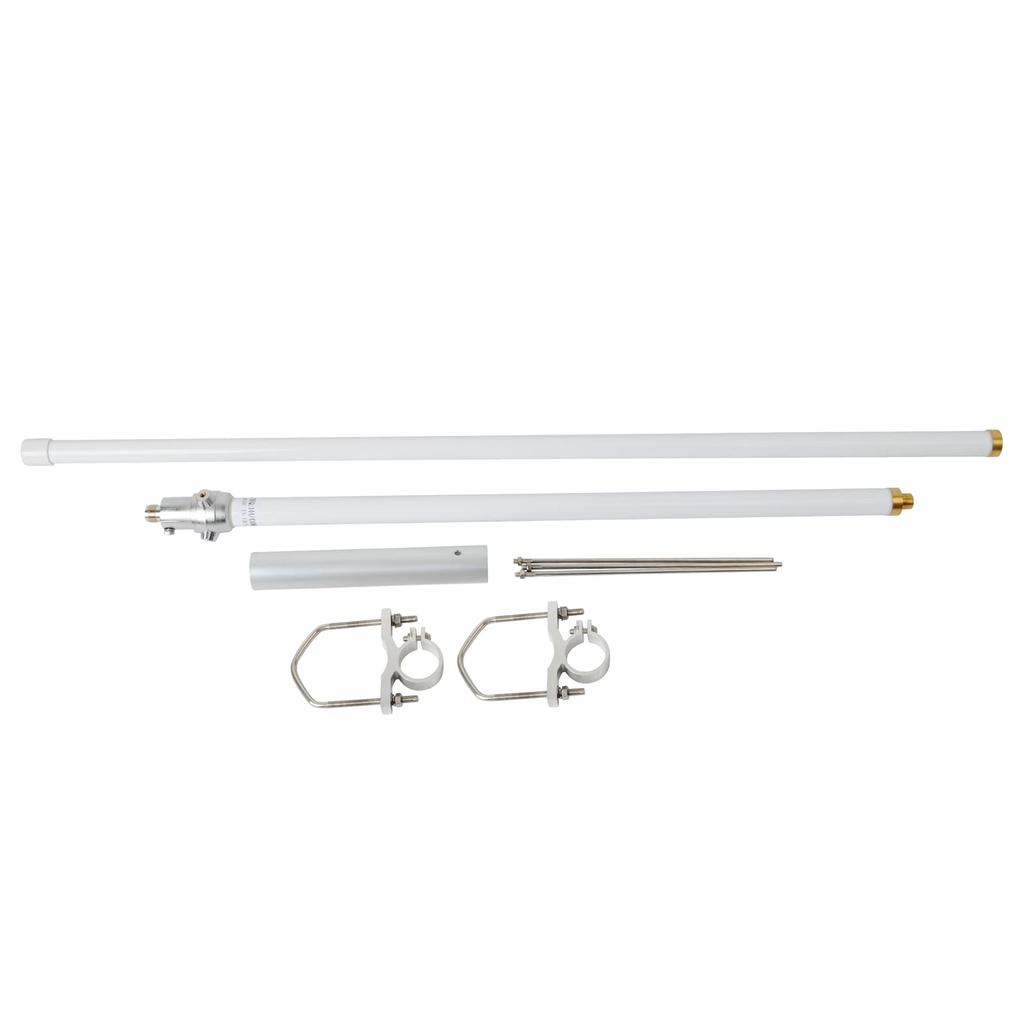

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Frequency: 144/430MHz Total length: 170cm (antenna only) Radial length: Approx. 52CM Weight: Approx. 1kg Gain: 4.5dBi (144MHz) 7.2dBi (430MHz) Connection: M-J Input resistance: 200W Impedance: 50Ω VSWR: 1.5 or less Antenna type: Single type Applicable mast diameter: φ30 to φ62mm The connector on the antenna body is made of copper rod, resulting in an extremely low-loss structure. All you have to do is lightly tighten the connecting fittings, and it can be easily divided (convenient to carry) when necessary. Not only is it highly waterproof, but it is also corrosion- and rust-proof, so you can use it with confidence even in coastal areas and industrial areas. [Standard/TC-FB17UV] Frequency: 144/430MHz Gain: 4.5/7.2dBi Input resistance: 200W Impedance: 50Ω VSWR: 1.5 or less Horizontal beam width: 360º Vertical beam width: 30º / 19º Connection: M-J type Total length: 170cm (antenna only) Weight: 1kg Antenna material: fiberglass Attached hardware material: aluminum alloy
