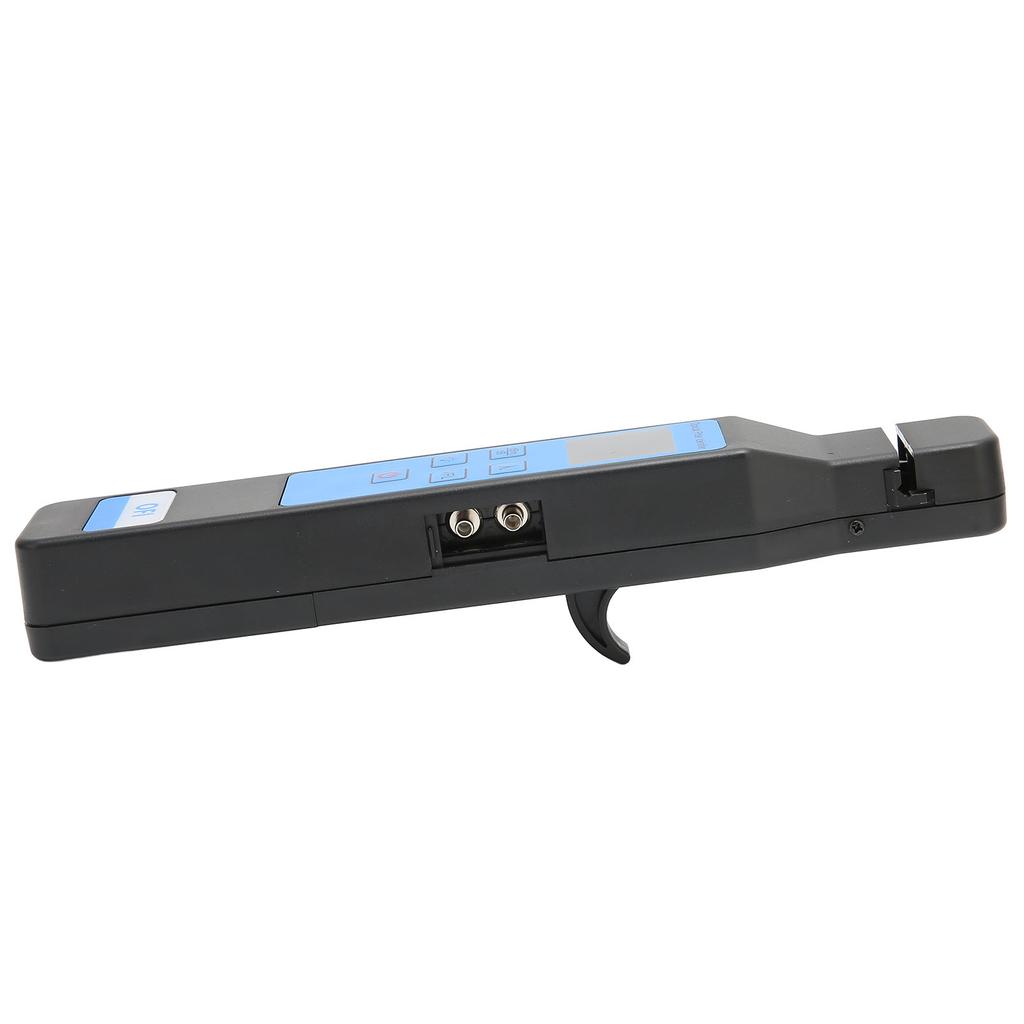

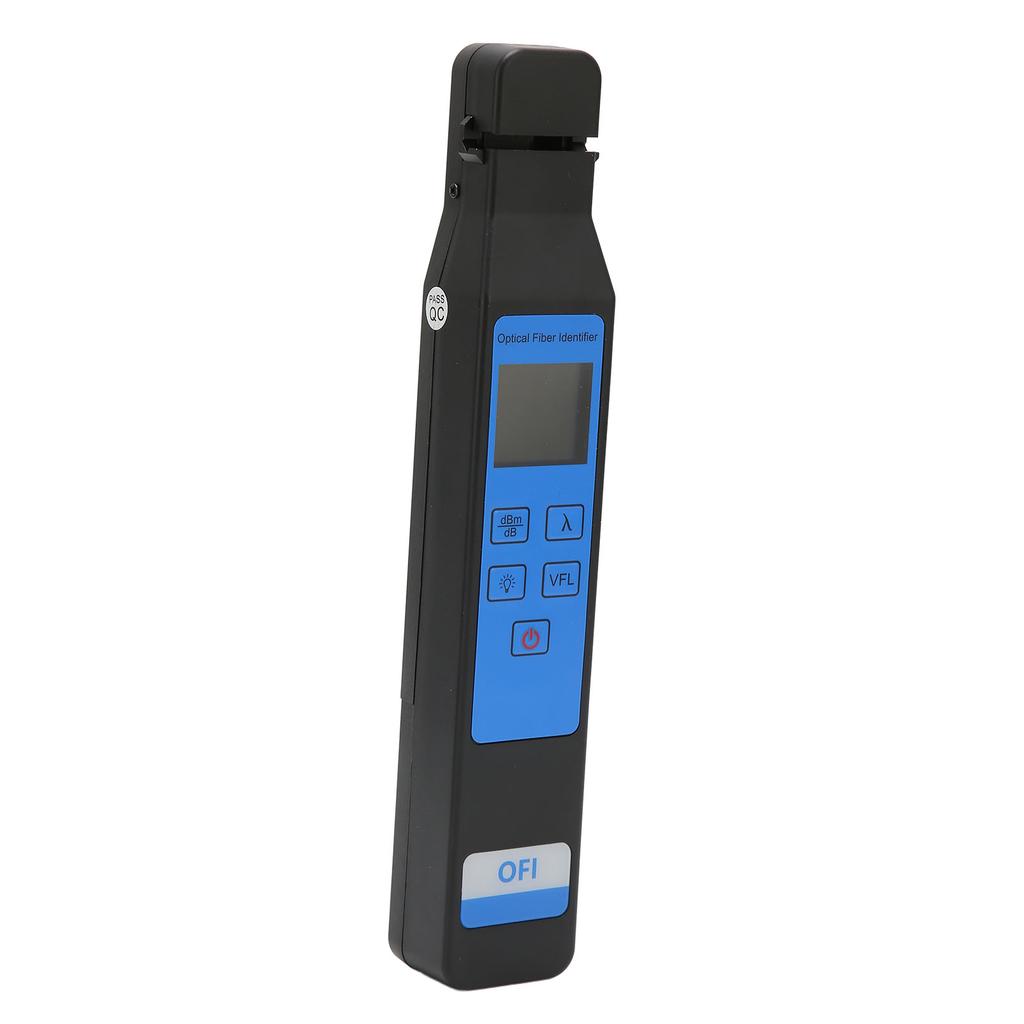

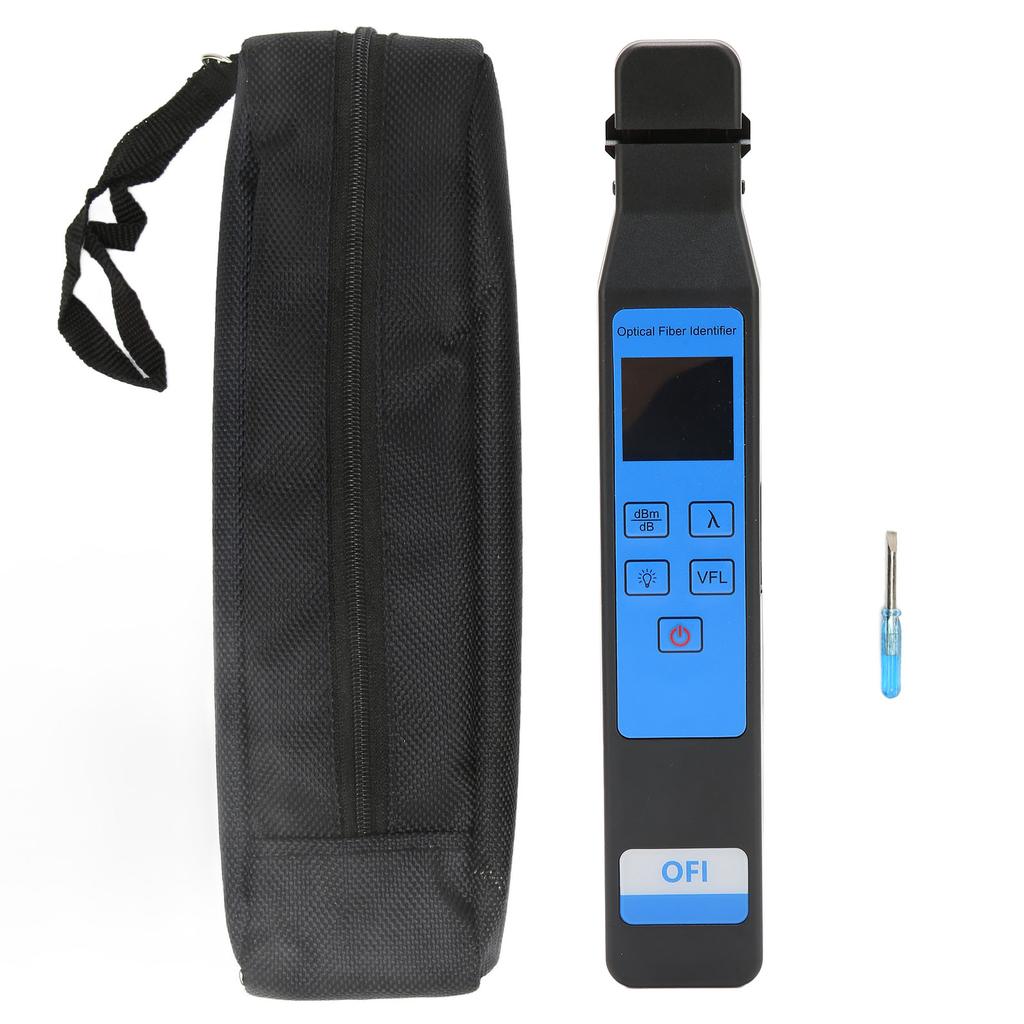

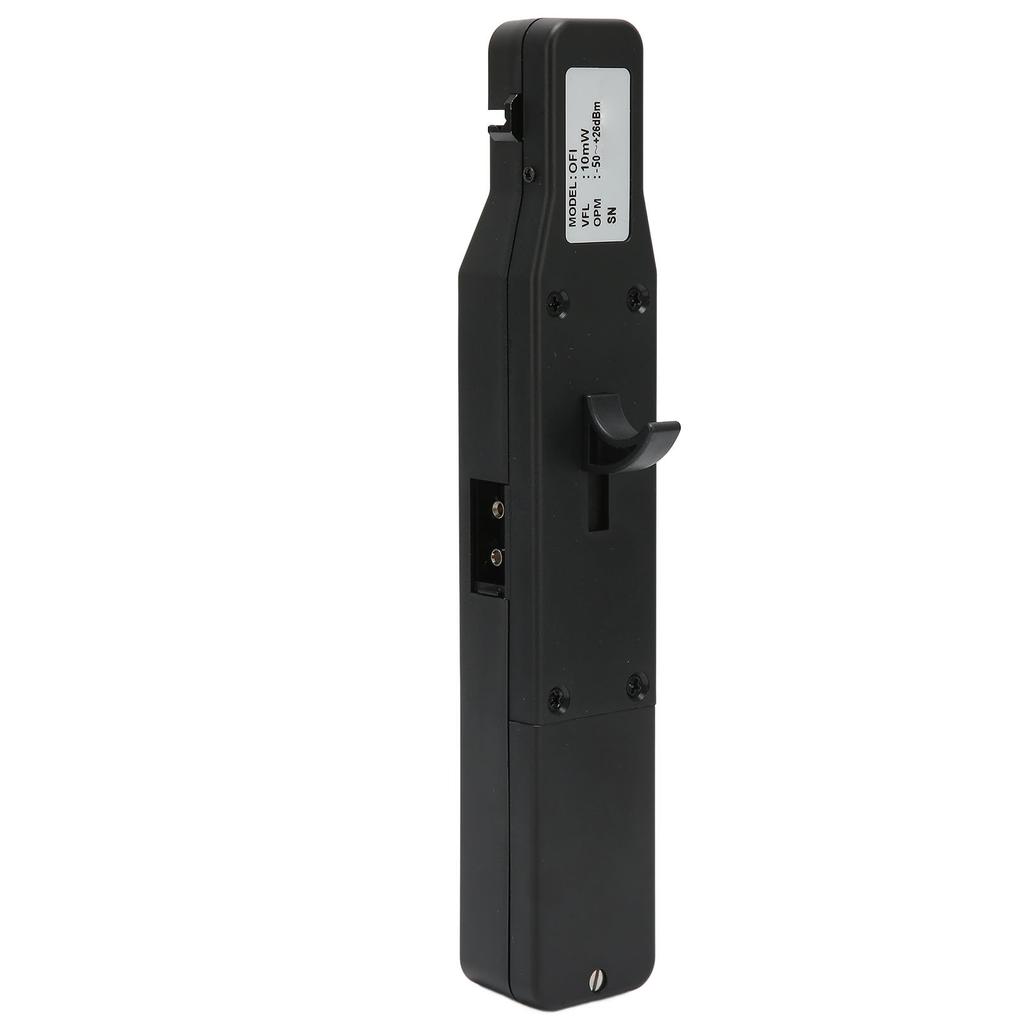

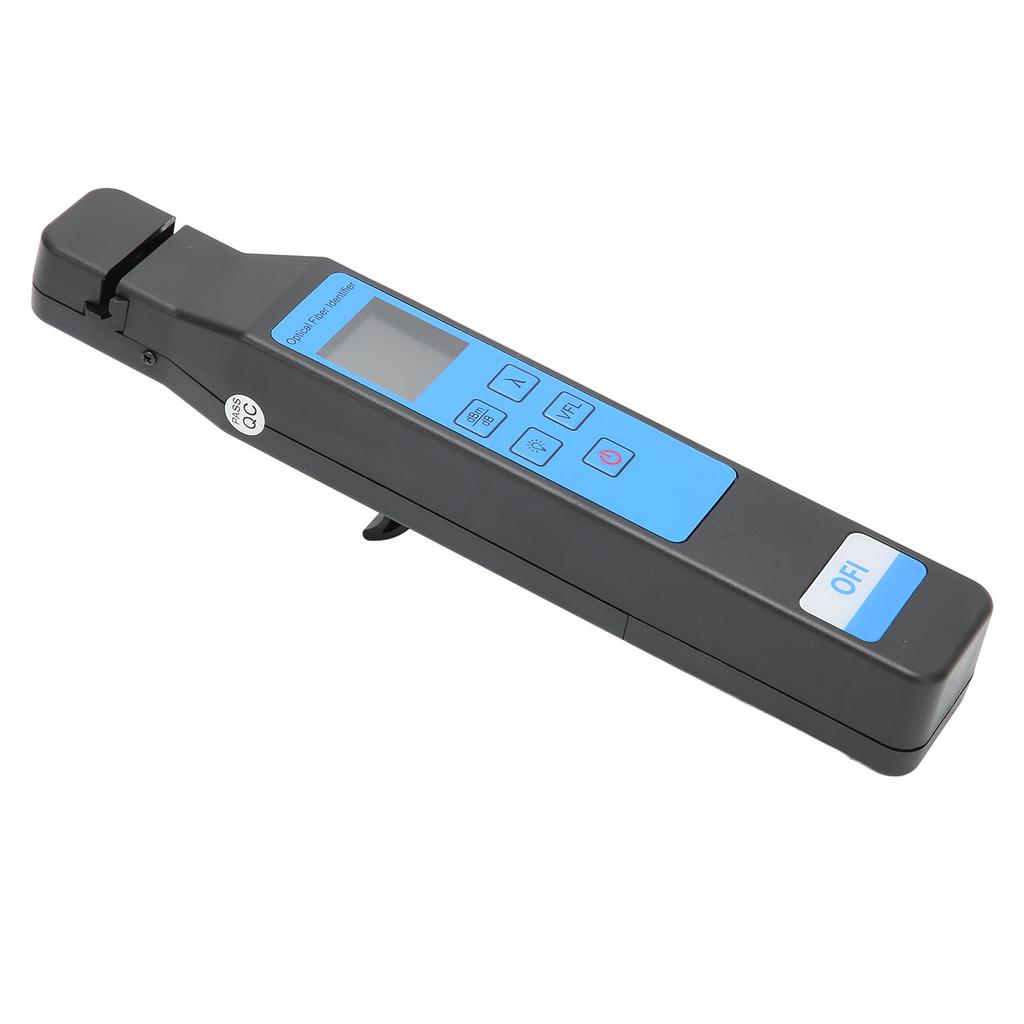

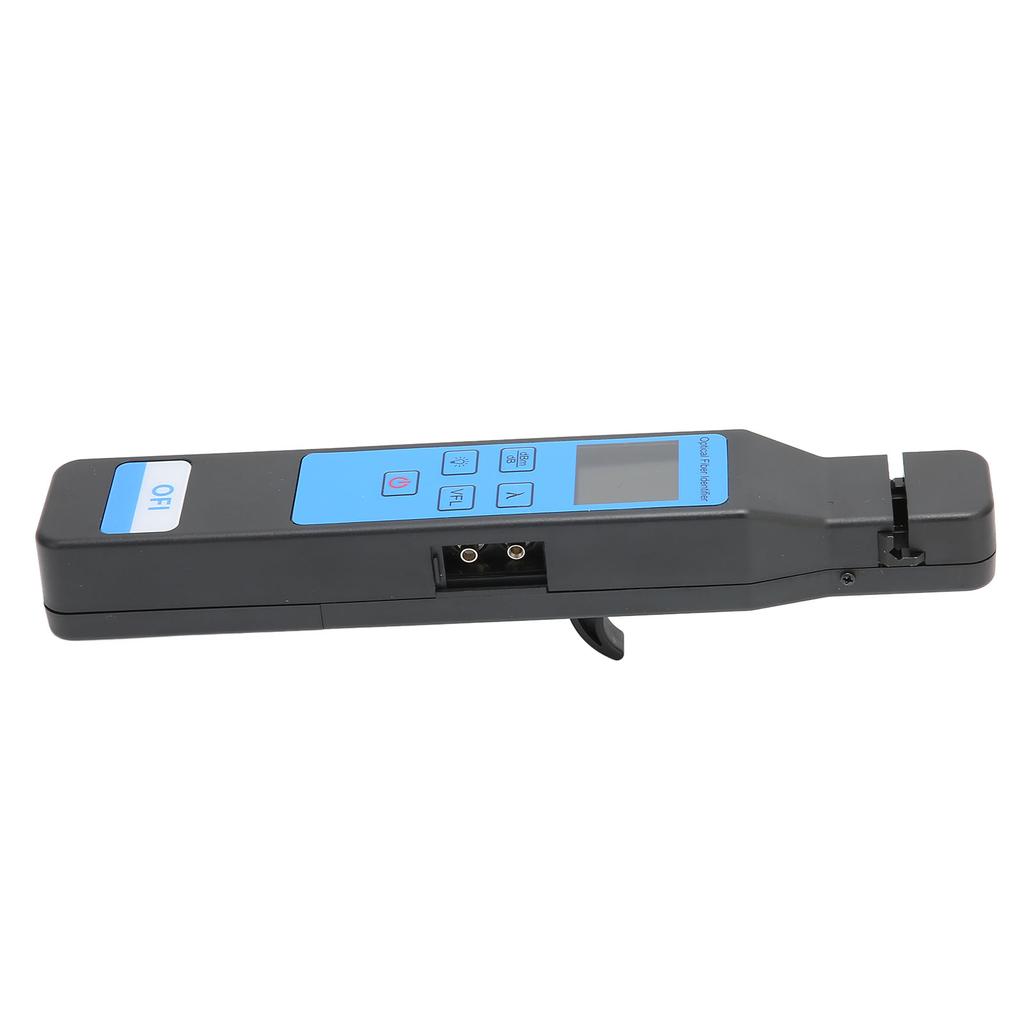

Optical Fiber Identifier 800 To 1700nm Built In 10mw VFL FTTH Tool Multifunctional Optical Fiber

Feature: 1. Strong Practicability: Optical fiber identifier is an important tool for fiber maintenance. It is used for non destructive fiber identification projects. It has a visual fault location module, fault location and energy meter functions. 2. Macrobending Measurement: Macrobending is to detect the direction and intension of the optical signal by using the weak optical signal leaked when the optical fiber is bent, without damaging the optical fiber or interrupting the communication. 3. Connector Type: Multifunctional fiber identifier adopts online macrobending technology for non destructive testing, which can measure signal direction and power to avoid line interruption caused by misoperation. 4. Multiple Functions: LED fiber identifier built in 10 mW VFL function; OPM, metal holder, no need to replace adapter, low battery monitoring function, tone recognition and other functions. 5. Quick Detection: The Portable fiber identifier can detect the optical signal in the tone signal of fixed load 270Hz, 1KHz and 2KHz to identify the specific fiber, which can quickly find the required fiber. Specification: Item Type: Optical Fiber Identifier Material: ABS Specifications: Wavelength: 800nm-1700nm Straight Insertion Loss: 1. 250um900um Fiber: 1.0dB; 2, 2.03.0 Fiber: 1.5dB Fiber Application: 250um900um2mm3mm Fiber Recognized Signal Type: 270hz1khz2khz Identification of Modulated Signals: Support Power Measurement: Support Display: LED Color Screen Tone: Support Low Power Monitoring: Support Detector Type: 1mm InGaAs VFL Specification: Wavelength: 650nm+-10nm Output Power: 10mW Fiber Port: 2.5 Universal Connector OPM Specification: Wavelength: 800-1700nm Calibration Certificate: 85013001310149015501625nm Measurement Range: -50 to +26dbm Connector Type: 2.5 Universal Connector Operating Temperature: -10 degrees C to +50 degrees C Storage Temperature: -20 degrees C to +70 degrees C Battery:2 x AA (not Included). Package List: 1 x Optical Fiber Identifier 1 x Portable Storage Bag1 x User Manual1 x Screwdriver Note: Ships without battery.
