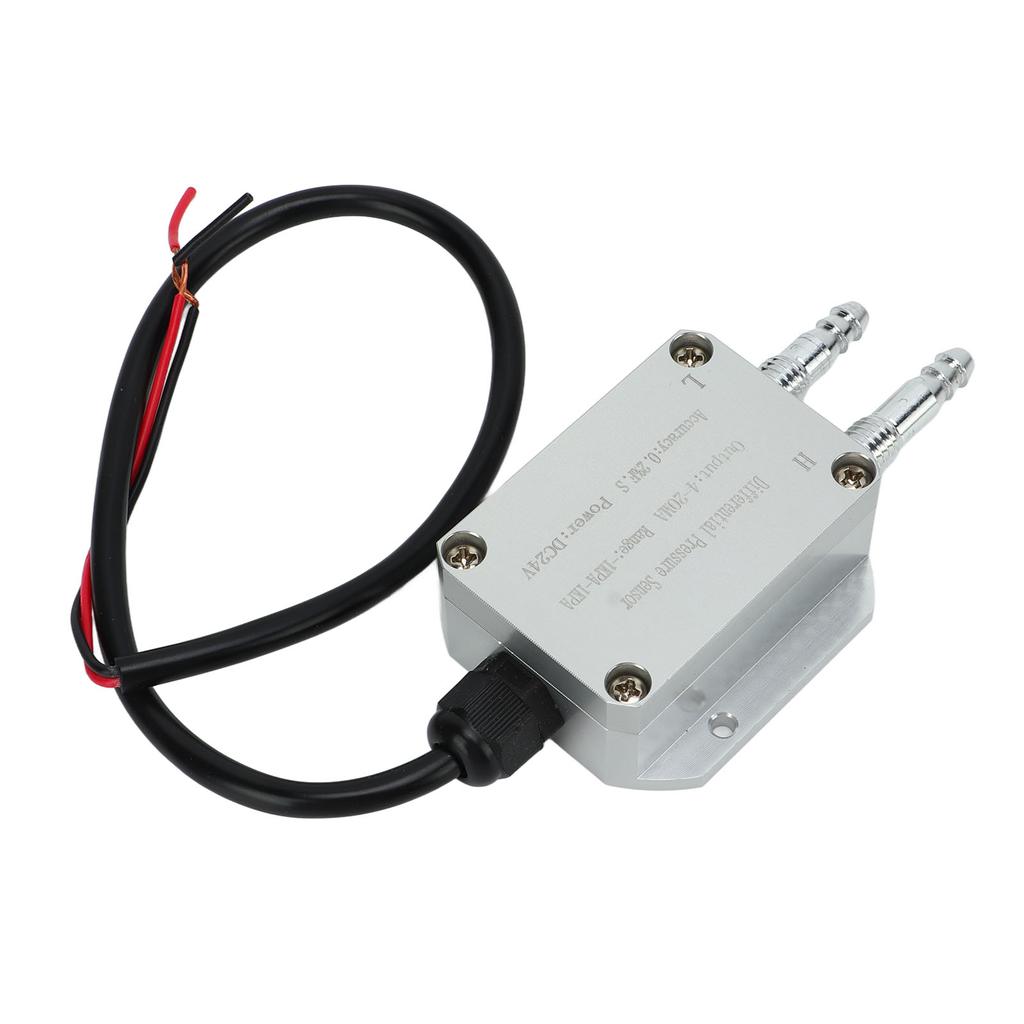

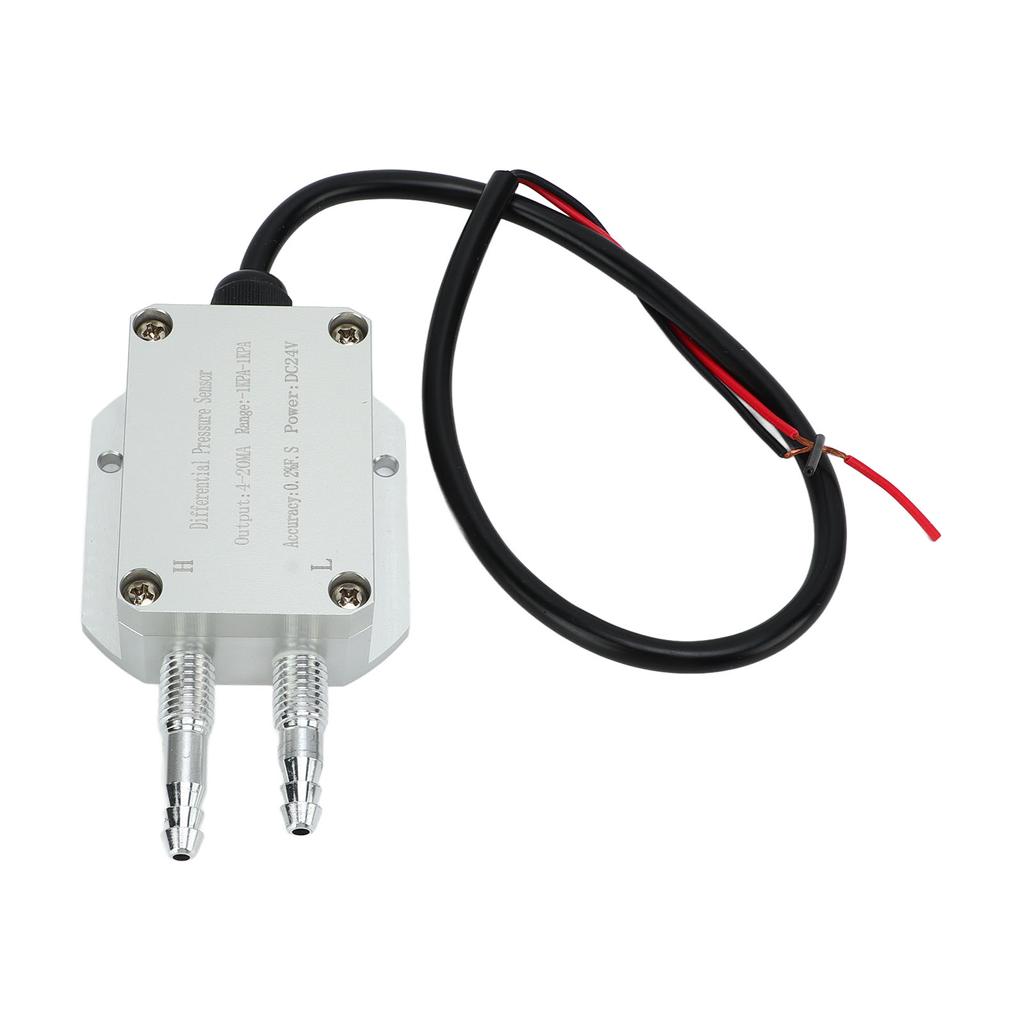

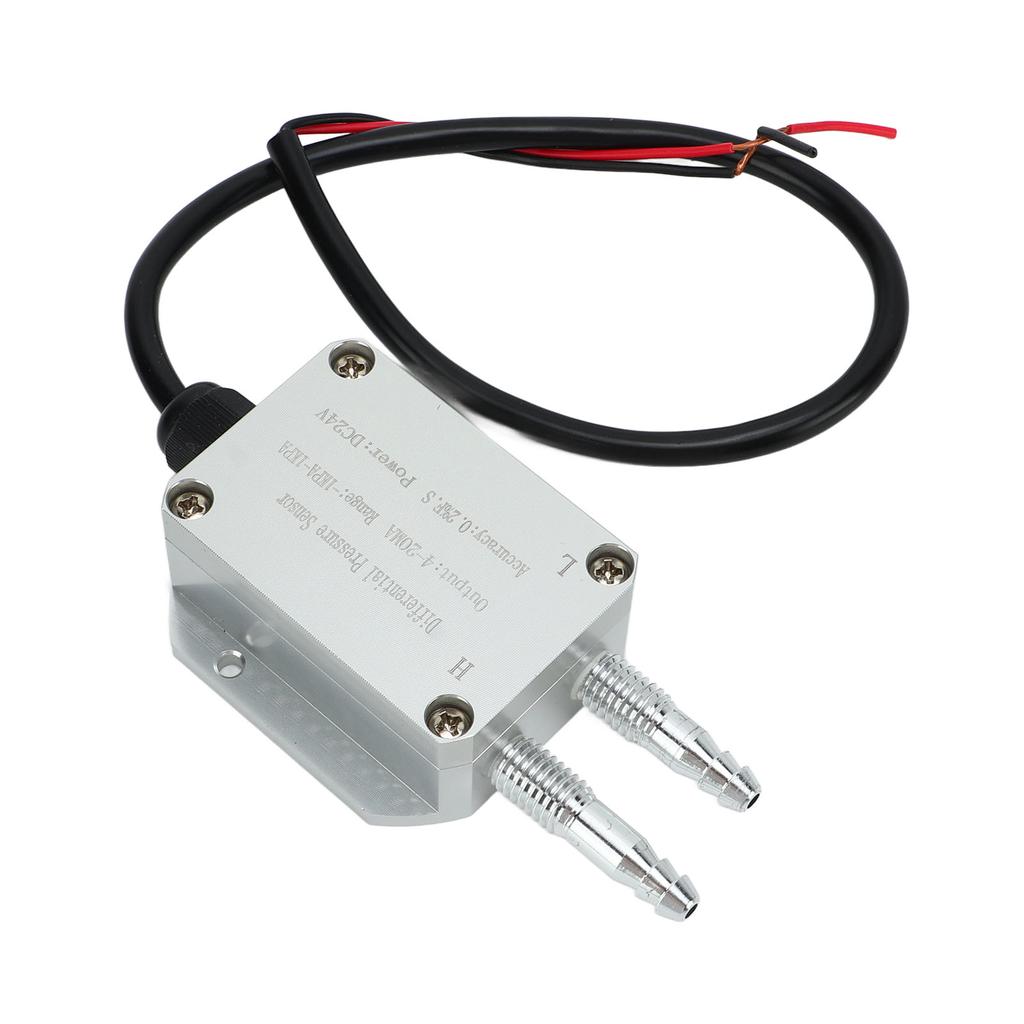

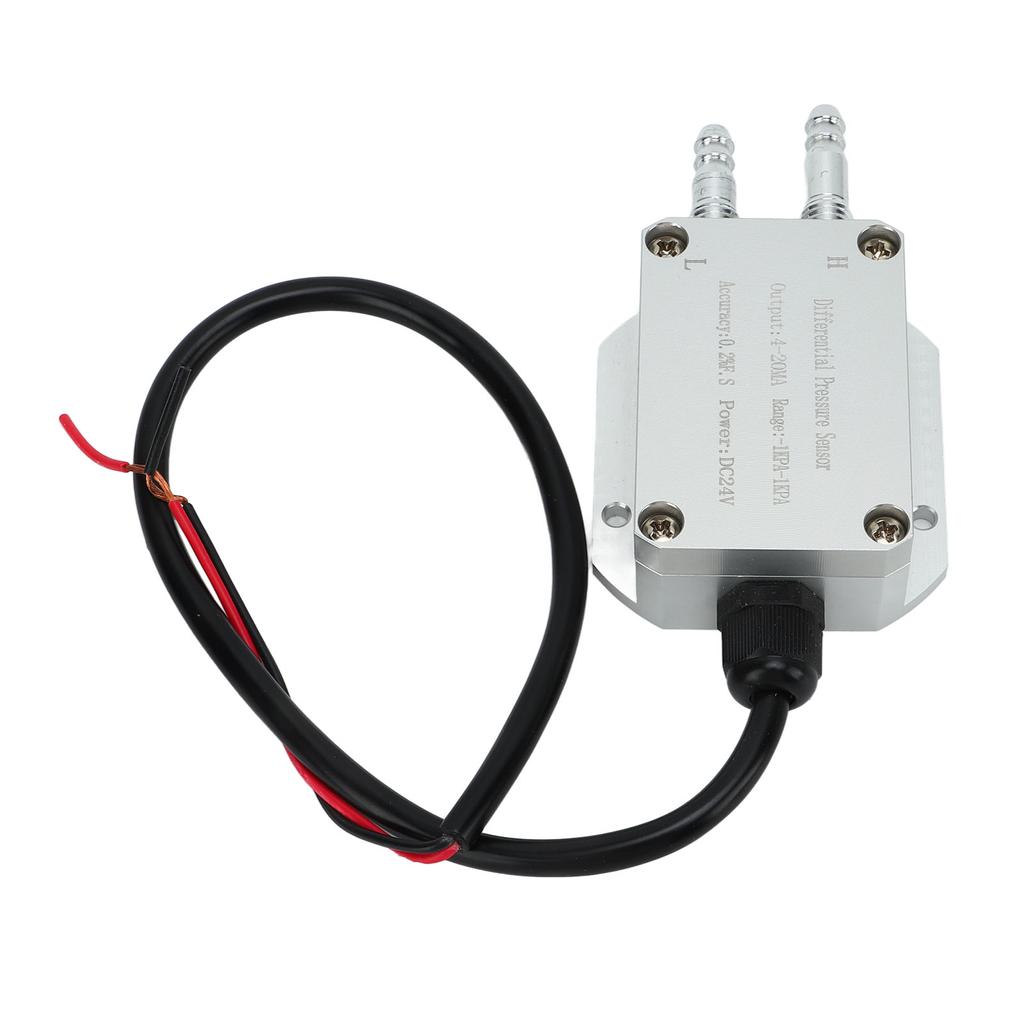

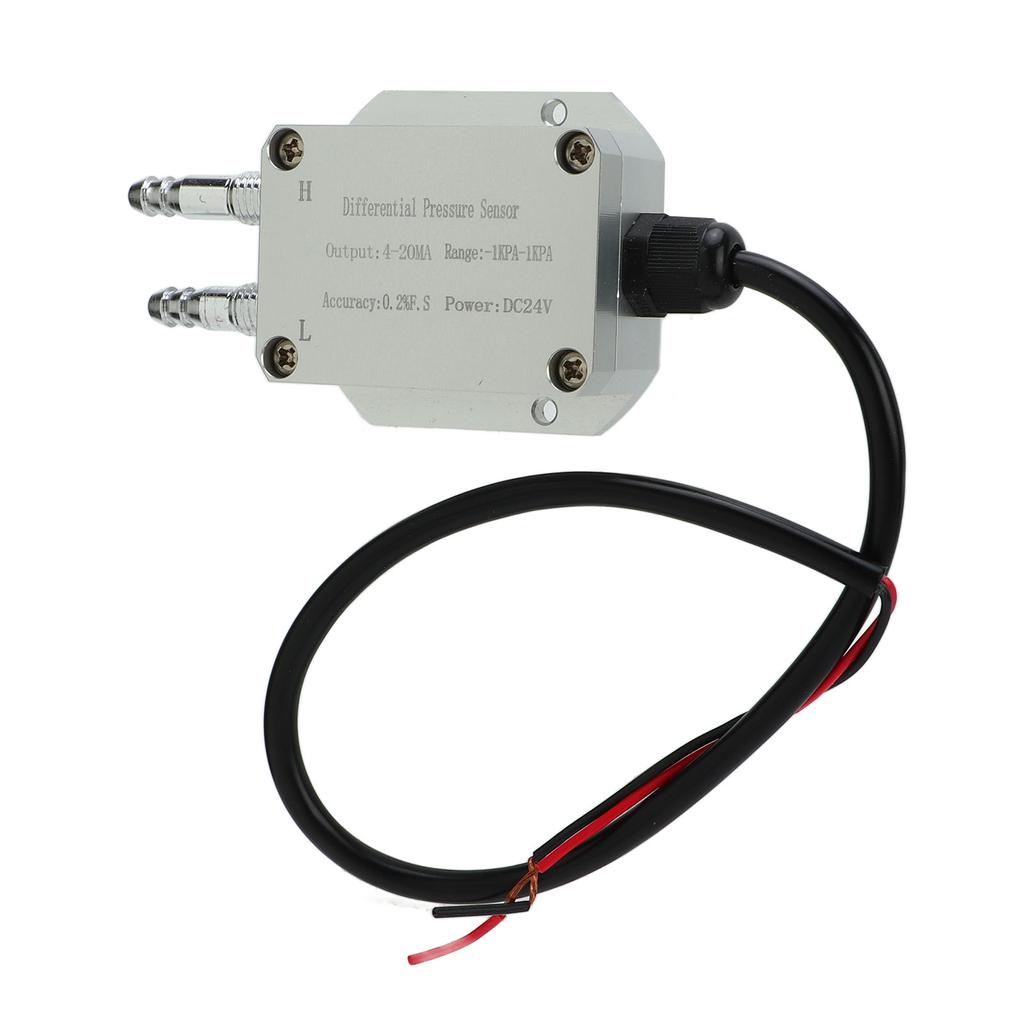

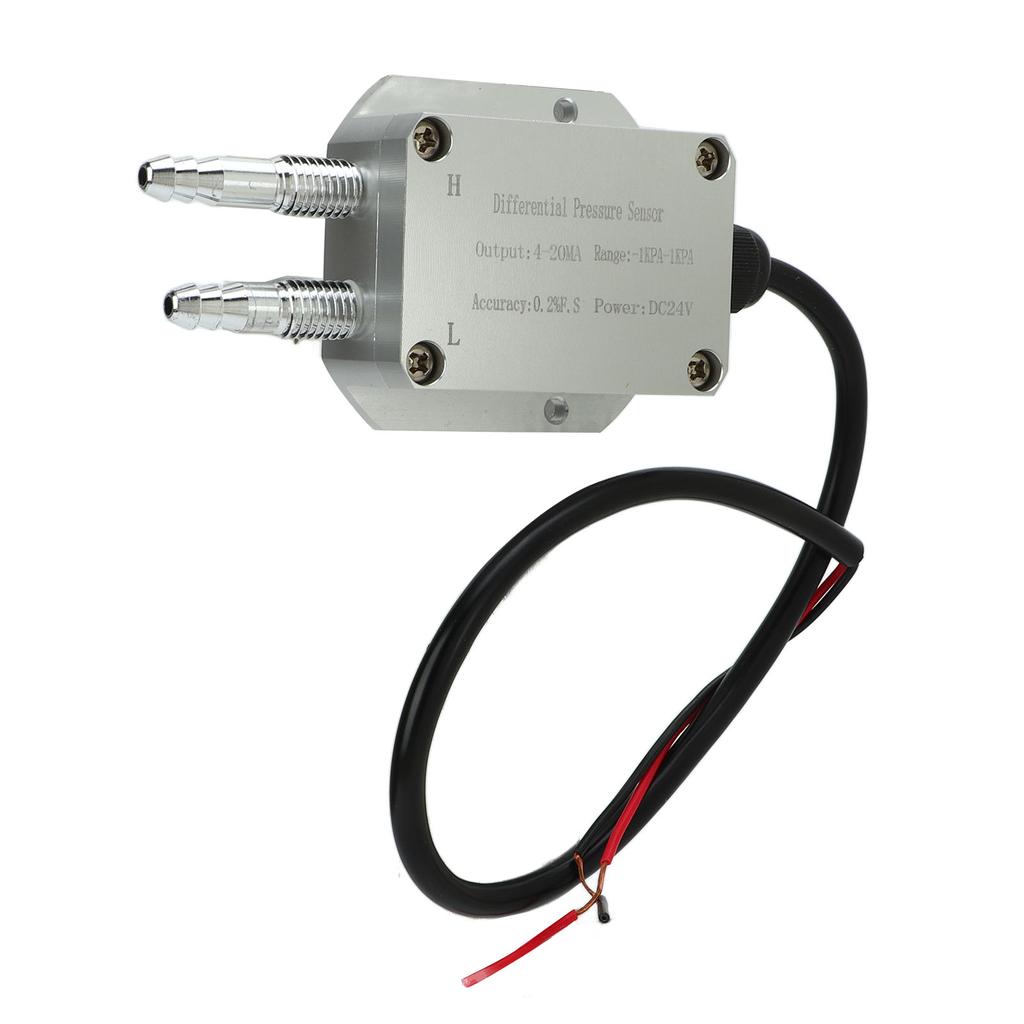

Wind Pressure Transmitter 4?20mA Differential Pressure Sensor ?1Kpa To +1Kpa High Sensitivity for

Feature: 1. Function: The pressure transmitter adopts a unique stress isolation technology, and after precise temperature compensation and high stability amplification, convert the measured medium signal into a 4?20mA output signal. 2. High Sensitivity: The wind differential pressure transmitter is designed for high sensitivity, high accuracy, strong anti overload capability, and the sensor and amplifier circuit are highly integrated. 3. Wide Application: Wind micro pressure transmitter is widely used in pressure measurement in clean room, boiler, dust collector, vacuum cleaner, power plant, air conditioner and other environments. 4. Material: Die casting aluminum alloy is used, the zero point and accuracy of the circuit board do not need to be adjusted, the anti interference ability is strong, and it is stable and reliable for a long time. 5. Excellent Performance: The superior wind differential pressure transmitter is professionally produced for quality and safety guarantee, compact in size to deliver more convenience for installation, time and effort saving. Specification: Item Type: Wind Pressure Transmitter Material: Aluminum Alloy Uses: Widely used in pressure measurement in clean room, boiler, dust collector, vacuum cleaner, power plant, air conditioner and other environments Range: -1Kpa to +1Kpa Overload Capacity: Single ended minimum withstand voltage 4Kpa, maximum withstand voltage can not exceed 25 times the range Measurement Accuracy: 0.2percent FS Output Signal: 4-20mA Power Supply: DC24V Temperature Drift: +/-0.1percent FS/ celsius Ambient Temperature: -30 celsius to +80 celsius Ambient Humidity: less than 85percent RH Measuring Medium: Non corrosive gas Thread: M10x1 Suitable for Pipe Diameter: Approx. 8mm/0.31in. Package List: 1 x Wind Pressure Transmitter
