Feature:
1. Security Guarantee: Metal lining is used to separate water and electricity, and automatically detect leakage to ensure your safety. Built in real time chip control, with anti leakage protection and power off protection functions.
2. Multi Features: Mini stainless steel design, elegant and fashionable appearance. It can supply heat safely and has the characteristics of energy saving, water saving, no pollution and no tail gas.
3. Space Saving: It does not need ventilation, and the space saving design allows it to be installed concealed under the smallest cabinet.
4. Instant Heating: The heating transmission distance is short, which reduces the heat energy consumption during transmission. There is no need to heat in advance and burn as much as you use.
5. Widely Application: Suitable for kitchen, bathroom, public toilet and other places. It can be used for brushing teeth, washing dishes, washing hands, bathing and washing clothes on the washing table.
Specification:
Item Type: Instant Water Heater
Material: ABS
Weight: Approx. 1489g / 52.5oz
Water Inlet: Cold water from the lower right (blue) into the water heater after heating from the lower left (red) out of the water
Rated Voltage: 220V
Rated Frequency: 50Hz
Rated Power: 5500W
Rated Pressure: 0 MPa
Waterproof Level: IPX4.
Power Supply Connection: Positive (Blue), Negative (Brown), Ground (Yellow Green)
Power Cord Size: 2.5mm2
Instructions for use:
When using for the first time or when the tap water stops, turn off the power first, then turn on the water outlet switch.
The shower head has a continuous water outlet and can be charged. (if this is not the case, the machine may be damaged.)
1. LED display
Power on display
Digital screen standby dark light, long light shows the state of the water temperature, blinking when the set temperature state.
When heating, the screen flashes, indicating that the water flow is small or high temperature. When "LL" is displayed, it means that the water flow is large and the temperature is too low.
When "E*" is displayed, it means that the product self test is faulty and the heating stops.
When "-" is displayed, it means shutdown state, it means shutdown without heating.
Temperature Setting Range: 35-55 celsius . Cycle pressurization to heating.
2. Touch key
The left key is the power on key, long press for 3 seconds to turn on or turn off the power.
The right key is the temperature setting key, cycle press to increase the temperature.
Every time there is a key operation, the buzzer will sound.
3. This product model has a hibernation function. No operation, no water flow, it will go into the dormant state.
After 6 seconds, the state is stationary. When there is operation and water flow, it will be highlighted immediately.
4. This product model has constant power constant temperature heating mode. The heating mode is automatic.
Select according to the use environment and heating conditions. When the heating temperature reaches 60; when working in constant power heating mode, it will stop heating, and when the temperature is lower than the temperature setting value, it will start heating. The constant temperature mode is preferred when the working conditions of the machine are met..

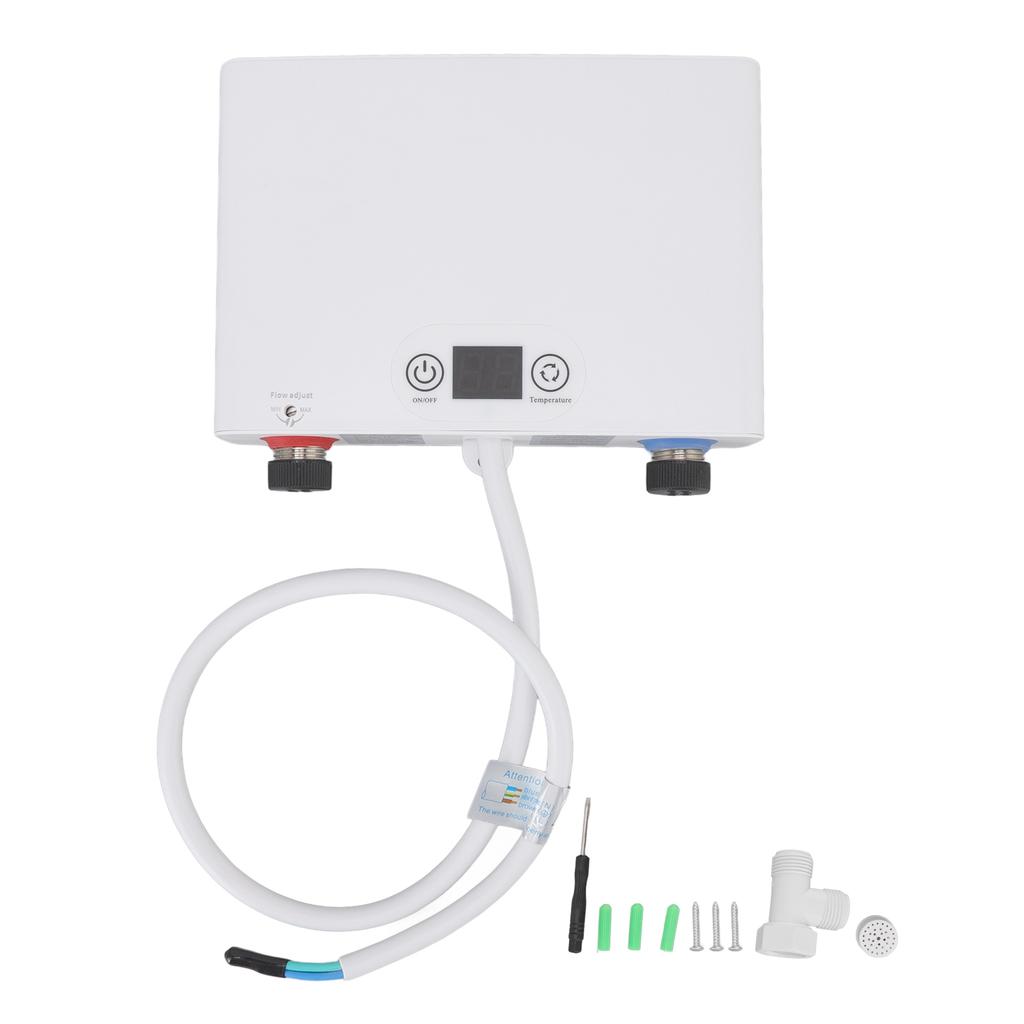

Package List:
1 x English Manual1 x Screwdriver3 x Expansion Screw 3 x Screw1 x Filter1 x Tee Joint1 x Instant Water Heater
Note:
1. The product must be installed vertically and connected with reliable ground wire.
2. Inlet and outlet water pipes must; Tighten to ensure no leakage.
3, after the installation of water; Then electricity.
4. If the ambient temperature is below 0 celsius . Do not turn on the power and close the water inlet valve.
