Feature:
1. LCD screen, with less power consumption, visual operation, high brightness and long visual distance.
2. Touch experience, low energy consumption and sensitive control, enabling flexible tattoo operation.
3. High quality master chip, comprehensive upgrade system, with powerful functions.
4. Fixed base, using suction cup and magnet two ways to install and disassemble, make it is not easy to fall.
5. The timing function starts with a touch and reset with a long press, especially suitable for tattoo artists who charge by the hour.
6. With 12 sets of memory voltage, and can be set to adjust. Pedal has double modes, continuous pedal mode and micromotion mode.
Specification:
Item Type: Tattoo Power SupplyPower Supply Size: Approx. 8.5 x 15.5cm 3.35 x 6.1in
Power Supply Shell Material: ABSSupporting Base Material: AlloyInput Voltage: AC100-240V 1.5A
Frequency: 50-60HZ
Output Voltage: DC19V-2APower Output Voltage: 3-18VOutput Voltage Accuracy: +-0.1VAdvantages: LCD, touch button, timing, 2 voltage modes, 12 preset voltages, can be used to shade or line.
Usage:1. Connect the power plug, pedal and machine, then power on.2. Press the power button for 3 seconds to start the power supply. Press the button for 3 seconds to shut down the power supply.3. Short press L or S to adjust 6 groups of memory voltage; (In L mode, the memory voltage is l1-5VL2-6VL3-7VL4-8VL5-9VL6-9.5V S1-6V; In S mode, the memory voltage is s1-6VS2-6.5VS3-7.5VS4-8.5VS5-9.5VS6-10V.)4. After adjusting the mode, press the "+" and "-" buttons to adjust the voltage, the adjustable voltage range is 3-18V, increase or decrease the voltage by 0.1V each time;5. This machine provides two pedal modes, one is continuous output mode, the other is micromotion output mode. When selecting continuous output mode, long press the "LS" button for 3 seconds. In this mode, there is no need to install the foot, short press to stop the power supply, and in micromotion mode, the foot can be installed to control;6. Press the left middle time button to start timing, then press to pause, long press to reset. button to start the timing, then press pause, and long press reset
5. Press the powerfoot button in the lower right corner to adjust the foot to tap mode, that is, you can continue to supply power to the tattoo machine without stepping on the foot. Press the button to stop the power supply
6. Long press the powerfoot button in the lower right corner to shut down..
Package List:

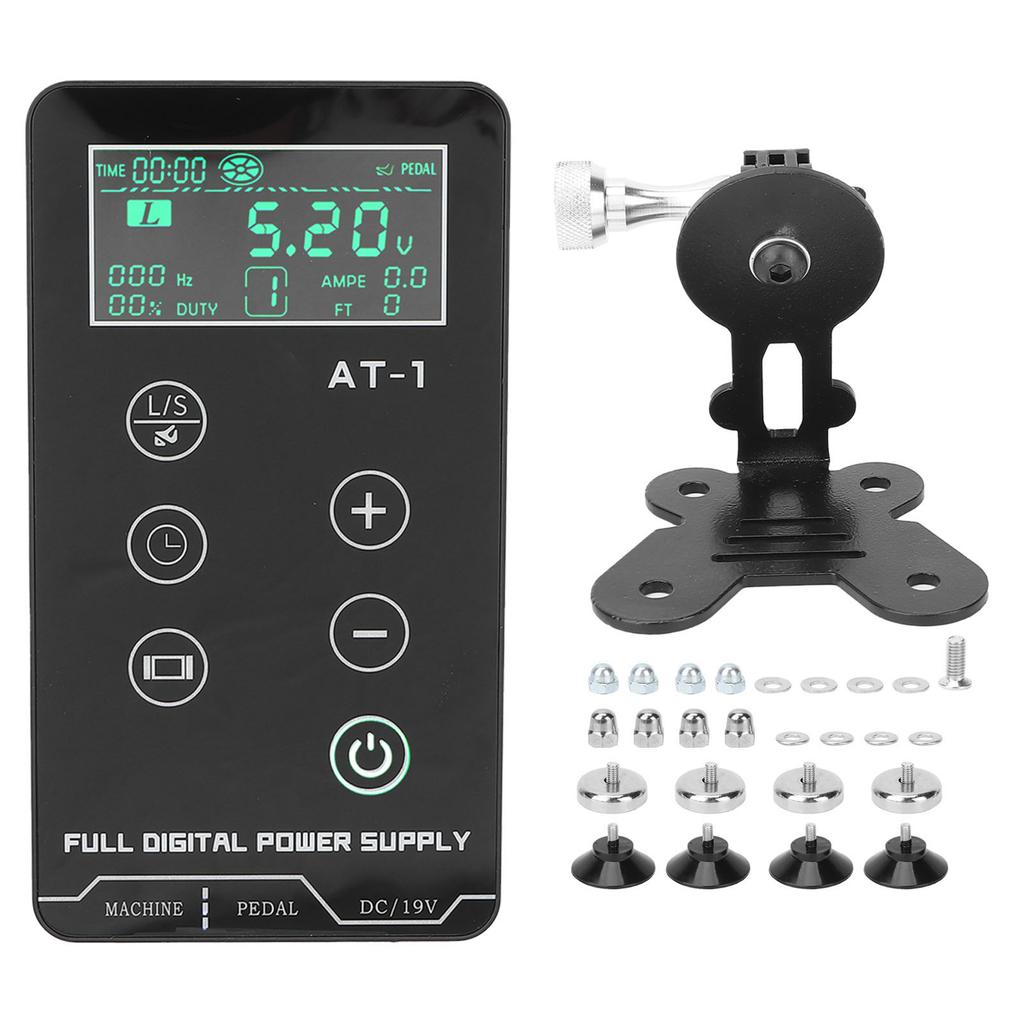

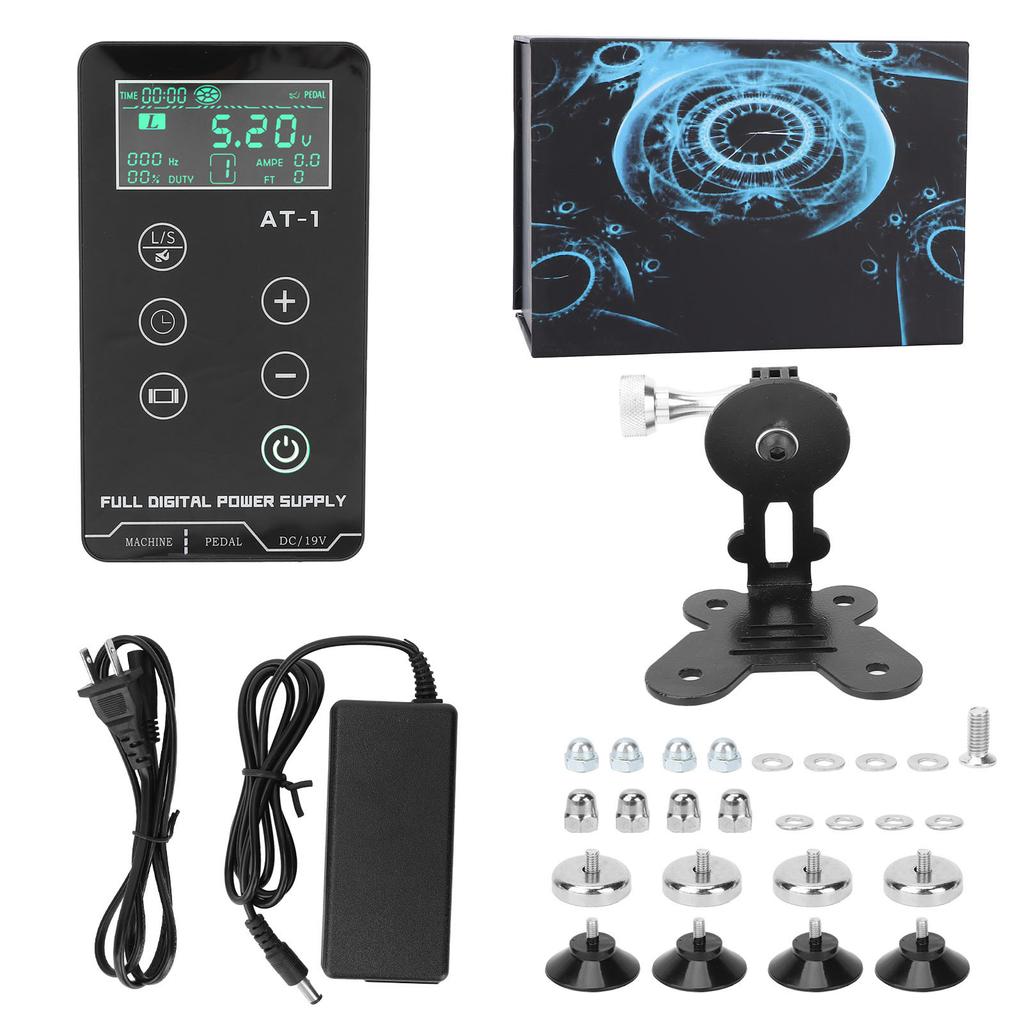

1 x Power Supply1 x Supporting Base1 x Adapter 1 x Plug1 x Bag of Silicone Supporting Base Accessories (4 x Silicone Suckers, 4 x Screw Shims, 4 x Screw Caps)1 x Magnetic Supporting Base Accessories (4 x Magnetic Suction Base, 4 x Screw Shims, 4 x Screw Caps, 1 x Cross Screw)
Note:
1. The machine uses the power cable of 19V output voltage, do not replace the power cable at will;2. This product should not be heavy press or fall, if the machine shell deformation, please stop using;3. High pressure danger, do not disassemble and assemble the machine without authorization.
