Feature:
1. Good Performance: Thermal tattoo stencil transper machine with high efficiency and stable performance, provide fast transfer speed, clear transfer pattern, and low noise.
2. Simple Operation: Just a few simple steps, you can quickly copy the tattoo design on the paper, and then copy the pattern onto skin.
3. Heat Dissipation: Tattoo transfer machine bottom is designed with heat dissipation holes, effectively cooling machine, no need to replace parts and ink, no bulb or cylinder.
4. Improve Efficiency: Tattoo transfer copier printer machine adopted unique design, easy to open and close, effectively keeping the paper neat, which can improve the efficiency of tattoo artists.
5. Excellent ABS: Tattoo stencil machine made of ABS material shell, firm and durable, light in weight and small in size, which is convenient to carry and can be used for a long time.
Specification:
Item Type: Tattoo Transfer Stencil Machine
Material: ABS, electronic components
Scanning Mode: CIS
Effective Scan Width: Approx. 210mm 8.27in
Scanning Resolution: Horizontal: 8dotmm, vertical: 7.7linemm
Document Type: FINEPHOTO
Document Size: A5 to A4
File Thickness: Approx. 0.06mm-0.15mm
Recording Mode: TPH
Effective Printing Width: 210mm 8.27in
Power Consumption: Standby 5W
Working Environment Temperature: 5 celsius to 35 celsius
Relative Humidity: 20percent to 80percent
Size: Approx. 293 x 171.5 x 72mm 11.54 x 6.75 x 2.83in
Weight: Approx. 1.2kg 2.65lb
Different key combinations of different transfer modes.
Depending on the type of manuscript, you can set different key combinations on the panel, choose different transfer modes.
Key Combination:
PHOTO: Pure black fine line manuscript light off, pure black block manuscript light off, lighter gray manuscript light on, darker gray manuscript light on.
DEEPNESS 1: Pure black fine line manuscript light off, pure black block manuscript light on, lighter gray manuscript light off, darker gray manuscript light on.
DEEPNESS 11: Pure black fine line manuscript light on, pure black block manuscript light off, lighter gray manuscript light on, darker gray manuscript light off.
Note: 1. In order to obtain better transfer effect, the machine should rest for several minutes after 1 to 2 sheets of paper are transferred.
2. In order to maintain the machine, please do not transfer it continuously. It is recommended to cool it after use.
3. Tattoo template machine is not suitable for complex tattoo shader patterns, can only display a single tattoo effect.
It is recommended to transfer lines and simple patterns for best results.
1. Panel Description:
DEEPNESS I: The indicator lights up and the manuscript concentration is set to depth I at the same time as DEEPNESS II
The button indicator light will go off.
DEEPNESS II: The indicator lights up, the manuscript concentration is set to depth II, and DEEPNESS I
The button indicator light will go off.
PHOTO: Press this key to switch between picture and fine. If it is picture, the indicator will light up.
MIRROR: Press this key to switch between mirror copy and ordinary copy. MIRROR is used by default, if it is a mirror copy, the light will be on.
STOP: Stops the transfer.
COPY: After inserting the manuscript, press this key to start transferring.
POWER: Power indicator, the indicator light will be on after the machine is powered on.
ERROR: Indicates the error indicator. The indicator is on when the thermal sensor overheats.
2. Adjust the scanning depth and transfer depth of the machine
You can adjust the scan depth and print depth of the machine according to actual needs. The steps are as follows:
(1) Long press the STOP button for 3 seconds, the machine drops a sound, and the indicators are all on.
(2) Press STOP to adjust the scanning depth. Drop 1 is the deepest and beep 7 times is the shallowest.
(3) Press COPY to adjust the transfer depth, drop 1 sound transfer the shallowest, beep 7 times is deepest.
(4) Long press the STOP button for 3 seconds, the machine will beep, and the indicator light will recover, that is, the scanning and printing depth will be completed adjust.
3. How to calibrate the machine
Machine in the brightness of the image sensor and thermal sensor on the surrounding environment and temperature are very sensitive, will change with the passage of time and natural, copy image and the original image color difference is bigger, please scan the calibration, operation steps are as follows: (1) press the "STOP" button for 3 seconds, can hear the "beep" sound to the machine, all the lights lit up. (2)Insert a flat PIECE of A4 paper into the paper feeder and press the "MIRROR" key to scan and calibrate. (3) Automatic paper feeding during the calibration process, and complete scanning calibration after spitting out a complete white paper. (4) Press the "STOP" button for 3 seconds, hear the machine "beep", all indicators return to normal, that is, the calibration is completed.
4. Usage
(1) Power on and turn on the power switch.
(2) Open the machine paper bin and turn over the board, and put the machine transfer paper from the transfer paper input port.
(3) Place the manuscript pattern face down through the manuscript input.
(4) Set the improved printing mode, press the start button to start the transfer. .

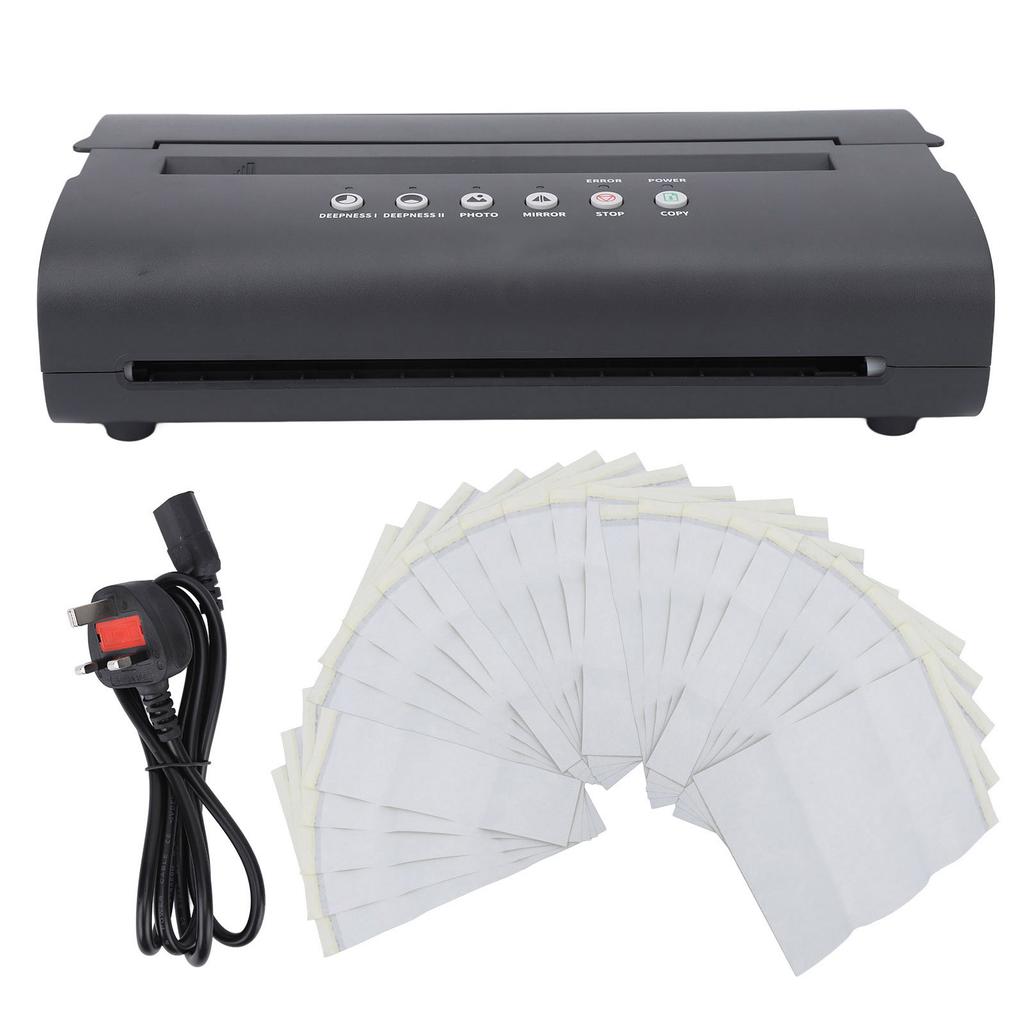

Package List:
1 x Transfer Stencil Machine1 x Instruction1 x Plug30 x Transfer Paper
Note:
If the transfer effect is not good, tattoo transfer machine has no quality problem, but the quality of transfer paper is not good, it will directly lead to poor effect or wrinkled paper, paper stuck, to analyze whether the quality of transfer paper is qualified.
