Feature:
1. Wide Test Range: Comes with high accuracy, the pointer multimeter can be used to test DC voltage, DC current, AC current, capacitance and more.
2. Safer Operation: Designed to have overload protection and misoperation protection, the voltmeter tester also has sturdy side protective sheath.
3. Extensive Using: Allows for application in various areas, including but not limited to home, laboratory, household, repair, maintenance, etc.
4. Pointer Designs: The pointer ensures clear data display and easy reading, while the back hook design can adjust the tilting for simple operation.
5. Simple Carrying: Light in weight and compact in size as well, the volt tester can be conveniently carried for both indoor and outdoor working.
Specification:
Item Type: Pointer Multimeter
Model: MT 2017N
Material: ABS
Power Supply Mode: 1 x 9V6F22 battery with 1200mAh capacity, shipped with supporting battery. Or 2 x AAA battery with 680mAh single battery capacity, shipped with supporting battery.
Application: It can measure DC voltage as well as positive and negative DC voltage at the middle 0 position, DC current to 10A maximum, AC voltage, resistance, transistor body, diode, LED, battery, short circuit buzzer and capacitance to 2000uF maximum, etc.
Input Impedance: DC20KohmV, AC9KohmV.
DC Voltage: 0.1V 2.5V 10.0V 50.0V 1000.0V, 6 gears.
Positive and Negative DC Voltage at Middle 0 Position: + 525V, 2 gears.
DC Current: 50uA 2.5mA 25mA 250mA 10A, 5 gears.
AC Current: 10V 50V 250V 1000V, 4 gears.
Resistance: 1 Ohm 10 Ohm 100 Ohm 1K Ohm 10K Ohm , 5 gears.
Battery: 1.5V 9V, 2 gears.
Capacitance: C, Ohm X1K, 2000uF.
Standard Environmental Conditions: 23 celsius + 5 celsius , humidity: < 75percent RH.
Working Environment Range: 0 celsius 40 celsius , humidity: < 90percent RH. .

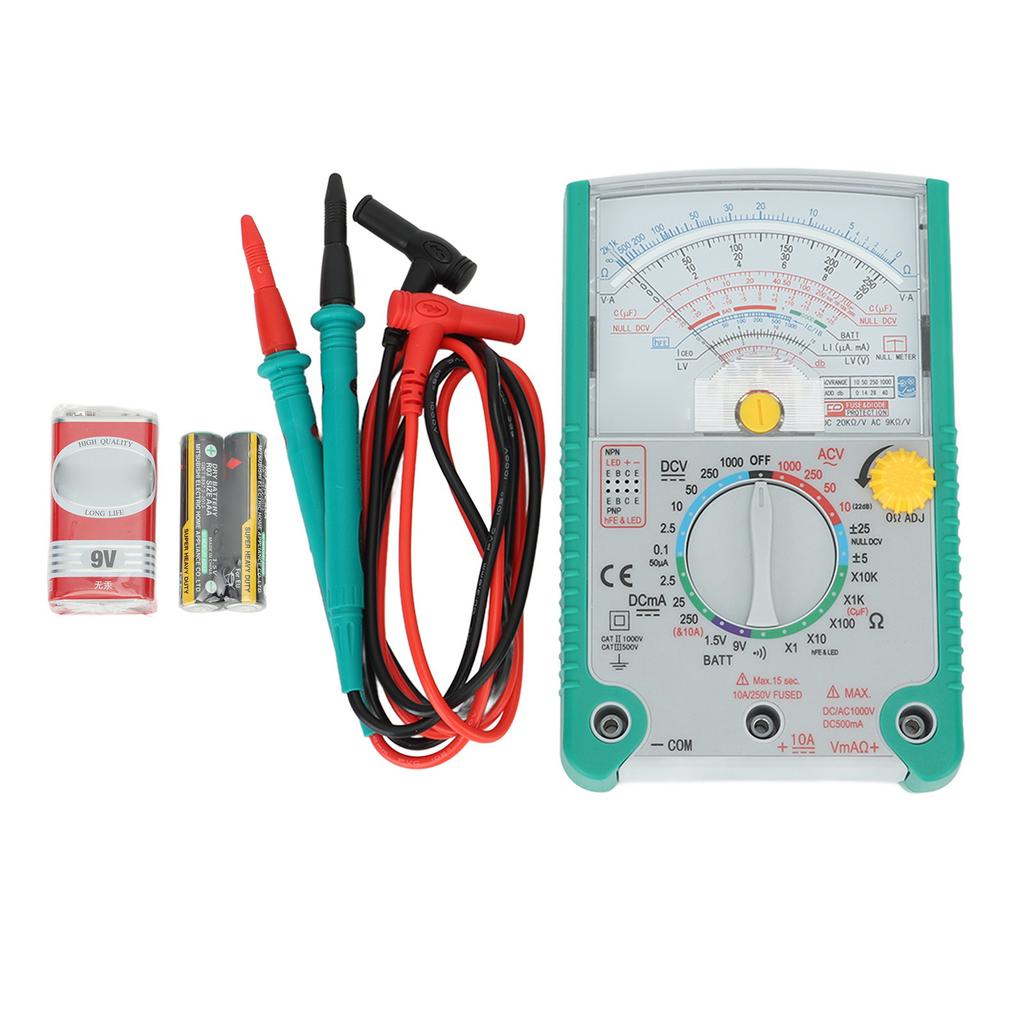

Package List:
1 x Pointer Multimeter2 x Probe Cable3 x Battery1 x User ManualWide Test Range: Comes with high accuracy, the pointer multimeter can be used to test DC voltage, DC current, AC current, capacitance and more.
Safer Operation: Designed to have overload protection and misoperation protection, the voltmeter tester also has sturdy side protective sheath.
Extensive Using: Allows for application in various areas, including but not limited to home, laboratory, household, repair, maintenance, etc.
Pointer Designs: The pointer ensures clear data display and easy reading, while the back hook design can adjust the tilting for simple operation.
Simple Carrying: Light in weight and compact in size as well, the volt tester can be conveniently carried for both indoor and outdoor working.
