GRT82T Mini Din Rail Type Double Delay On Time Delay Relay(A230)

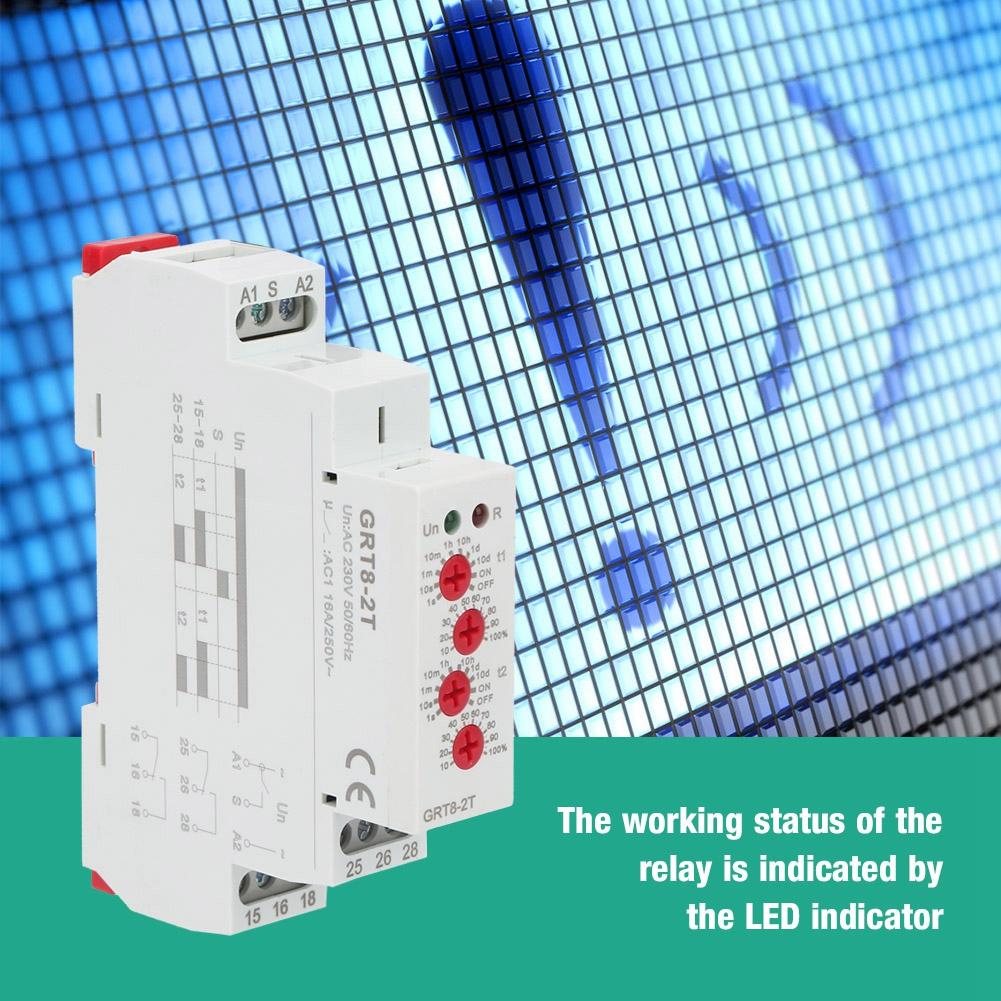

Features: 1. 2 power delay settings, you can set separately 2. Ultrawide delay range, 0.1 seconds10 days can be set 3. The working status of the relay is indicated by the LED indicator. 4. Ultrasmall size, easy to install 5. It can be used in specific applications to replace 2 time relays which can save costs Specification: Condition: 100percent Brand New Model: GRT82T Power Terminal: A1A2 Rated Control Power Supply Voltage: ACDC 12240V (5060Hz) Power Consumption: AC 0.73VADC 0.51.7W Power Supply Allowable Range: 15percent ; +10percent Power Indicator: Green LED Delay Range: 0.1 seconds10 days, normally open, normally closed Setting Method: Knob Setting Accuracy: 5percent Repeatability Accuracy: 0.2percent Temperature Fluctuation Error: 0.05percent celsius , at = 20 celsius Output: 2 Sets of Conversion Contacts 16AAC250VAC Minimum Switching Power: 500mW Output Relay Indication: Red LED Mechanical Life: 10000000 Electrical Life (Resistive Load): 1000000 Working Environment Temperature: 20 celsius 55 celsius Storage and Transportation Environment Temperature: 35 celsius 75 celsius Installation Method: 35mm Rail Installation Protection Level: IP20 Installation Altitude: 2000 Meters Pollution Degree: 2 Wiring Capacity: 1x2.5mm2 or 2x 1.5mm2 Optional Style: A230, ACDC 12V240V Weight: Approx. 96g 3.4oz Size: Approx. 90 * 18 * 64mm 3.5 * 0.7 * 2.5in Package List: 1 * Time Relay 2 power delay settings, you can set separately Ultrawide delay range, 0.1 seconds10 days can be set The working status of the relay is indicated by the LED indicator. Ultrasmall size, easy to install It can be used in specific applications to replace 2 time relays which can save costs
