[Product Infomation]
Brand : Abu Garcia
Materials : Alminium
[Product Description]
・Self weight (g) 150 ● Gear ratio 8.3:1 ● Spool diameter/width (mm) 30/22 ● Handle length (mm) 85 mm ● Maximum line winding (cm) 78 cm ● Maximum drag force (Kg) 5 ● Ball/roller bearing 9/1
Abu Garcia's flagship reel, the bait model of the "ZENON" series.
LTX is a 150g lightweight bait finesse model that is also compatible with saltwater games.
With a lower profile of 37.5mm and adoption of an asymmetrical ergonomic design
It fits comfortably in the palm of your hand and provides optimal palming and clutch operability.

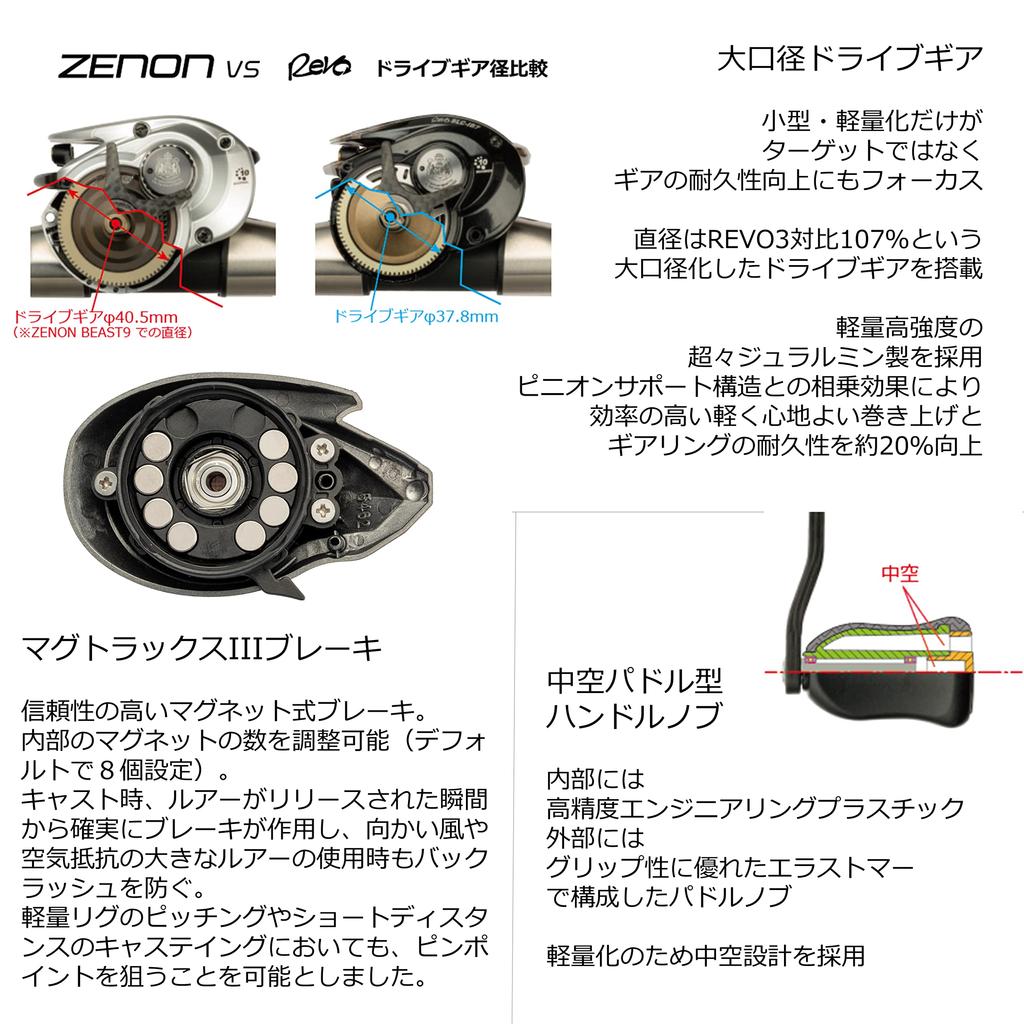

The target is not only to reduce size and weight, but also to improve the durability of the gear, and is equipped with a drive gear with a larger diameter.
High efficiency, light and comfortable winding, and approximately 20% improvement in gear ring durability.

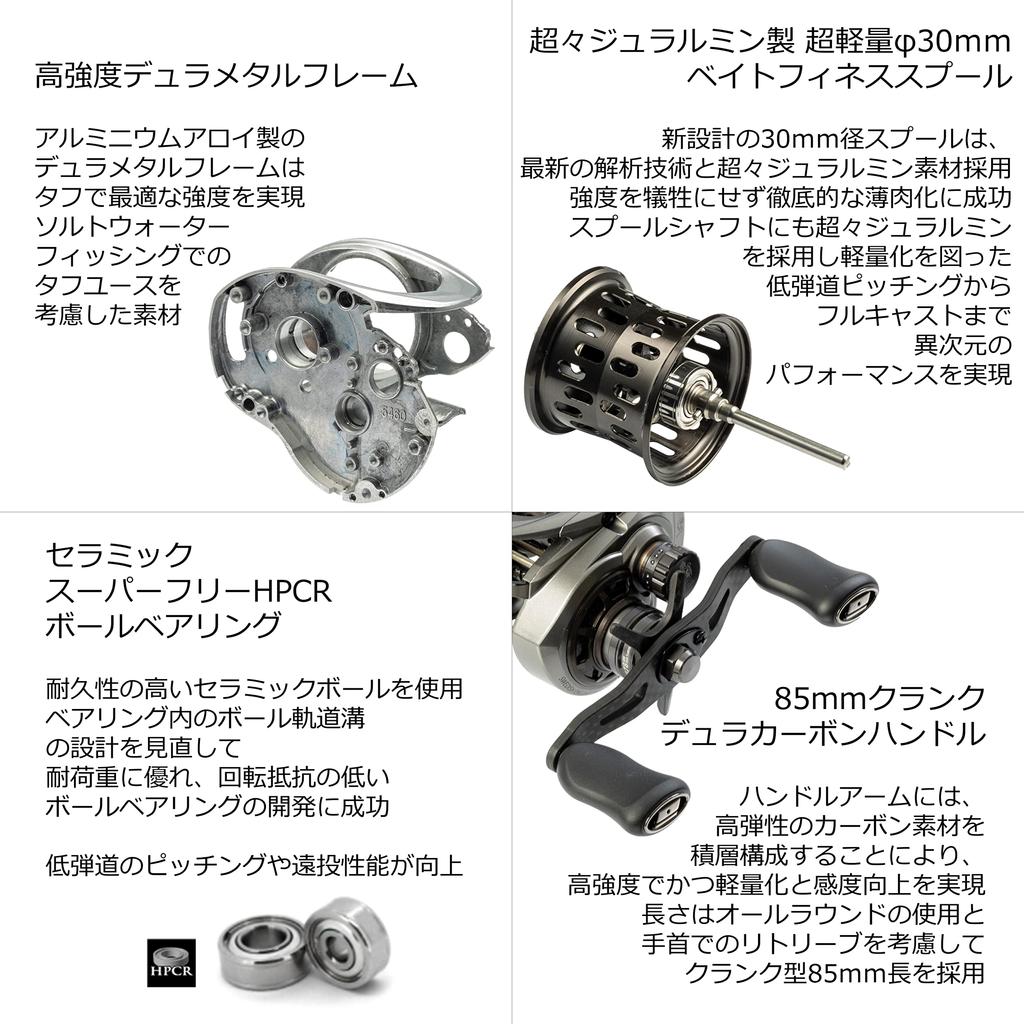

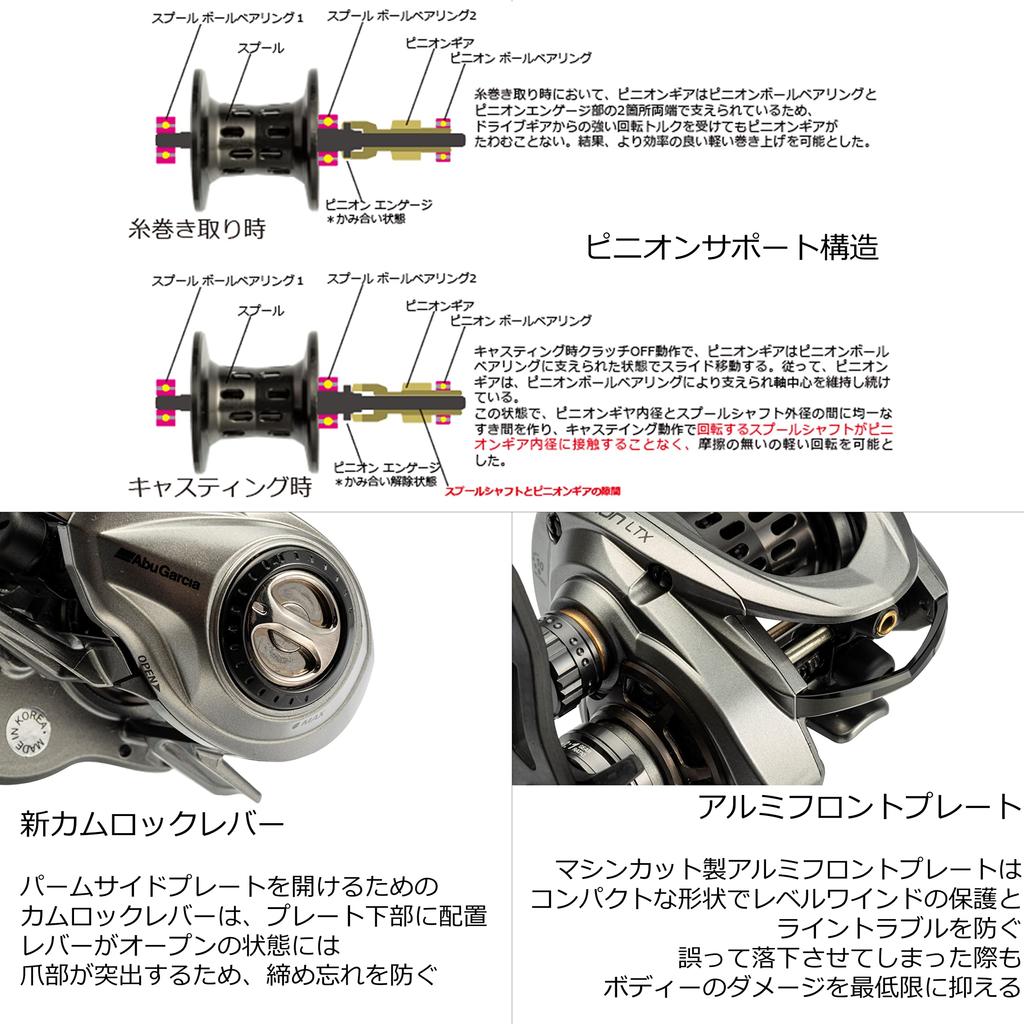

Ultra-lightweight φ30mm diameter bait finesse spool with low inertia and pinion support structure that stabilizes the spool at high rotations.
By laying out the level wind on the front side of the reel and reducing the introduction angle of the line between the spool and the level wind,
The line releases smoothly, allowing you to cast lightweight lures without stress.
