• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----
pecifications

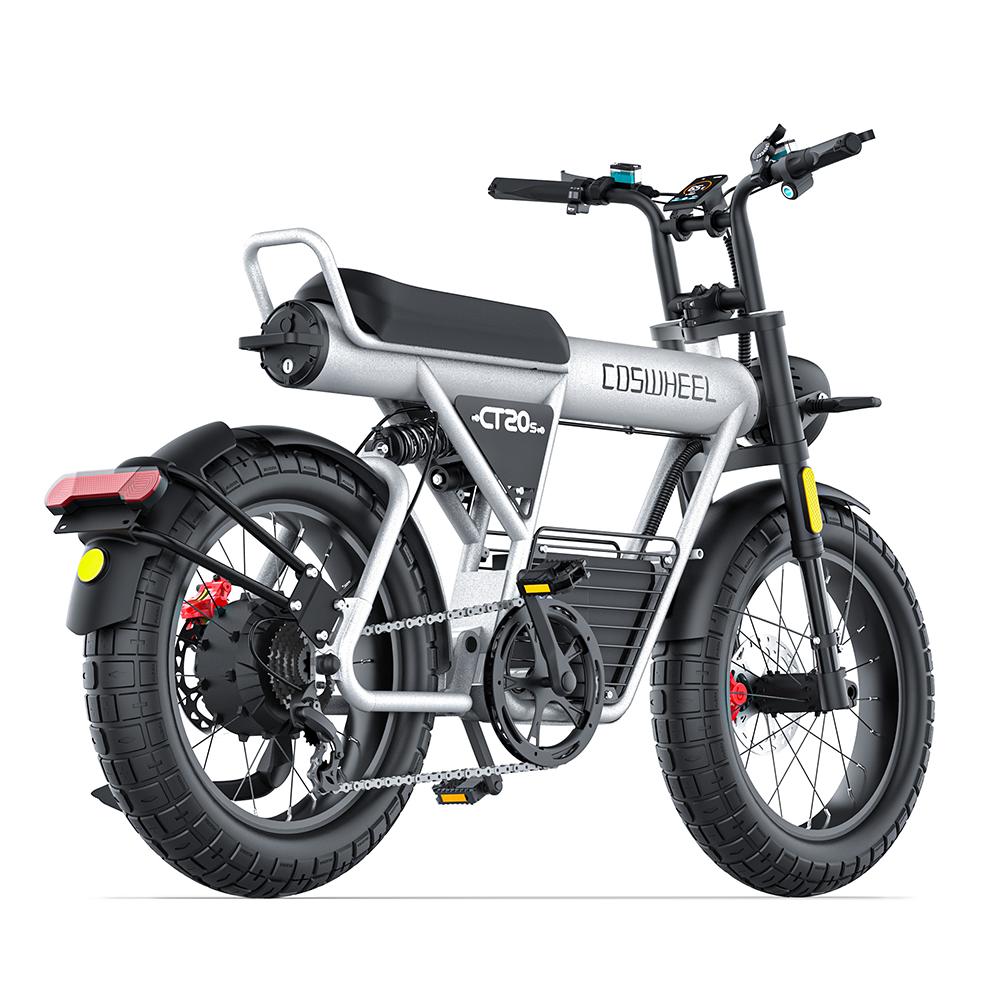

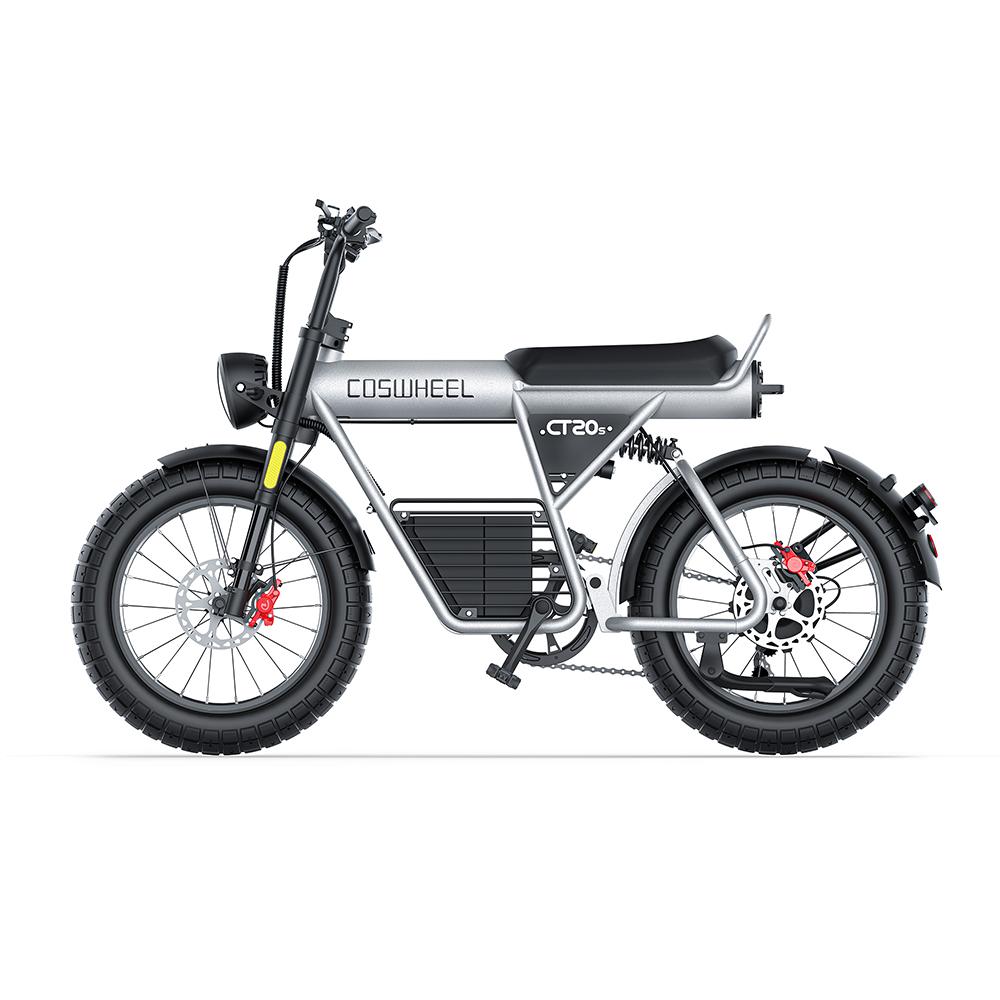

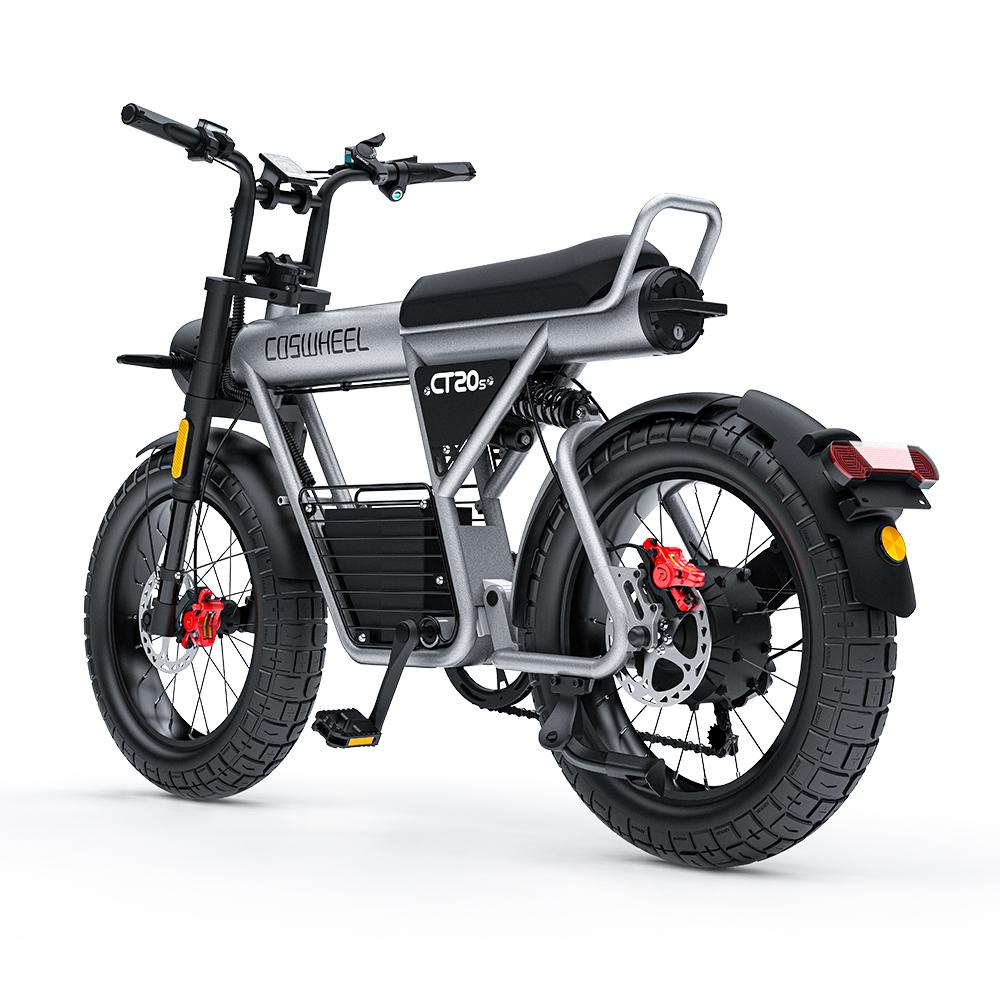

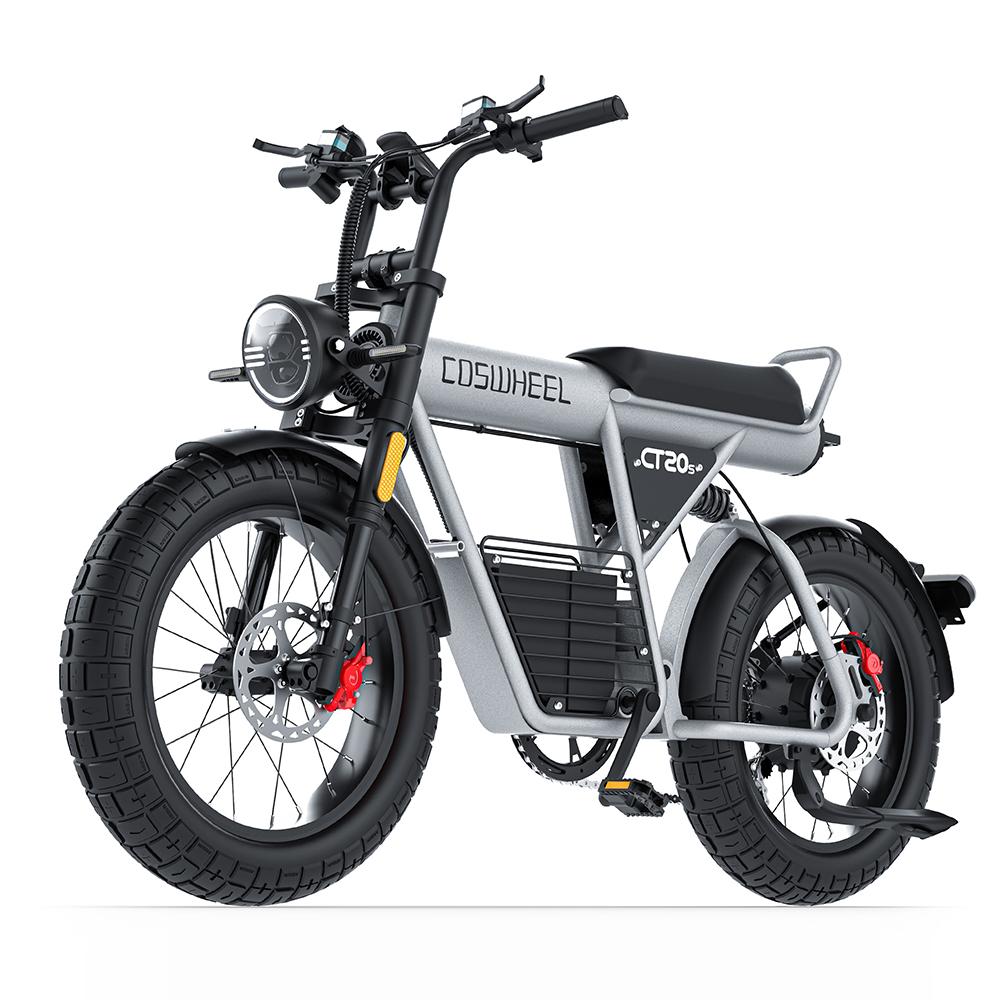

Model Number：CT20S
Style：Standard Type
Motor：Brushed
Wheel Size：20“
Foldable：No
Power Supply：lithium battery
Brand Name：COSWHEEL
Origin：Mainland China
Top Speed：Class 2/3, 28+ Mph (65Km/h)
Range：55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
Motor：60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
Battery：60V 27.5Ah Battery (Lithium 18650 Cells)
Energy：1650Wh
Front Suspension：20" Shoulder Shock Absorbing, 80mm Travel

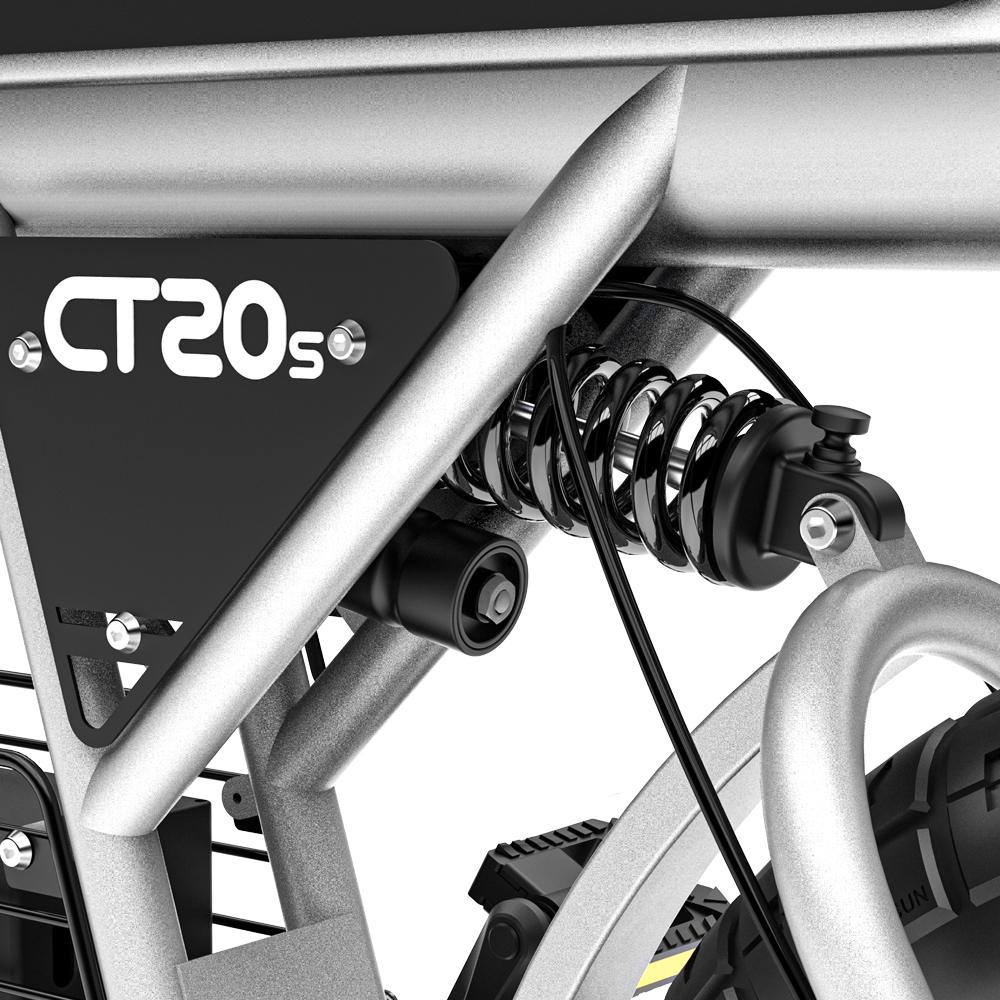

Rear Suspension：180mm Travel

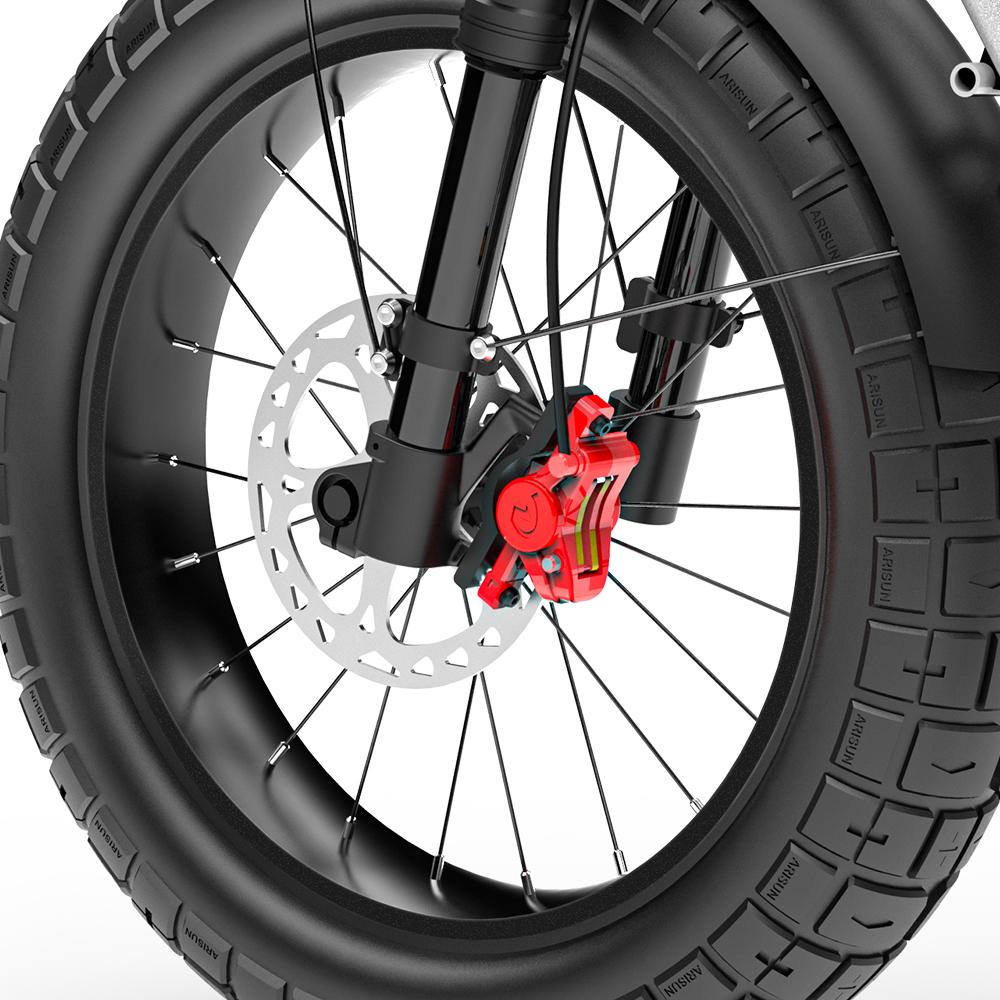

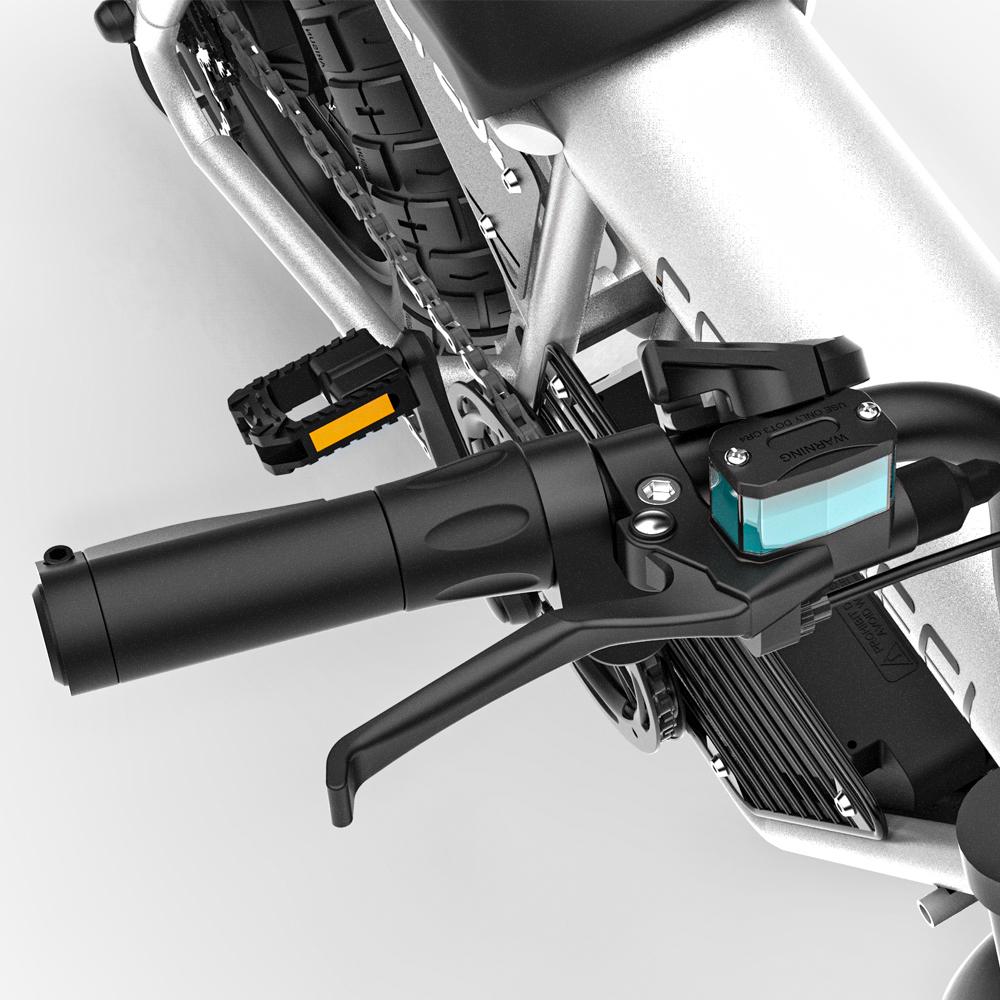

Brakes：Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
Tires：Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
Throttle：Thumb Throttle (New)
Charger：60V5A Charger
Charging Time：3.5-8.0 Hours
Display：Easy Read LCD Display
Controller：60V 35A
Front Light：Classic Angel Eye Headlight, 120 LUX

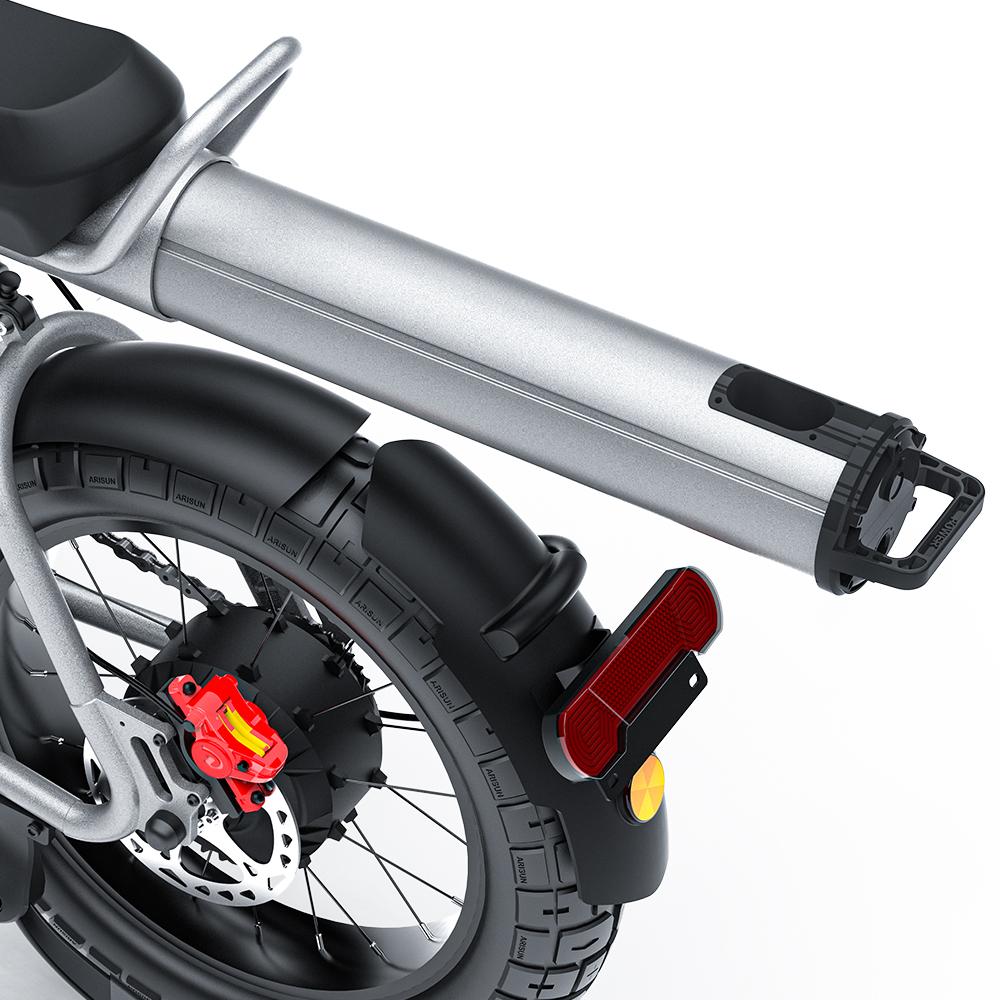

Rear Light：LED
Pedal Assist：5 Levels
Sensors：Speed Sensor
Frame：Hydroformed Triple-Butted 6061-T6 Aluminium Alloy

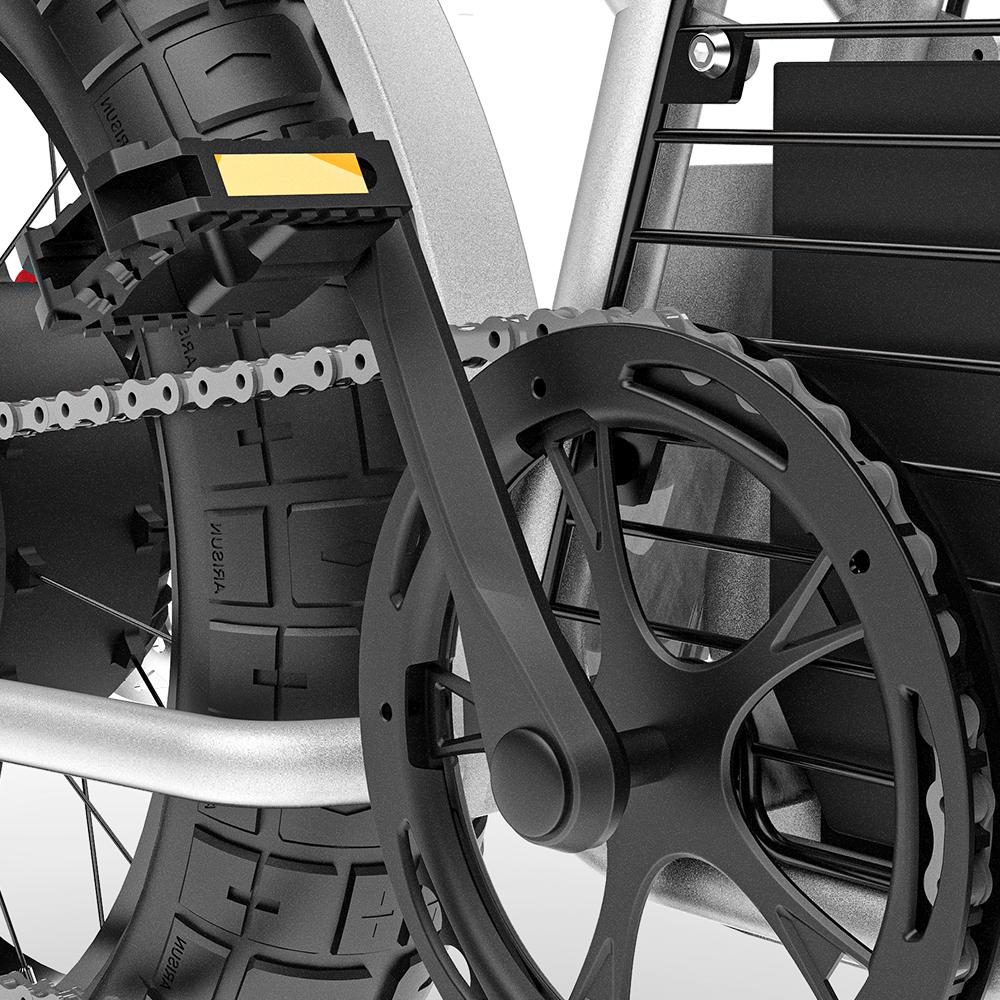

Pedal：Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
Crank：1/2 "*3/32"*46T 7-speed ED Tooth Plate
Rear Derailleur：Shimano 7-Speed
Chain：7-speed Anti-rust, 1/2" * 3/32"
Handlebars：Sand Black 31.8*660
Suitable Height：5'1" - 6'5"
Seat Height：33.4" (85cm)
Bike Height：45.3" (115cm)
Wheelbase：45.3" (115cm)
Handlebar Width：26.4" (67cm)
Bike Weight：≥88lbs (with Battery) (≥40kg)
Maximum Load：330lbs (150kg)
Safe Load：265lbs (120kg)
Overall Size：70.9" * 26.4" *45.3" (180*67*115cm)
Package Size：59.4" * 14.2" * 35.4" (151*36*90cm)
