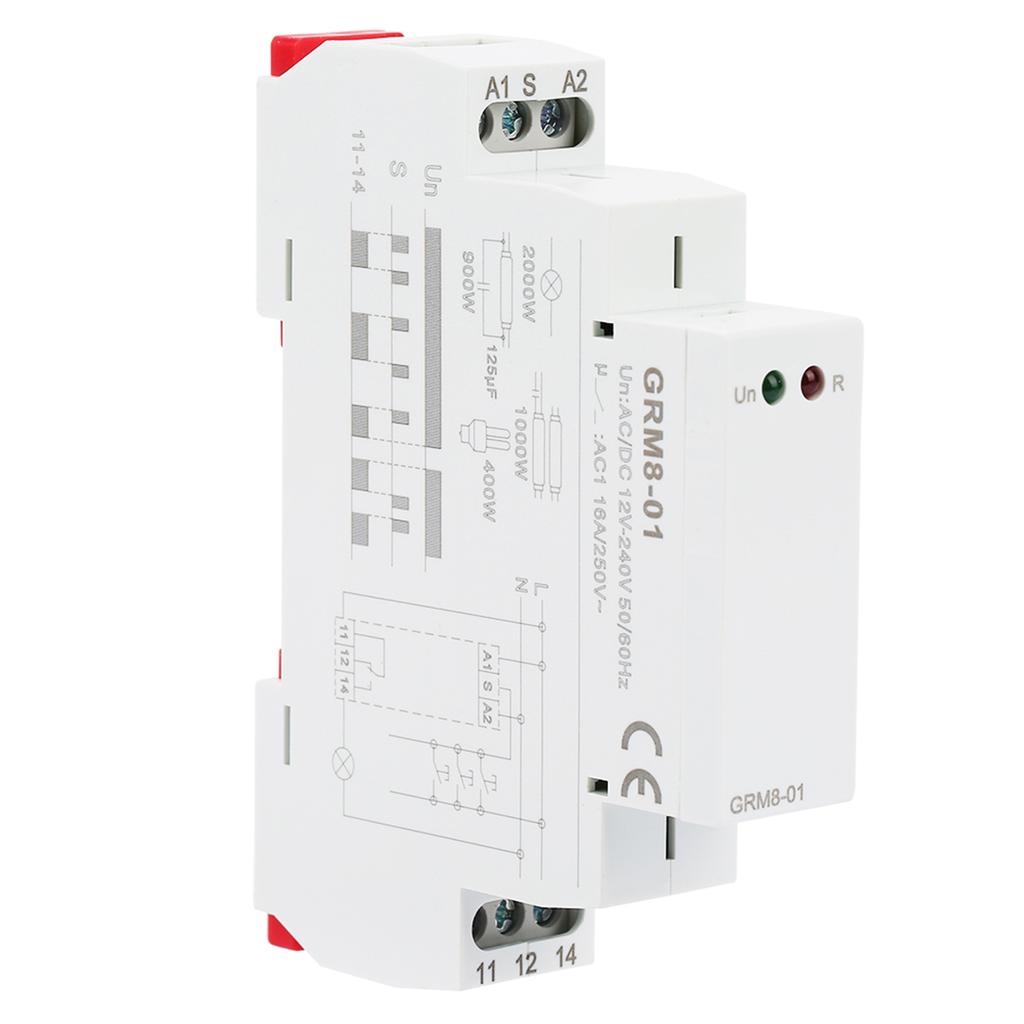

GRM801 Electronic Impulse Relay Latching Relay Memory Relay ACDC12240V

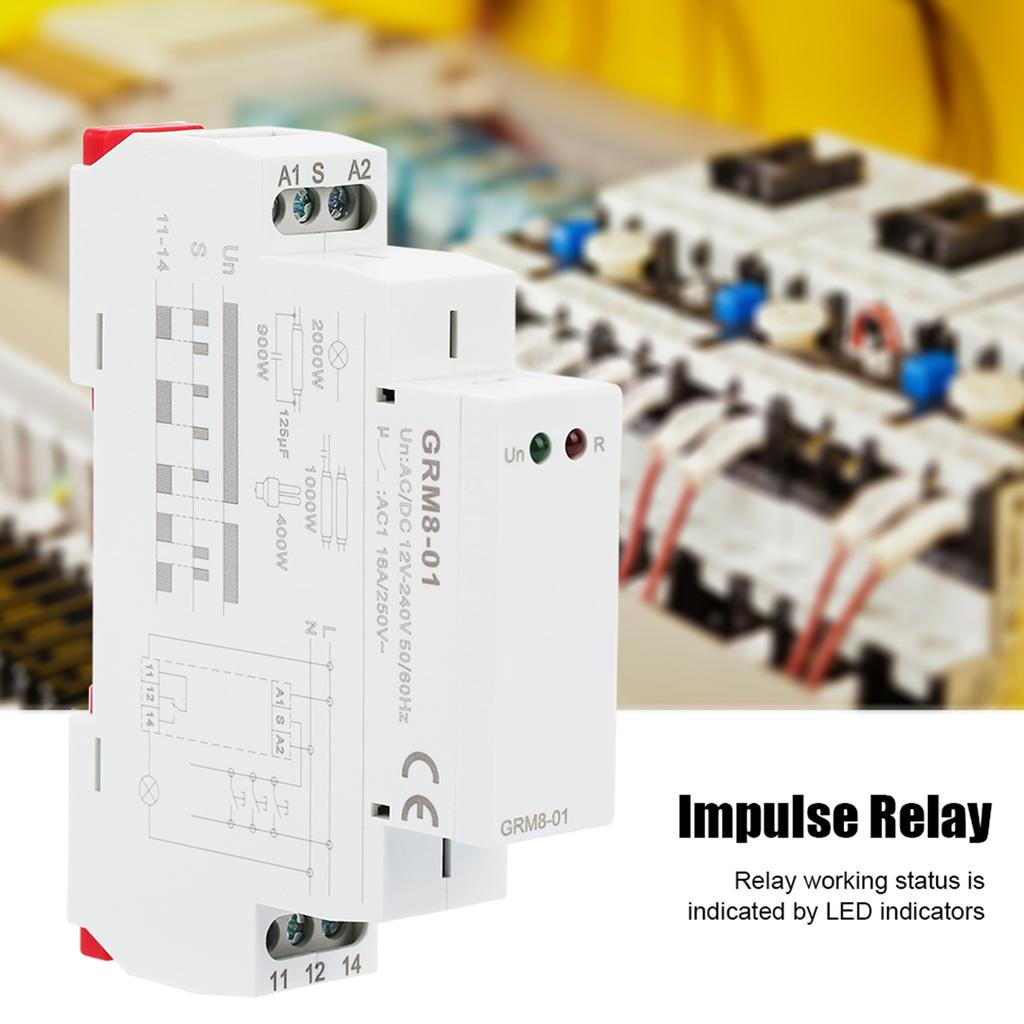

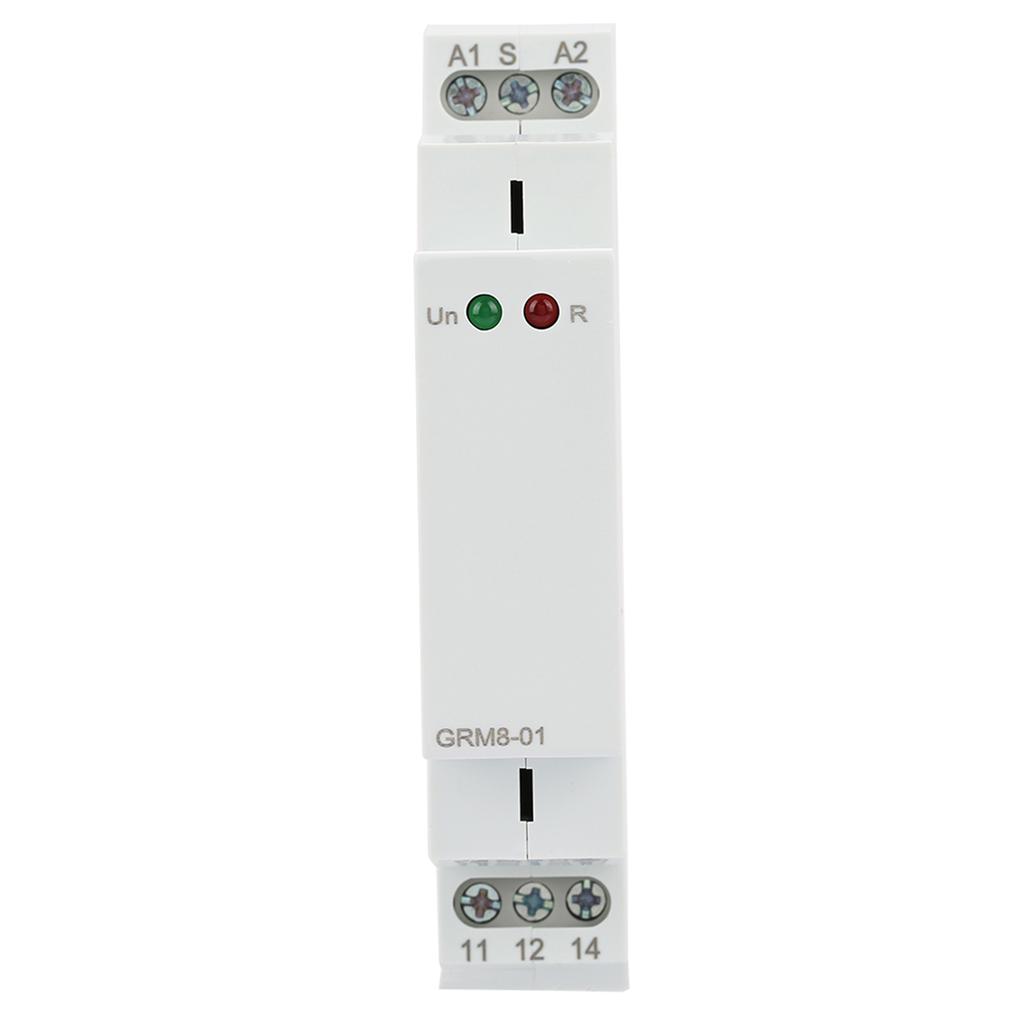

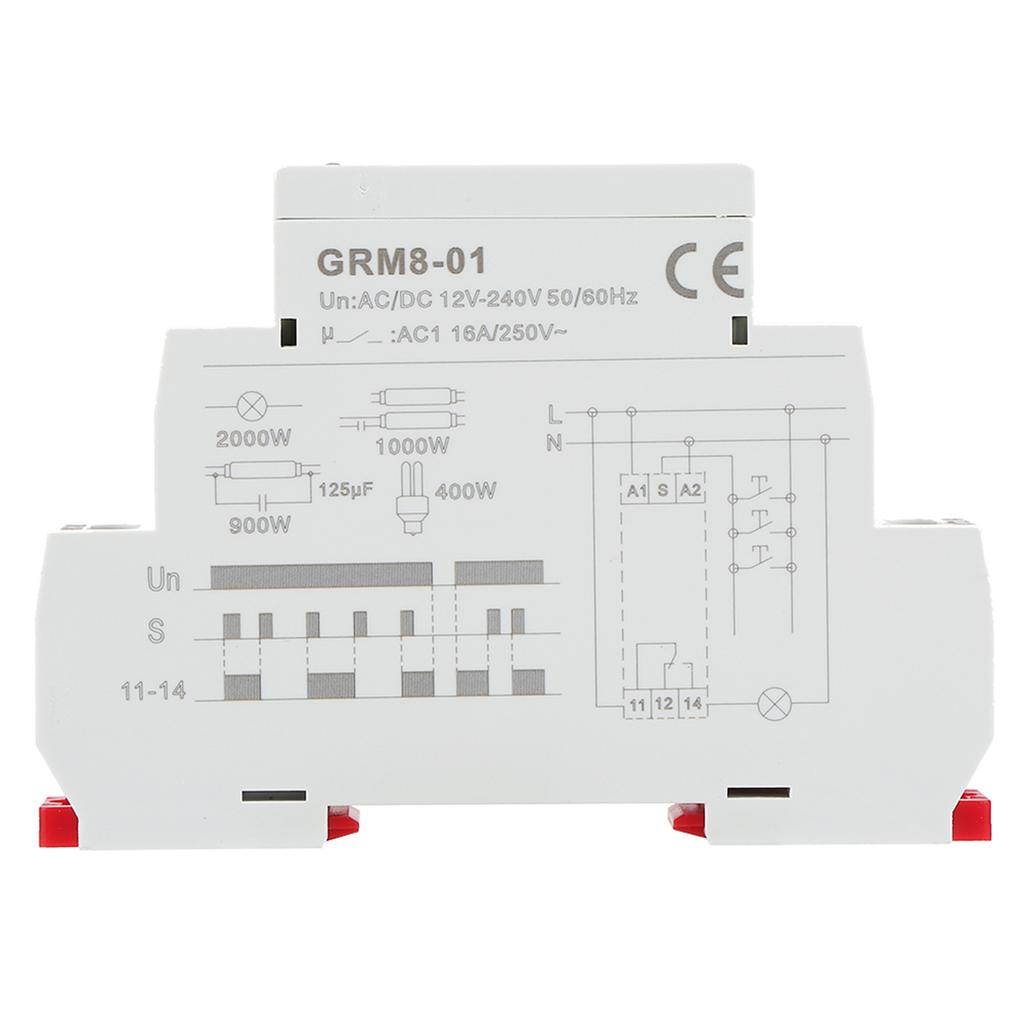

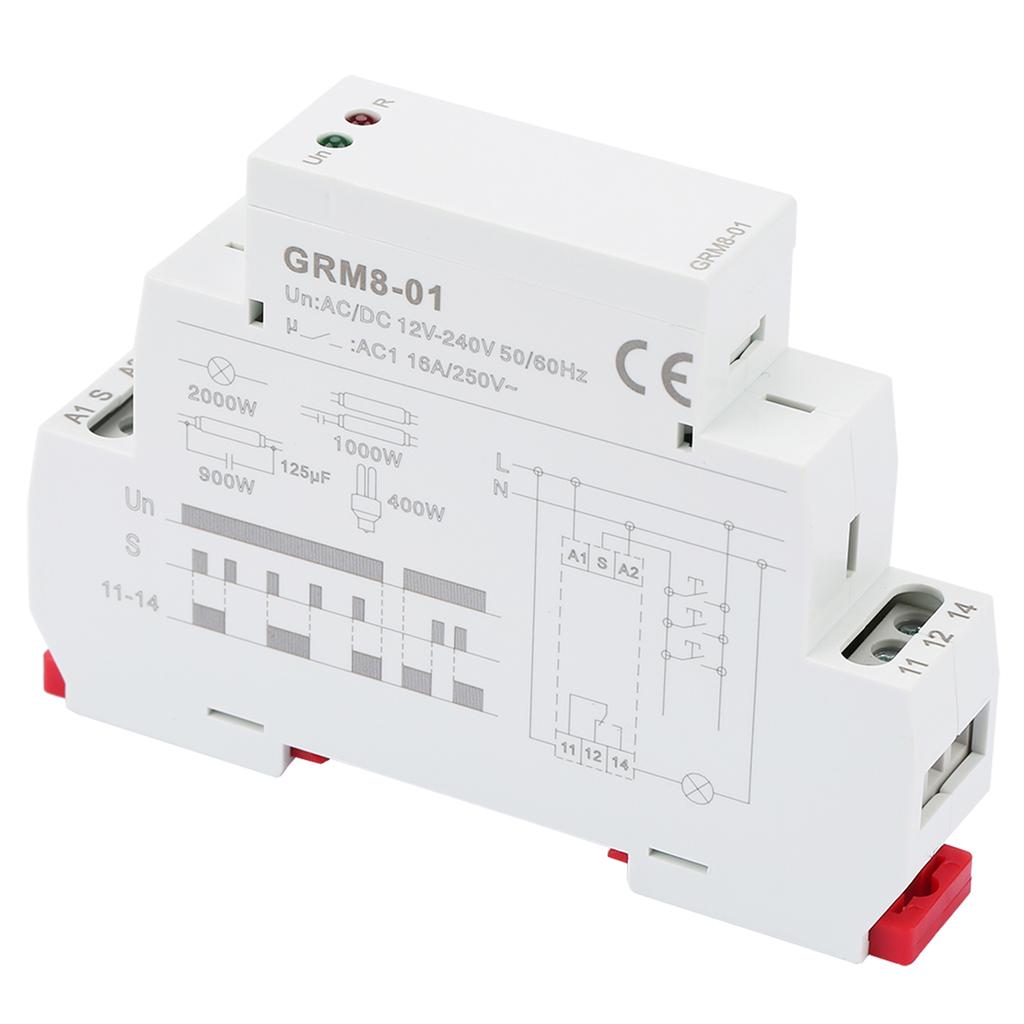

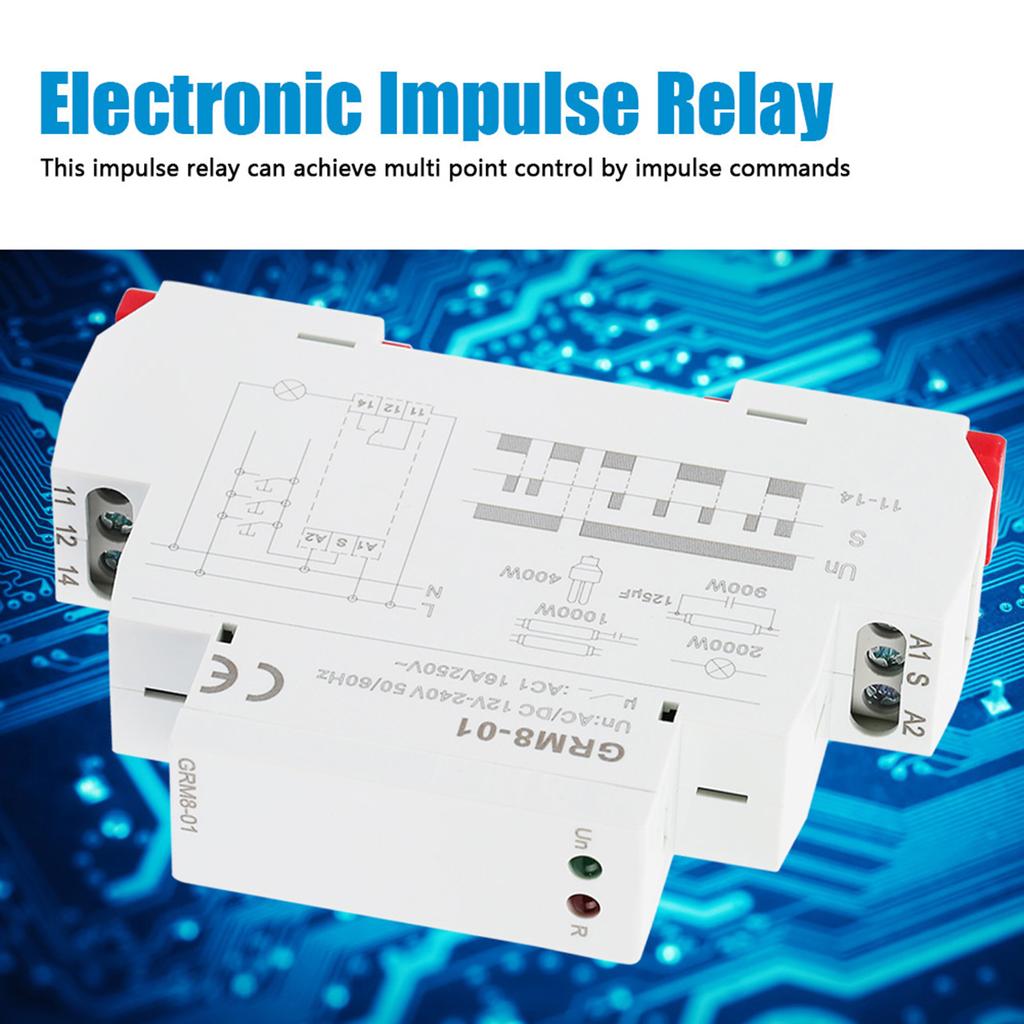

Features: 1. This impulse relay can achieve multi point control by impulse commands. 2. Relay working status is indicated by LED indicators. 3. With small volume, only 18mm width, 35mm DIN rail mount. 4. Simple structure, easy to wire and mount. 5. Stable performance, long service life. Specification: Model: GRM801 Power terminal: A1A2 Rated power supply voltage: ACDC 12240V (5060Hz) Power consumption: AC0.093VADC0.051.2W Supply voltage tolerance: 15percent ; +10percent Power indicator: Green LED Control terminal: A1S Control signal width: Min. 25mm Output contact: 1 x SPDT, 16AAC1, 250VAC24VDC Minimum switching power: 500mW Output indication: Red LED Mechanical life: 1x107 Electrical life(resistive load): 1x106 Reset time: Max 200ms Working temperature: 20

celsius ~55

celsius Mounting method: 35mm DIN rail Mounting altitude:

less than 2000m Wiring capability: 1x2.5mm2 or 2x1.5mm2 Dimensions: 90*18*64mm 3.54*0.71*2.52in Weight: Approx. 73g2.6oz Package L ist: 1 * Electronic Impulse Relay Note : 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding. .This impulse relay can achieve multi point control by impulse commands. Relay working status is indicated by LED indicators. With small volume, only 18mm width, 35mm DIN rail mount. Simple structure, easy to wire and mount. Stable performance, long service life.
