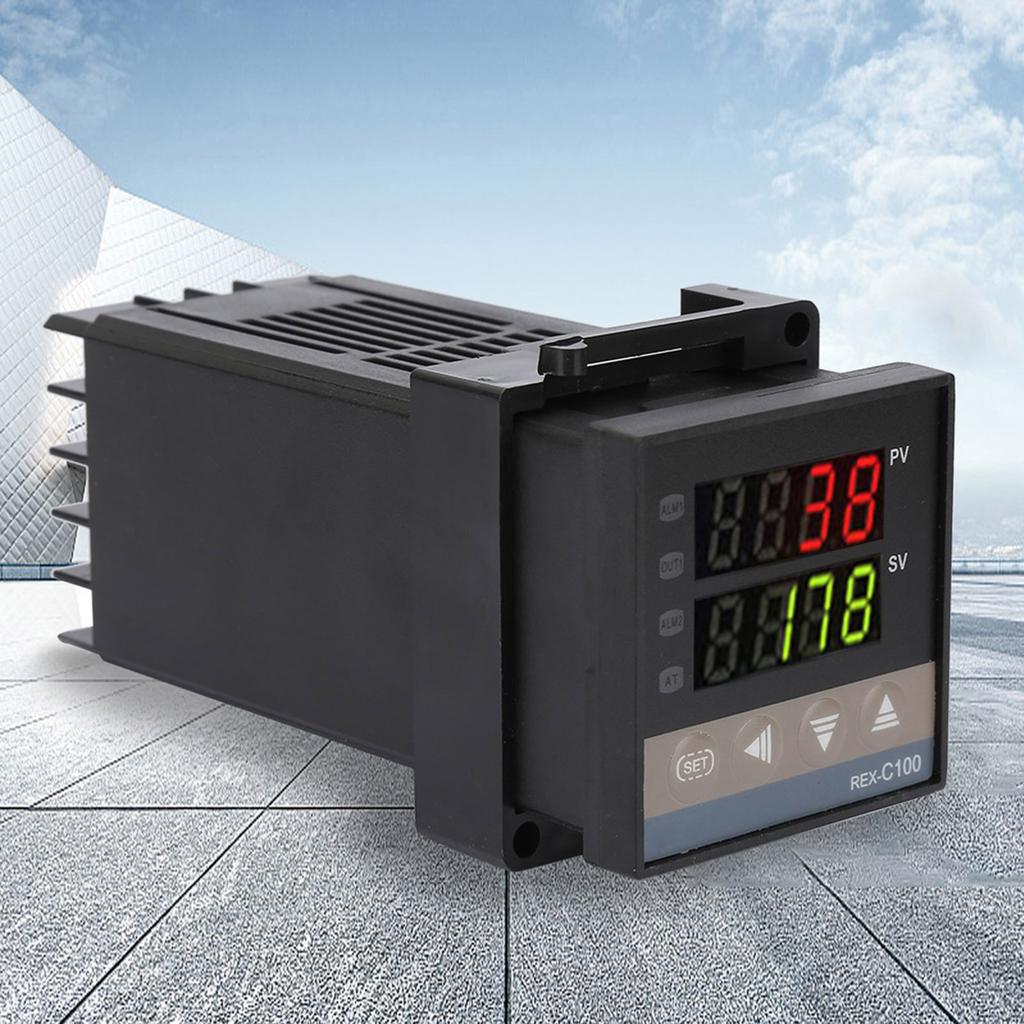

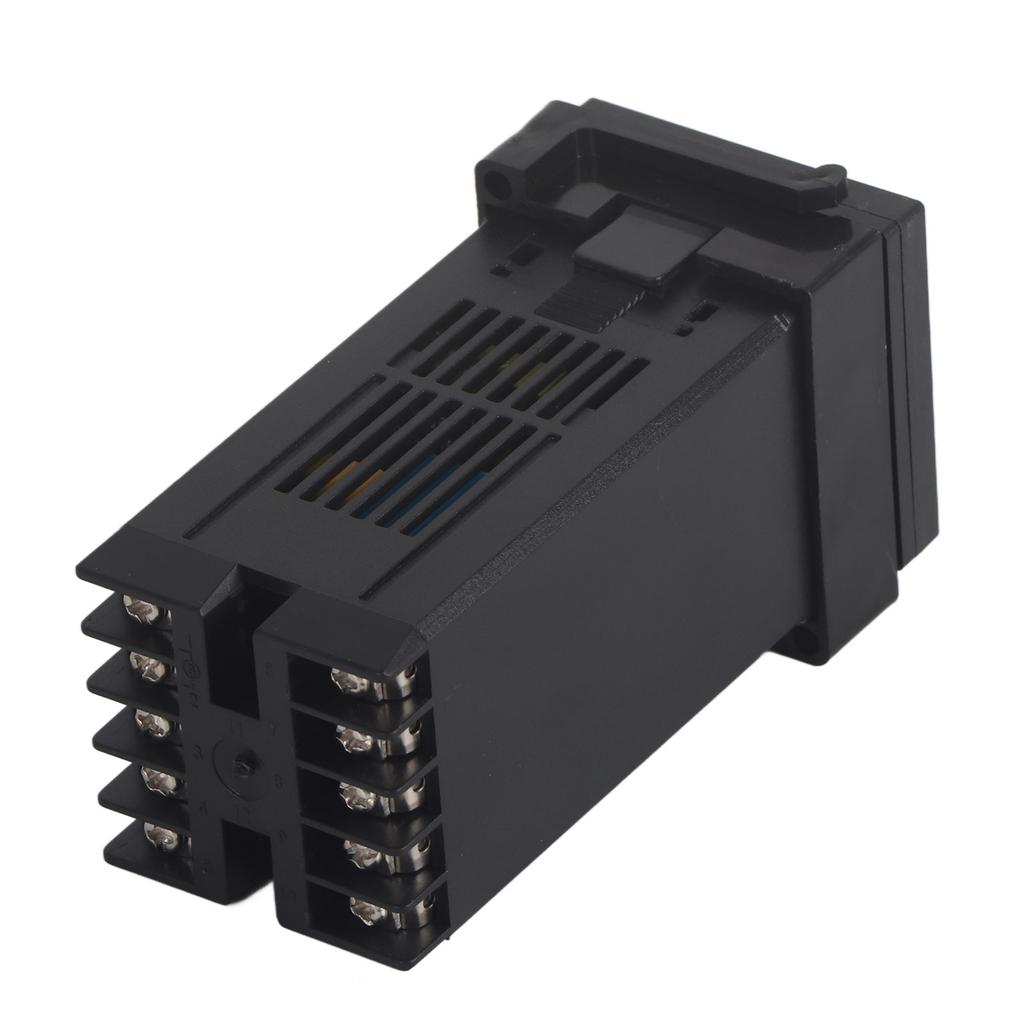

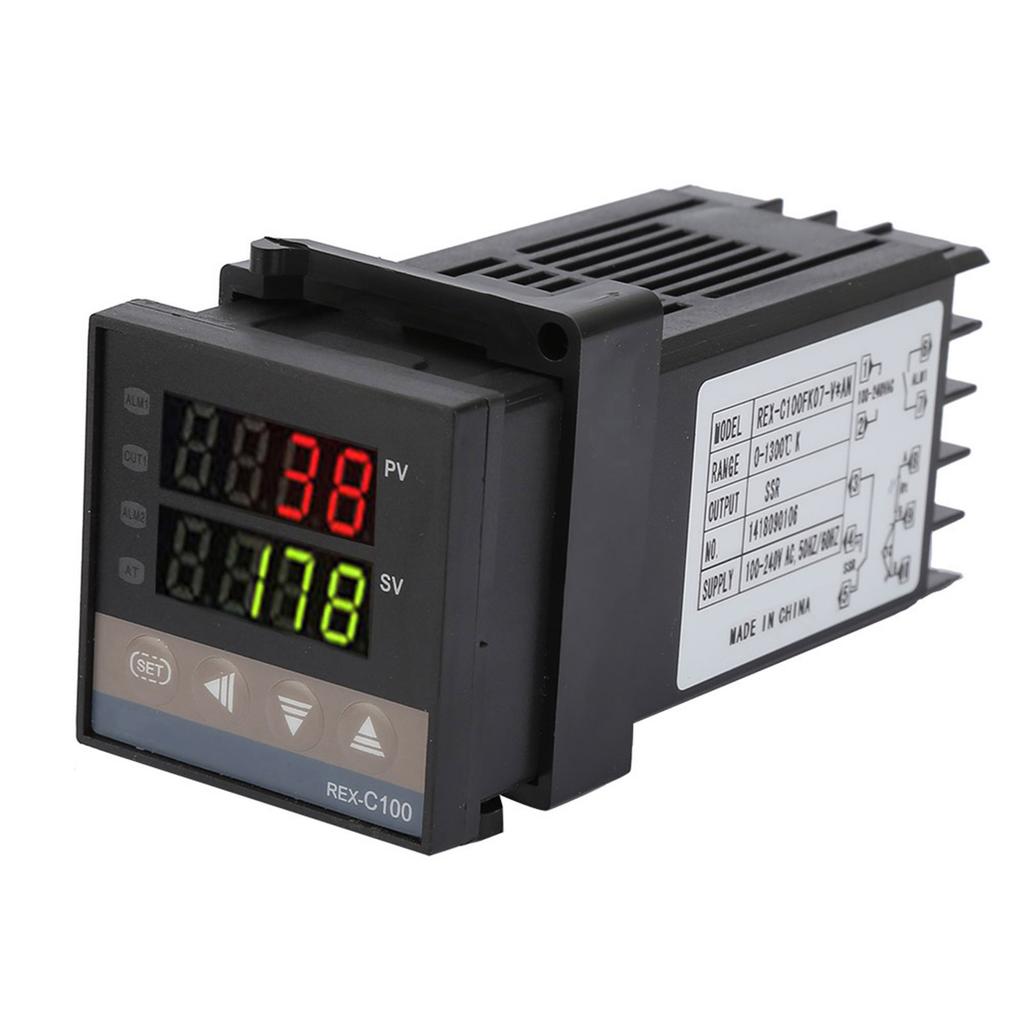

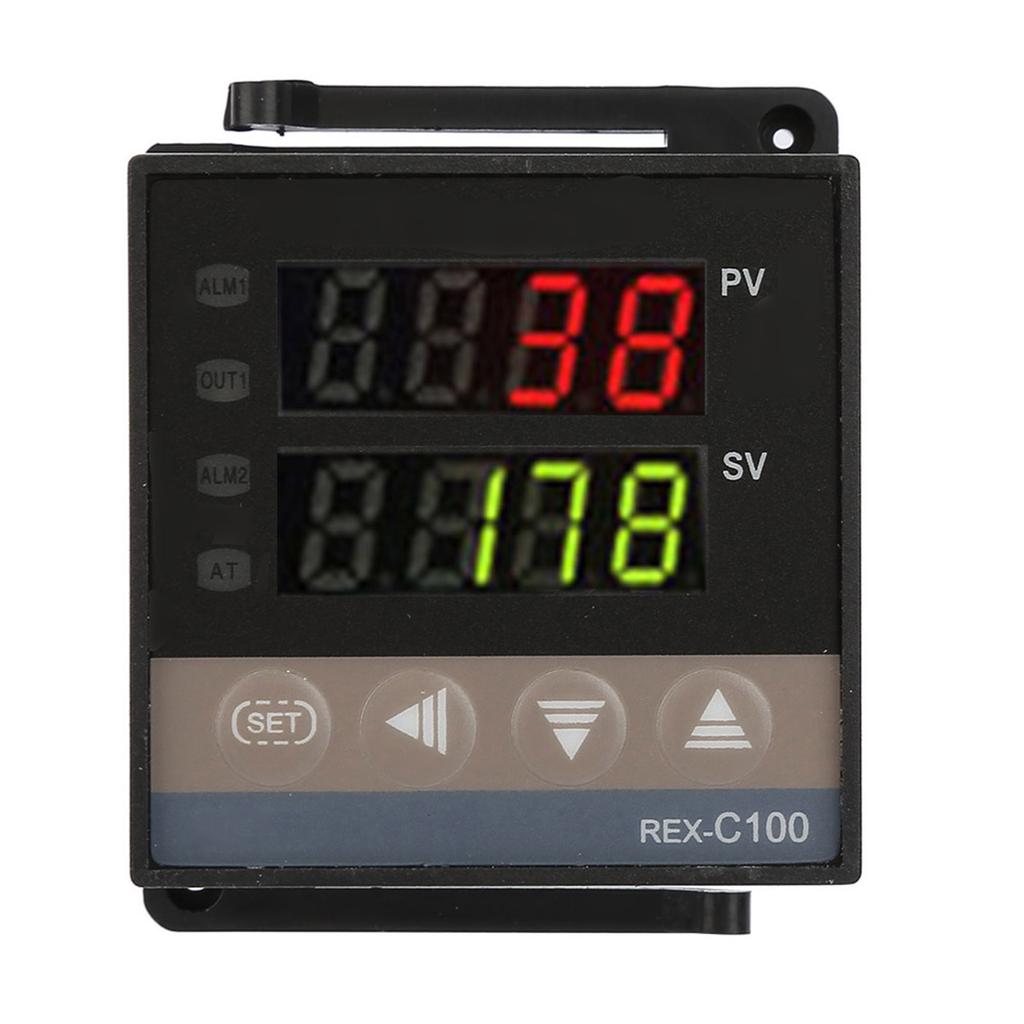

0 Celsius ~1300 Celsius Alarm REX C100 Digital LED PID Temperature Controller Thermostat Kit AC110V 240V

Features: Professional Kit: This Temperature Controller is adopted industrialgrade professional selftuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision. Practicality: It"s an useful temperature controller for controlling temperature intelligently and it can help the operator get good effect by simple operation. Specialty: This multifunctional controller has special microprocessor switching power supply and SMT. Wide application: It can widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment. Durable: Probe used stainless steel material shell and resin sealing treatment, waterproof and does not rust for long service life. Specification: REXC100 thermostat Model no. : rexc100fk07v *AN Measurement accuracy: 0.5percent FS End to end compensation tolerance:+2 celsius (can be modified by software in 0~50 celsius ) Resolution: 14 bits Sampling cycle: 0.5 seconds Power supply: AC 110240v 5060hz Process value (PV), set value (SV) Output, alarm and selfsetting can be indicated : by LED PIN control (including ONOFF, stepper PID and continuous PID) Selfadjusting control Delayed output: contact capacity 250V AC 3A (resistance load) Alarm function output: 2 channels Proportional band (P) : 0 ~ full range (ONOFF control set to 0) The testing temperature range: 0 ~ 1300 celsius Insulation resistance: > 50M ohm (500V DC) Insulation resistance: 1500V ACmin Insulation resistance: power consumption <10VA The environment of service: 0 ~ 50 celsius Noncorrosive gas environment 30 ~ 85percent RH Appearance size: 48*48*110mm Two, K thermocouple probe cable Length: 1 m Diameter of sensor: 4.5mm Temperature range: 0 ~ 400 celsius Internal insulation: glass fiber External shielding: insulation shielding Maximum 40A SSR (solid state relay) Output voltage range: standard Output current: 40A Input voltage: DC 332v Output voltage: 24480v AC Weight: 265 g 9.3 oz(approx.) Package list: 1 x REXC100 PID temperature controller(01300 celsius ) 1 x K thermocoupletemperature sensor(0 400

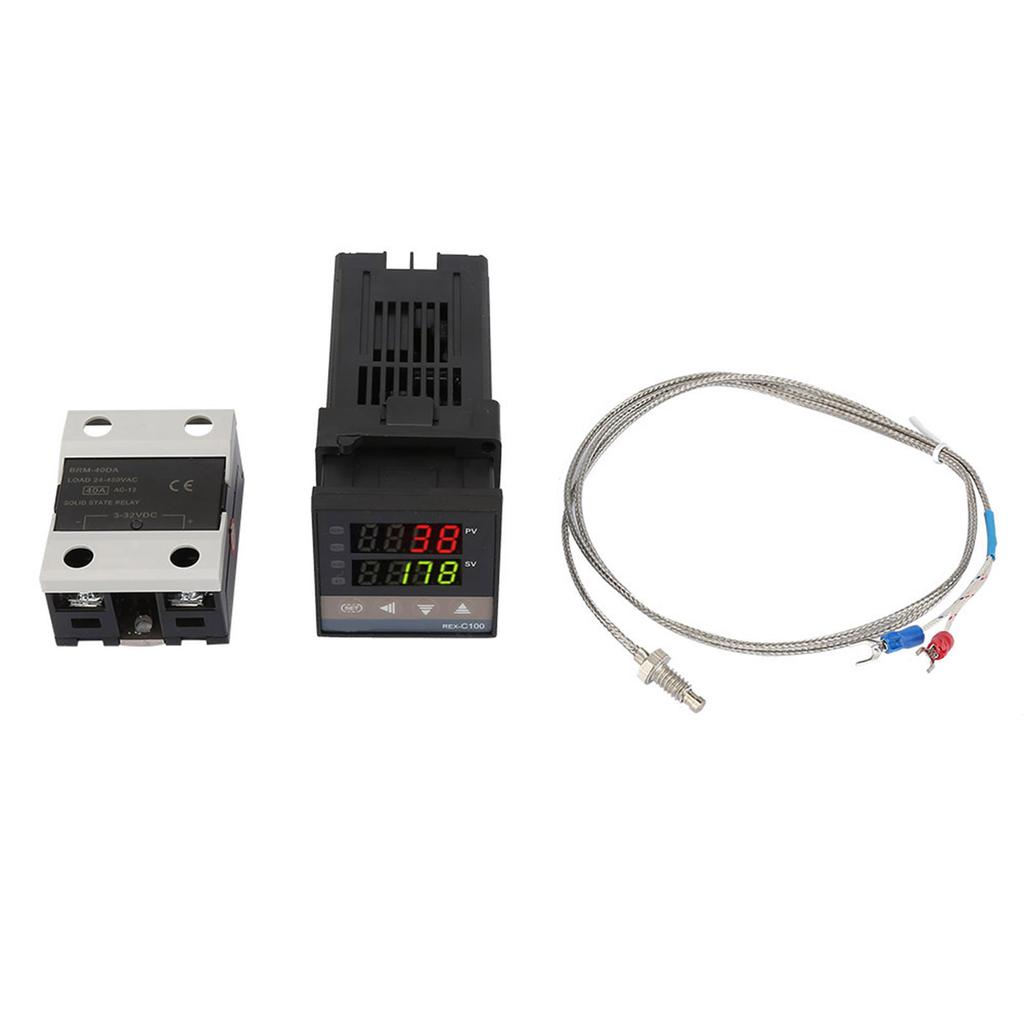

celsius ) 1 x Max 40A SSR Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. The temperature that the temperature controller can control: 01300 degrees Sensor temperature: 0400 degrees .Professional Kit: This Temperature Controller is adopted industrial?grade professional self?tuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision. Practicality: It"s an useful temperature controller for controlling temperature intelligently and it can help the operator get good effect by simple operation. Specialty: This multifunctional controller has special microprocessor switching power supply and SMT. Wide application: It can widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment. Durable: Probe used stainless steel material shell and resin sealing treatment, waterproof and does not rust for long service life.
