Feature:
1. Adopt durable silicone line with high corrosion resistance and wear resistance
2. Wrapped with a first?level temperature measuring wire, which possess accurate temperature measurement
3. Stainless steel probe bring faster and more sensitive temperature measurement
4. The product come with simple structure, anti?interference, small error and long life
5. Used in various enterprises and institutions such as petroleum, water conservancy, chemical industry, metallurgy, electricity, environmental protection, etc.
Specification:

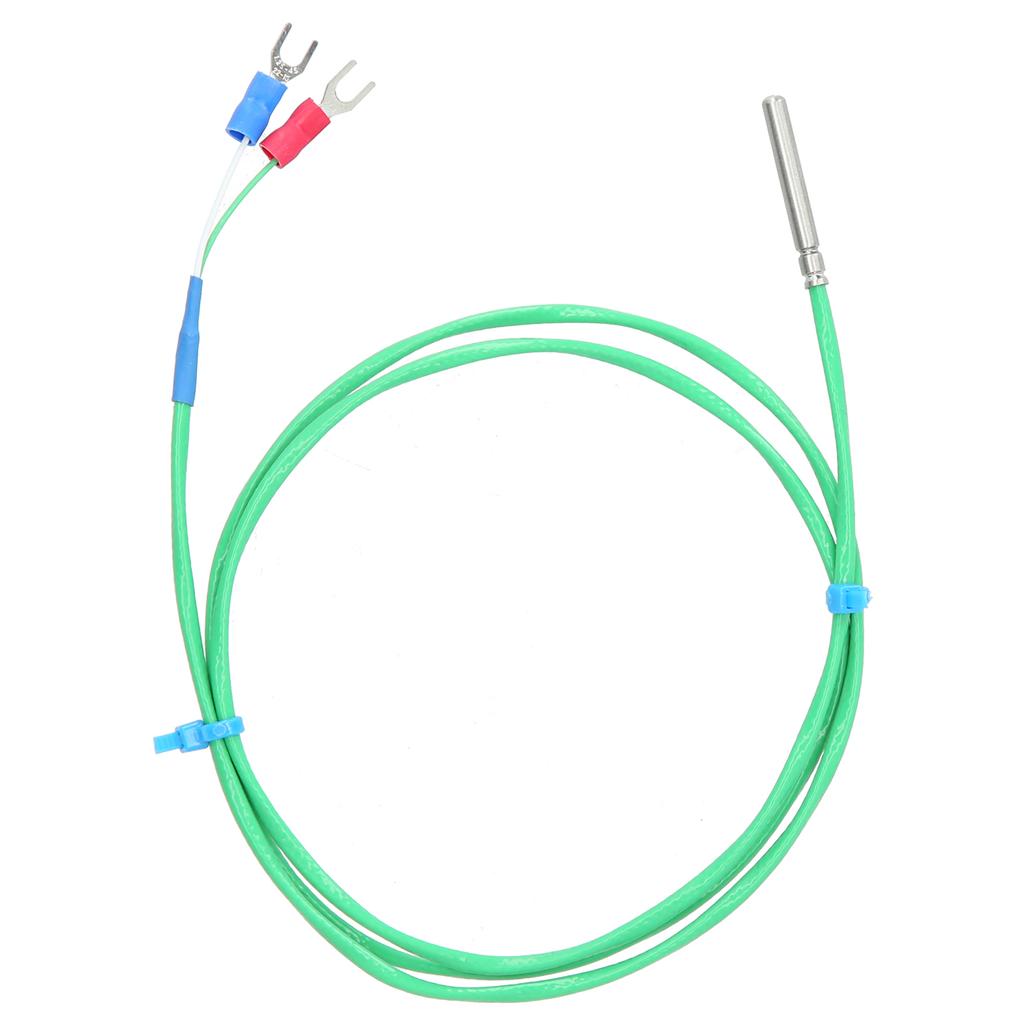

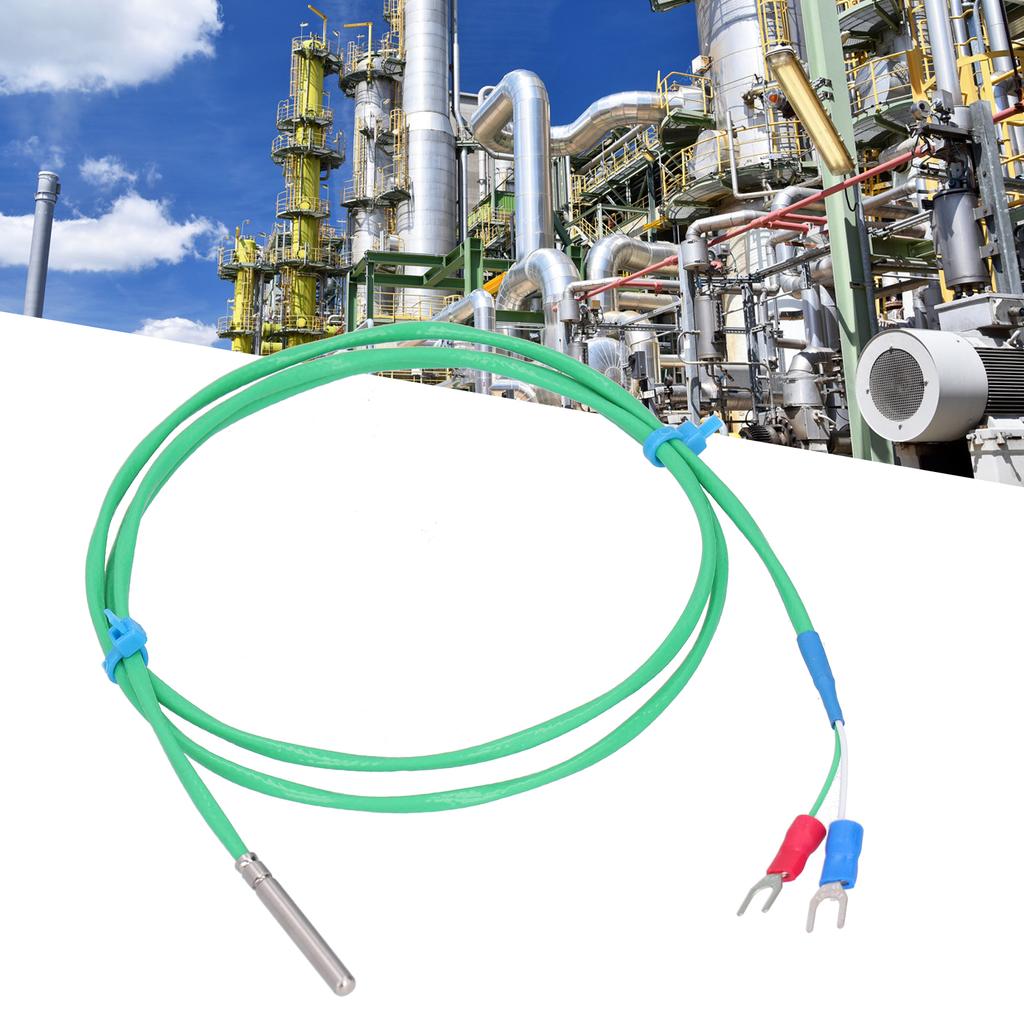

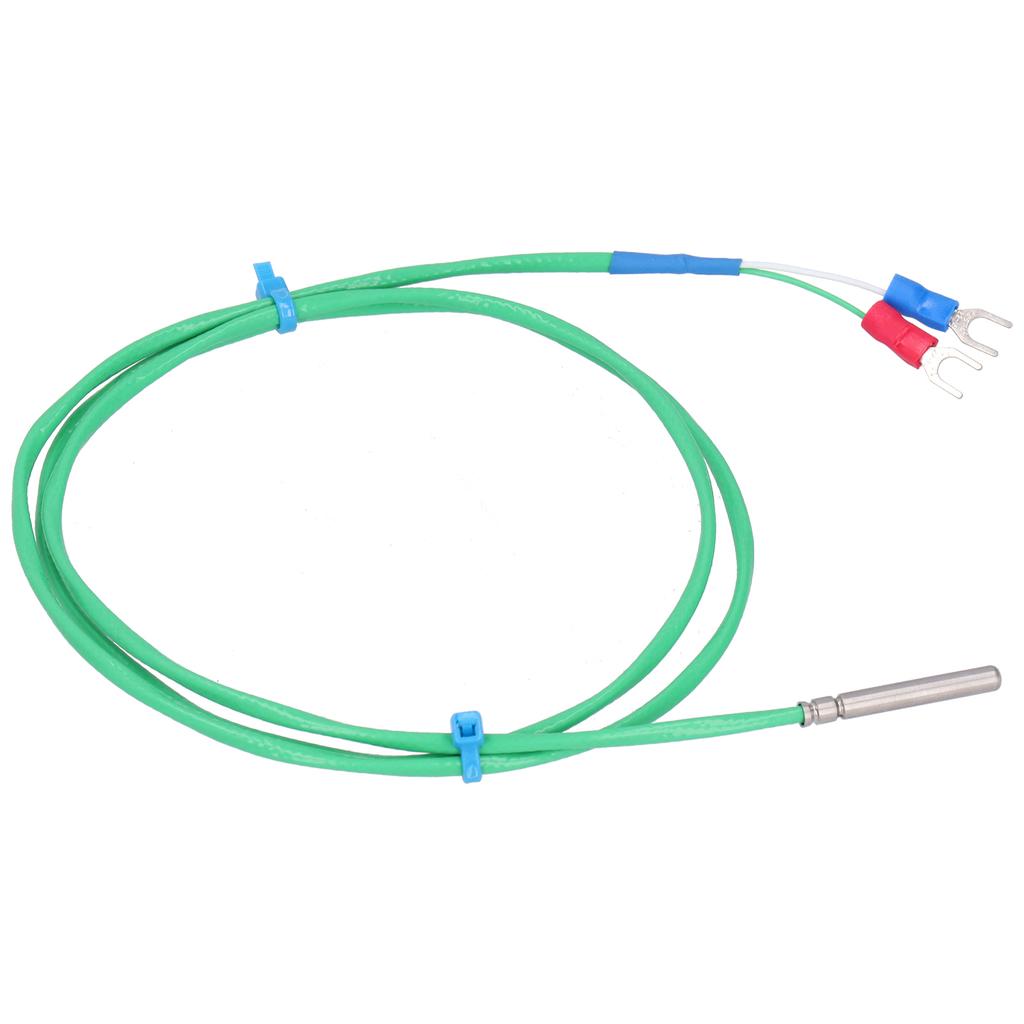

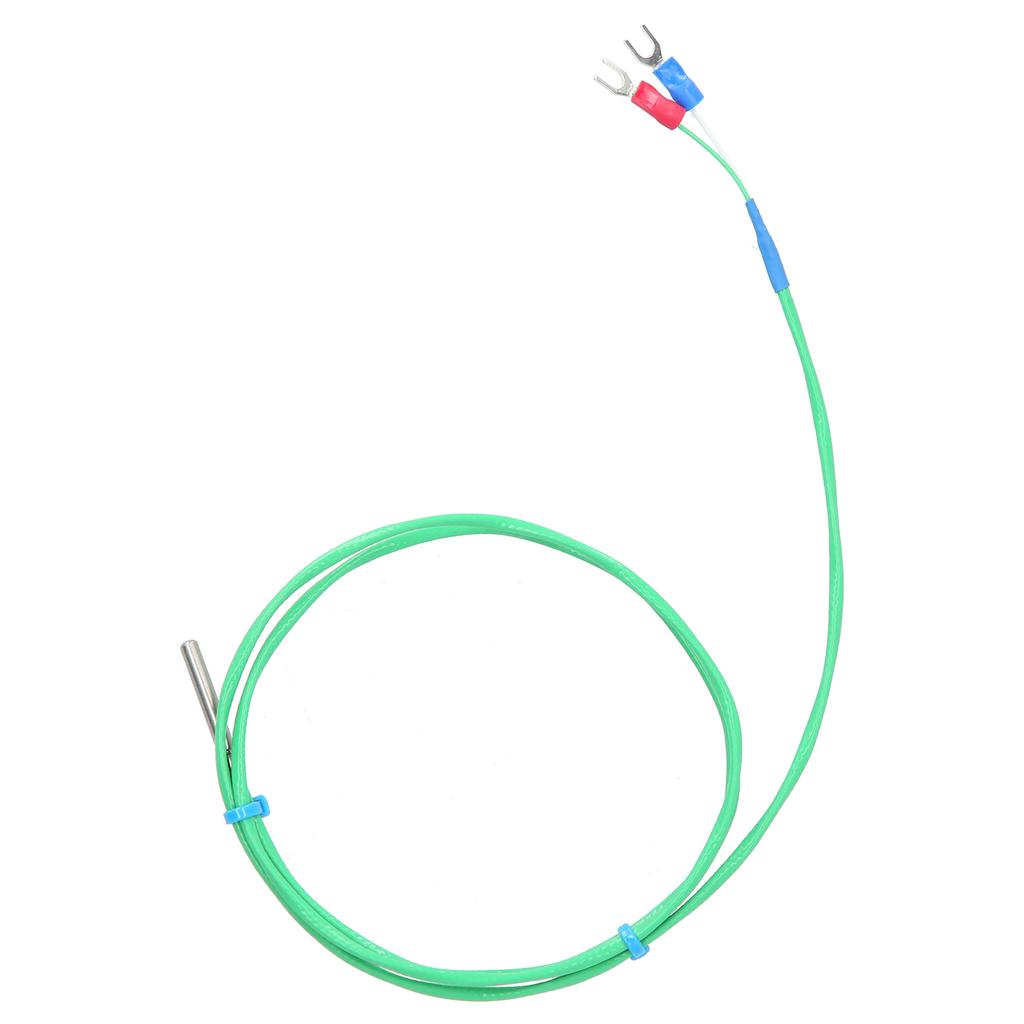

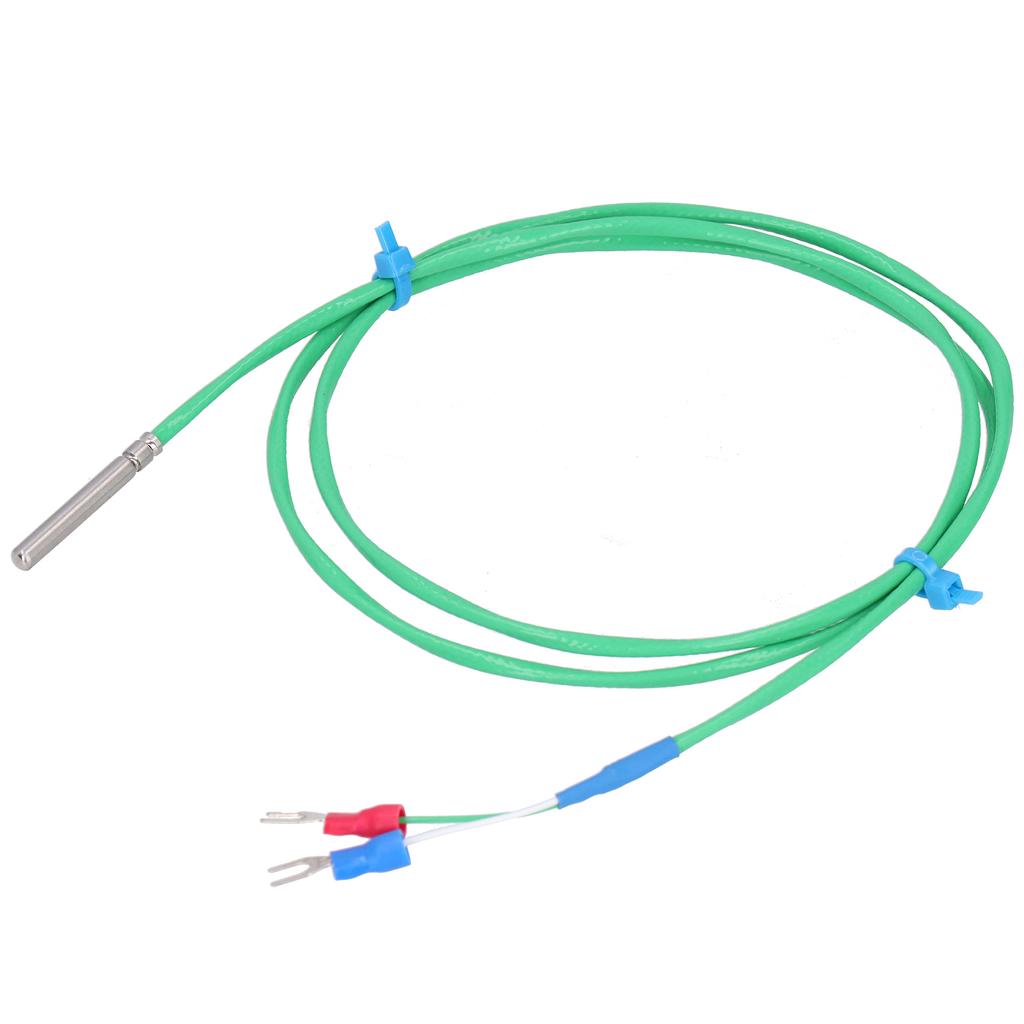

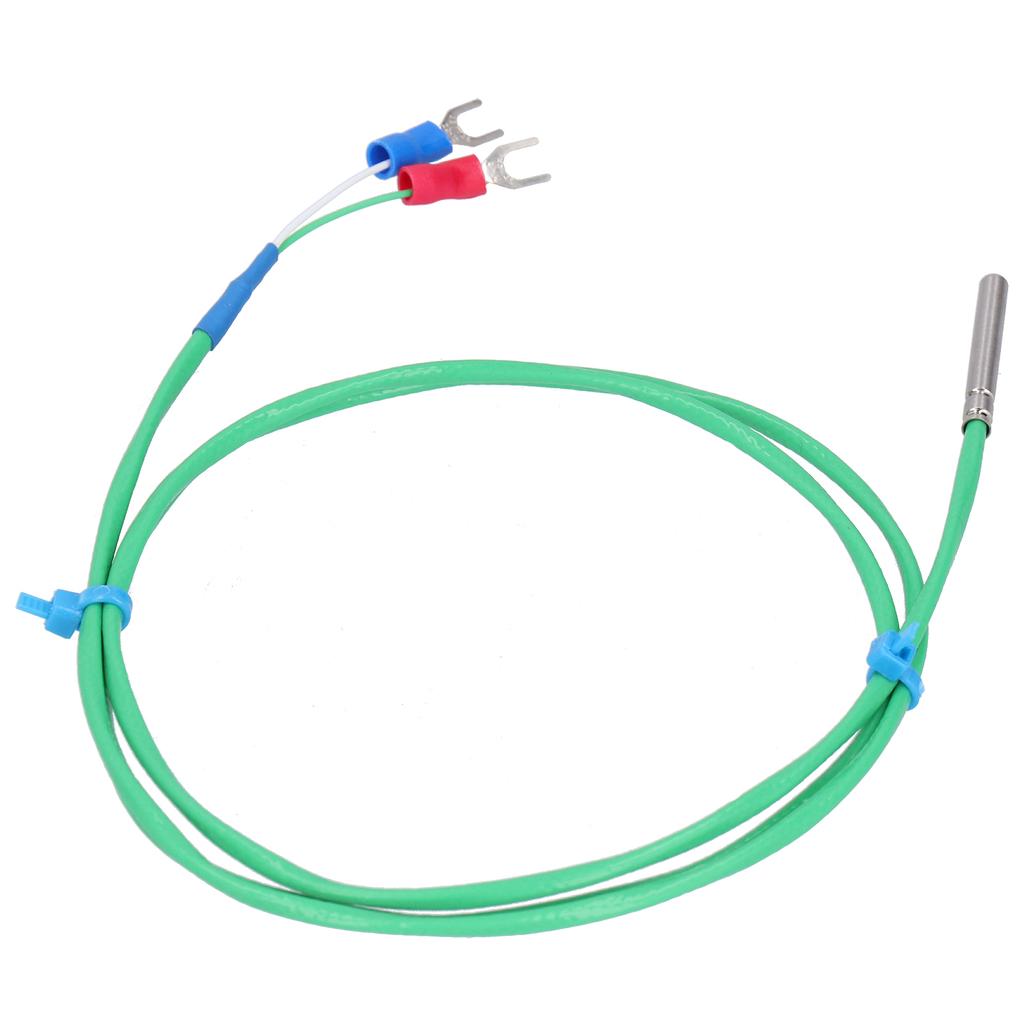

Item Type: KType Thermocouple
Index Number: K
Temperature Measurement Range: 0200 celsius
Probe Material: Stainless steel
Probe Specification: Approx. 4 x 30mm 0.2 x 1.2in(diameter x length)Wire: Approx. 2 x 7 x 0.2mm 0.08 x 0.28 x 0.01in (the surface is imported soft silicone)
Terminal: Ushaped terminal
The Basic Principle of Thermocouple Temperature Measurement: Two conductors of different materials or semiconductors A and B are welded together to form a closed loop. When there is a temperature difference between the two attachment points 1 and 2 of conductor A and B, the situation of generating electromotive force and forming a current in the loop is called the thermoelectric effect. Thermocouples use this effect to work
Application: Thermocouples are widely used in various enterprises and institutions such as petroleum, water conservancy, chemical industry, metallurgy, electricity, environmental protection, etc., to achieve temperature measurement and direct contact with the measured object
.
Package List:
1 x KType Thermocoupopt durable silicone line with high corrosion resistance and wear resistance
Wrapped with a first?level temperature measuring wire, which possess accurate temperature measurement
Stainless steel probe bring faster and more sensitive temperature measurement
The product come with simple structure, anti?interference, small error and long life
Used in various enterprises and institutions such as petroleum, water conservancy, chemical industry, metallurgy, electricity, environmental protection, etc.
