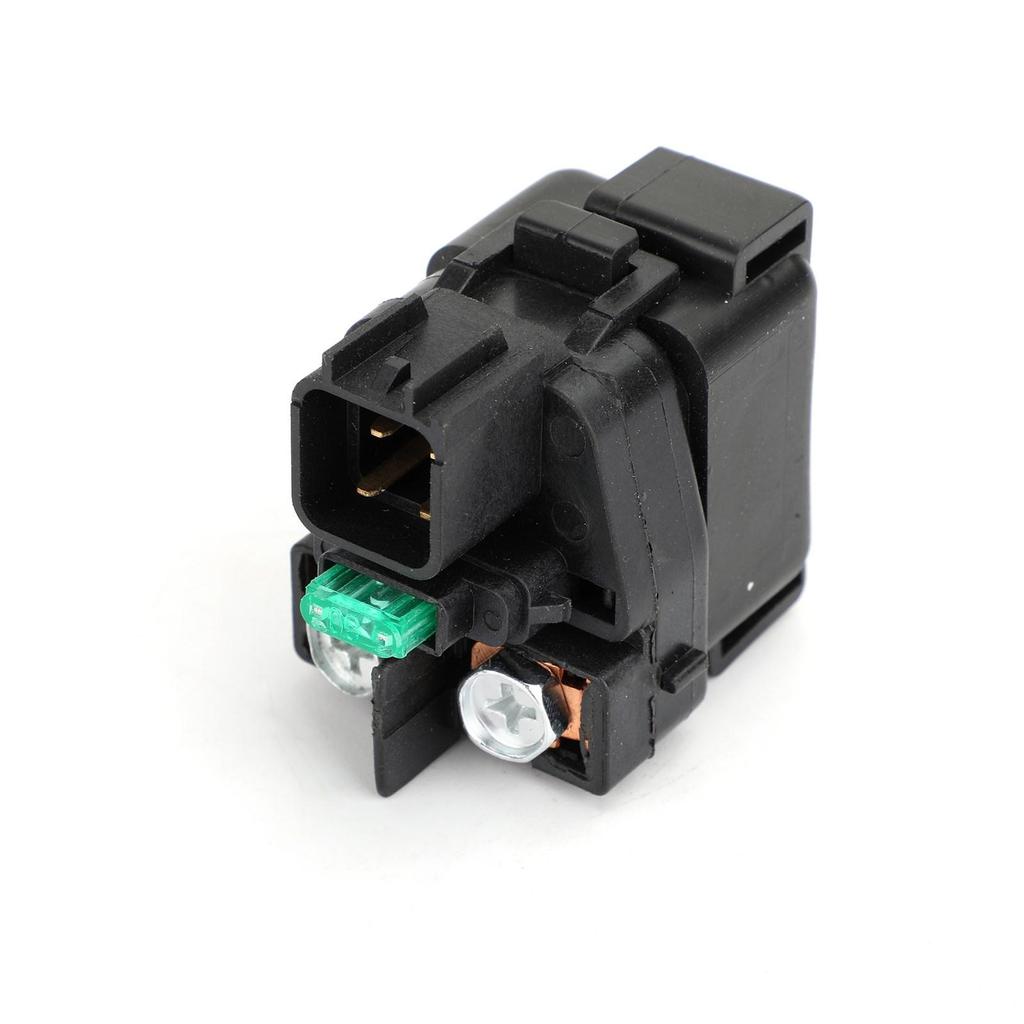

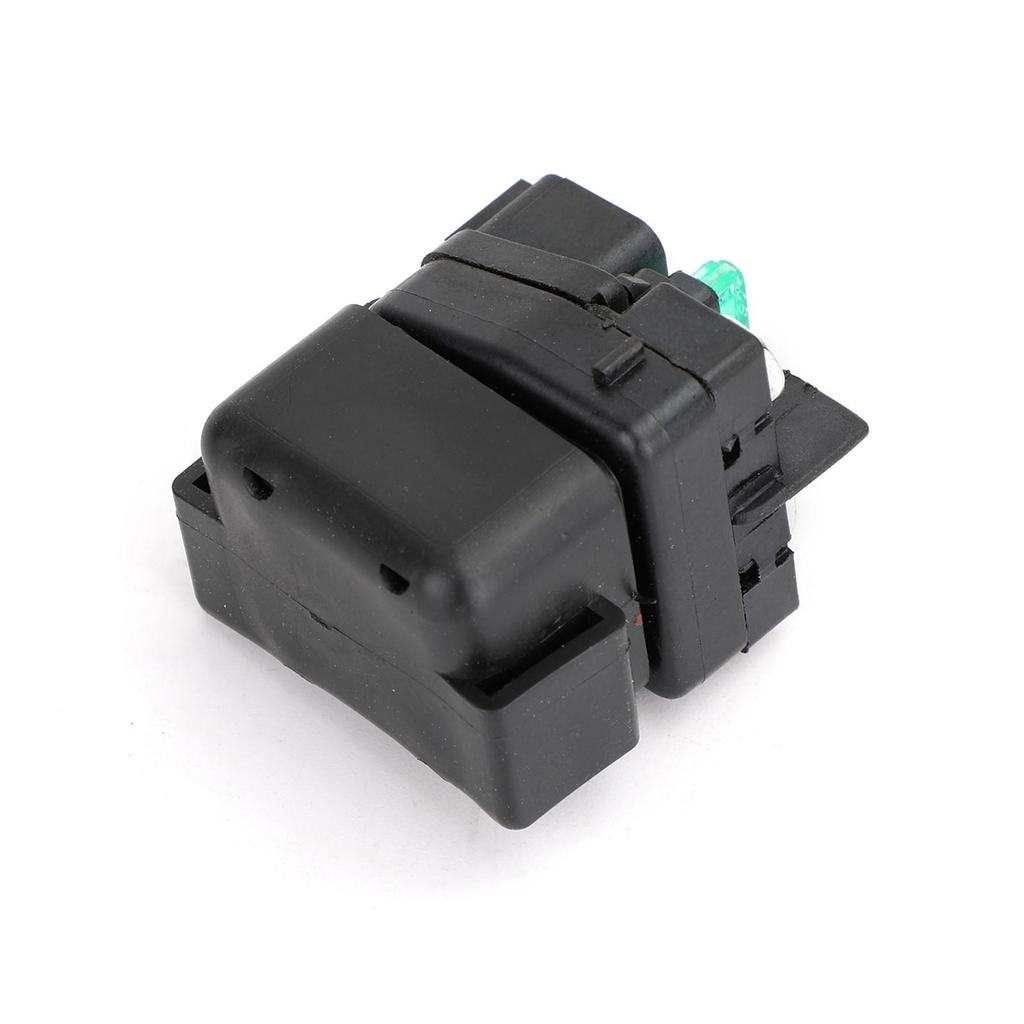

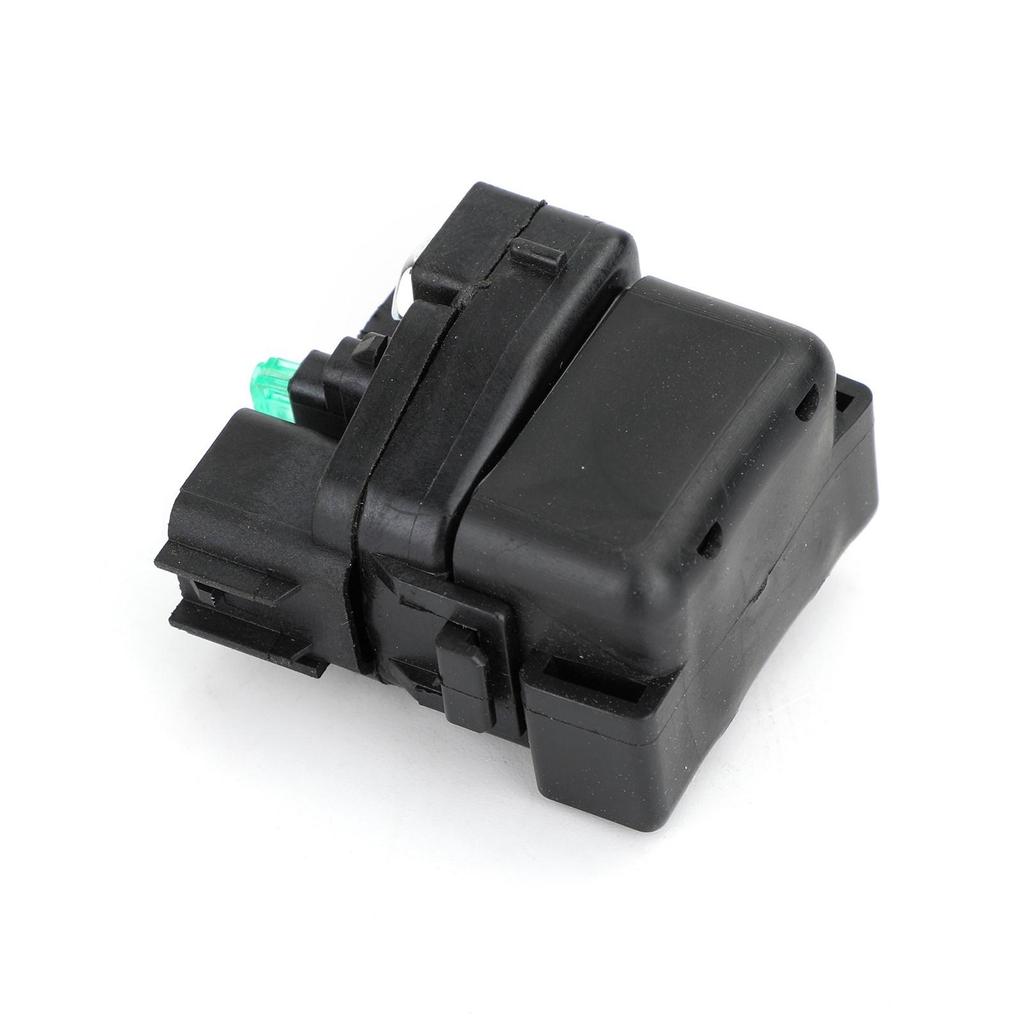

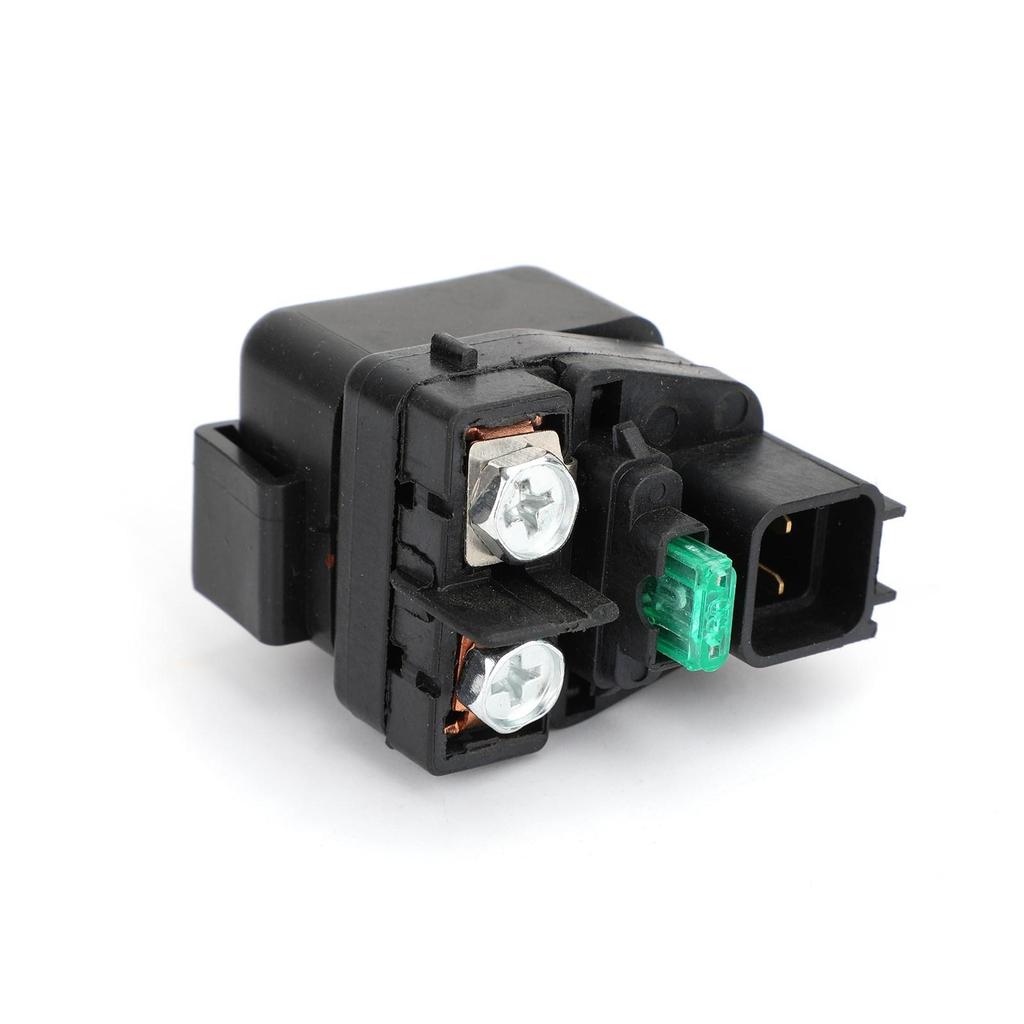

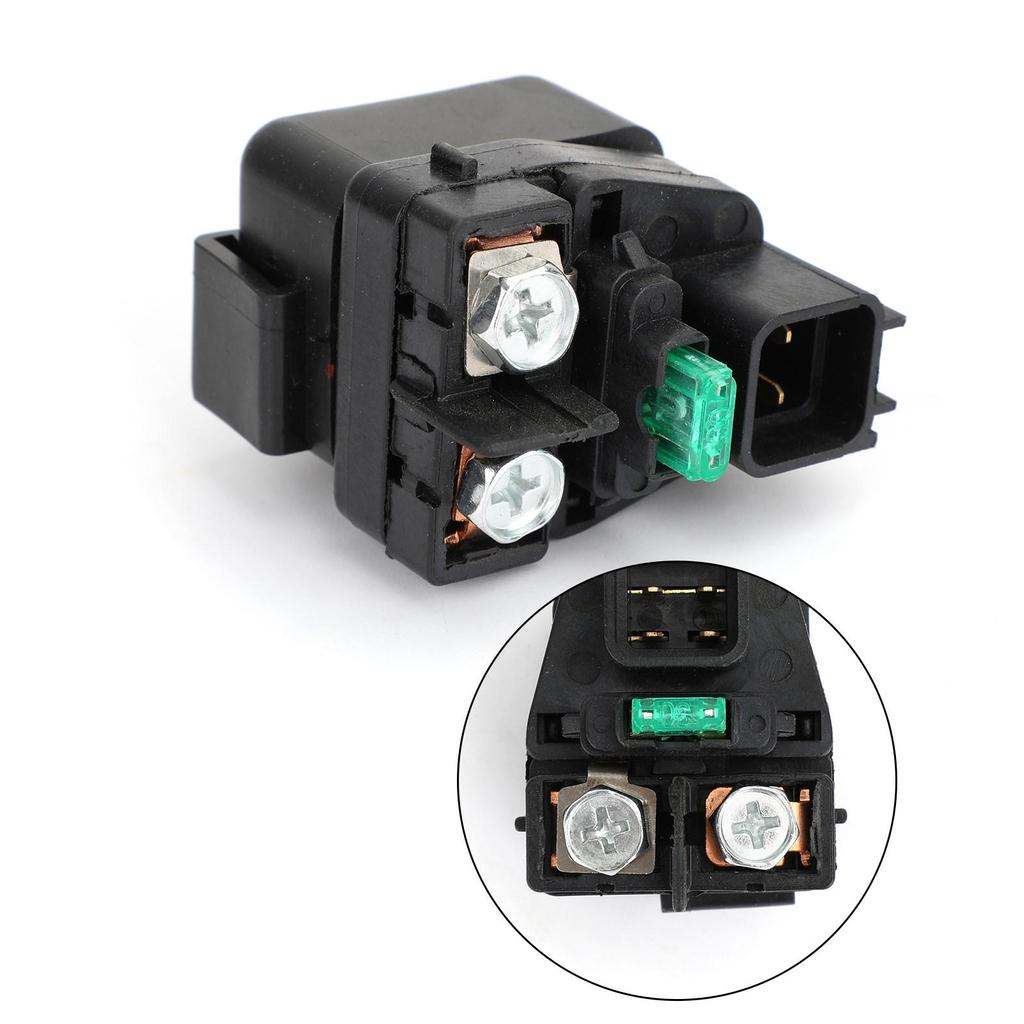

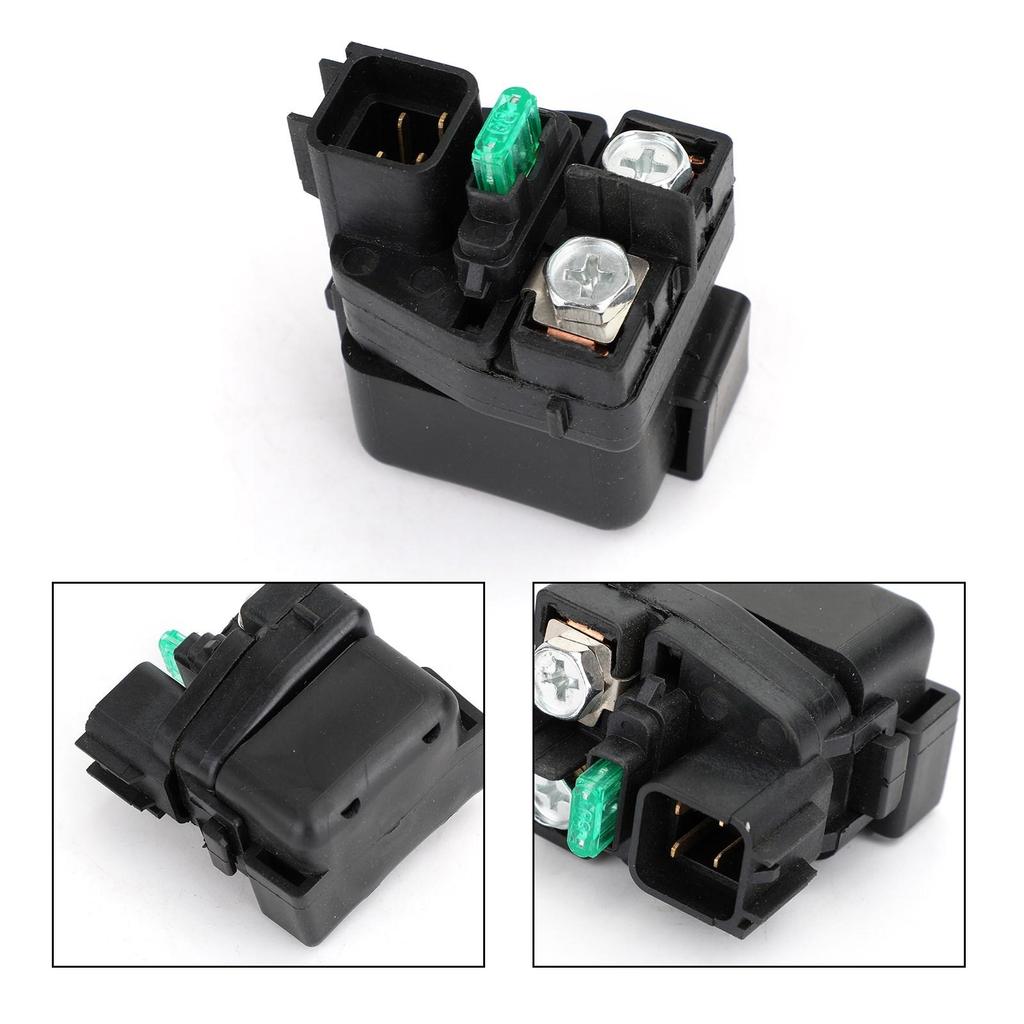

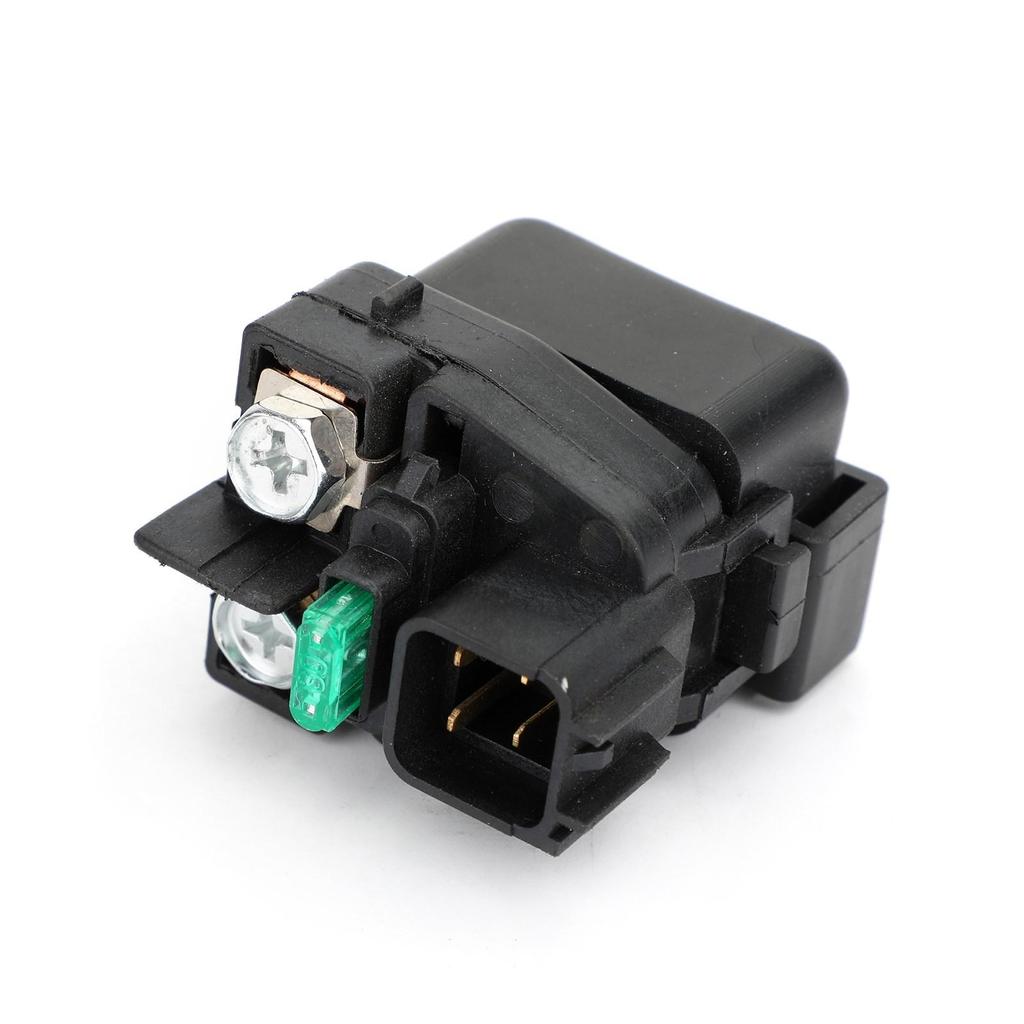

NEW Starter Relay Solenoid Switch For SUZUKI KING QUAD LTA 450 700 750 500 31800-41G10 GSX R600 R750 R1000 S1000 1300BK SFV 650 LT-F GSX LT-A VZR LT-Z GSF
FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
OEM Replacement Part Number: 31800-41G00,31800-41G10,31800-38G00,31800-38G10
FITMENT:
For Suzuki GSXR600 2006-2010
For Suzuki GSXR750 2006-2010
For Suzuki GSXR1000 2005-2015
For Suzuki GSX-S1000 2016-2018
For Suzuki SFV650 2009/2014-2015
For Suzuki GSX1300BK B-King 2008-2010
For Suzuki GSF1250S (ABS) Bandit S 2007-2011
For Suzuki GSF1250S Bandit S 2007-2011
For Suzuki GSX650F Katana 2008-2012
For Suzuki GSX1250FA 2011-2013
For Suzuki VZR1800Z M109R BOULEVARD CRUISER 2006-2017
For Suzuki LTA400F KingQuad 400 2008-2018
For Suzuki LTF400F KingQuad 400 2010-2018
For Suzuki LTA450X KingQuad 450 2007-2010
For Suzuki LTA500X KingQuad 500 2009-2015
For Suzuki LTA750X KingQuad 750 2008-2015
PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included
TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
