Product introduction：

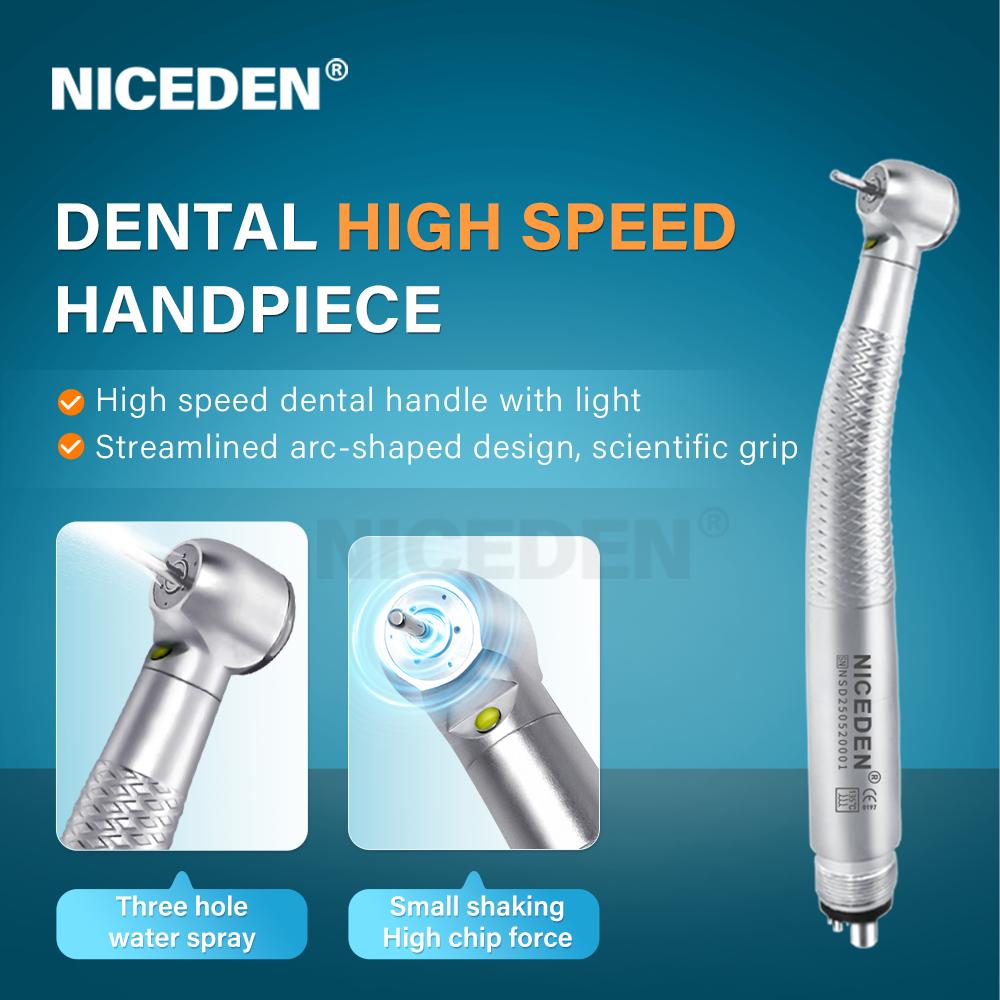

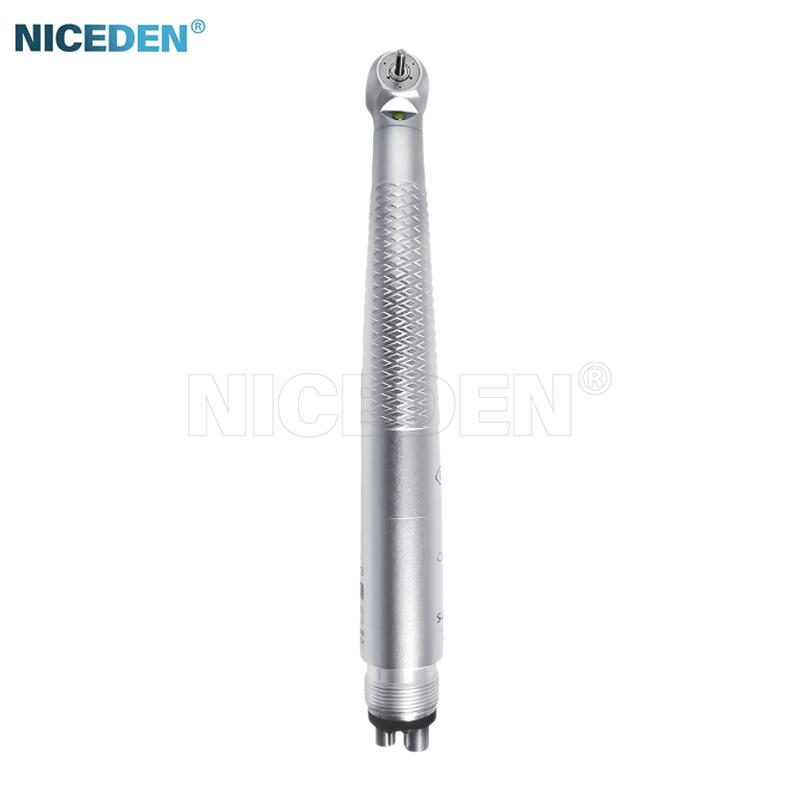

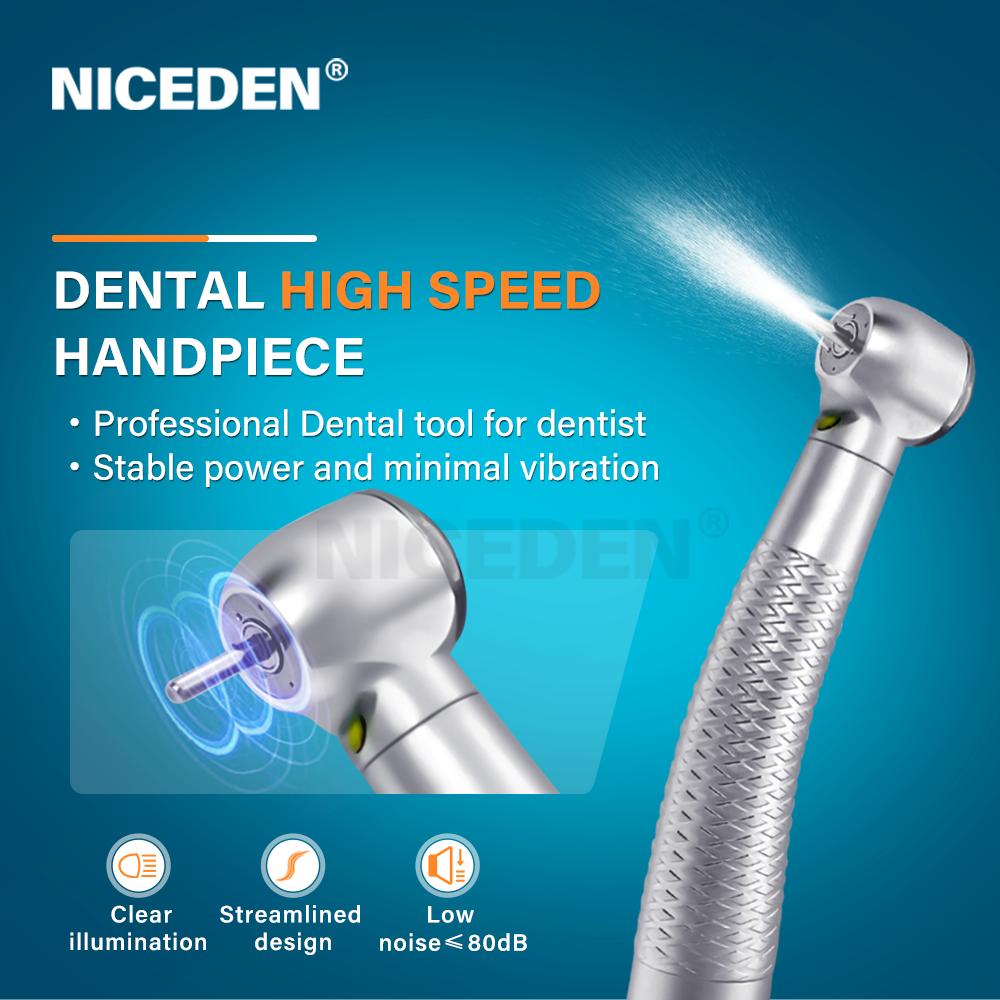

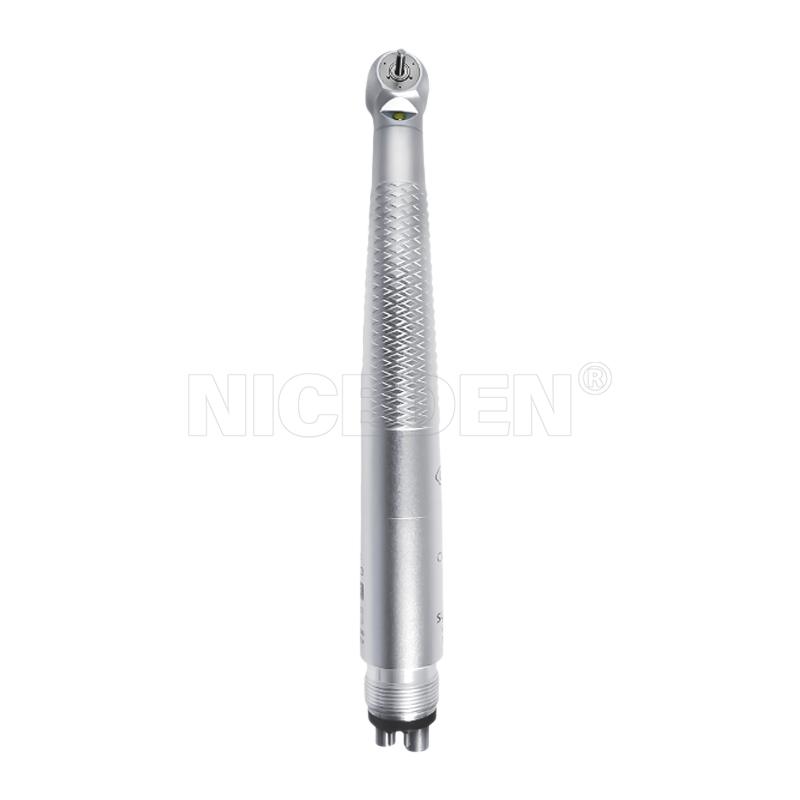

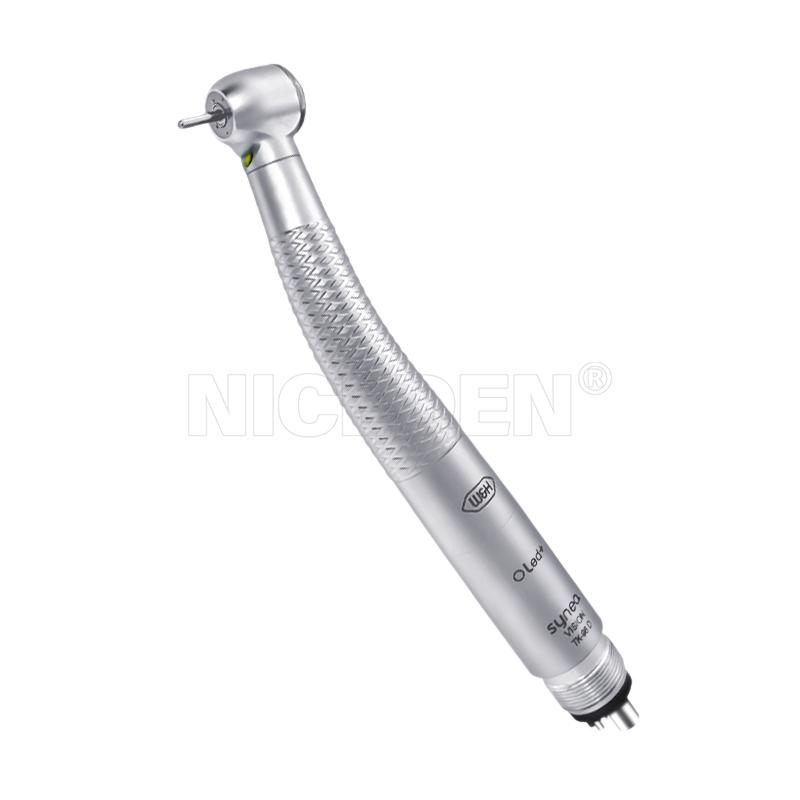

NICEDEN Dental High Speed LED Handpiece
1.High fitness, with B2/M4 interface for your choice, the product is suitable for all brands of dental chairs
2.Wide cooling range, Triple water spray ,Wide cooling, safer operation.
3.The water pipe and air pipe are separated independently, and the water output is more uniform.
4.The use of WH bearings, long life, stable speed, low noise, excellent product quality.
5.High safety factor, the burs holding of the spindle is more than 2KG, and the treatment process is safer without dropping the bur during the operation
6.Under the normal working condition of 0.25mpa ~ 0.30mpa, the rotational speed is 360,000 ~ 380,000 RPM, neither too low rotational speed is not enough torque, nor too high rotational speed will cause excessive sound and reduce the bearing life.
7.self-genarator, without external power supply, can also be treated in a lamplight environment.
8.All stainless steel materials can be sterilized, pressure resistant and fall resistant.
Product working principle
The air which come from the dental chair , are use to drive inner micro motor, converting kinetic energy into electricity and make the LED light on.
In addition, the cartridge will be rotated by the power of air, So as to achieve high-speed rotation cutting effect.
Technical :
Chuck Type: Push Button
Working pressure: 0.25 Mpa to 0.3 Mpa
Speed: 280,000-350,000R.P.M
Spray: Three water Spray
Bur size：Φ1.595-Φ1.600mm
Noise: ≤ 63 dB

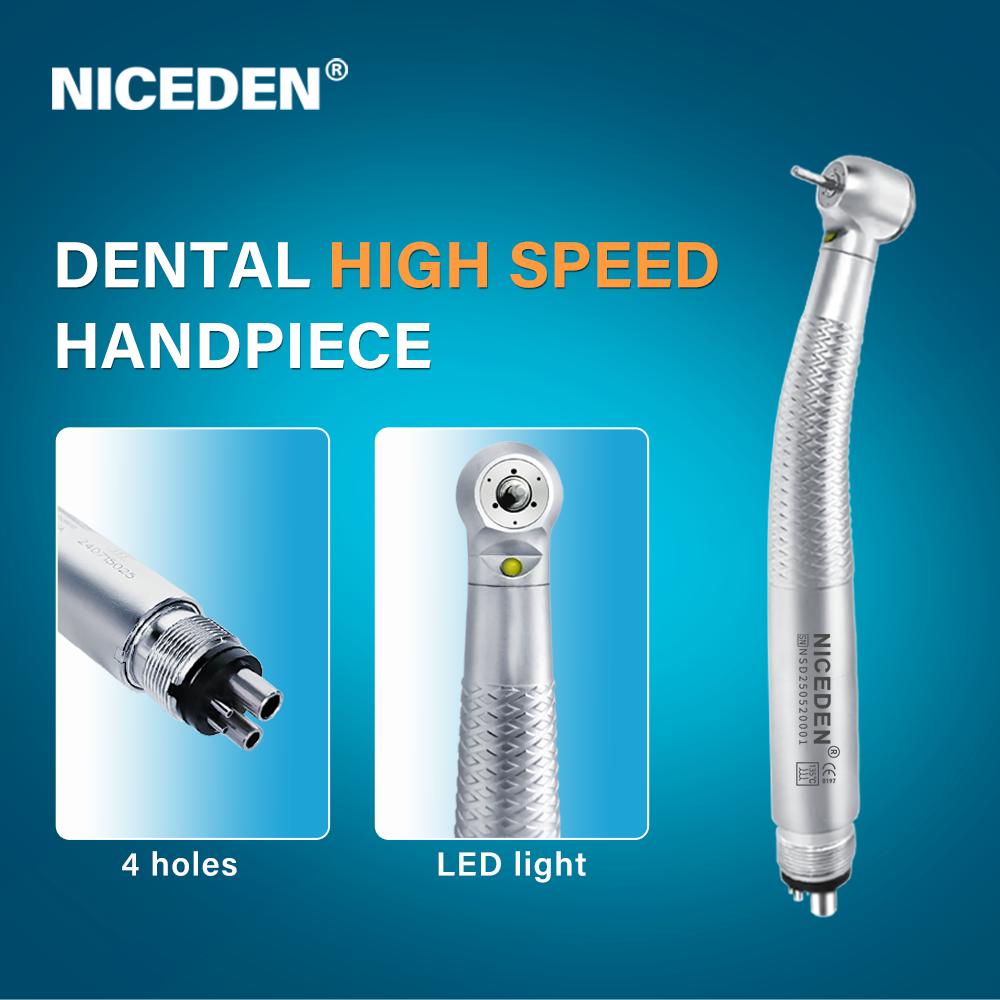

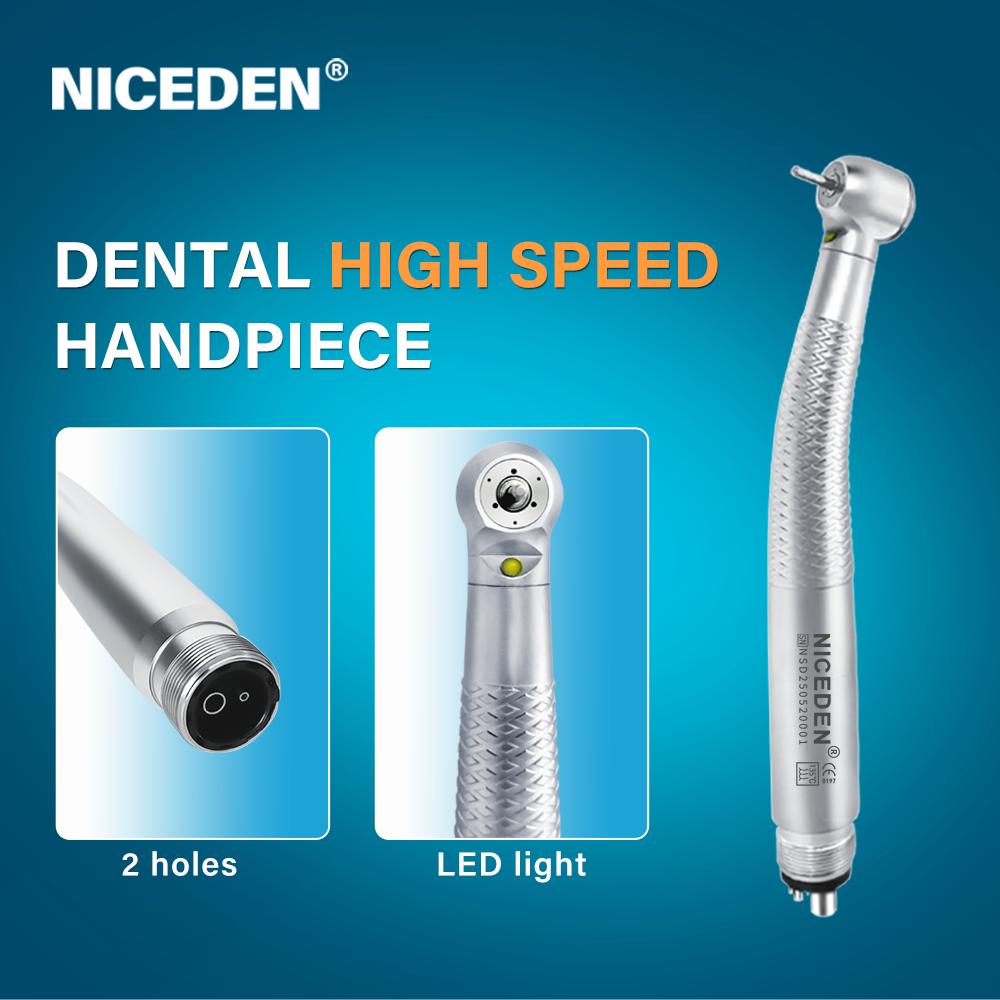

Hole: 2 Holes / 4 Holes
