OYAIDE NEO Solderless Cable Kit L12+ (3.0m Cable, 12 L-shaped Plugs, 2 Spanners, 1 Recycling Stick)

[Product Infomation]

Brand : OYAIDE Materials : metal, Plastic

[Product Description]

・A unique solderless plug that combines high performance, high strength, and durability. ・Uniquely designed plug locking mechanism “Dual clawed lock system” which is patent pending ・Precision conductor 102 SSC is used for the center conductor. ・Conductor size carefully considered to bring sound quality deterioration close to "ZERO" ・Includes a “recycle stick” that makes it easy to reuse plugs.

●Solderless market is booming. It is a product of the modern scene that requires complex systems. The convenience that anyone can easily and quickly customize to the length that best suits their system. For these reasons, solderless was quickly established as a category. However, in exchange for this convenience, we cannot overlook the fact that the number of disconnections and short circuits caused by vibrations caused by movement, insertion and removal, etc. is increasing. Solderless, allowing for quick response in case of trouble. However, if solderless cables had the same strength as regular cables. And if only the sound quality was uncompromising. This is the "solderless cable system" that professionals are looking for. Solderless cable system released by NEO. It's more than just a solderless cable system. The "NEO Solderless Series" was developed with the aim of solving all of these problems at once, such as unexpected disconnection problems that had been overlooked, thin cables resulting in poor sound quality due to the use of complex systems, and variations in quality due to ease of construction.

●NEO Original Solderless Plug SLP-240S/L is a unique solderless plug that combines high performance, high strength, and durability with NEO's unique Dual Clawed Locking System (patented). Each and every part is carefully carved from a single brass bar using a diamond grinder and functions without any waste. Pass the cover through the cable and insert it into the main unit to connect it to the center pin terminal. Then, by tightening the cover and finishing by fixing it with two spanners, the claw-shaped contacts and flange on the main body are tightened, and the two claws dig into the outer sheath of the cable, making the shield conductive. Furthermore, the cable is held securely by the thread cut on the inside of the flange and is firmly fixed.

●Cable “SLD-ZERO” designed exclusively for NEO original solderless plugs. Precision conductor 102 SSC is used for the center conductor. Adopts a conductor diameter of AWG20 (0.56sq) and a braided shield made of 102 SSC with a high density of over 90%. The insulator is a uniquely formulated PVC with moderate hardness, and the outer sheath is made of carbon-containing PVC, allowing the center conductor to firmly connect to the plug. By tightening the plug cover, the shield ensures reliable continuity and strong cable fixation, achieving high strength and durability.

●Includes a "recycle stick" that makes it easy to reuse plugs.We have developed a recycle stick that is very convenient when remaking solderless cables that have already been created. To reuse a plug that has been used once, the claws of the Dual Clawed Locking System must be returned to their proper positions. Using recycling sticks allows you to recycle items easily and quickly, with little risk of damage, and reliably over and over again.

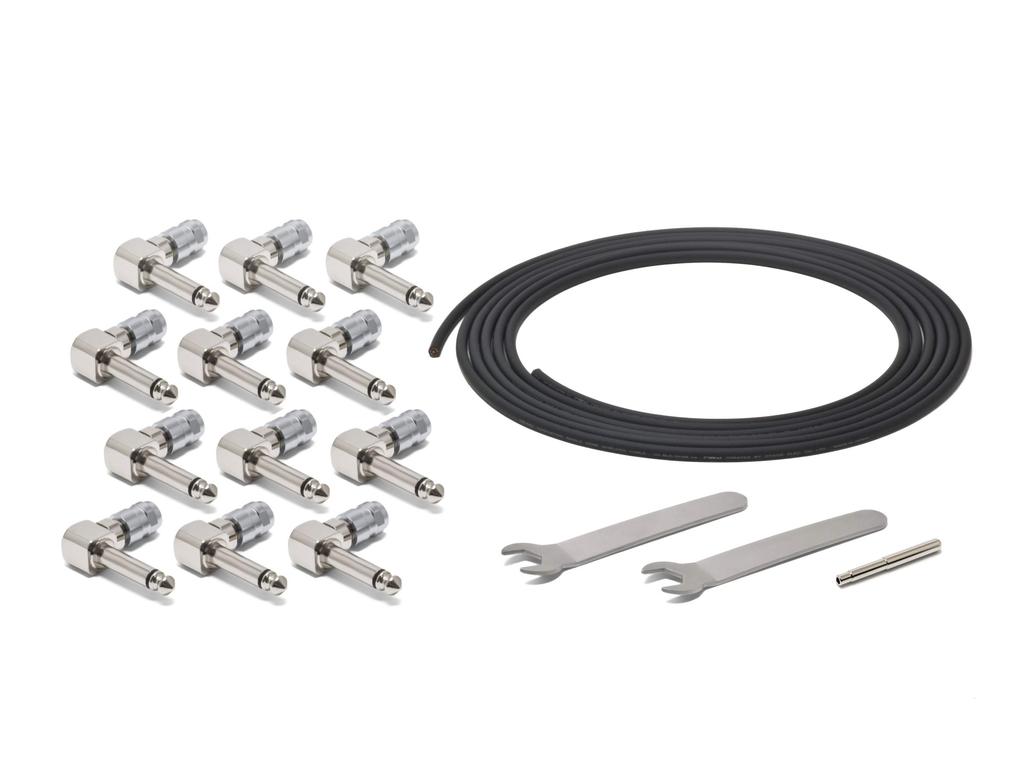

Product contents L-type plug: SLP-240L x 12 Cable: SLD-ZERO x 3.0m Spanner: SP-10 Recycle stick

●Product specifications Plug: SLP-240S / SLP-240L Main body: Brass diamond turning Plating: Nickel Insulator: POM Cover: Machined brass Surface finish: Satin chrome plating Cover hole diameter: Φ4.2mm Cable: SLD-ZERO (102 SSC) Exterior sheath: CARBON SOFT PVC Shield: 102 SSC (4×24/0.12) braided 90% Insulator: SH PVC Conductor: 102 SSC(50/0.12)0.565sq AWG20 Outer diameter: φ4.0mm Spanner: SP-10 Material: SPHC-P steel Surface treatment: Multi-night treatment Thickness: 1.6mm Spanner diameter: 10mm
