【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
Equipped with two Infineon “MA12070P” new amplifier ICs! The ``MERUS'' amplifier series has very good energy consumption efficiency, provides high output current, provides high sound quality and excellent audio performance.
Equipped with an HDMI (ARC) input, connect to the HDMI (ARC) input terminal equipped with A50Pro using an HDMI cable to improve the sound quality of your TV and enjoy higher quality home audio every day!
It has ultra-bass output, independently drives the passive subwoofer, adjustable ultra-bass volume, and built-in high/low-pass filters, allowing you to get the best sound from any passive speaker and passive subwoofer combination to your liking.
Compatible with a wide range of equipment, it supports USB audio playback without the need to install a driver, and can be easily played on computers, mobile phones, and other machines equipped with a USB audio output terminal.The optical input supports high-quality audio playback of up to PCM 192kHz/24bit. For wireless playback, by supporting Bluetooth 5.0 input, you can easily enjoy the best music wirelessly anywhere in the room.
EQ adjustment function / Bass and treble correction function / High and low-pass frequency adjustment function / Super bass volume adjustment function / Remote control compatible

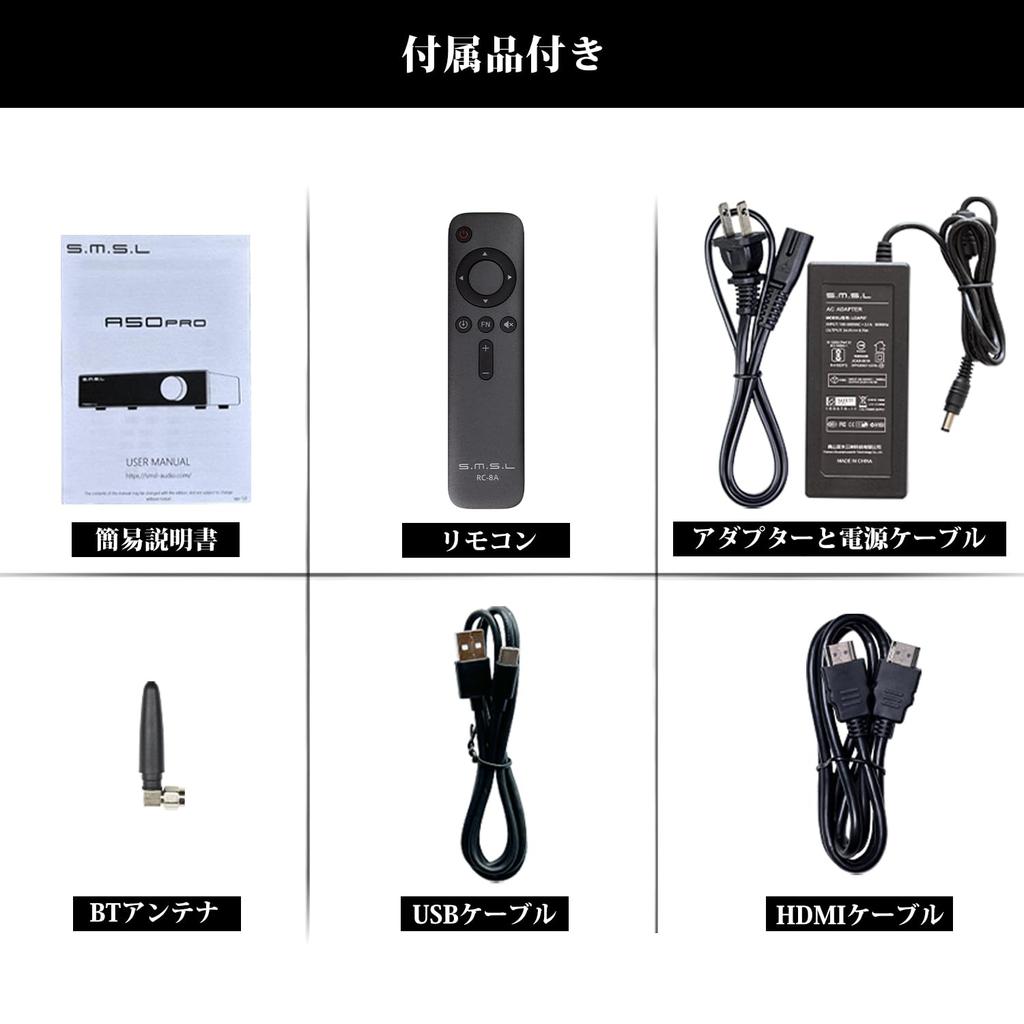

Product specifications: Output: stereo: 70W+70W (4Ω, 2ch driven), subwoofer: 100W (2Ω, 1ch driven) THD+N: 0.013%S/N ratio: 102dB Channel separation: -94dB(1KHz) Input sensitivity: -10dB Frequency response: 20Hz-20KHz Digital amplifier IC: MA12070P x2Bluetooth ver: BT5.0EQ amount: 5 High/bass adjustment range: ±5dB Bit: Optical fiber: 16bit/24bit/1bit Samplelet: Optical fiber: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz Input terminal: USB, optical fiber, Bluetooth, line (RCA), HDMI (ARC) Output terminal: 2ch stereo speaker output (Banana plug compatible gold-plated terminal), super bass output terminal Power consumption: 36W (for normal volume) Standby power: <0.5W Size: Height 33mm x Width 134mm x Depth 103mm Accessories: 1x Simple manual (Chinese and English only) 1x Remote control 1x Bluetooth antenna 1x AC adapter (DC
24V) 1x Power cable 1x USB A- USB C cable 1x HDMI cable Note: Official drivers can be downloaded from S.M.S.L's official website. Please refer to this address for file location: SUPPORT - Product-driver Download - A50 Pro
