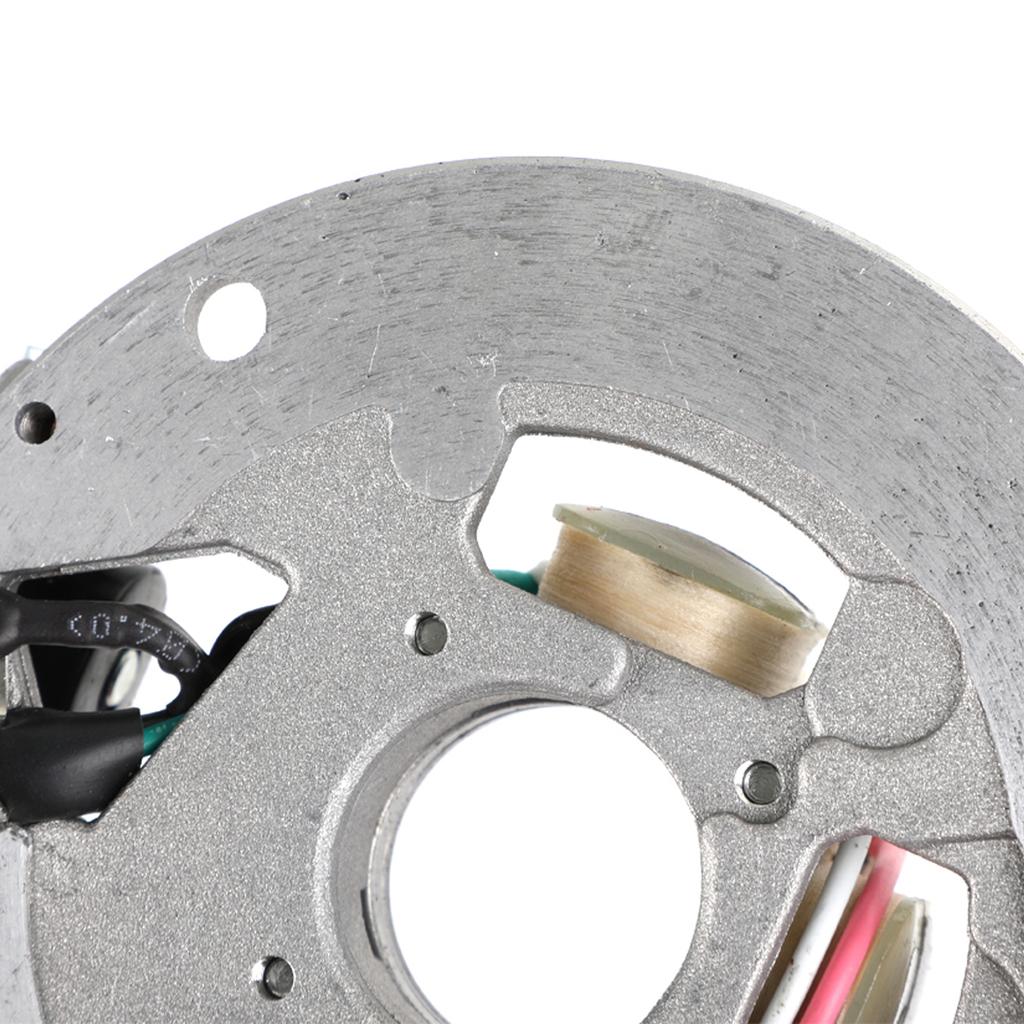

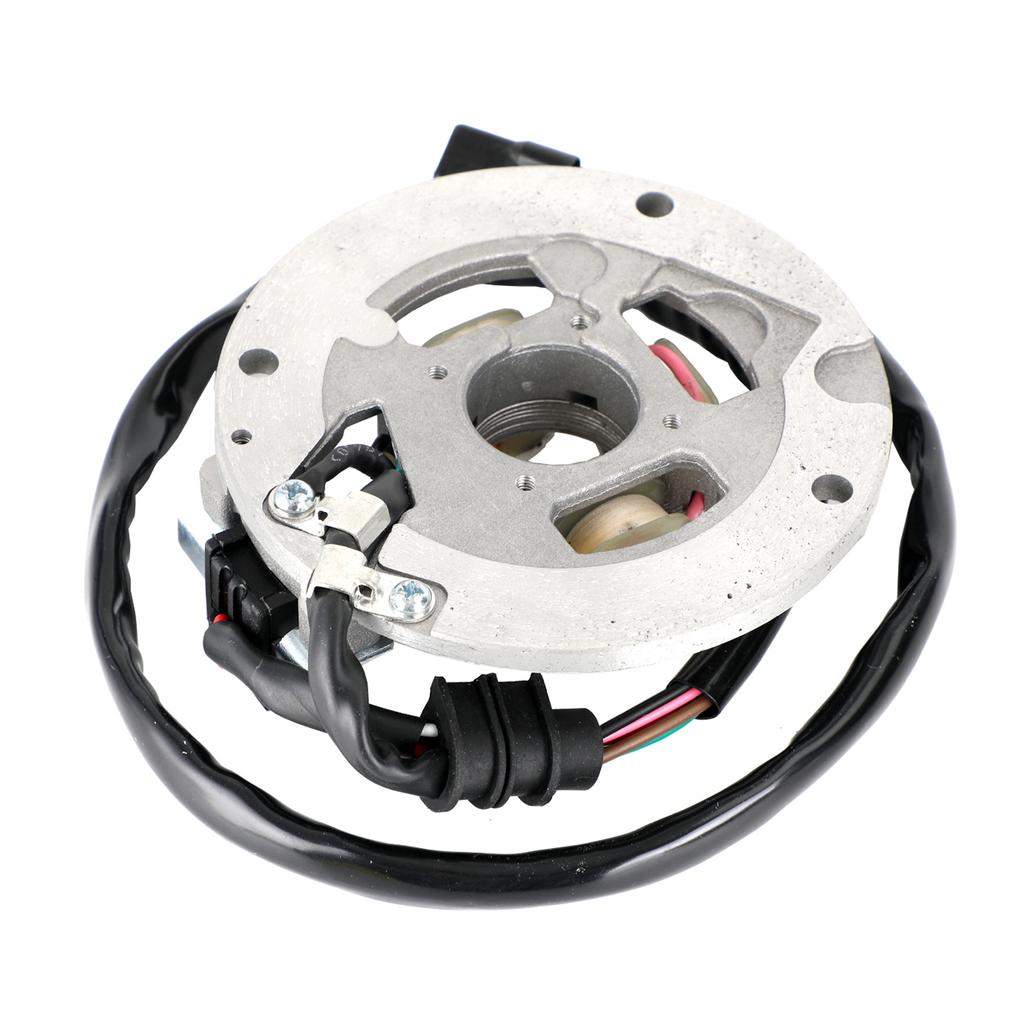

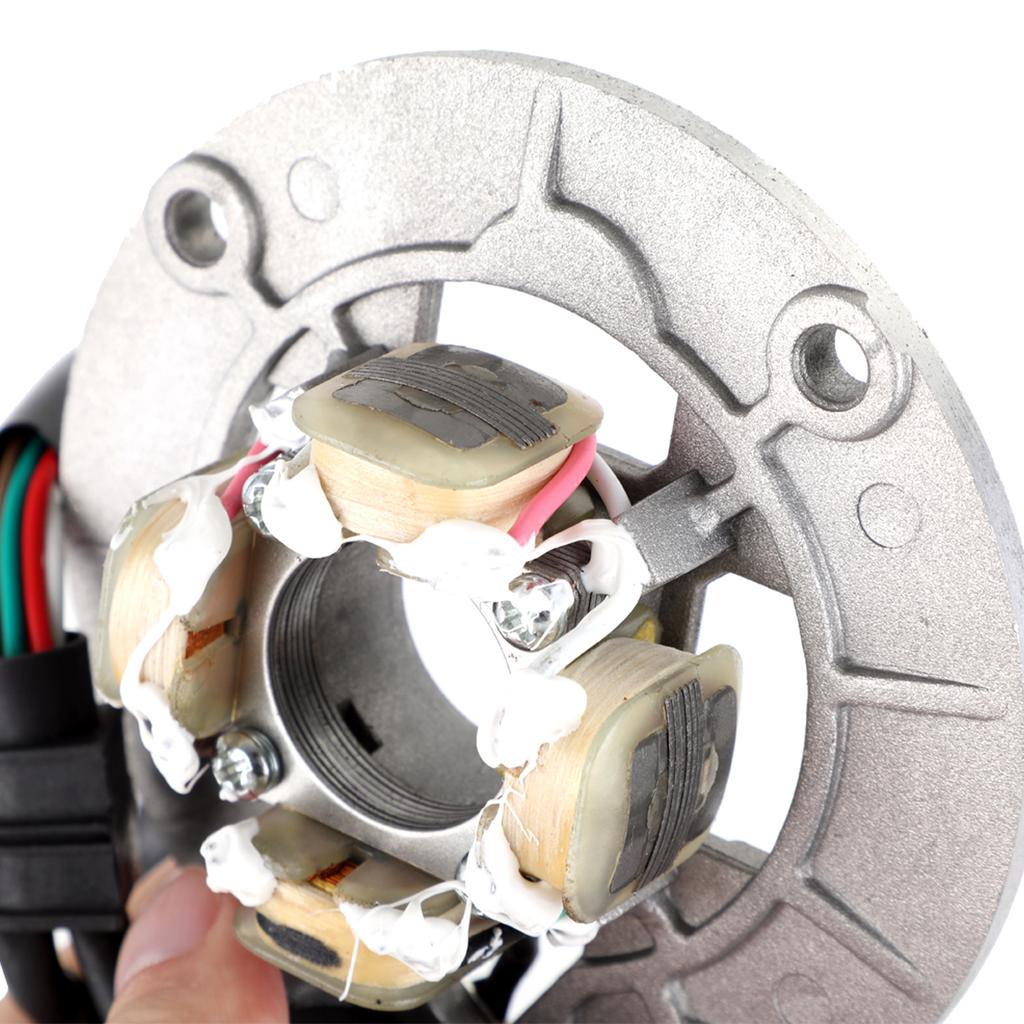

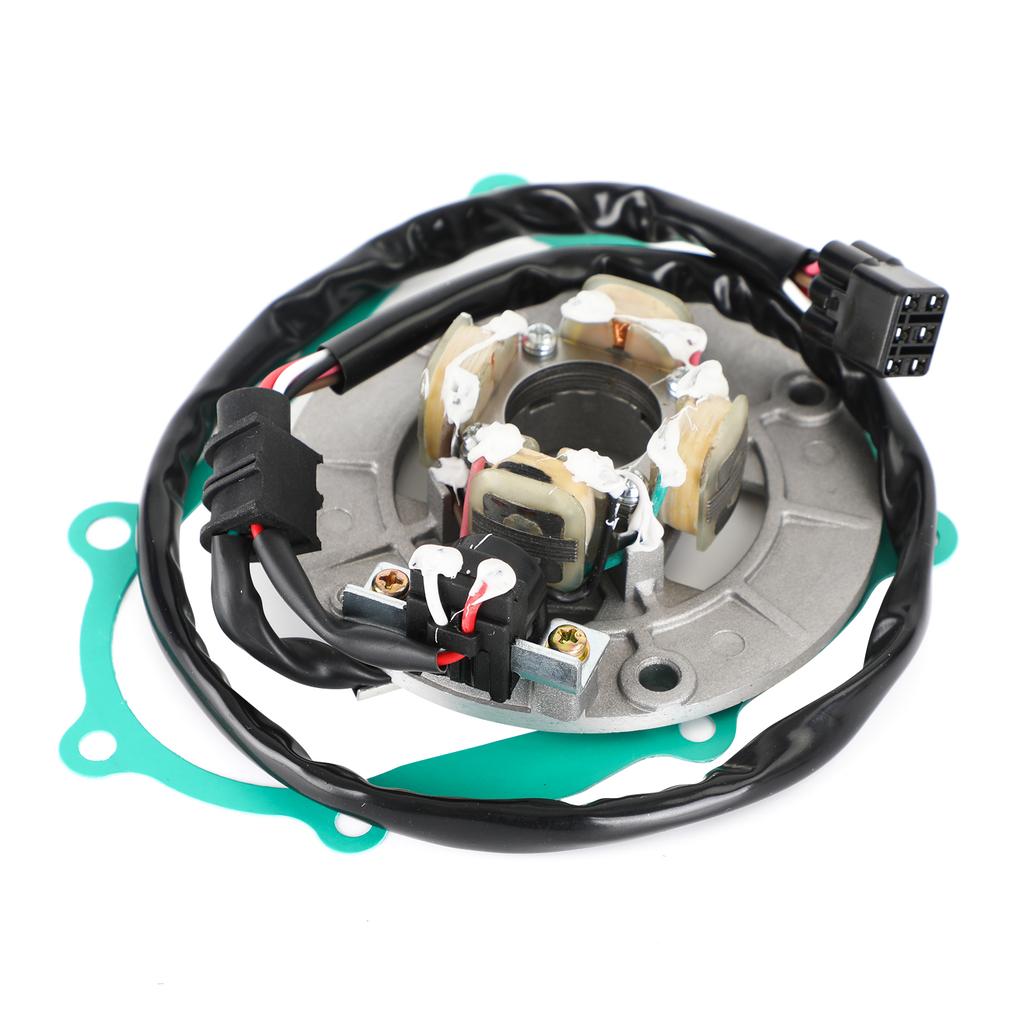

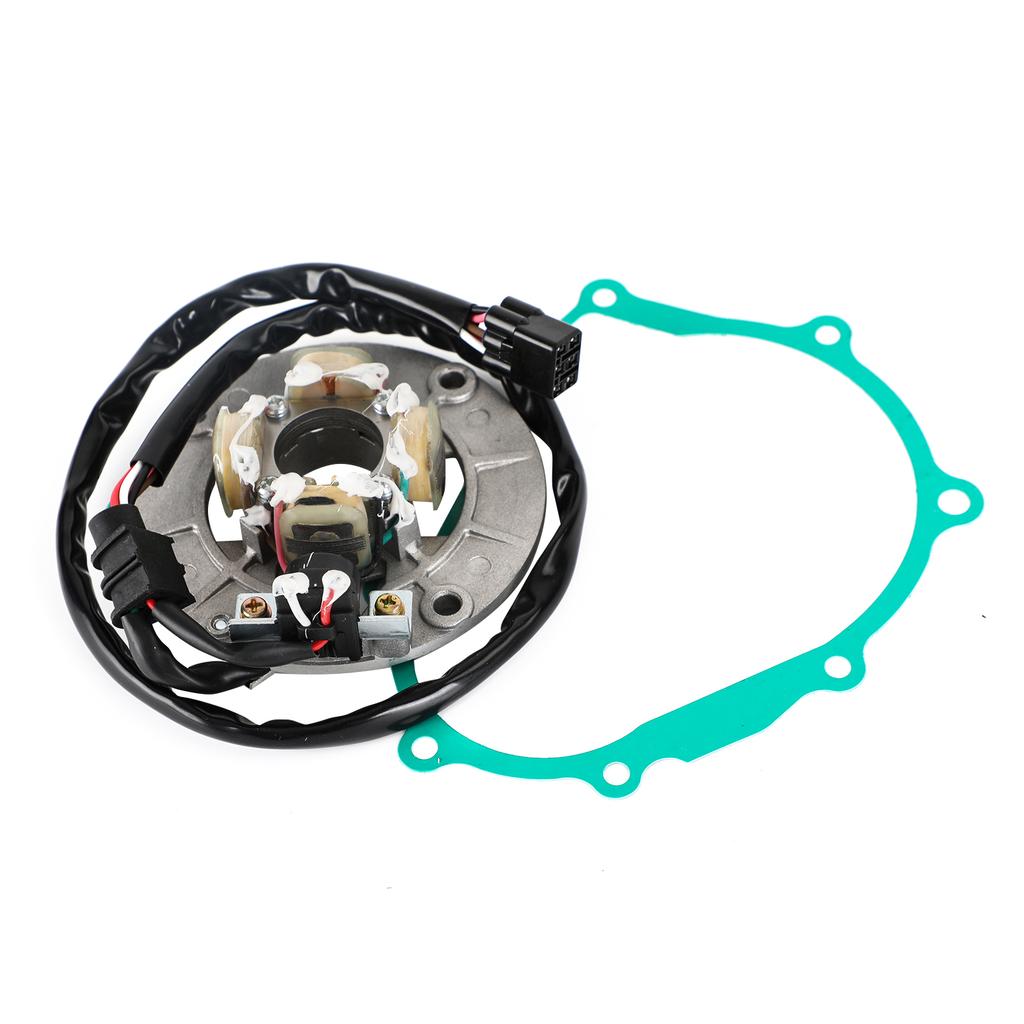

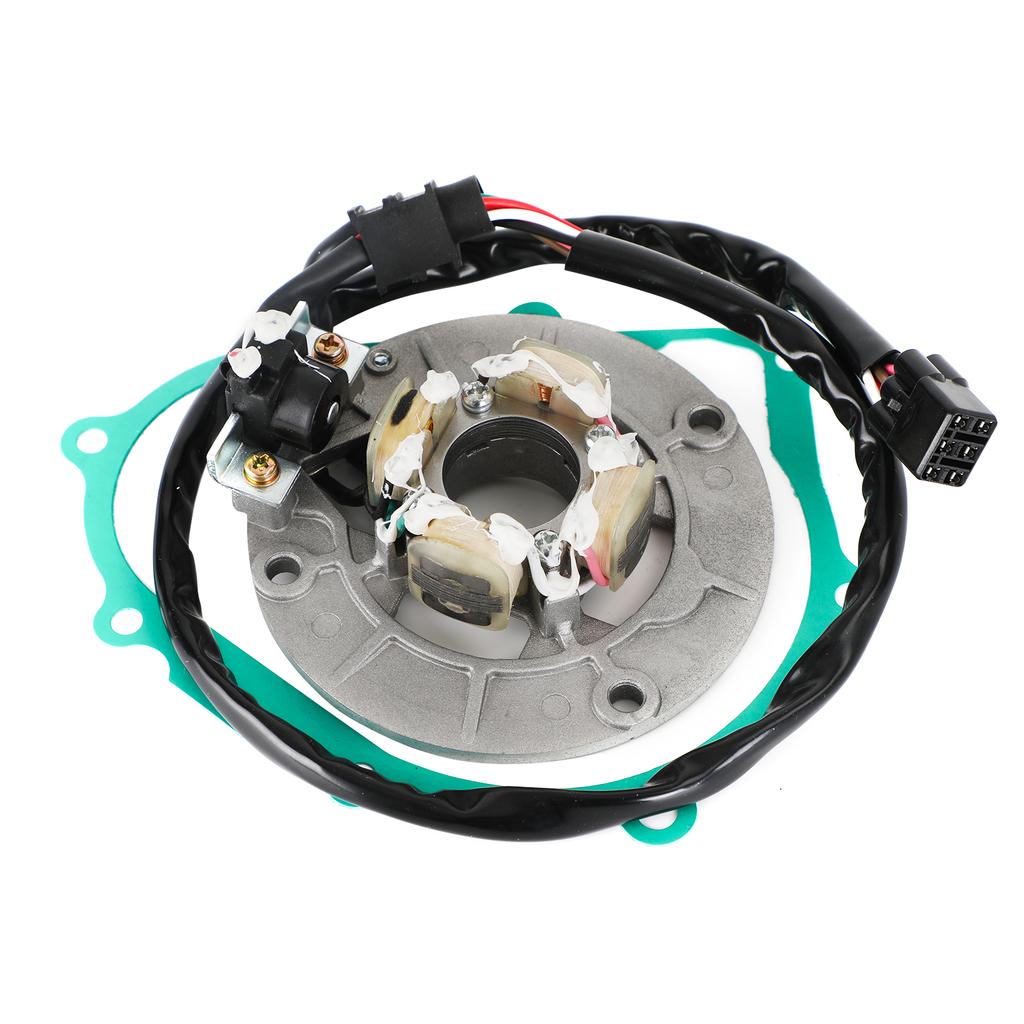

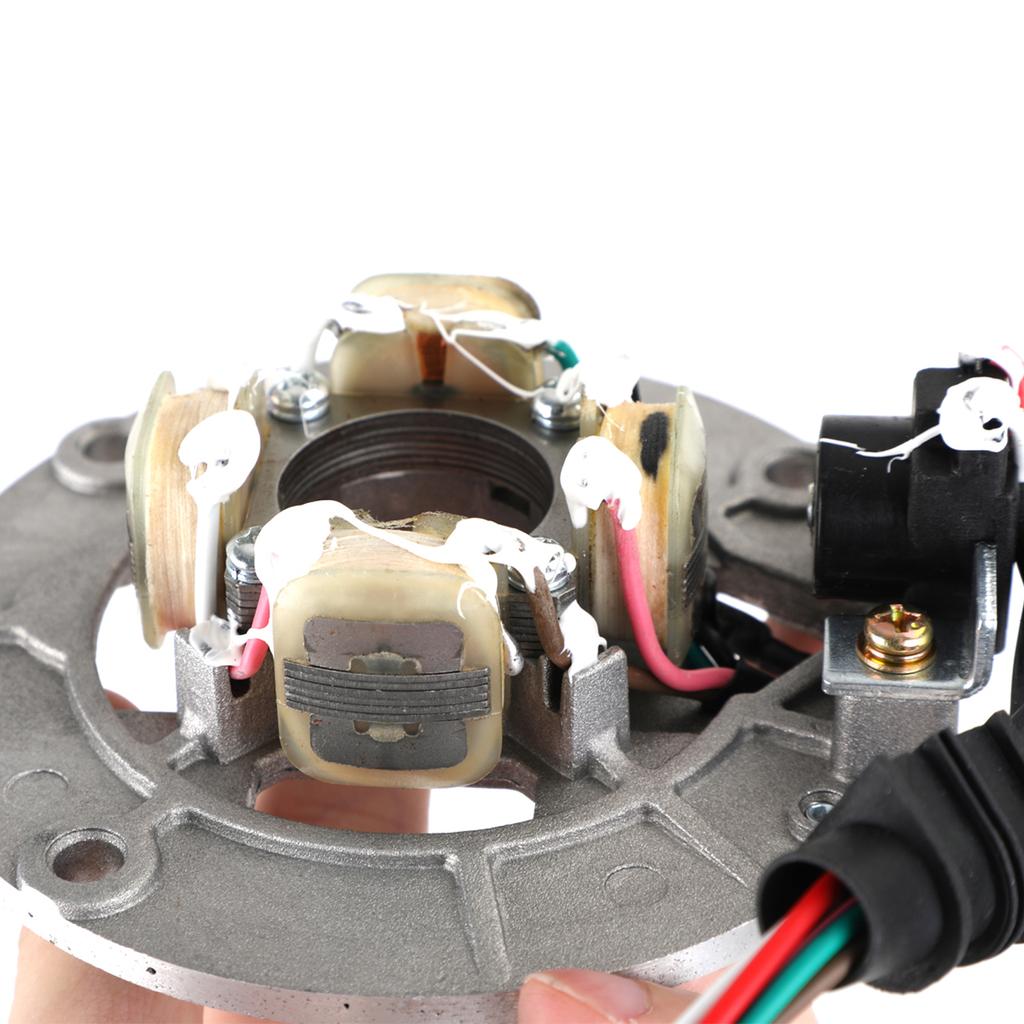

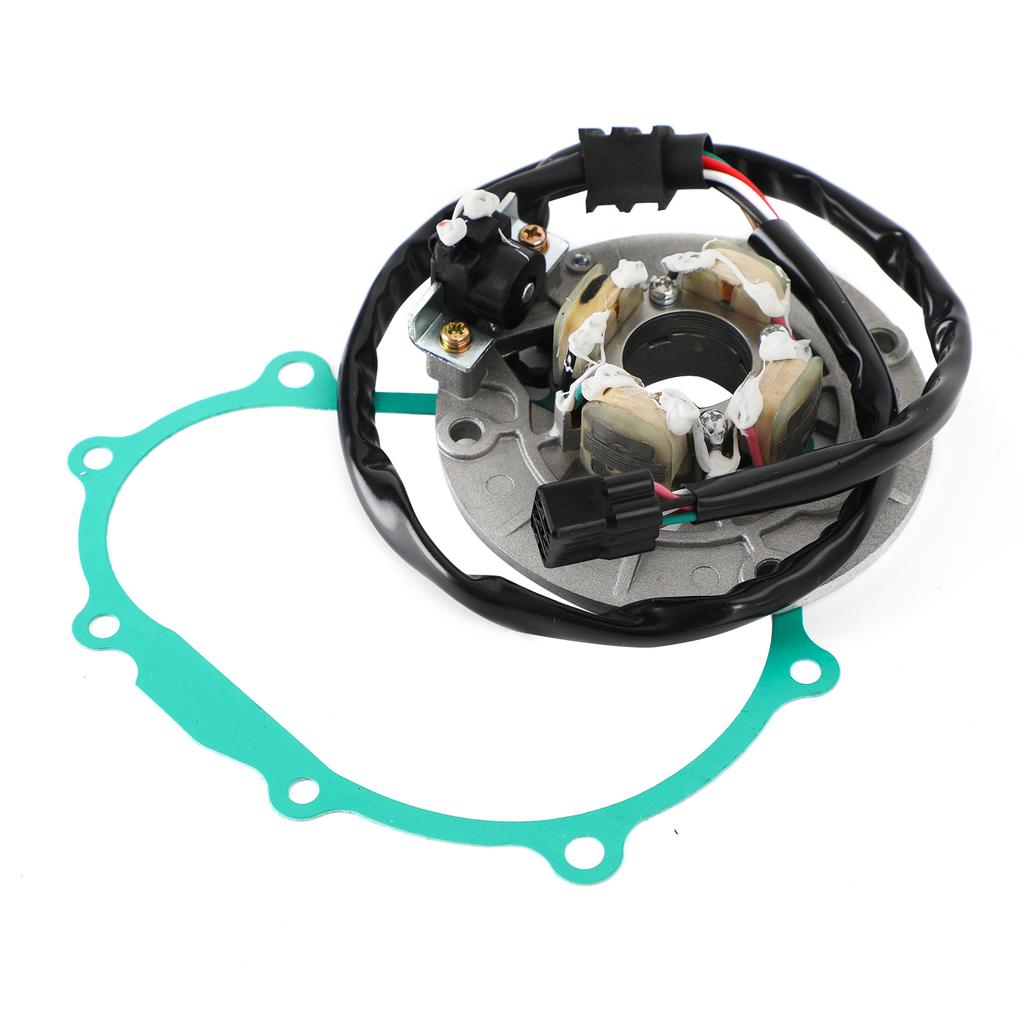

Magneto Coil Stator + Generator Gasket Assy For Yamaha YZ 250 F YZ250F 2001-2005
Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Gasket
Replacement Part Number:
Stator Assy: 5SF-85560-00, 5XD-85560-09
Gasket, generator cover: 5NL-15451-00
Fitment:
Fit for Yamaha YZ250F YZ250FN 2001
Fit for Yamaha YZ250F YZ250FP 2002
Fit for Yamaha YZ250F YZ250FR 2003
Fit for Yamaha YZ250F YZ250FS 2004
Fit for Yamaha YZ250F YZ250FT 2005
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

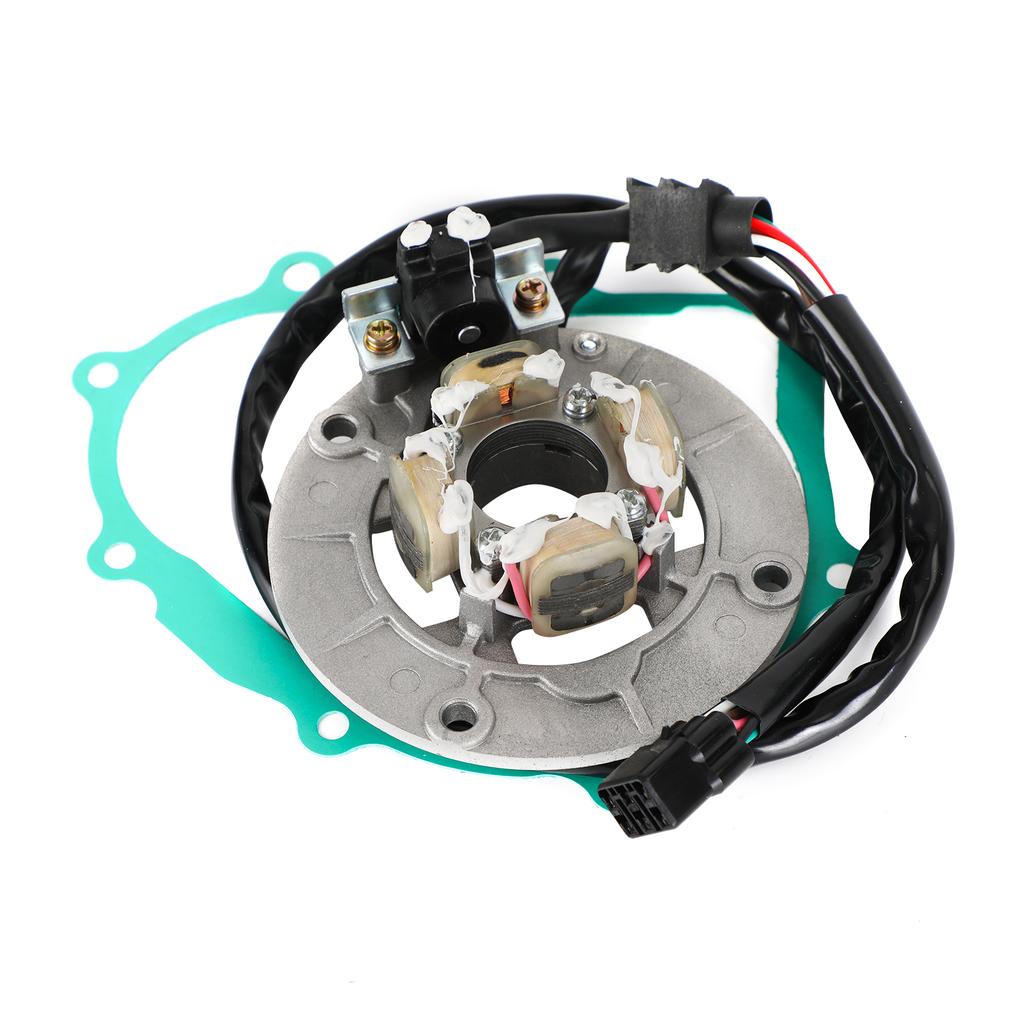

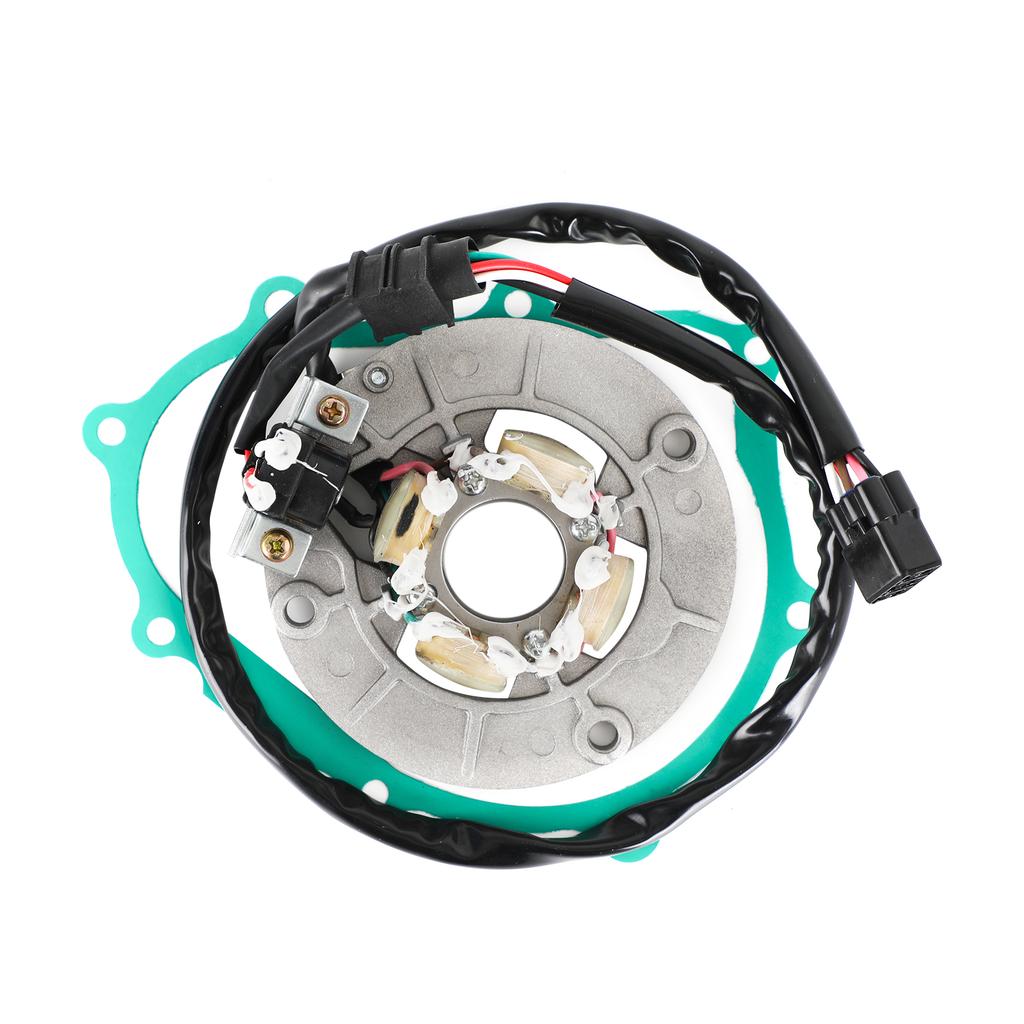

Package Includes:
1 x Stator Coil
1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

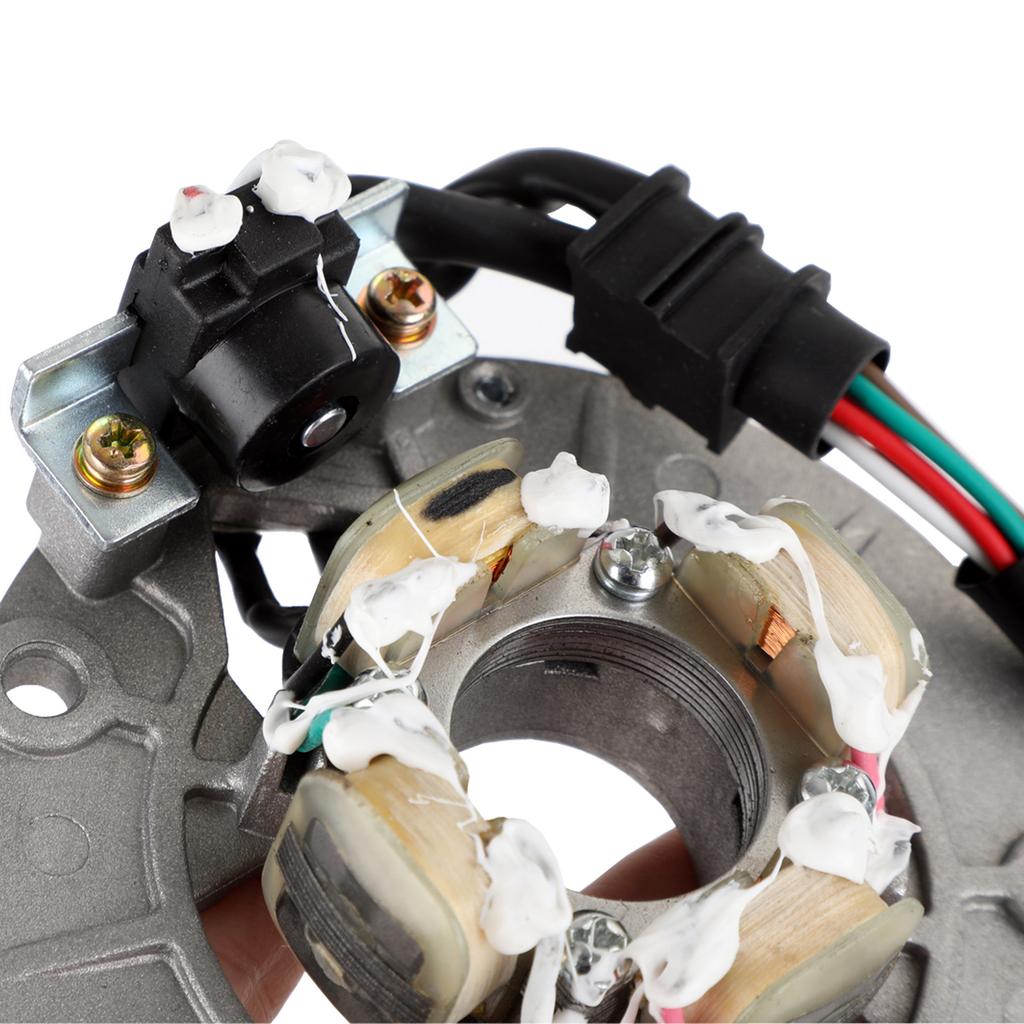

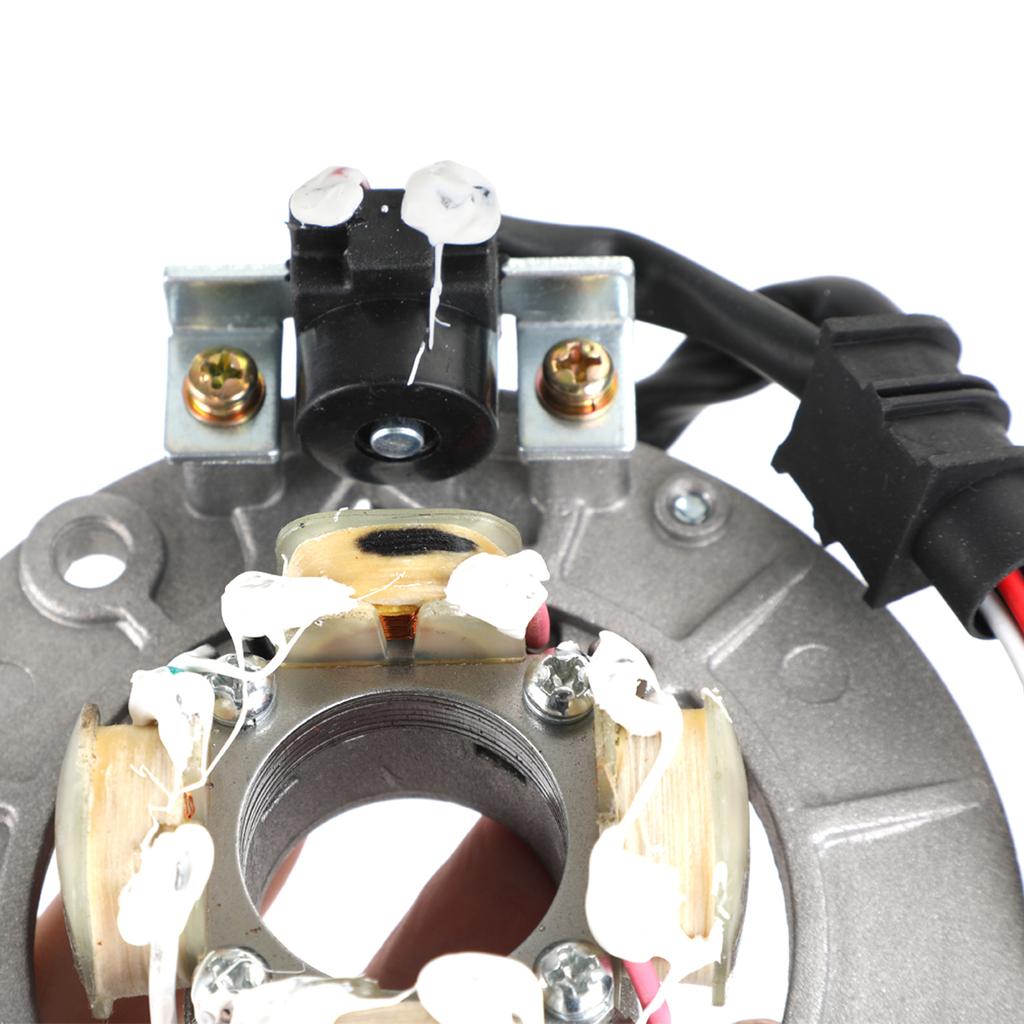

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
