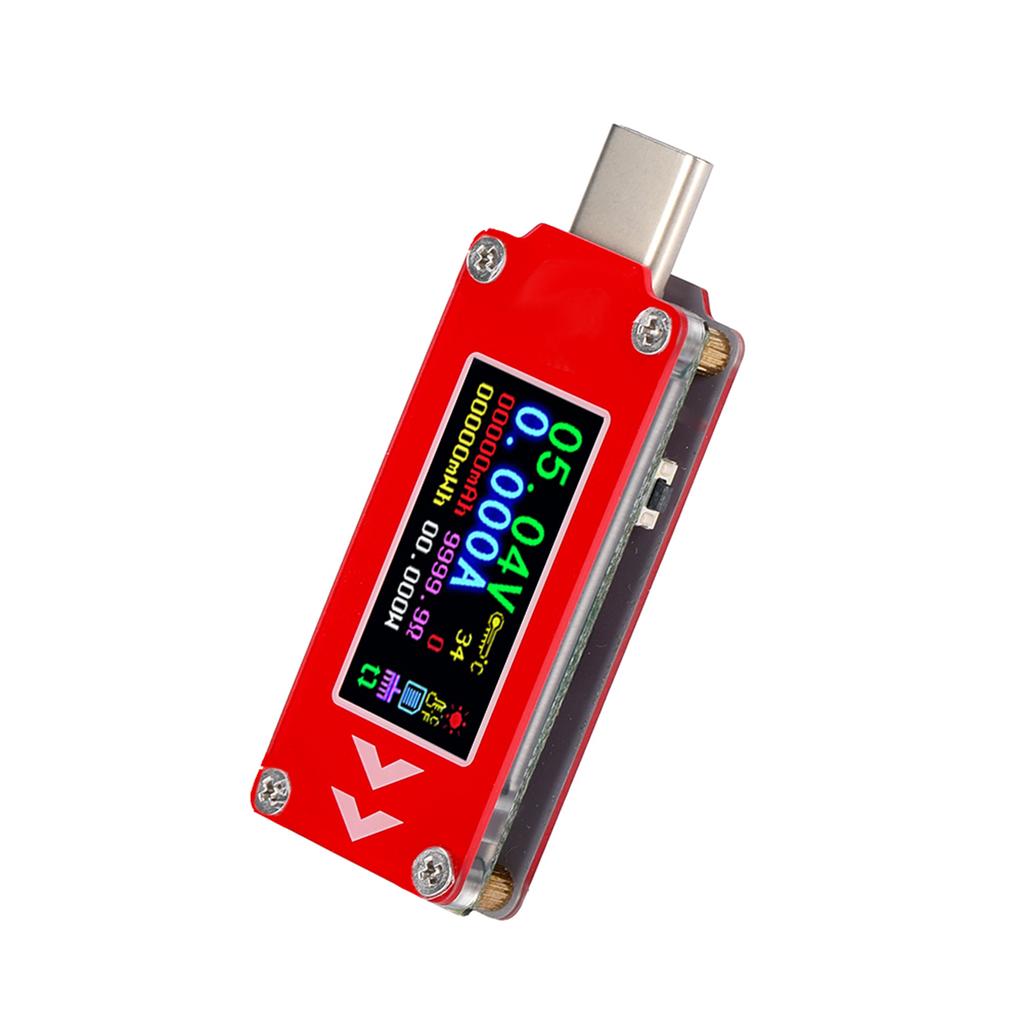

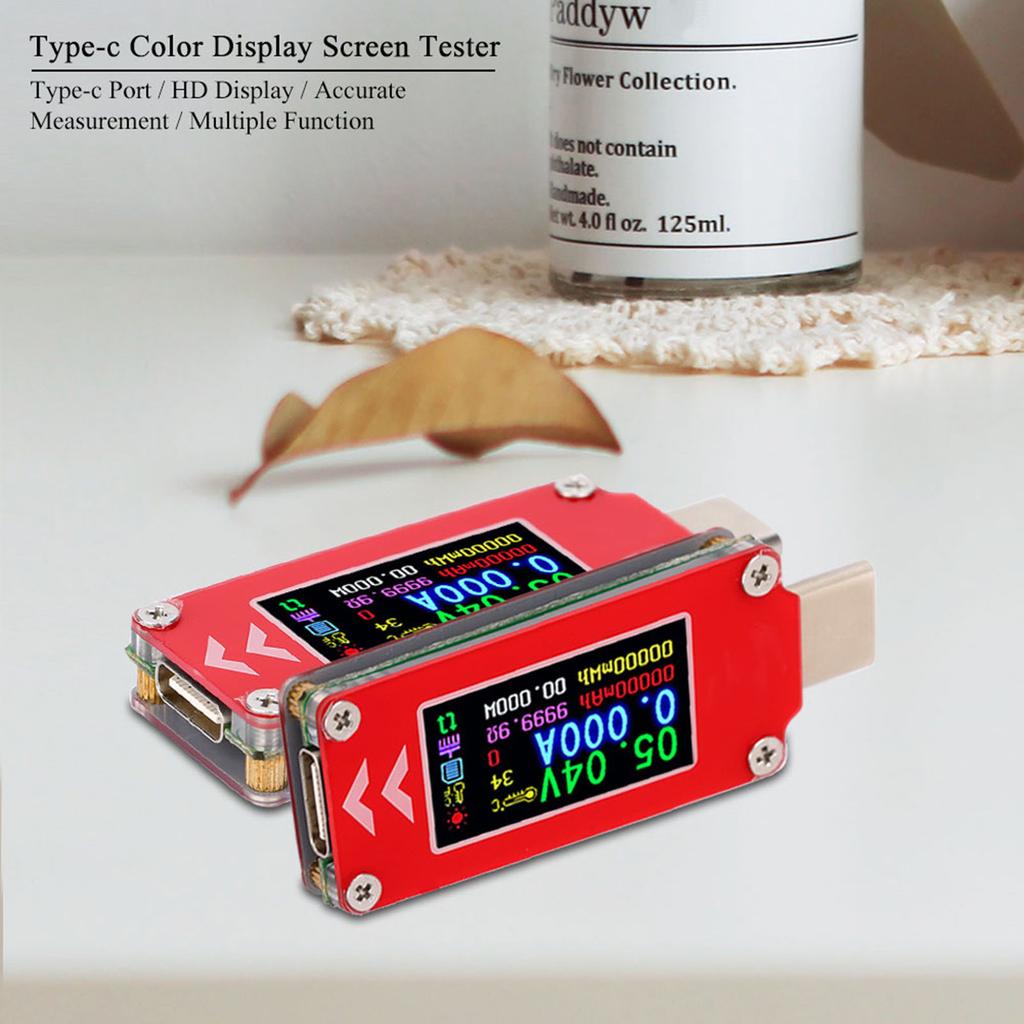

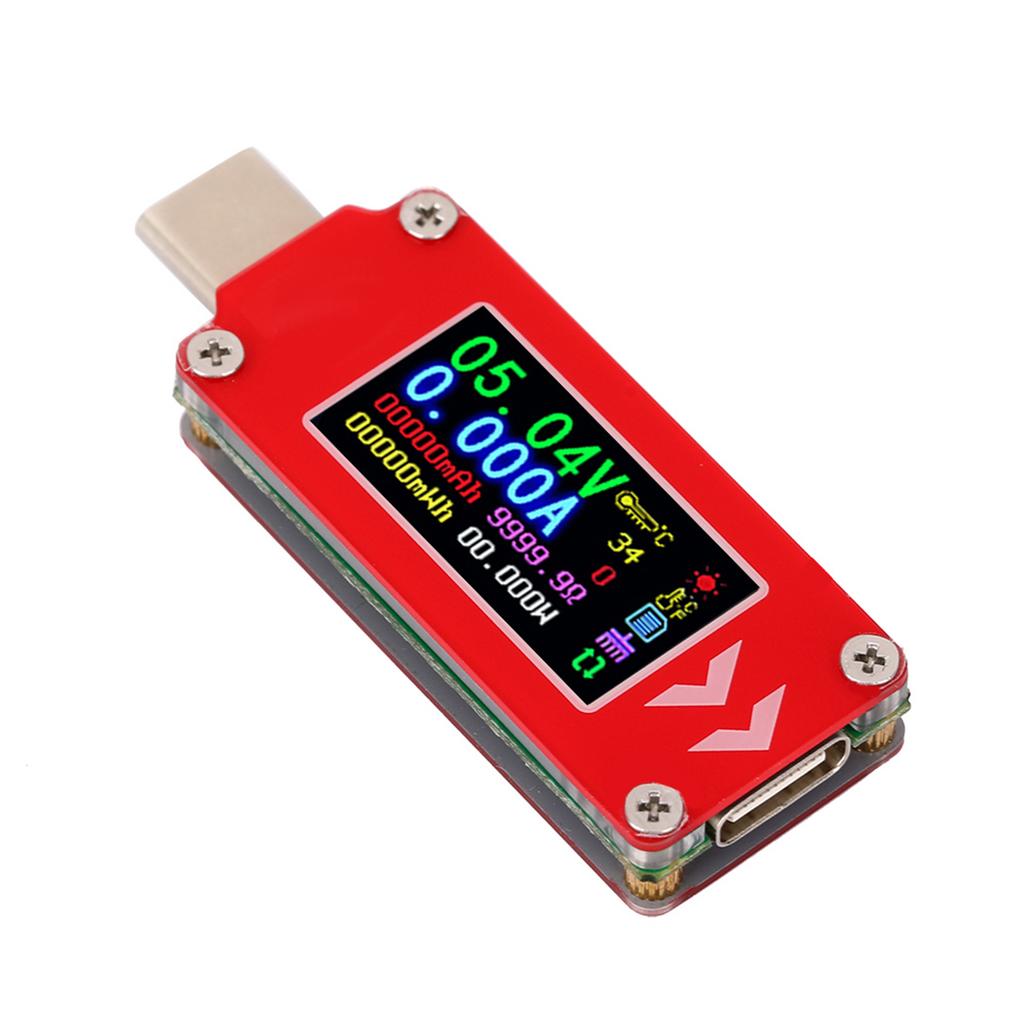

This charger
tester with Typec port can detect the charging information in real time. And
the charging parameters like voltage, current, capacity are clearly shown on

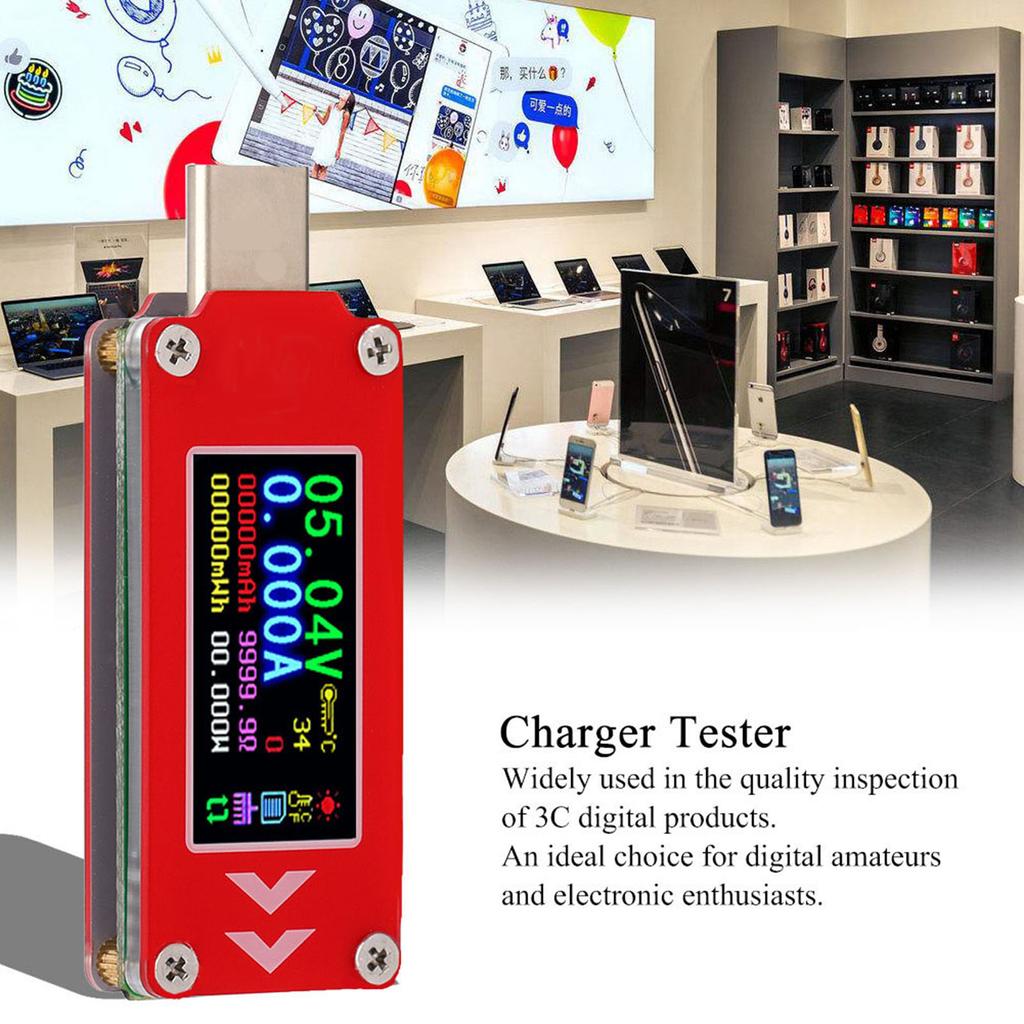

its color display screen. It can be widely used in the quality inspection of 3C
digital products. An ideal choice for digital amateurs and electronic
enthusiasts.
Features:

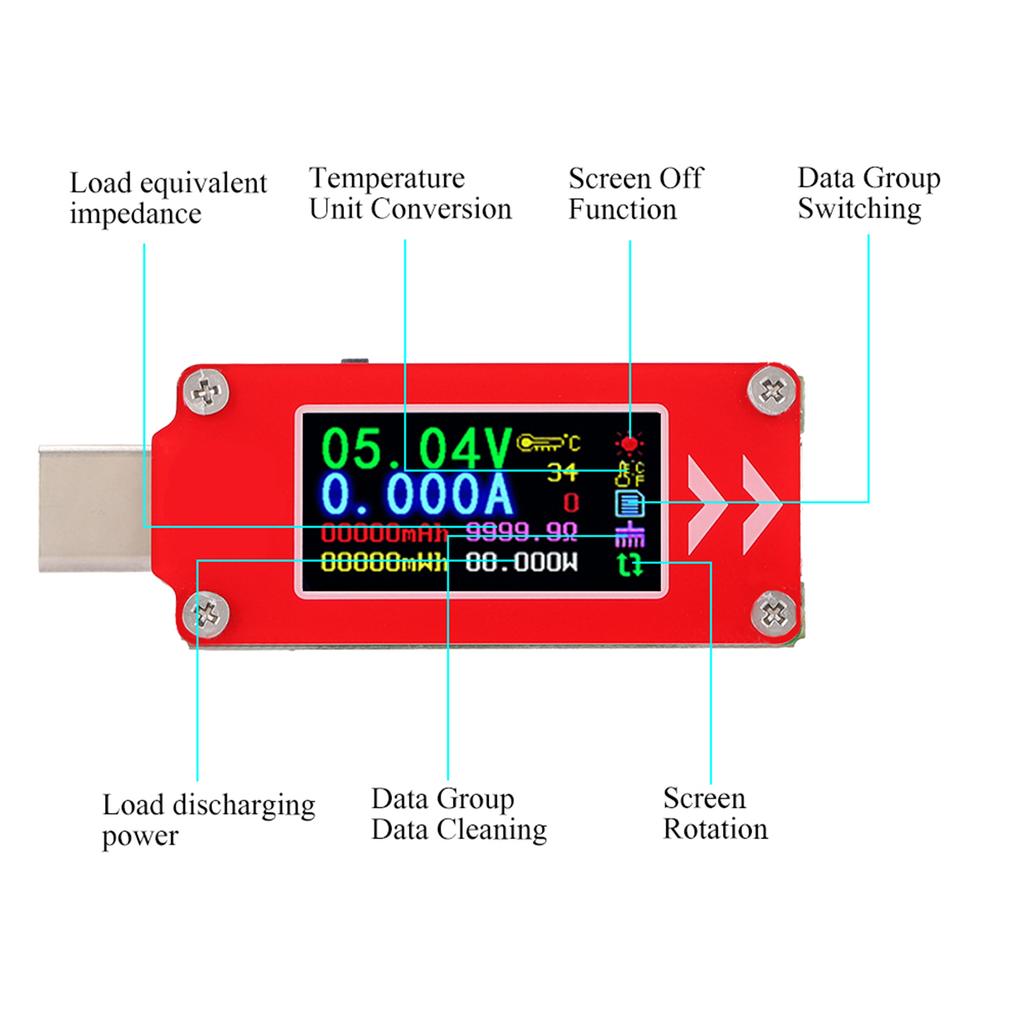

1. Function: Accurately detect voltage,
current, temperature, capacity and other charging information in real time to protect
charging device.
2. High accuracy and stability: Adopting
professional sampling circuit and precision algorithm ensures its accuracy and
stability at the hardware and software level.

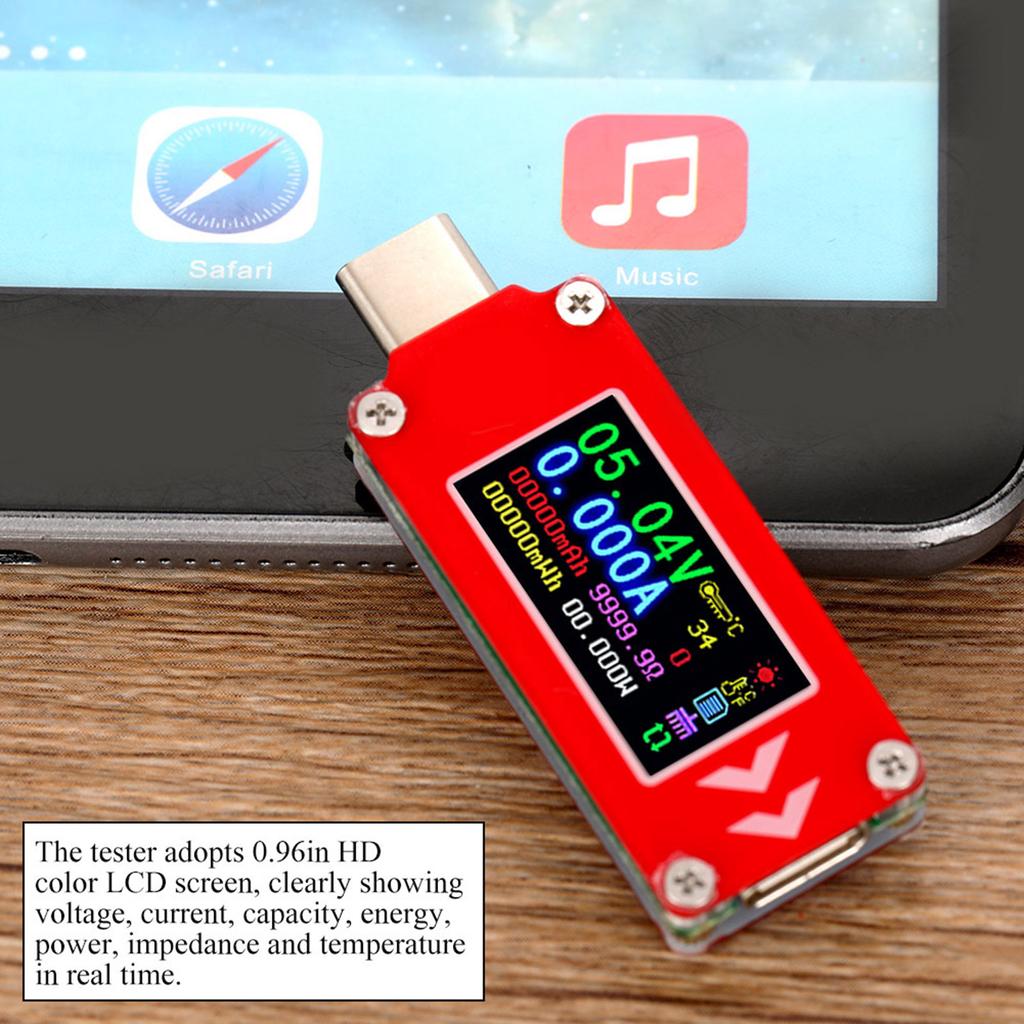

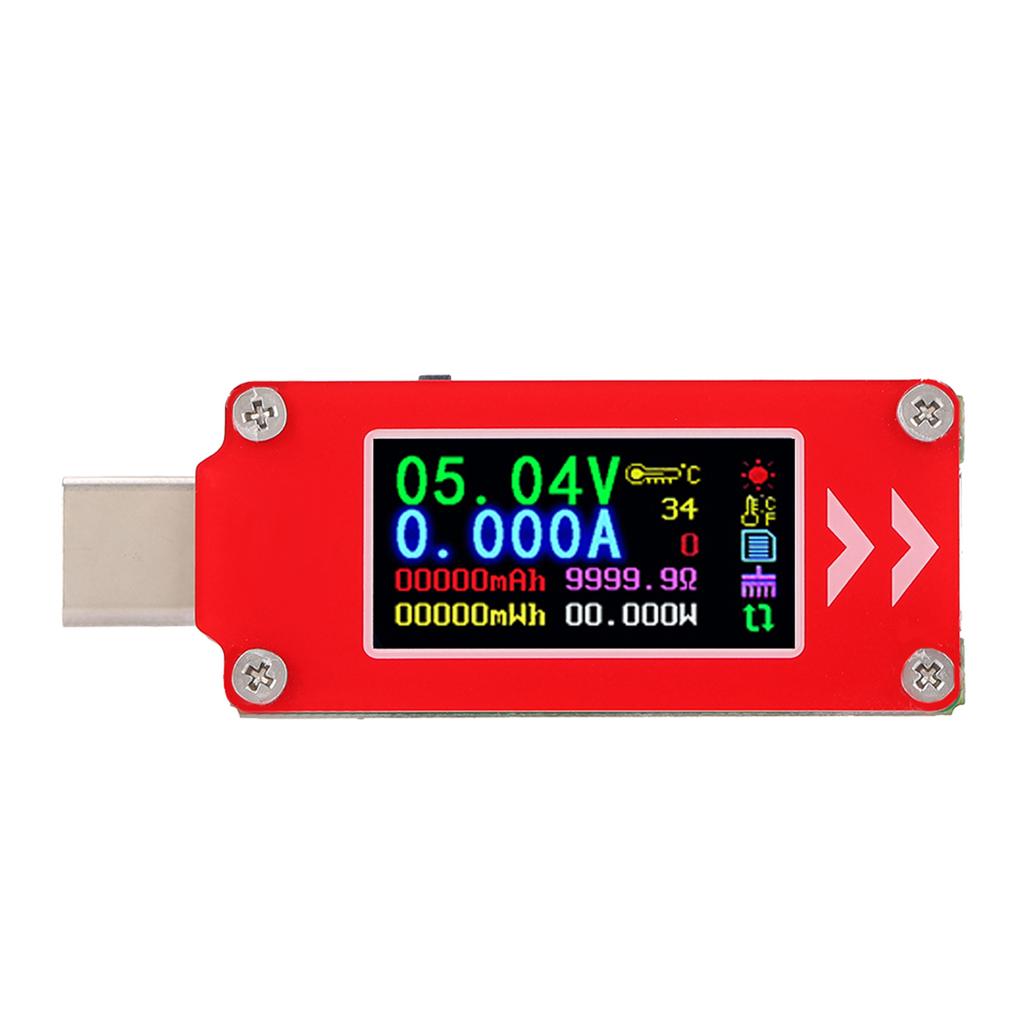

3. 0.96in HD color LCD screen: All charging information
are clearly and distinctively shown on the screen.
4. Wide application: Widely used in 3C digital products, such as mobile phone, laptop,
charger, power bank and more.
5. Wide compatibility: It supports identifying
multiple quick charge protocol for QC2.0, QC3.0, APPLE2.4A2.1A1A0.5A,
Android DCP and SAMSUNG.
Specification:
Model:TC64
Display screen: 0.96in color LCD display
Voltage measurement range:3.7030.00V
Voltage resolution: 0.01V
Voltage accuracy: +(0.8percent +4digits at 25 celsius )
Current measurement range: 04.000A
Current resolution: 0.001A
Current measurement accuracy: +(1percent +4 digits at 25 celsius )
Capacity accumulation range: 099999mAh
Energy simulation range: 099999mWh 999.99Wh
Load impedance range: 1 Ohm 9999.9 Ohm
Power measurement range: 0120W
Temperature measurement range: 0 celsius ~80 celsius 32 Fahrenheit ~176 Fahrenheit
Temperature error: +3 celsius +6 Fahrenheit
Working temperature: 0~45 celsius 32 Fahrenheit ~113 Fahrenheit
Refresh rate:2Hz
Product size: 51*20*10mm 2.01*0.79*0.39in
Weight: Approx. 21g0.7oz

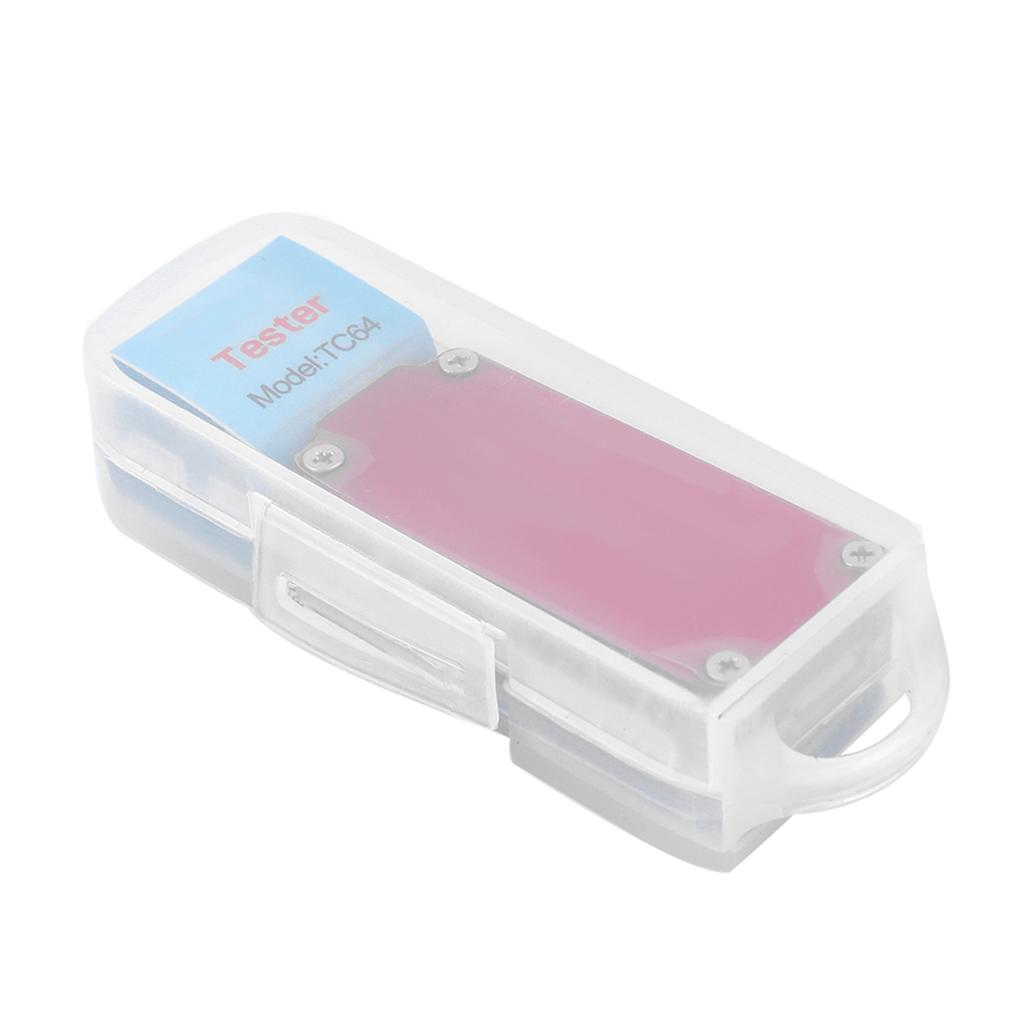

Package
list:
1 * TypeC Tester
Note:
1. The product current only flow from male connector to female
connector (oneway current), the reverse is still energized but the current is
shown to be 0.
2. If you use this meter to connect phone, you must have PD charger or
many converter cable.
3. Don"t support Typec identity resistance (no typec trigger).
