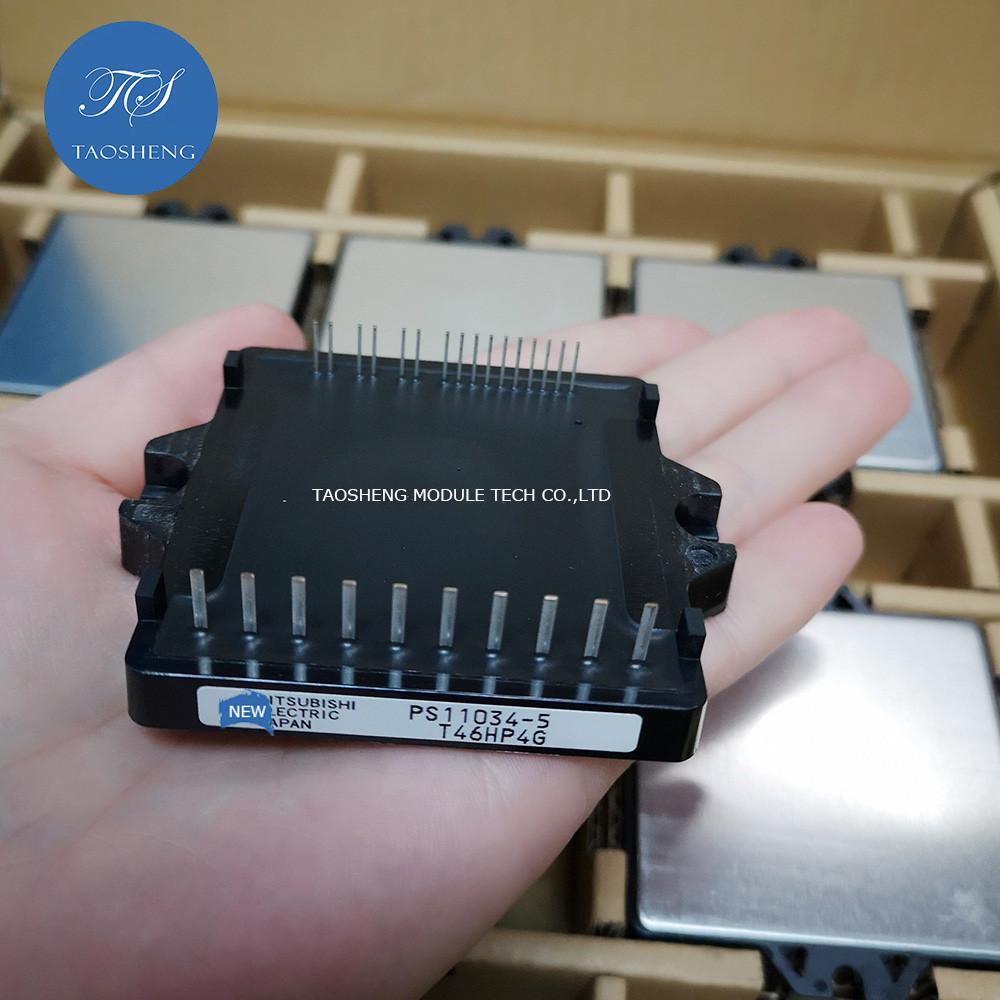

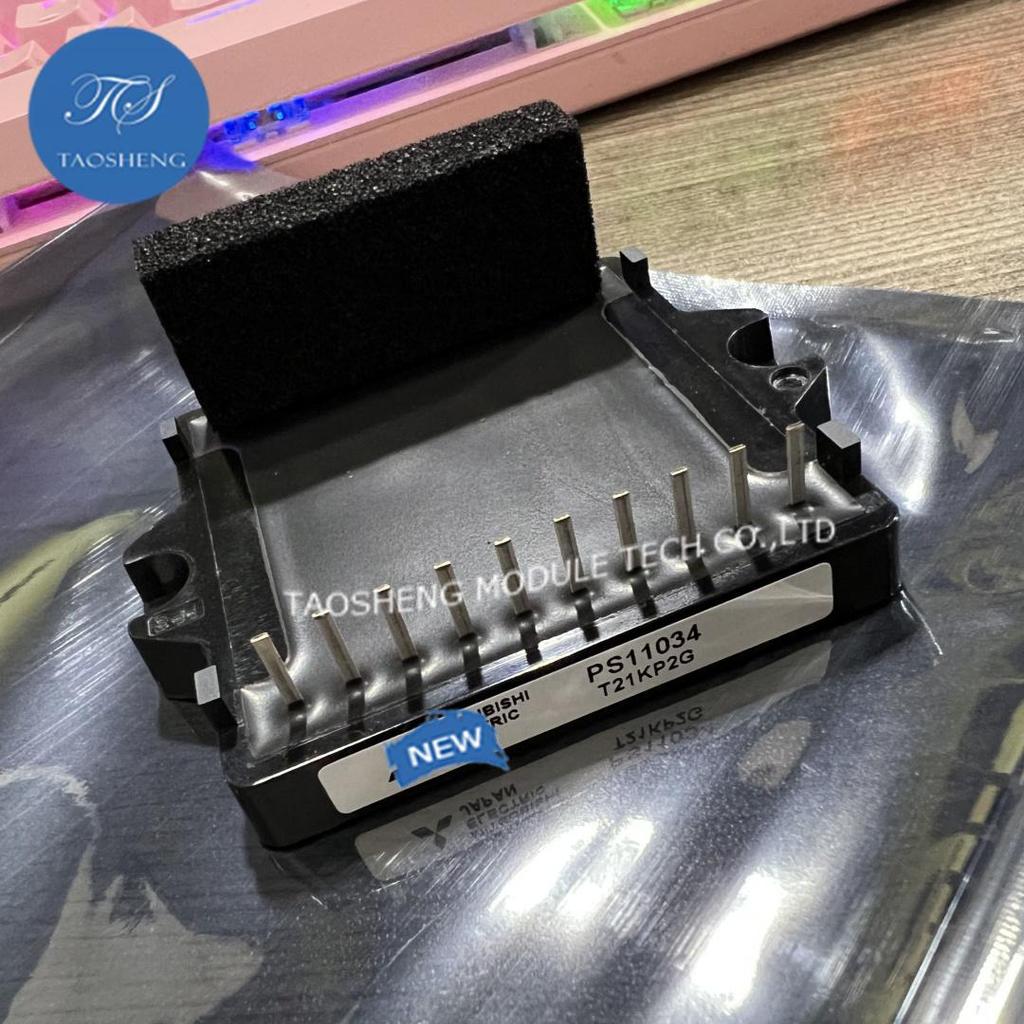

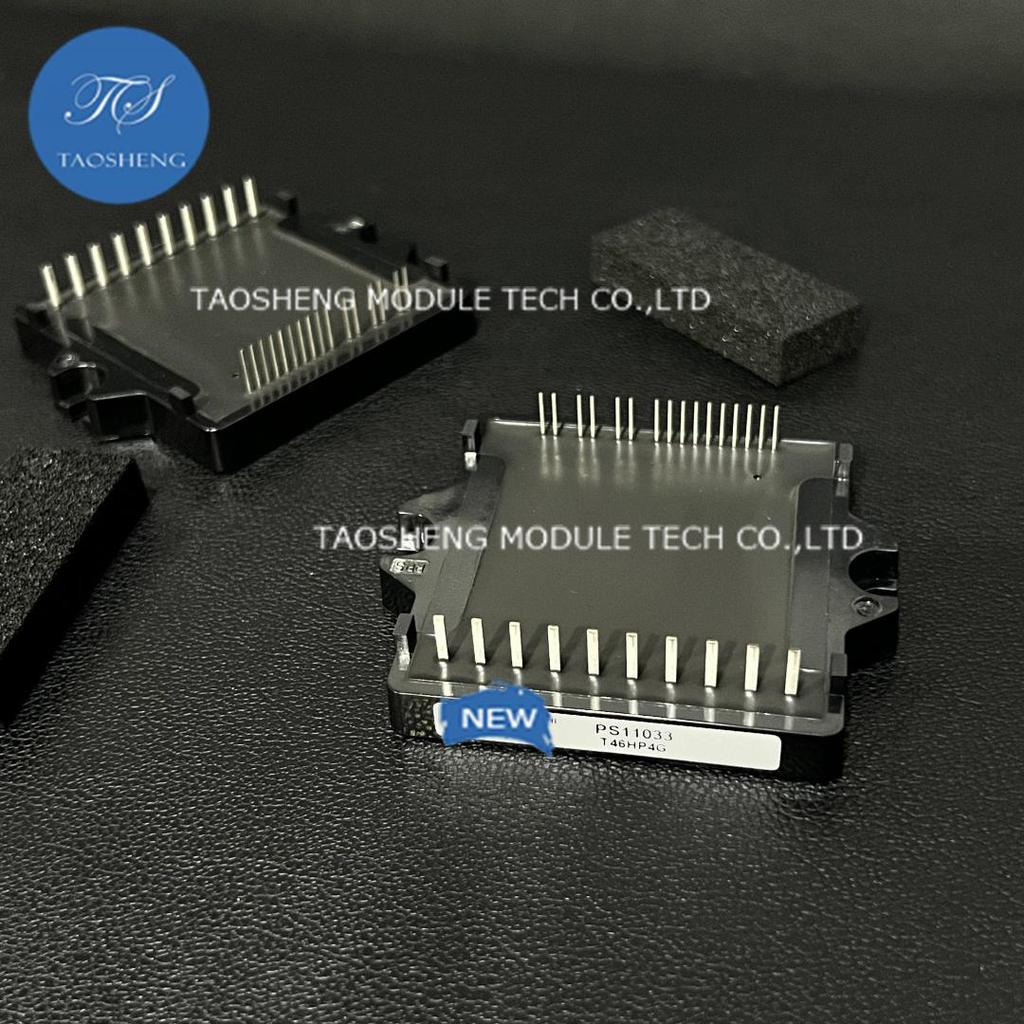

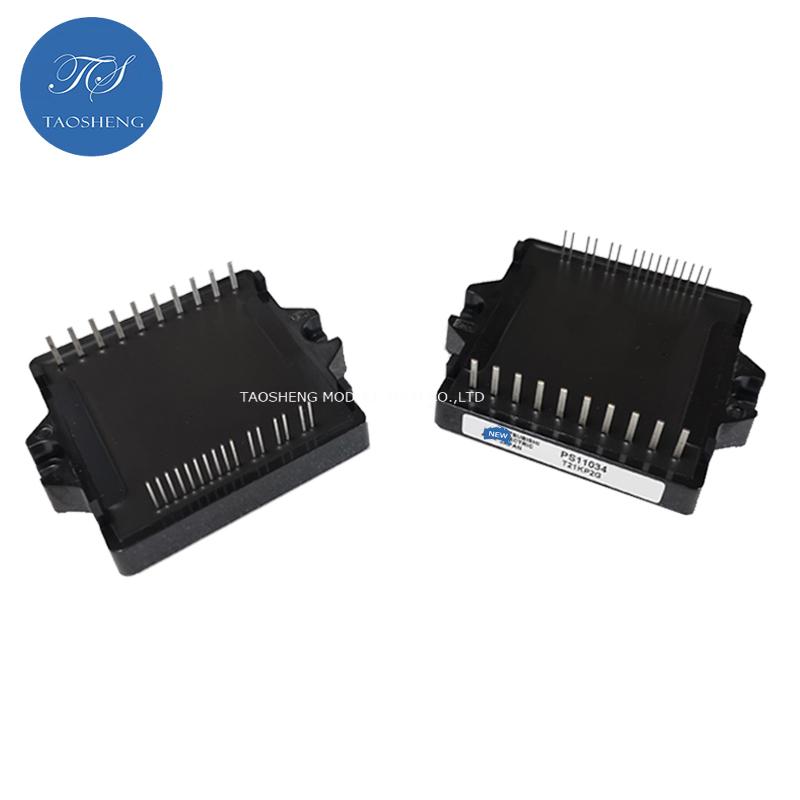

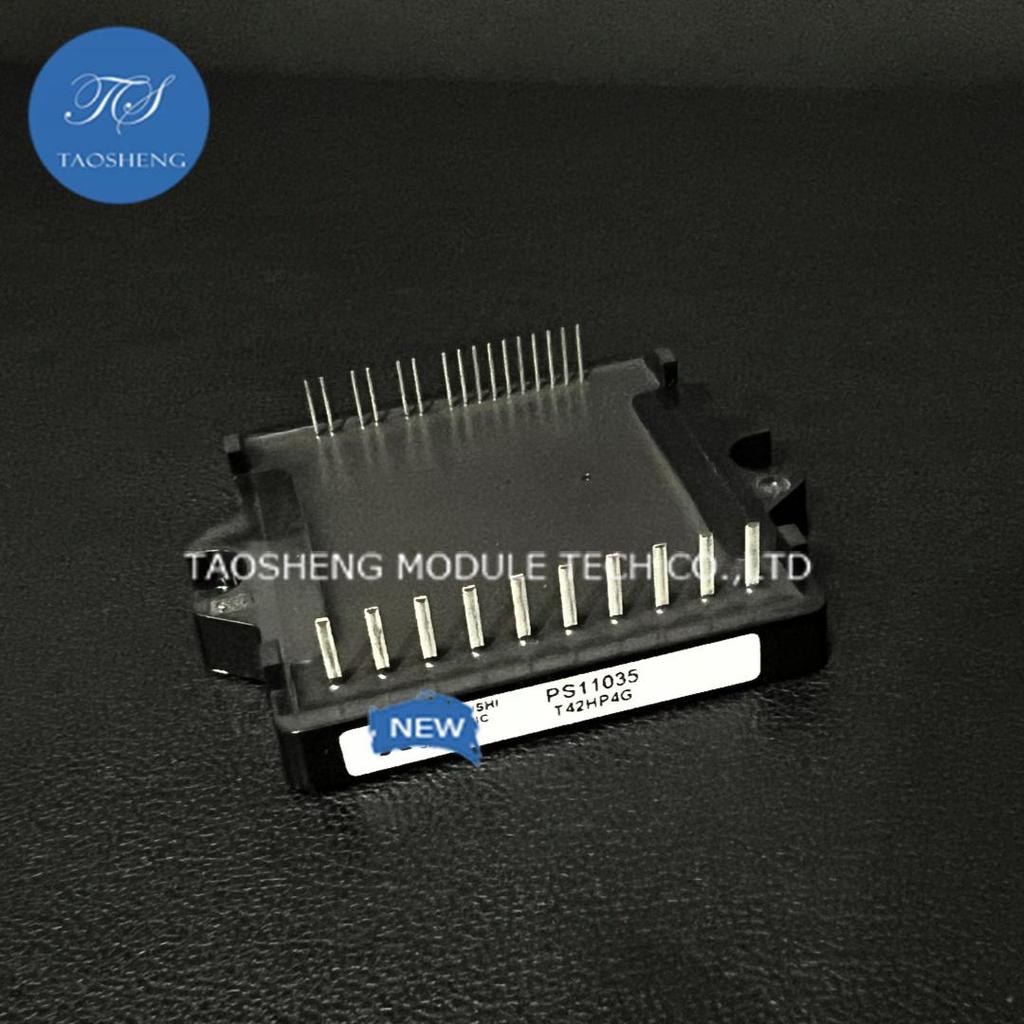

1PCS Original PS11033 PS11034 PS11035 PS11034-Y2 PS11034-Y1 PS11034-5 Module

[TAOSHENG] PS11033 PS11034 PS11035 PS11034-Y2 PS11034-Y1 PS11034-5 Product details:

INTEGRATED FUNCTIONS AND FEATURES • Converter bridge for 3 phase AC-to-DC power conversion. • 3 phase IGBT inverter bridge configured by the latest 3rd. generation IGBT and diode technology.

INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS: • P-Side IGBTs : Drive circuit, high-level-shift circuit, bootstrap circuit supply scheme for Single Control-Power-Source drive, and under voltage (UV) protection. • N-Side IGBTs : Drive circuit, DC-Link current sense and amplifier circuits for overcurrent protection, control-supply under-voltage protection (UV), and fault output (FO) signaling circuit. • Fault Output : N-side IGBT short circuit (SC), over-current (OC), and control supply under-voltage (UV). • Inverter Analog Current Sense : N-Side IGBT DC-Link Current Sense. • Input Interface : 5V CMOS/TTL compatible, Schmitt Trigger input, and Arm-Shoot-Through interlock protective function.

APPLICATION

Acoustic noise-less 0.75kW/200V AC Class 3 phase inverters, motor control applications, and motors with built-in small size inverter package
