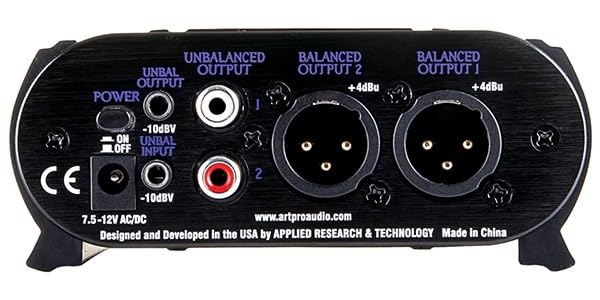

ART 2CH Level Converter Clean Box Pro

Ships from Japan -Balanced XLR input/output -RCA & 1/8" mini phone unbalanced inputs and outputs - Unbalanced output level control -Balanced output level control - Highly durable aluminum case Although compact, CLEANBoxPro can convert 2-channel line signals from consumer to professional level, and from unbalanced to balanced. Balanced signals minimize the influence of external noise even when using long cables, allowing you to connect audio equipment with higher quality. The unbalanced RCA and mini phone inputs are connected in parallel and are converted to XLR balanced output. Conversely, professional balanced signals can also be converted to consumer unbalanced signals. In this case, the balanced signal input to the XLR is output as an unbalanced signal from the RCA and mini phone. A level control is also provided so that the signal level can be optimally adjusted. Features -Balanced XLR input/output -RCA & 1/8" mini phone unbalanced inputs and outputs - Unbalanced output level control -Balanced output level control - Highly durable aluminum case -Lighted On/Off switch ・AC adapter included -Low noise and low distortion circuit Specifications ・Frequency Response: 20 Hz – 20 kHz, ± 1 dB ・Total Harmonic Distortion: ＜ .01% @ 1kHz ・Signal to Noise Ratio: ＞ 90 dB ・Common Mode Rejection Ratio: ＞ 40 dB ・Input Impedance: ◦ Balanced - 20k Ohms

◦ Unbalanced - 100k Ohms ・Output Impedance: ◦ Balanced: 100 Ohms

◦ Unbalanced: 300 Ohms ・Maximum Gain:

◦ Balanced to Unbalanced: -6 dB

◦ Unbalanced to Balanced: +21 dB ・Maximum Input Level: +21 dBu ・Maximum Output Level: ◦ Balanced: +21 dBu ◦ Unbalanced: +15 dBu ・Power: 7.5-12V AC/DC, ＜ 150mA ・Dimensions (DxWxH):47 x 117 x 109 (mm) Weight: 0.50 kg
