P1503B Soft Probes with Set of Needles, Terminals, Crocodiles, Plugs 1,2m 1000V/20A for Tester (multimeter)

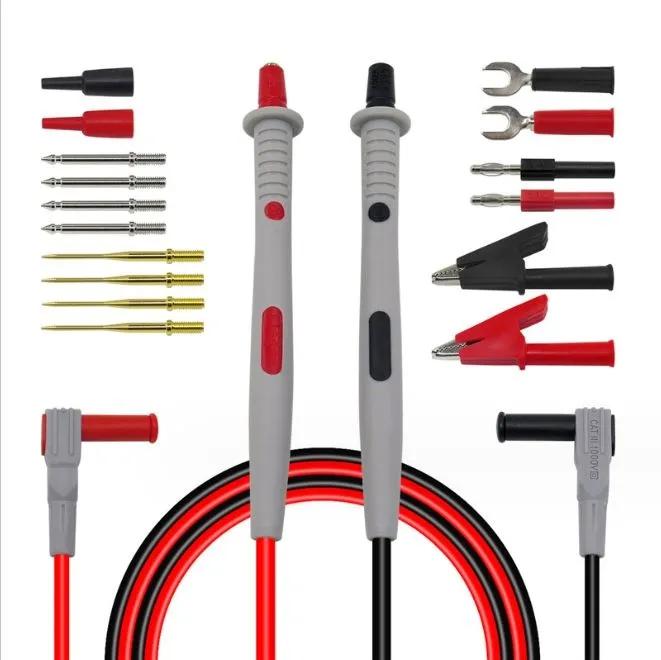

P1503B - Soft probes 1.2m with interchangeable set of needles (2 pairs of sharp, 2 pairs of regular), crocodiles, terminals, plugs, Cleqee The probes are designed for all types of multimeters and current clamps. The set includes 4 pairs of interchangeable needles - 2 pairs of sharp, 2 pairs of standard, terminal blocks, crocodiles, plugs. Sharp needles allow you to pierce the insulation of wires. The colour of the probes is grey.

The material of the wires is very soft, almost like silicone. The thickness of the wires is 4mm, which affects the reduction of resistance. For example, the silicone styli labelled 20AWG have a thickness of 3.1mm and a resistance of 0.03 to 0.05 ohms per wire. The resistance of the 1st wire of the P1503 styli is 0.015 Ohm (measured with a UT61E+ which has an intrinsic resistance of 0.06 Ohm, with two styli - 0.09 Ohm).

Safety class: CAT III 1000V/ 20A.

Wire length 103.5 cm

Total length 120 cm without needles

Probe length 125 mm without needles,

tips (needles): 33mm and 25mm

Plug shape: at right angles

Plugs insulated, spring loaded

Weight with packaging: 115g
