Is Smart Device :no
Origin :China
Dimensions :30x12x3cm
Model Number :lf08d
Output Power :65w
Input Voltagle :9V-20V
Output Temperature :450c
Brand Name :lefavor
Temperature Stability :+/-5C
Certification :CE,FCC
1. Foreword

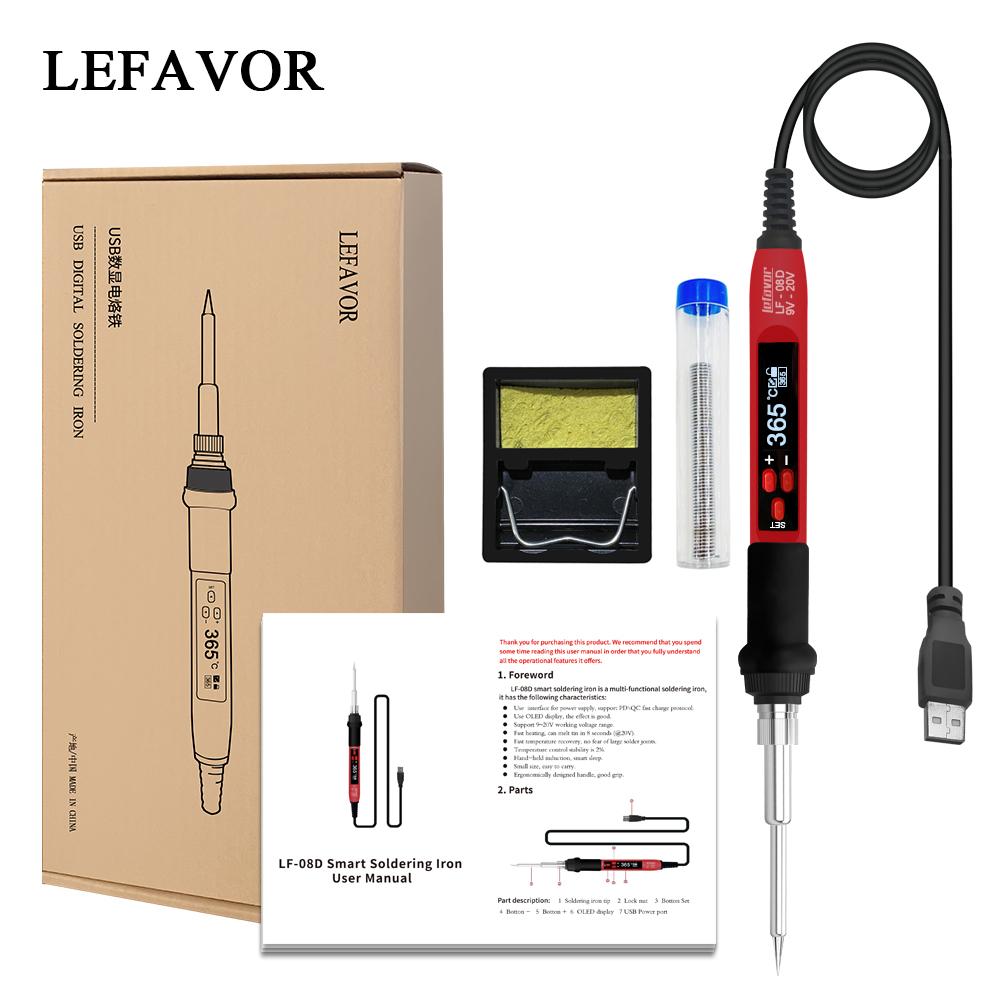

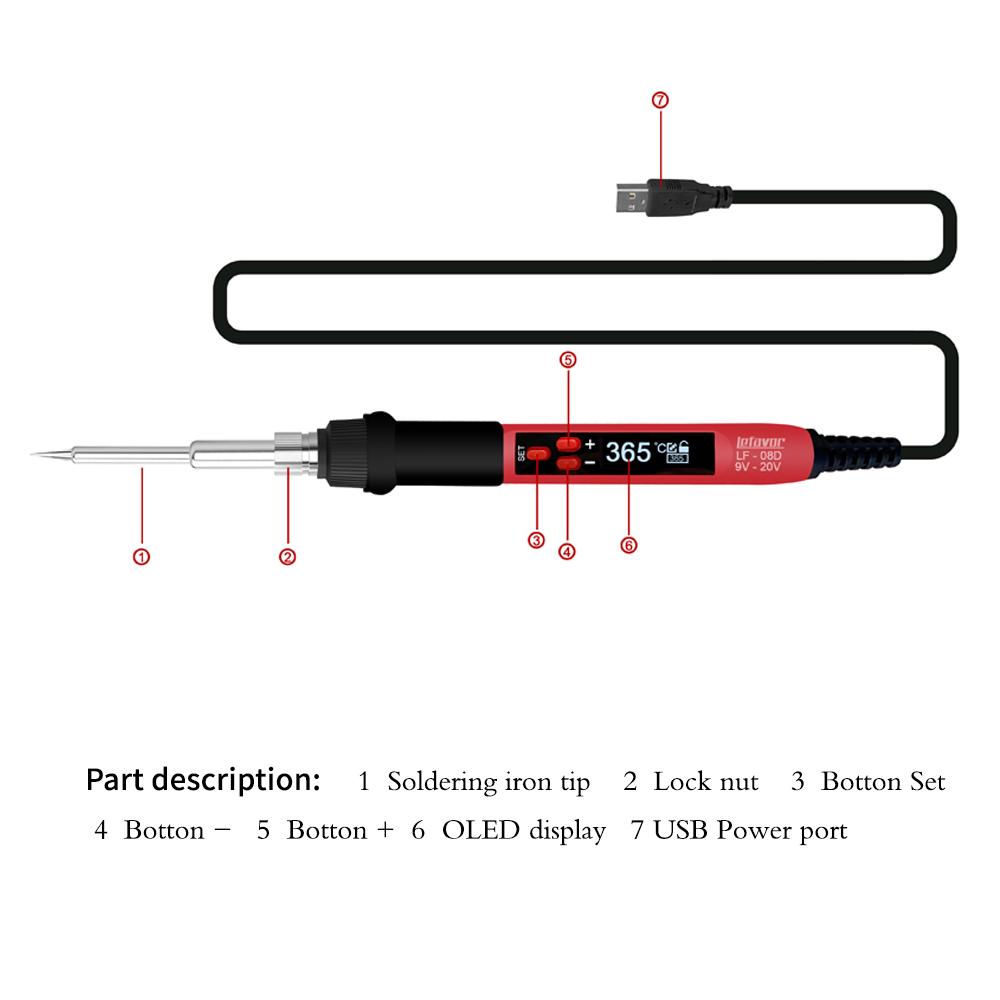

LF-08D smart soldering iron is a multi-functional soldering iron, it has the following characteristics:
Use interface for power supply, support PD\QC fast charge protocol.
Use OLED display, the effect is good.
Support 9~20V working voltage range.
Fast heating, can melt tin in 8 seconds (@20V).
Fast temperature recovery, no fear of large solder joints.
Temperature control stability is 2%.
Hand-held induction, smart sleep.
Small size, easy to carry.

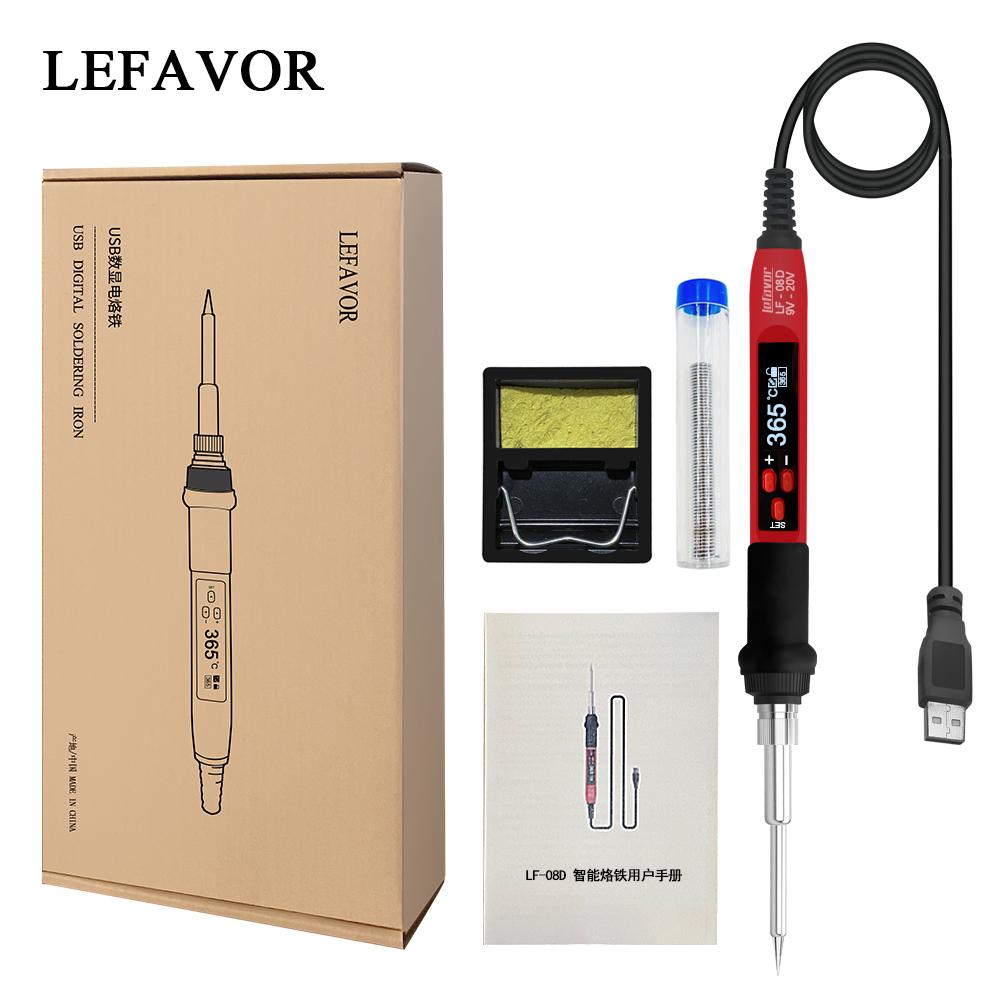

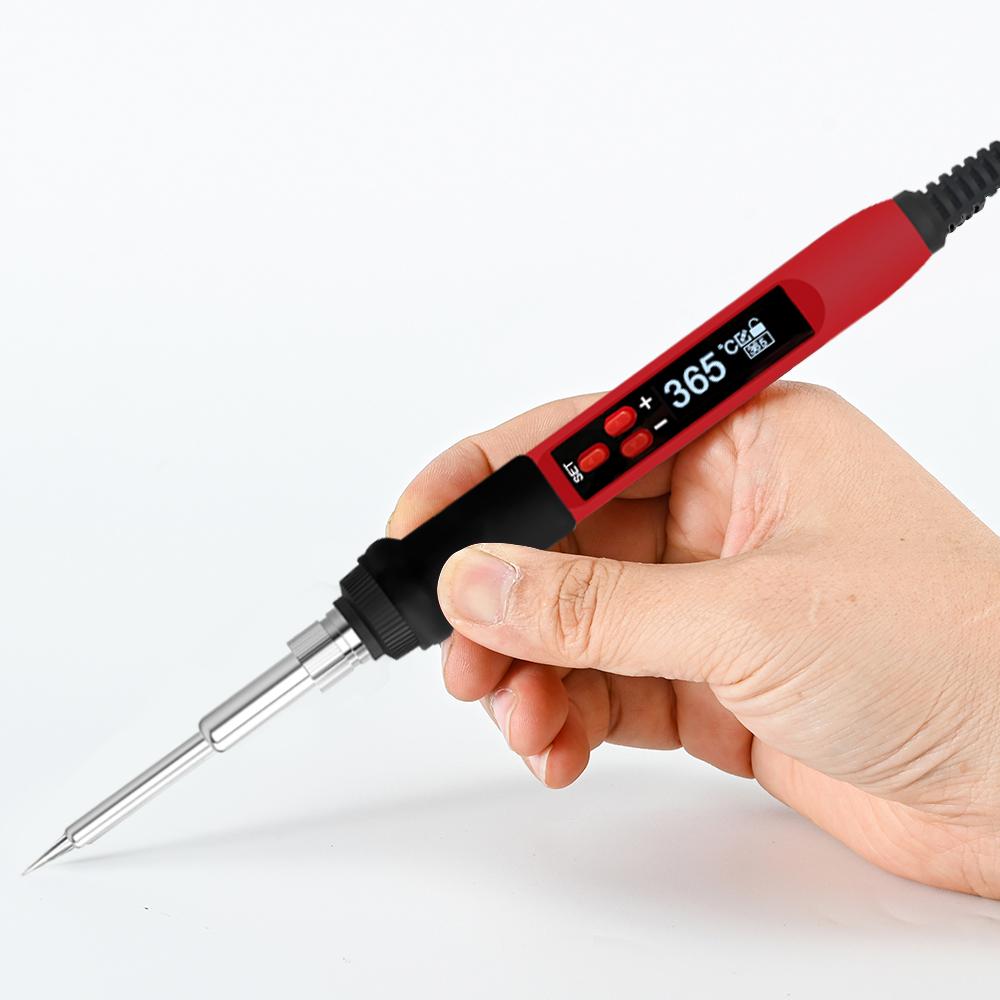

Ergonomically designed handle, good grip.
2.Specifications
Max power:65W

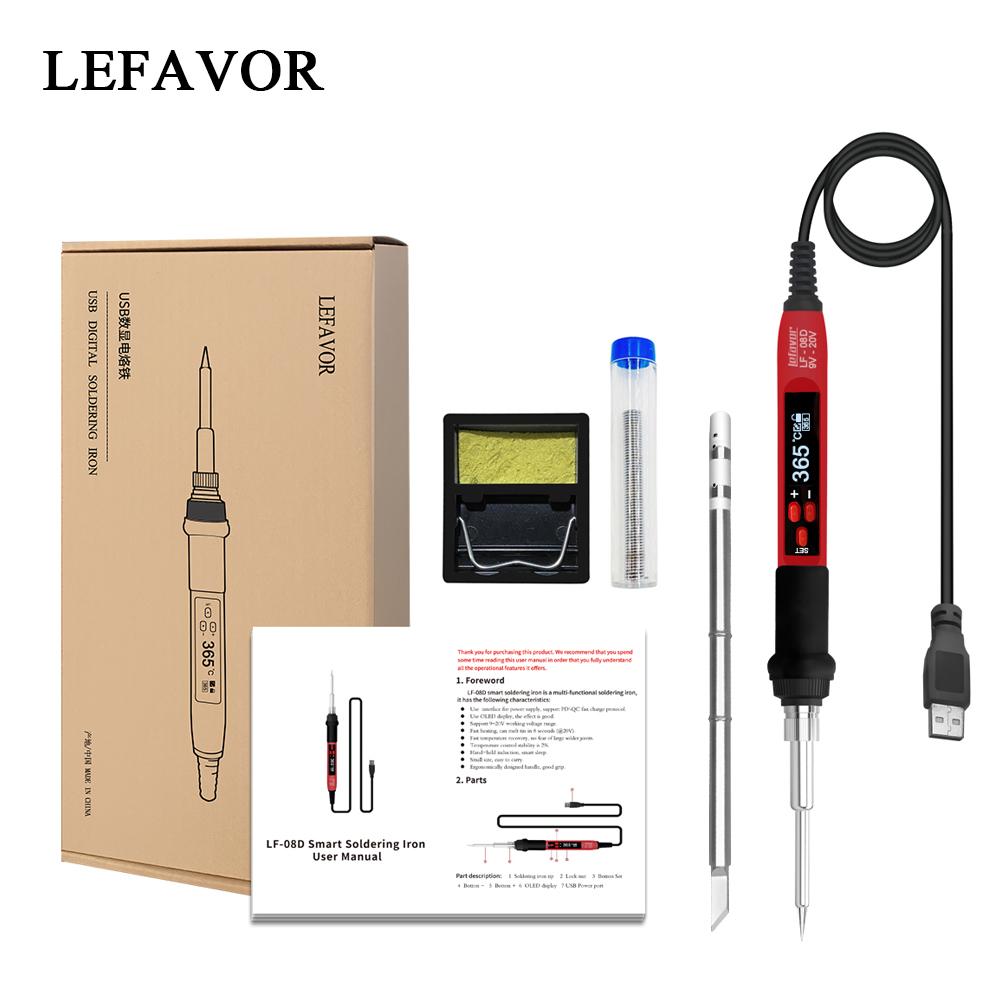

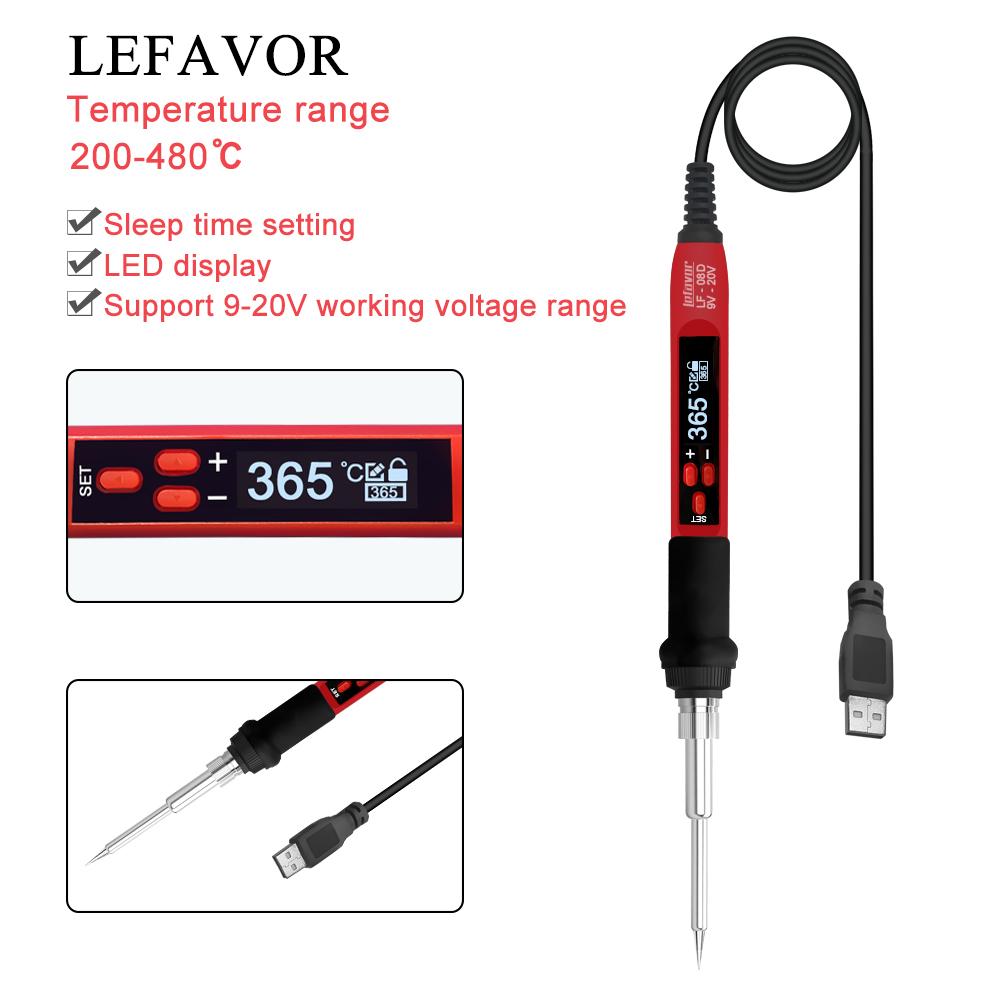

Temperature Range:200~480°C
Power port:USB
Operating voltage range:DC 9~20V
Screen:0.87’OLED(128*32Pixel)
3.Power adapter selection
Using PD\QC fast charge protocol power adapter, LF-08D smart soldering iron can be set to obtain any
operating voltage of 9V\12V\15V\20V from the adapter (the default setting is 20V). Under different working
voltages, the working current, power and tin time reference table is as
follows:
Voltage
Current
Power
Tin melting
time
20V
>=3.25A
65W
8S
15V
>=2.5A
37.5W
12S
12V
>=2A
24W
17S
9V
1.5A
13.5W
30S
Notice:
Can not start the soldering iron below 9V
4.Menuitemdescription
There are 8 items in the menu.The definition,factory value and adjustable range of each item are shown in the table below:
Long press the SET button for 3s to enter SETTING mode
1. Sleep time setting:default 10 minutes, 1-60 minutes adjustable
2. shutdown time setting:default 20 minutes ，1-60 minutes adjustable
3. Step adjustment setting:default 5℃, 1-10℃ adjustable
4. Unit switch setting:℃/℉
5. Language setting: Chinese/English
6. Temperature calibration:Press “+/-” button to adjust the setting temperature. ,then long press SET key for 3s to Save and automatically return to the user interface.
7. Temperature classification:on off
8. If you open the temperature bins, there are three levels to choose from, the default one:300℃, the level 2 :380℃, level 3:430℃, and the temperature can also be set by yourself.
9 :Restore the default:on off
Temperature lock function:long press the SET button for 5 seconds, the temperature will be locked at the current set temperature, press other buttons without response, if you need to unlock , long press SET button for 5 seconds
Note:
①Temperature calibration method:in working condition, set the target temperature to 350℃, use the soldering iron thermometer to measure the actual temperature after the temperature is stable, record the difference between the target temperature and the actual temperature (the value can be positive or negative), and then enter the menu Fill in the difference in this item.
5.For more product introduction, please see the manual, Chinese,
English, Russian
