Features:

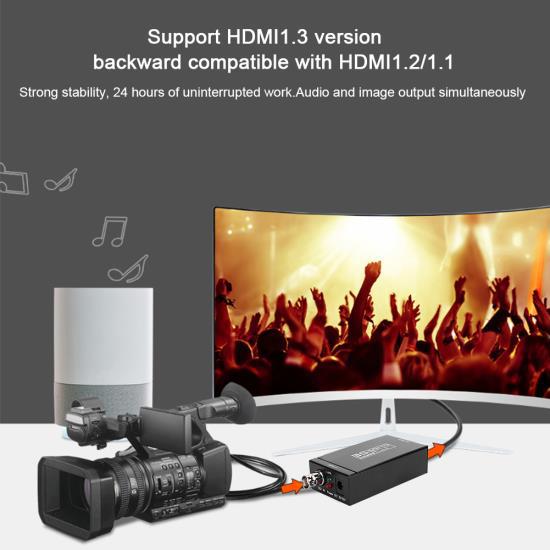

1. Support HDMI1.3 version, backward compatible with HDMI1.2/1.1.

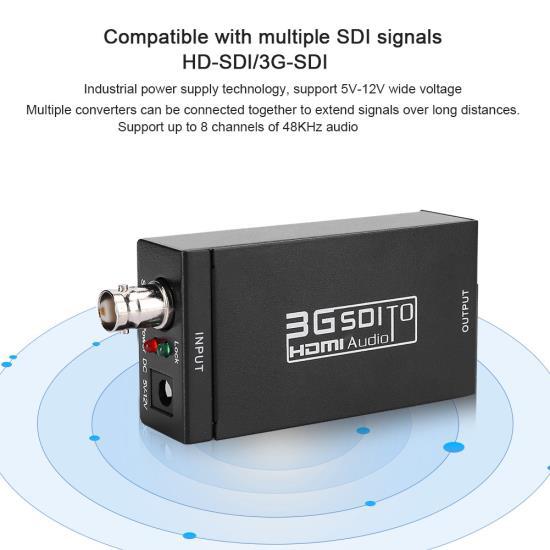

2. Compatible with multiple SDI signals: HD-SDI/3G-SDI.

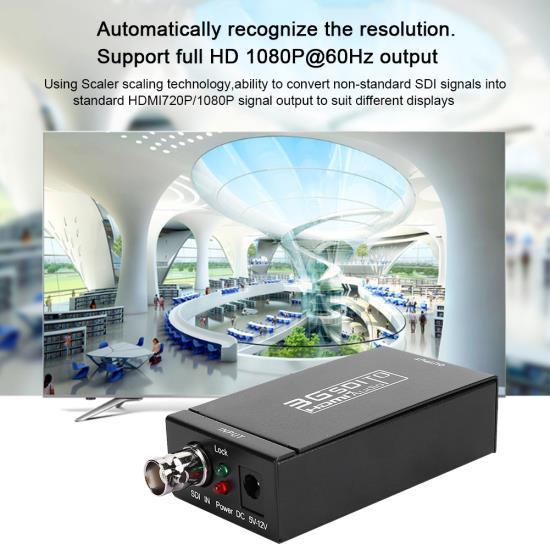

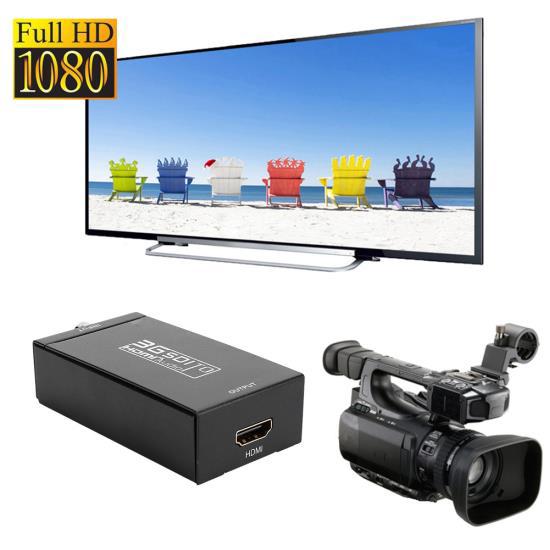

3. Industrial power supply technology, support 5V-12V wide voltage.
4. Automatically recognize the resolution. Support full HD 1080P@60Hz output.
5. Multiple converters can be connected together to extend signals over long distances. Support up to 8 channels of 48KHz audio.
6. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C, audio and image output simultaneously.
7. Using scaling technology. Ability to convert non-standard SDI signals into standard HDMI720P/1080P signal output to suit different displays.
8. First-class output effect, fully meet the professional requirements of broadcast rooms and nonlinear editing systems, strong stability, 24 hours of uninterrupted work.
Specification:
Conditon: 100% Brand New
Item Type: SDI to HDMI Converter
Material: Metal
Color: Black
Model: AY30
Size: Approx. 4.1 x 8 x 2.5cm/1.6 x 3.1 x 1.0in
Product Shell: Metal iron shell
Input Voltage: DC5V-12V
Maximum Pwer Consumption: 5W
Working Temperature: 0℃-40℃/32°F-104°F
Storage Temperature: -20℃-60℃/-4°F-140°F
Relative Humidity: 20-90%RH (no condensation)
ESD Human Body Protection Model: ±8kV (air discharge), ±4kV (contact discharge)

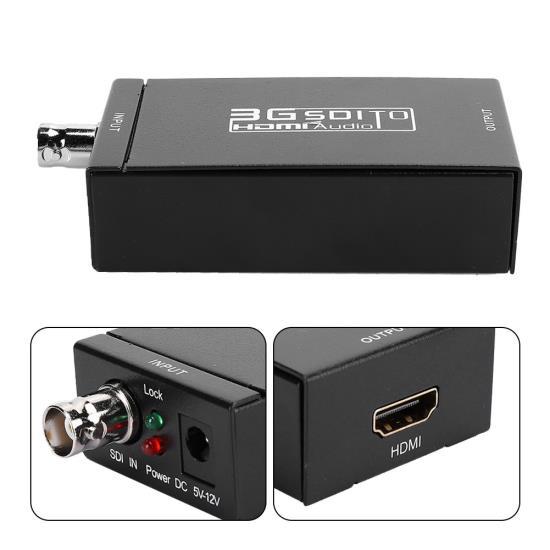

Input Interface: BNC (SD-SDI/HD-SDI/3G-SDI)
Output Interface: HDMI
SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
Input/Output Resolution:
480i,576i,720p@50/59.94,60.1080i@50/59.94/60.1080p@23.97/24/25/29.97/30/50/59.94/60
Package List:
1 x Host
1 x Instruction
1 x Power
