Feature:
*The rotating contact is gold-gold, and the precious metal contact ensures an extremely long working life;
*for 360° smooth and unlimited rotation fully meets image and data transmission;
*Complete product range, customized products according to customer needs;
*Suitable for PTZ, electrical test equipment, rotary table, equipment, CCTV security monitoring equipment, robot , exhibition / display equipment, manufacturing and processing control equipment, small wind turbines, antennas and so on;
*Low torque, low noise, wide range of applications, can meet the requirements of various industries, and can
be customized according to customer needs Compact structure and smooth
Specification:
Product name: Conductive slip ring
Item model number: MW1230
Number of rings: 2
Rated current per ring (A): 30

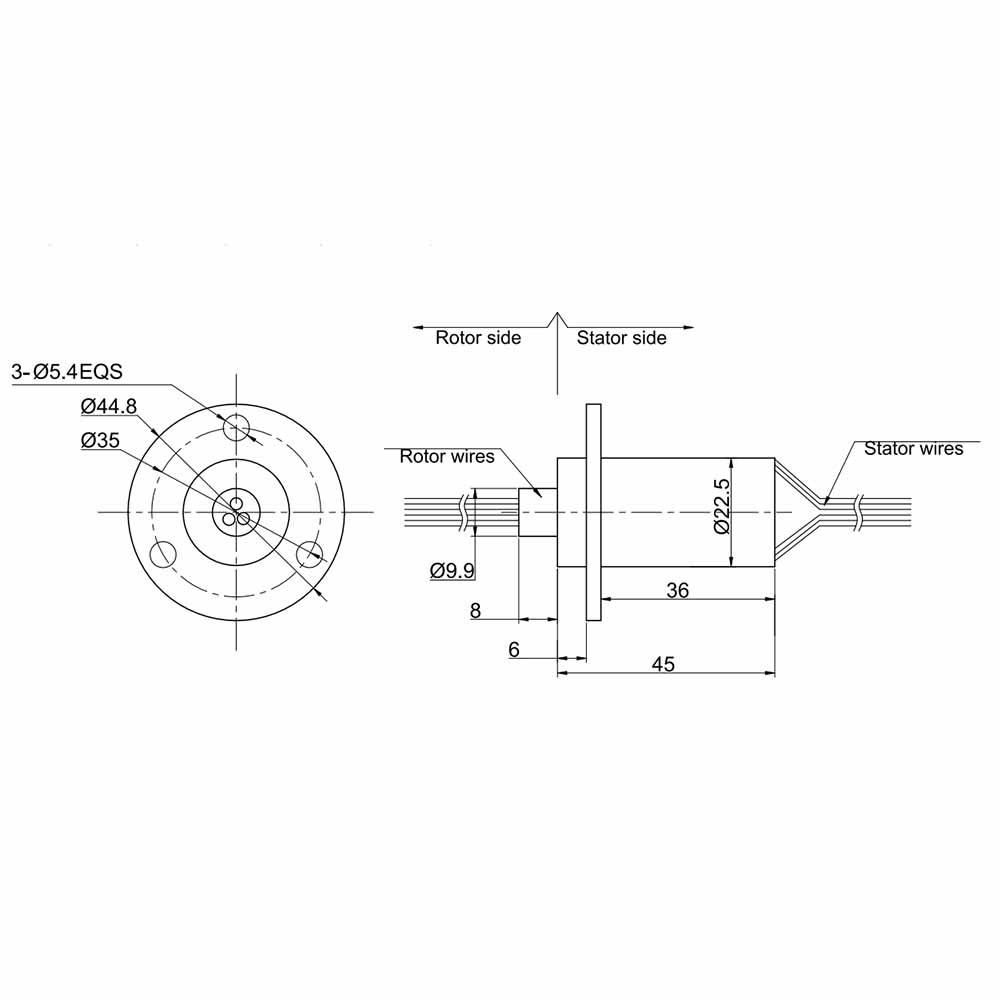

Outer diameter (mm): 22
Length (mm): 45
Working life: 10 million revolutions
Rated speed: 150RPM
Working temperature: -30℃~80℃
Working humidity: 0~85% RH
Contact material: precious metal
Shell material: engineering plastic
Rotating torque: 0.1N m; +0.03N m/6 circuits
Protection class: IP51
Rated voltage: 0~380VAC/VDC
Insulation resistance: ≥1000MΩ/500VDC
Wire size: 10A=AWG#17; 20A=AWG#14; 30A=AWG#12;
Wire length: standard length 300mm
Dielectric strength: 500VAC@50Hz, 60s
Dynamic resistance change value: <0.01Ω
Packing list:
1* conductive slip ring
