SG-3T 3Inch Diversion Magnetic Circuit Design Tweeter Speaker Accessories

Features:

Class A magnetic circuit, diversion magnetic circuit design, effectively guarantee long-term stable operation of high power.

Good sound quality, true fever level tweeter.

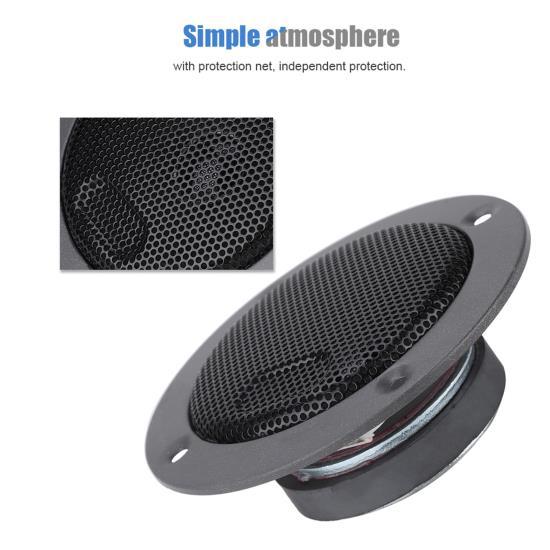

Simple style, with protection net, independent protection, can prevent the loudspeaker from receiving damage.

Thickened iron basin frame, fiber pulp high temperature forming basin, ultra-light foam edge, sound quality and transparent, sound field wide and thick.

Two layers 25-core ASV pure copper voice coil, high temperature resistance, fast heat dissipation.

Specifications:

Material: Iron

Size: Approx. 10.5 x 10.5 x 4cm/4.13 x 4.13 x 1.57inch

Diagonal screw distance: 90mm/3.54inch

Mounting hole size: 78mm/3.07inch

Diameter: 108mm/4.25inch

Impedance: 8ohms

Sensitivity: 90dB

Rated power: 15W

Power: 30W Maximum

Frequency range: 2k-20kHz

Voice coil dia: 14mm

Package list:

1 x 3Inch Tweeter

Note:

Please check the size confirmation to apply, then buy.
