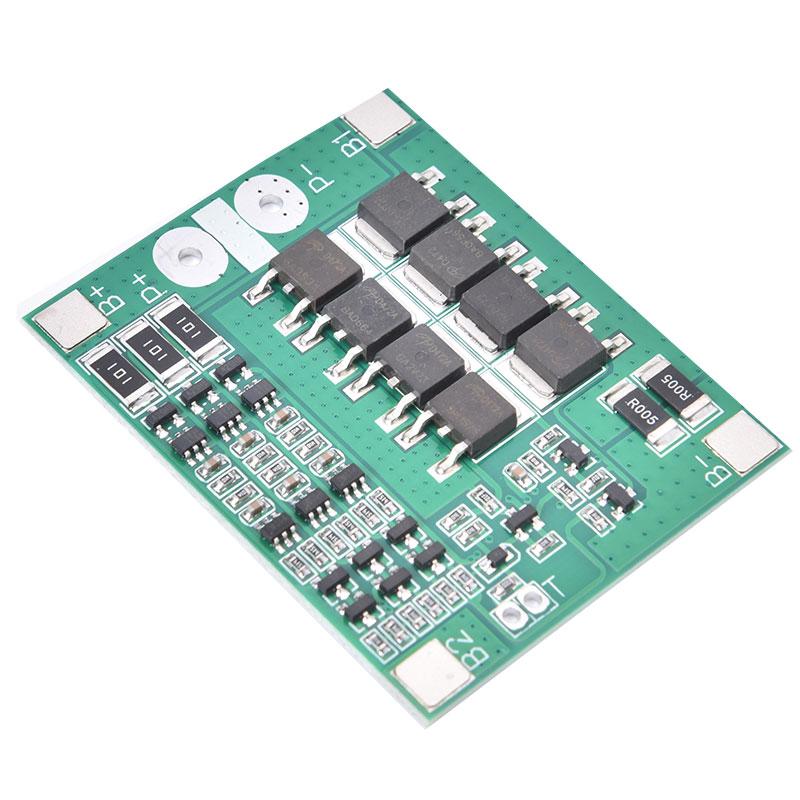

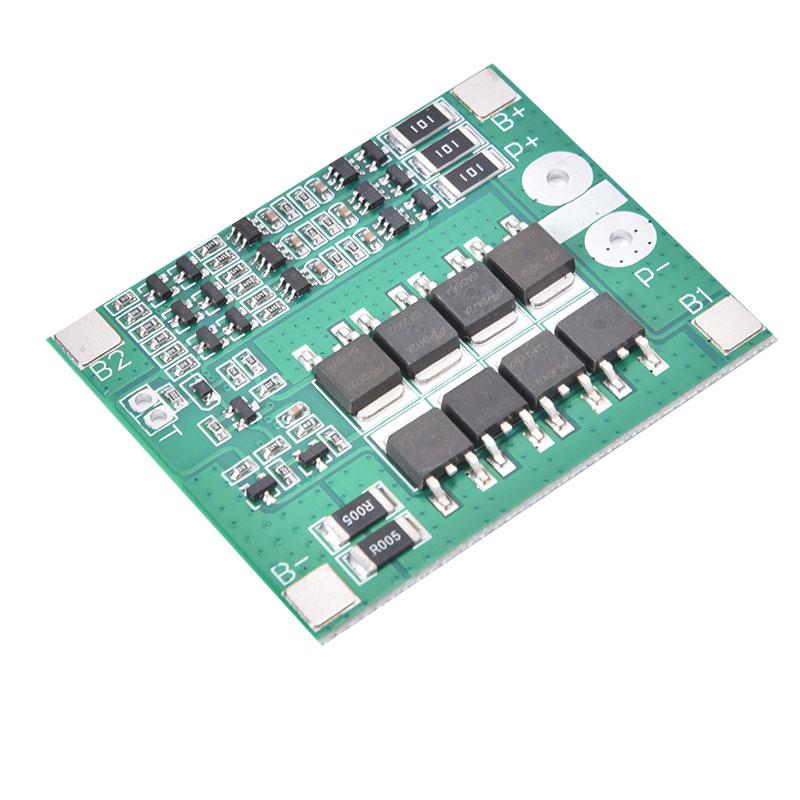

25A 12V Battery Pcm Charger Battery Bms Protection Circuit Board With Balan

Features: 1) high-accuracy voltage detection circuit; 2) terminal of the charger using high voltage device; 3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit); 4) MOS transistor can control the battery charge and discharge; 5) low standby current consumption.

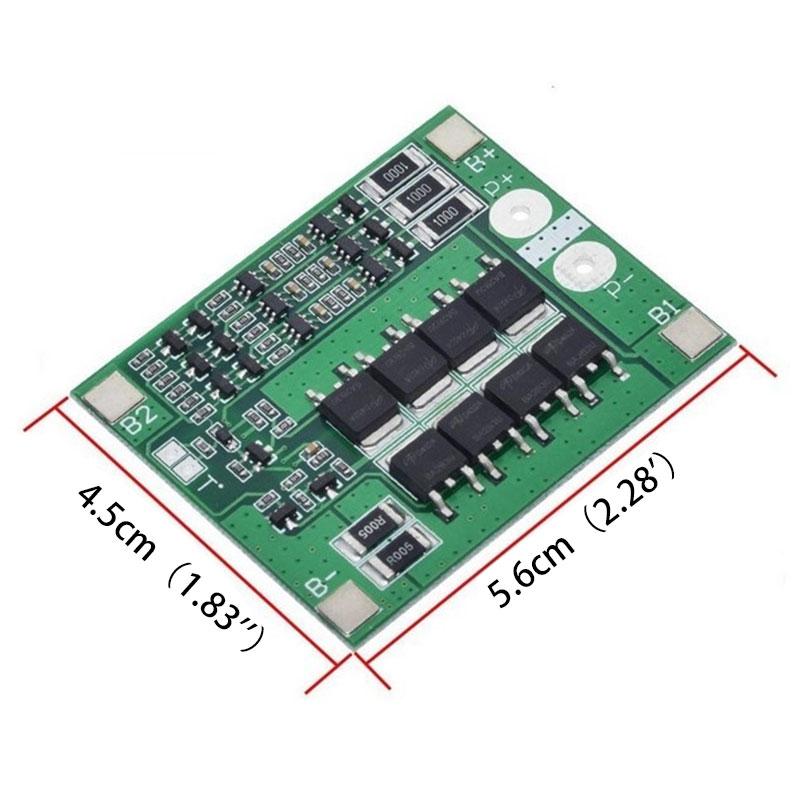

Description: 100% brand new and high quality Over Charge voltage:4.25-4.35v±0.05v Over Discharge voltage: 2.3-3.0v±0.05v Max Working current:25A Max peak current:35-40A Working temperature:-40---+50 Storage Temperature:-40-- +80 Small current:50uA Life cycle:more then 30000 hours Resistance:Less than 100mΩ Short Cut:Protectable,Charge can repair Size:56*45*4.0mm

Package include: 1 pcs battery protection board

Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3cm measuring deviation due to manual mearement. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
