C-Band LNBF Single Output

Description:

- Dual Polarity Switchable

- Super low Noise

- Digital Ready

- High Gain Output

- East Installation WeatherProof

Specification:

- Input Frequency Range 3.40～4.20GHz

- L.O. Phase Noise -70dBc/Hz@10KHz -90dBc/Hz@100KHz -110dBc/Hz@1MHz

- Output Frequency Range 950-1750MHz

- Image Rejection 40dB(Min.)

- Noise Figure 15°K(Typ.)

- Output VSWR 2.5:1(Max.)

- Conversion Gain 65dB(Typ.)

- Output Power 0dBm (Min.)(at 1dB gain compression)

- Gain Flatness ±1dB(36MHz)

- Connector Type 75Ω Female Connector

- Cross POL. Isolation 20dB(Typ.)

- DC Current Consumption 110mA(Max.)

- L.O. Frequency 5.150GHz

- F/D Ratio 0.28～0.42 (Adjustable)

- L.O. Frequency Stability ±1.0MHz(Max.)@+25℃ ±2.0MHz(Max.)@-30℃～+70℃

- Input Reflector Type Prime focus

- Operating Temperature -30℃~+70℃

- POL. Switching Voltage 10.5~14.0V@VP 16.0~20.0V@HP

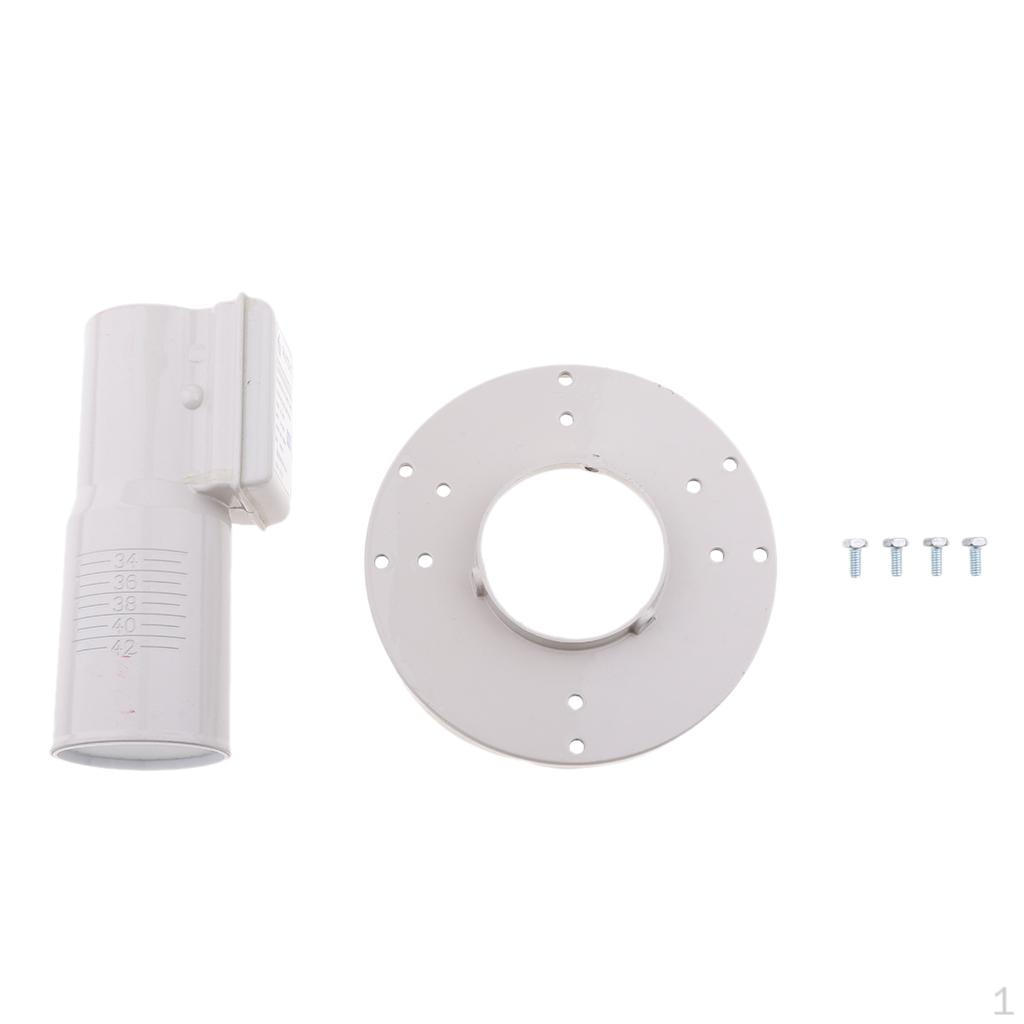

Package Includes: 1 Piece C-Band DUAL POLARITY LNBF 1 Piece chassis 1 Pack screws
